Yamaha MD4
| Name | MD4 |
|---|---|
| Manufacturer | Yamaha |
| Released | 1995/06 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 376W×72.3H×364D mm |
| Weight | 4800 |
| ATRAC ver | 2 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | |
| Power cable | |
| Price (launch) | |
| ¥99 800 | |
| - | |
| Inputs | 1/4 inch microphone |
| Outputs | 1/4 inch headphone |
| Control |
Yamaha MD4 - The world's first 4-track MD recorder to be released. The MD DATA disc (described later) is used as the recording medium, enabling 4-track high-quality digital recording. The recording/playback time is 37 minutes for 4 tracks, 74 minutes for 2 tracks, and 148 minutes for monaural, and playback of music MD is also possible.

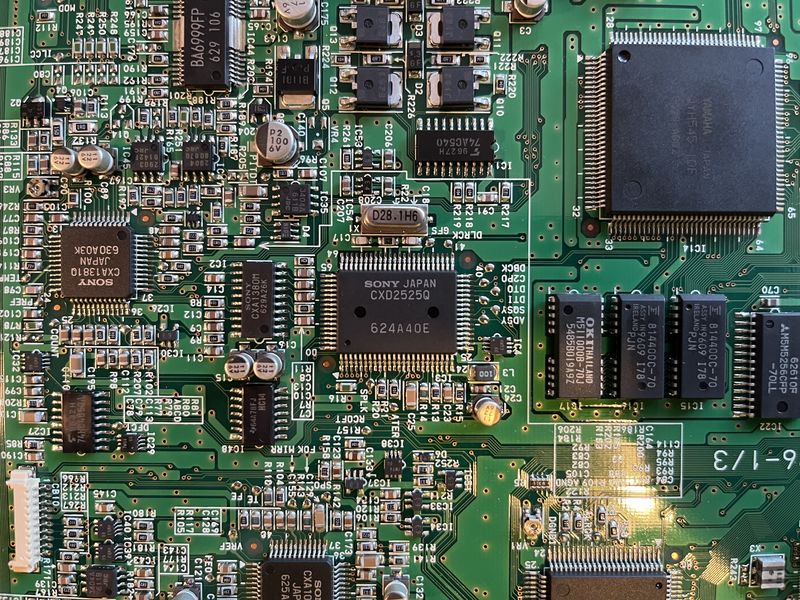

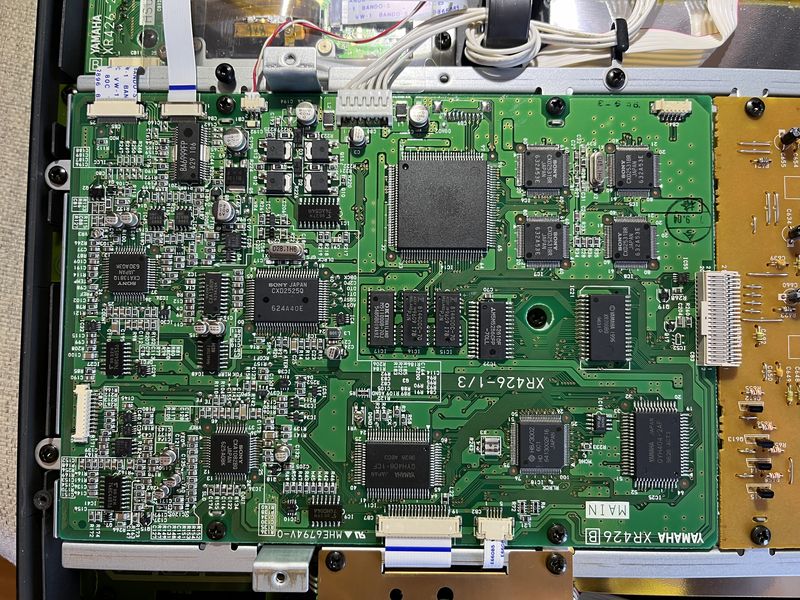

Chipset: Sony CXD2531BR

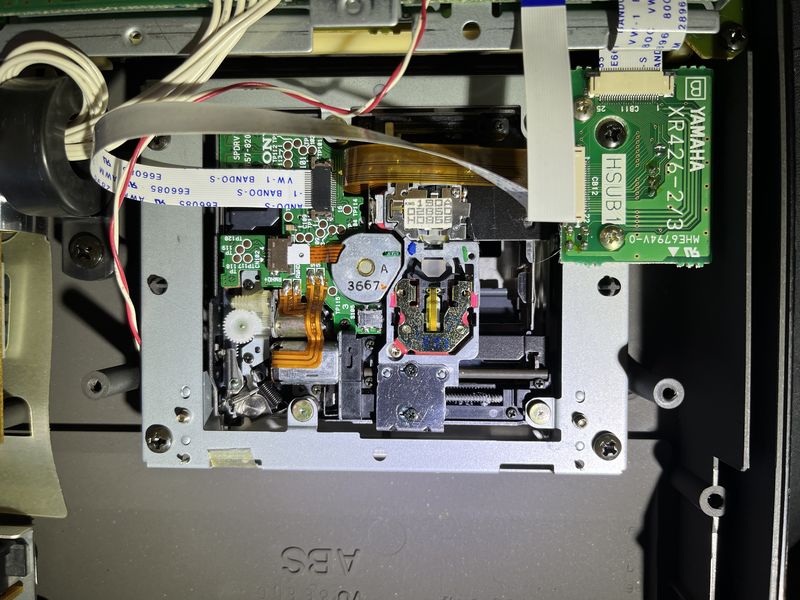

Optical pickup: KMS190A
Content adapted from: Yamaha Press Release [*] Yamaha Press Release (MiniDisc Wiki mirror) [*] minidisc.org "The Mix" review [*] Yamaha product page [*]
Manuals
Yamaha MD4 Owners Manual
Yamaha MD4 Frequently Asked Questions and Answers
Yamaha MD4 Service Manual
Repair
MD ERROR CODES
- Error Code Description
- Disc Error 01 Recording Re-try Failure
- Disc Error 02 Recording Data Overflow
- Disc Error 03 PLAY Data Lack (to indicate data overflow during Recording)
- Disc Error 10 Address Inconsistency during Recording
- Disc Error 80 or 08 The magnetic head didn't drop into position.
- Error 01 Sled (or laser unit) didn't move to the inside position.
- Error 02 Sled didn't move to the outside position.
- Error 04 The magnetic head didn't raise off of the disk.
- Error 05 Spindle Error
- Error 06 Focus Error
- Error 07 Tracking Error
- Error 08 The magnetic head does not search

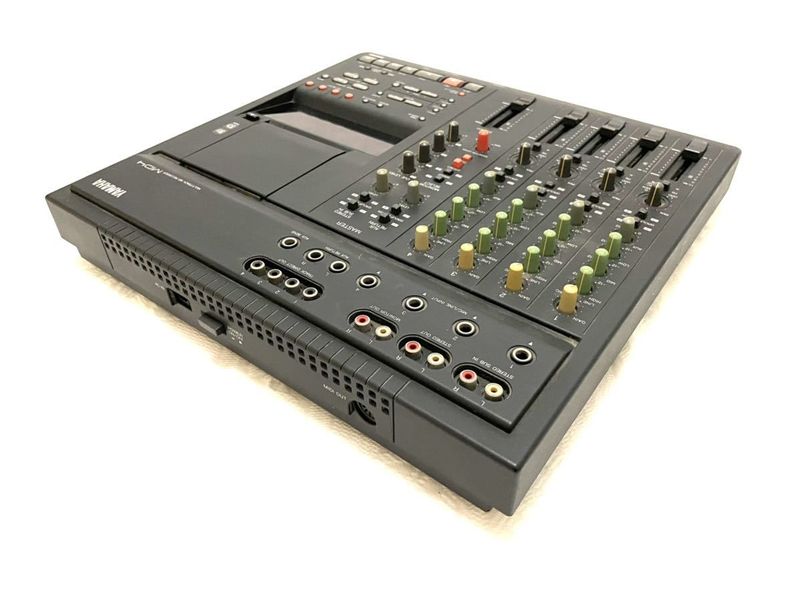

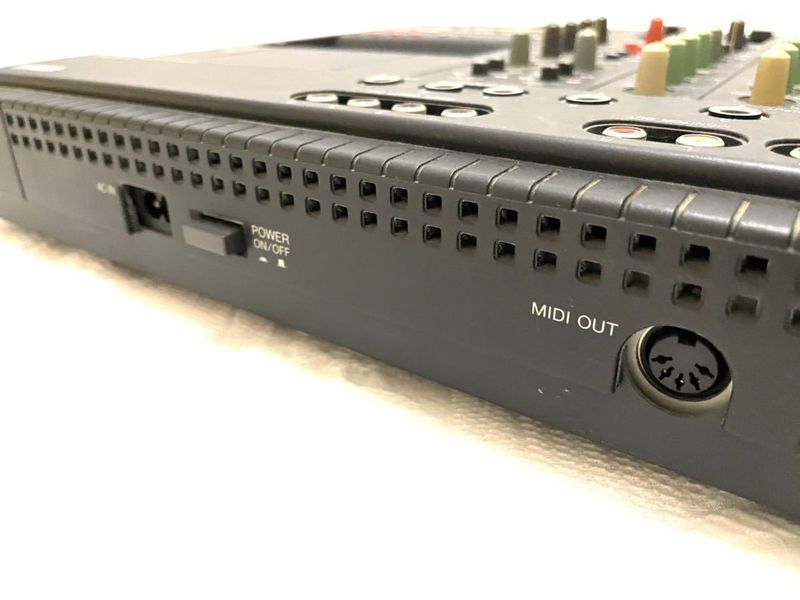

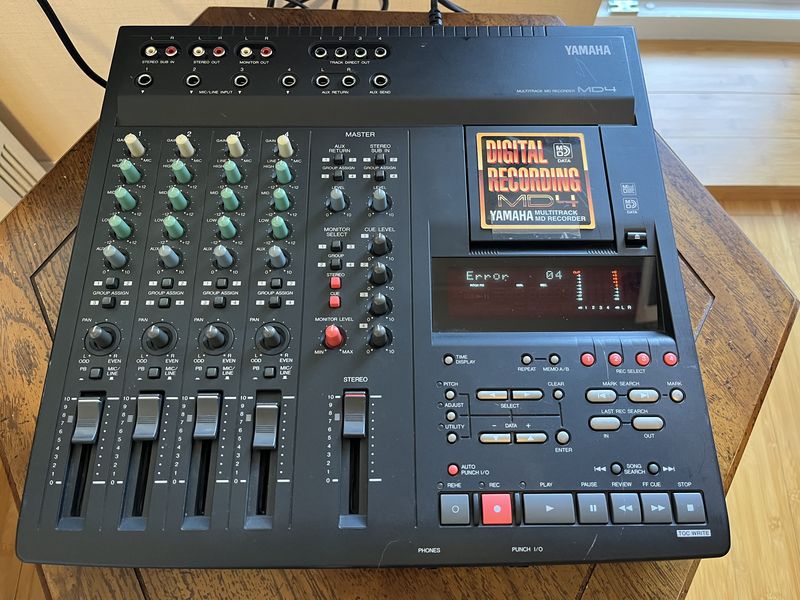

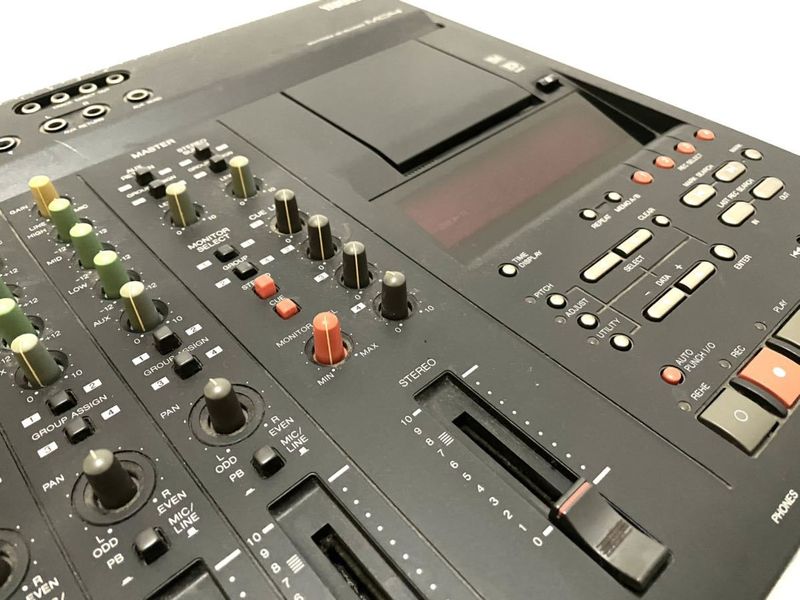

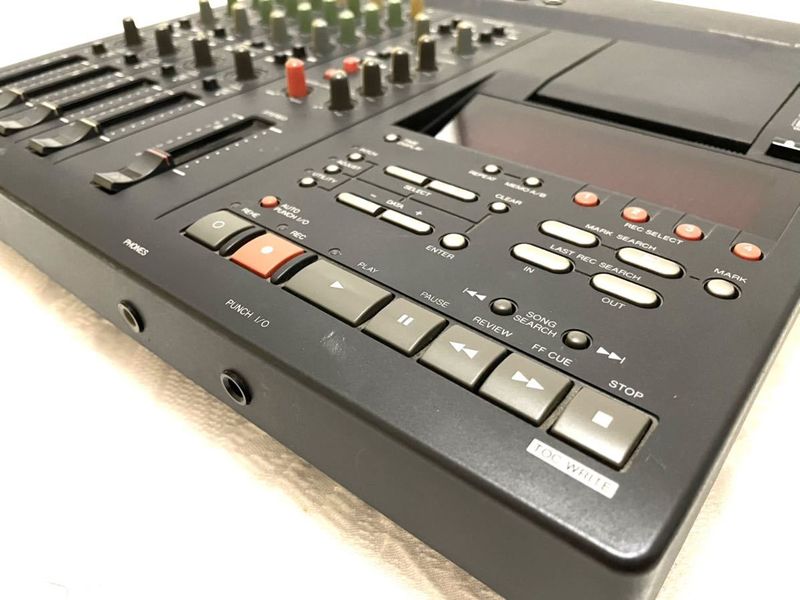

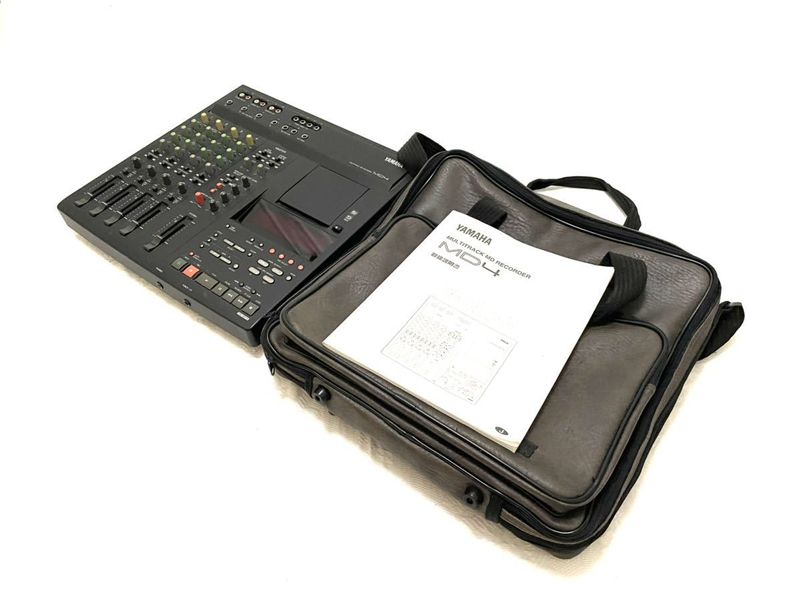

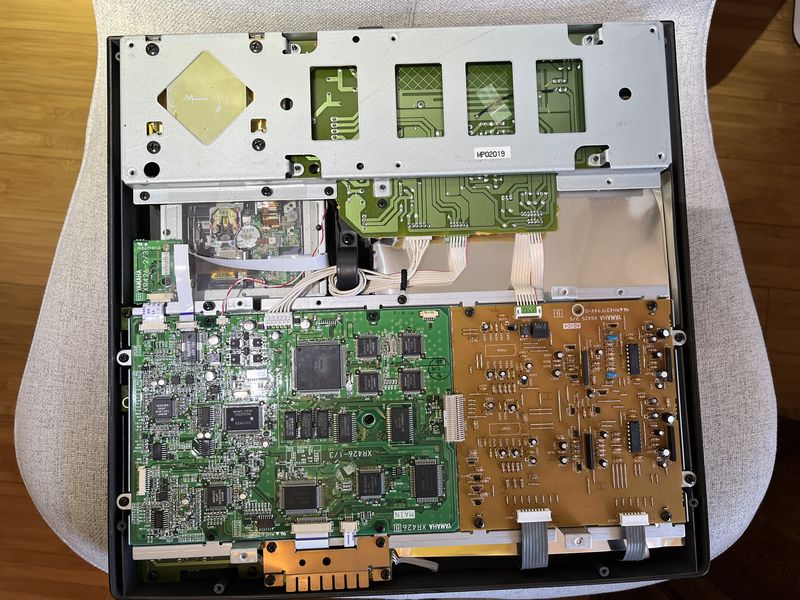

Photos
