Yamaha MDX-E300
| Name | MDX-E300 |
|---|---|
| Manufacturer | Yamaha |
| Released | 2002/06 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 217 x 88 x 297mm |
| Weight | 2.6Kg |
| ATRAC ver | Sharp 8 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100, 230 |
| Power cable | AC |
| Price (launch) | |
| ¥47 250 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | Remote (Sharp) |
Features: MDLP unit that integrates with Yamaha's MCR-E300 [*] Yamaha's MCR-E300 (MiniDisc Wiki mirror) [*] “PianoCraft” line via Yamaha one line inter block link connector 3.5mm mono jack.
• Digital de-emphasis for 32, 44.1 and 48 kHz
Used latest Sharp Atrac 8.3
Drive: MDM-08A
DAC / ADC: UDA1345TS
ADC S/N signal-to-noise: 96dB
DAC signal-to-noise: 100dB
Specs: Freq Resp. 5-20kHz +/- 0.5dB.
SNR: 99dB.
Digital rec level: Min. +12dB.
ATRAC Chip: LR37816A
MD Mech: MDM-08A)
Optical Pickup: Yamaha part# AAX17200 (probably a rebranded unit from sharp or sony)
Content adapted from: Minidisc.org Page [*] Yamaha Product Page [*] Yamaha Product Page (MiniDisc Wiki mirror) [*]
Manuals
MDX-E300 User Manual
MDX-E300 Service Manual
Repair
(repair links go here)

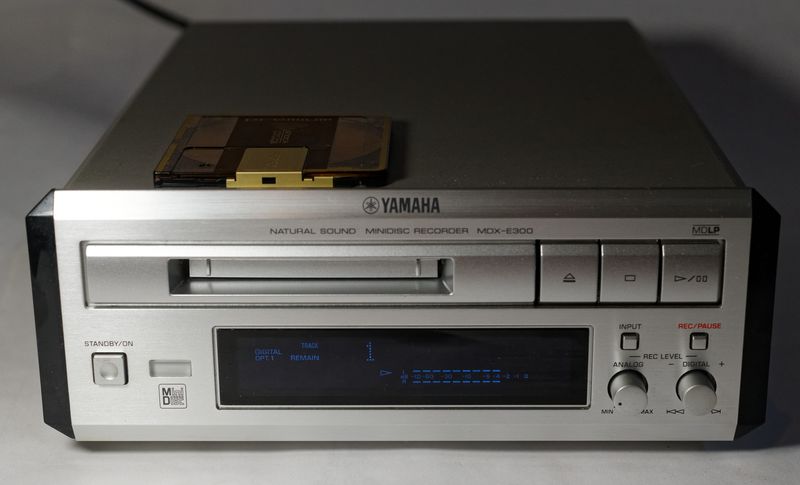

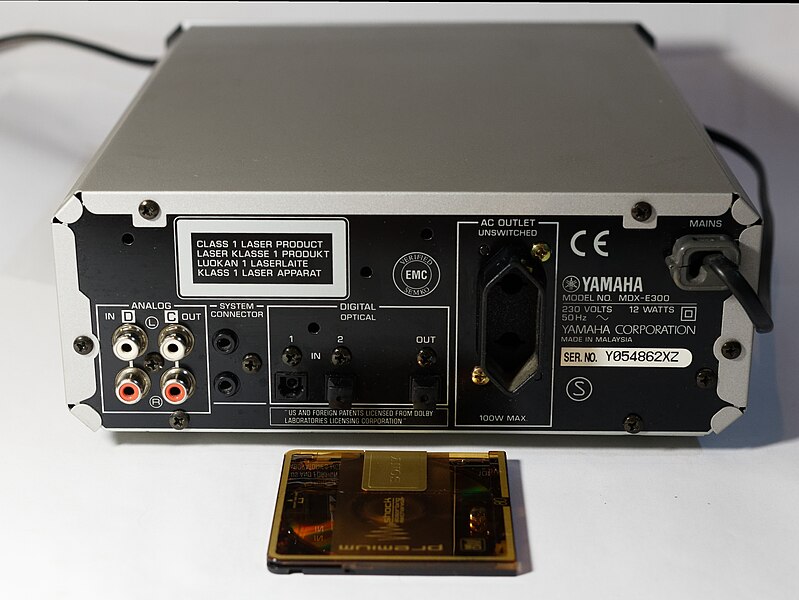

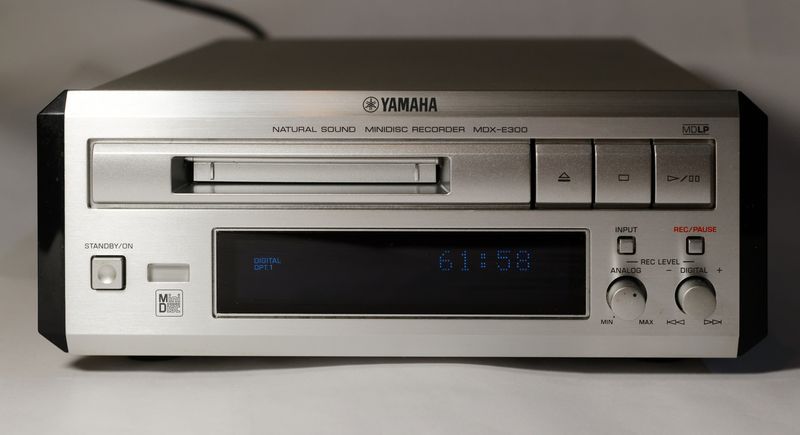

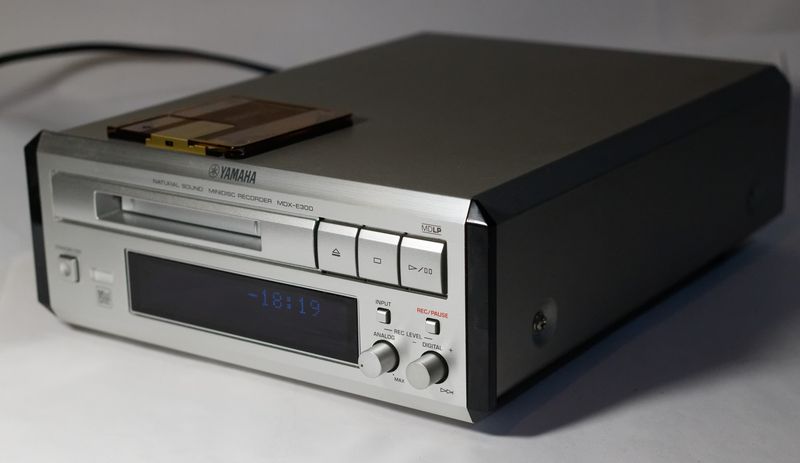

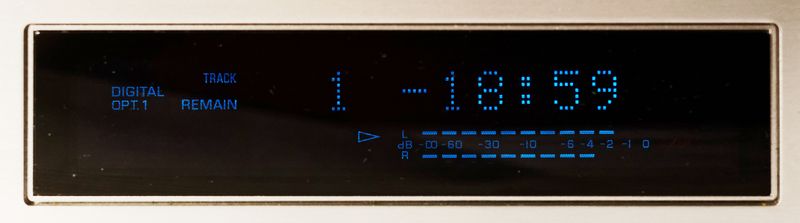

Photos
