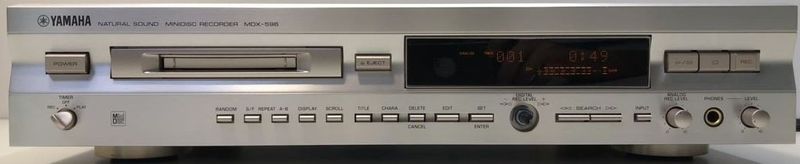

Yamaha MDX-596
| Name | MDX-596 |
|---|---|
| Manufacturer | Yamaha |
| Released | 2000/06 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 435w x 96h x 288d mm |
| Weight | 4.1Kg |
| ATRAC ver | Sharp 6 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100, 100-110, 120, 230 |
| Power cable | AC |
| Price (launch) | |
| - | |

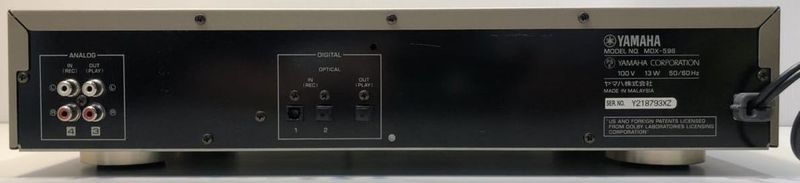

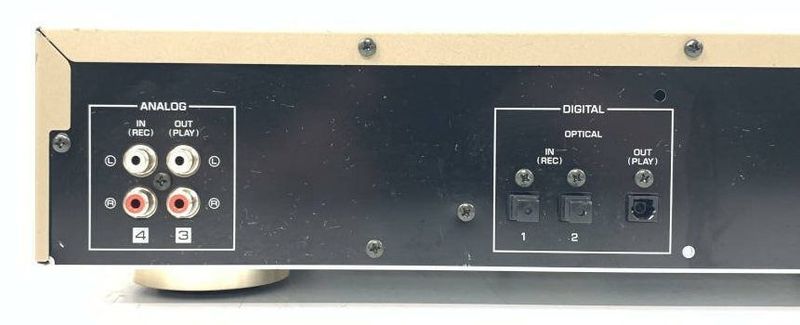

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control |
Features:
- “Time rescue recording” (aka time machine recording?)
- Syncho start recording

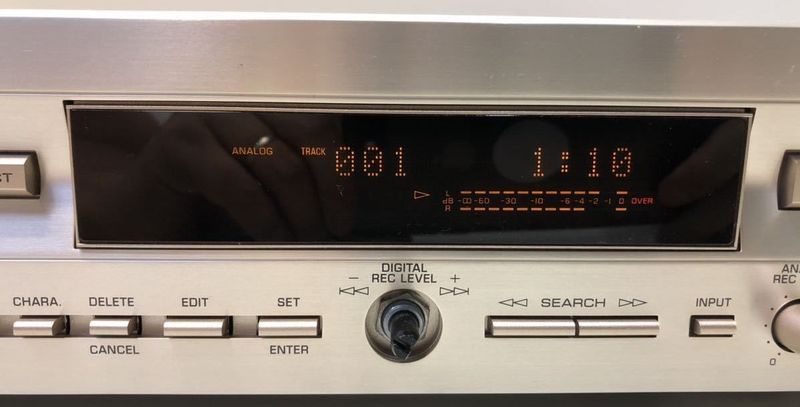

- 12 letter dot matrix display.

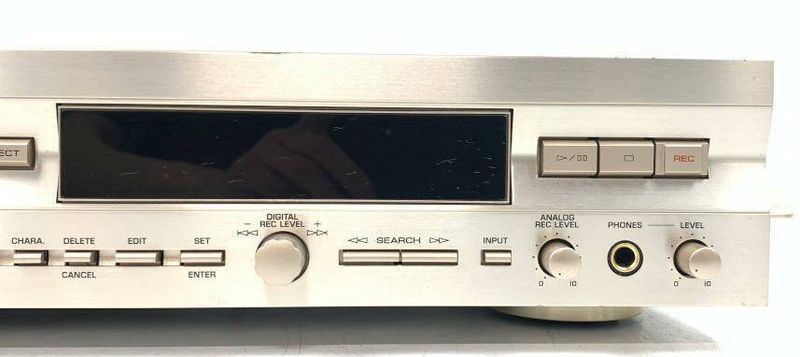

- Digital and analog recording level control
- 30 track program play
- wireless remote

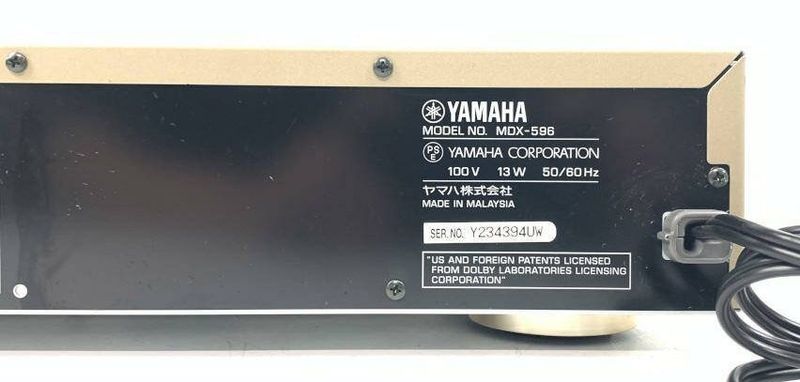

Power supply info:
- Australian model AC 240 V, 50 Hz
- EU + UK models AC 230 V, 50 Hz
- R (general) models AC 110/120/220/240 V, 50/60 Hz
ATRAC IC: LR37814 Drive: MDM-7A
Content adapted from: Minidisc.org Page [*]
Manuals
Yamaha MDX-596 User Manual
Yamaha MDX-596 Service Manual
Repair
(repair links go here)

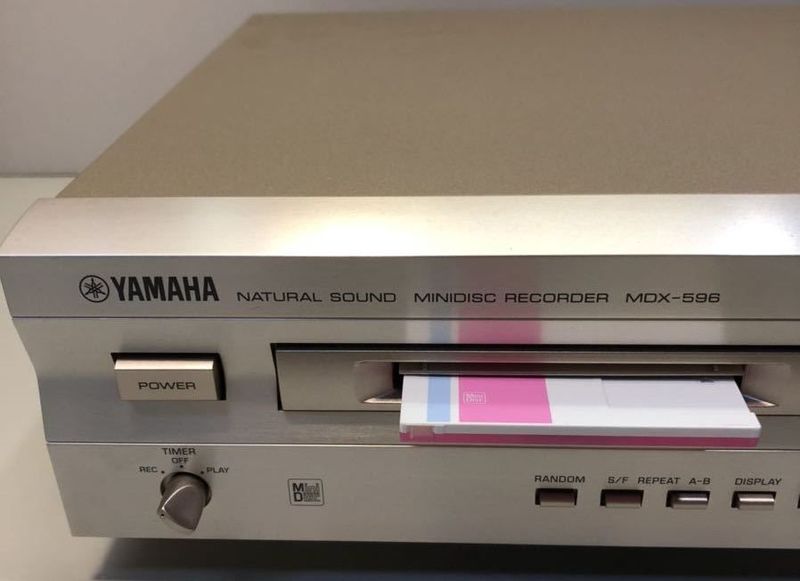

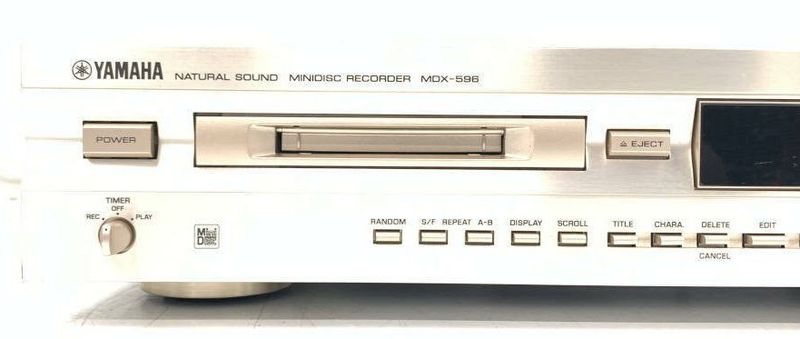

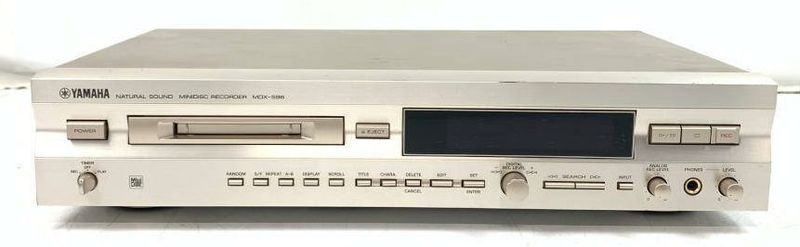

Photos
