Yamaha MDX-595 / MDX-793
| Name | MDX-595 / MDX-793 |
|---|---|
| Manufacturer | Yamaha |
| Released | 1998/06 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 435 x 96 x 288 mm |
| Weight | 4.1kg |
| ATRAC ver | Sharp 6 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | $699 |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | RCA out, Digital optical (TOSLINK), Digital coaxial |
| Control |
Yamaha MDX-595 and MDX-793 - two different Yamaha decks
MDX-793
DA / AD - АК4520A., drive MDM-97B, ATRAC DSP LR37648 (Sharp 6).
MDX-595
DA / AD - UDA1344, drive MDM-98A, ATRAC DSP LR376484 (Sharp 6).
Content adapted from: MiniDisc.org page [*]
Manuals
MDX-595 user manual
MDX-793 user manual
MXD-595 service manual
Repair

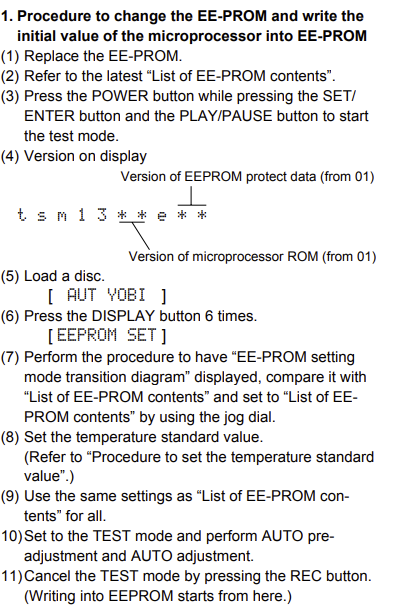

If the unit has not been turned on for a long time then the EEPROM may have been lost. The settings can be restored by following the directions on page 15 of the service manual

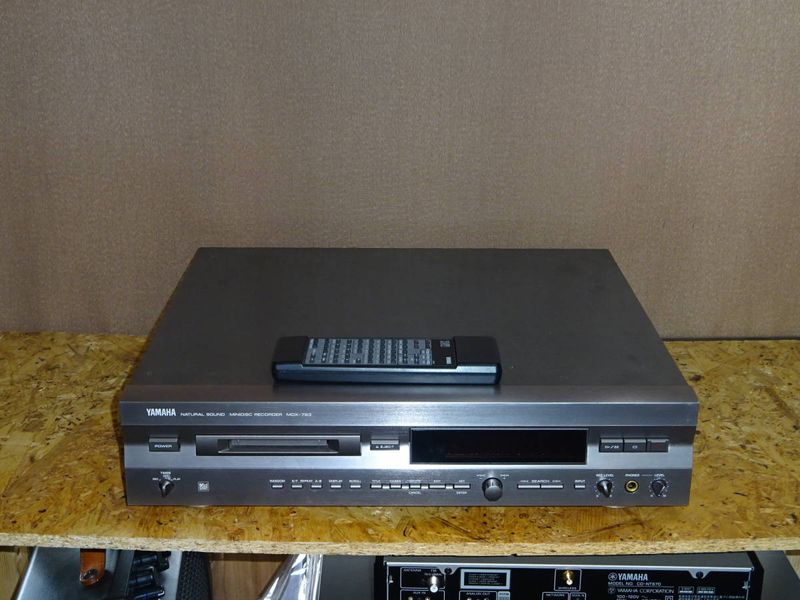

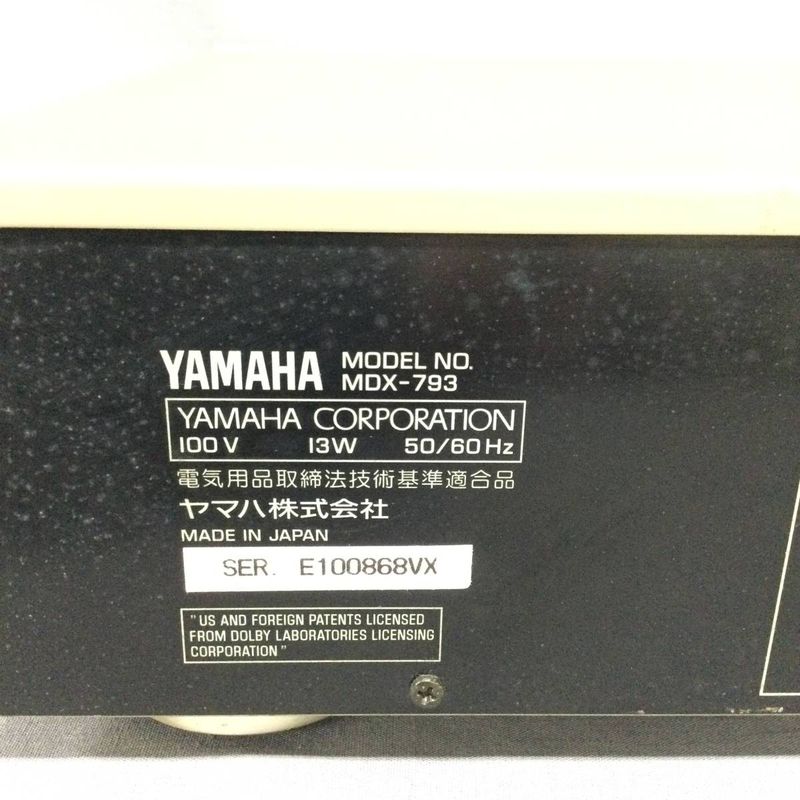

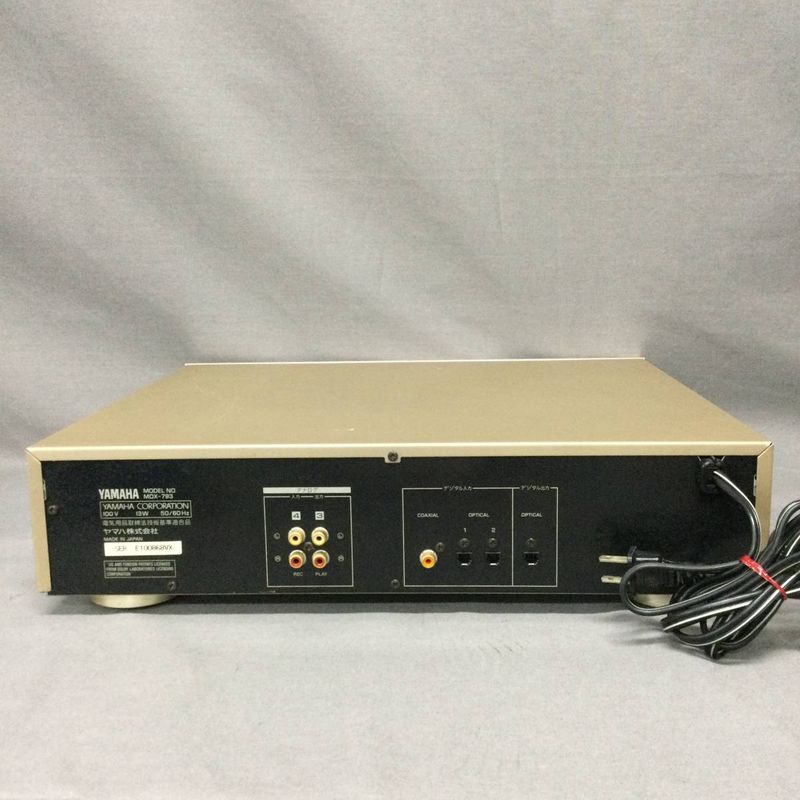

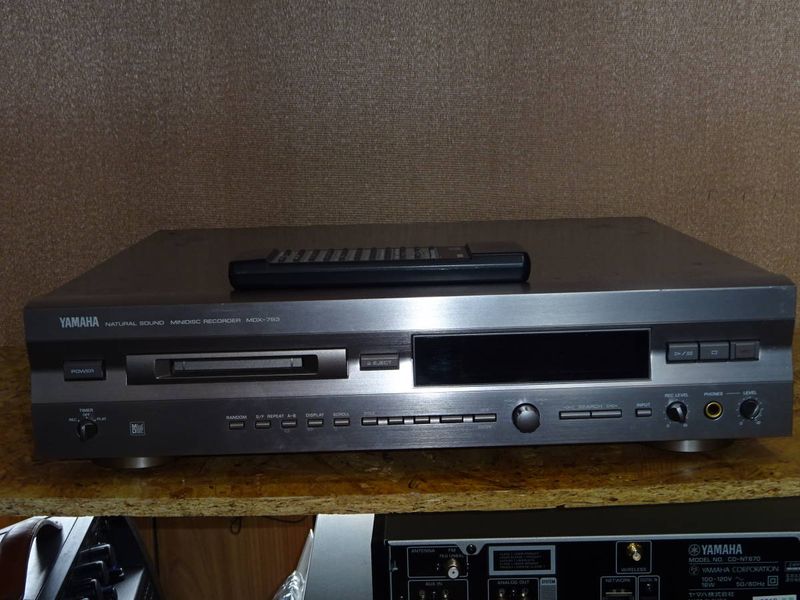

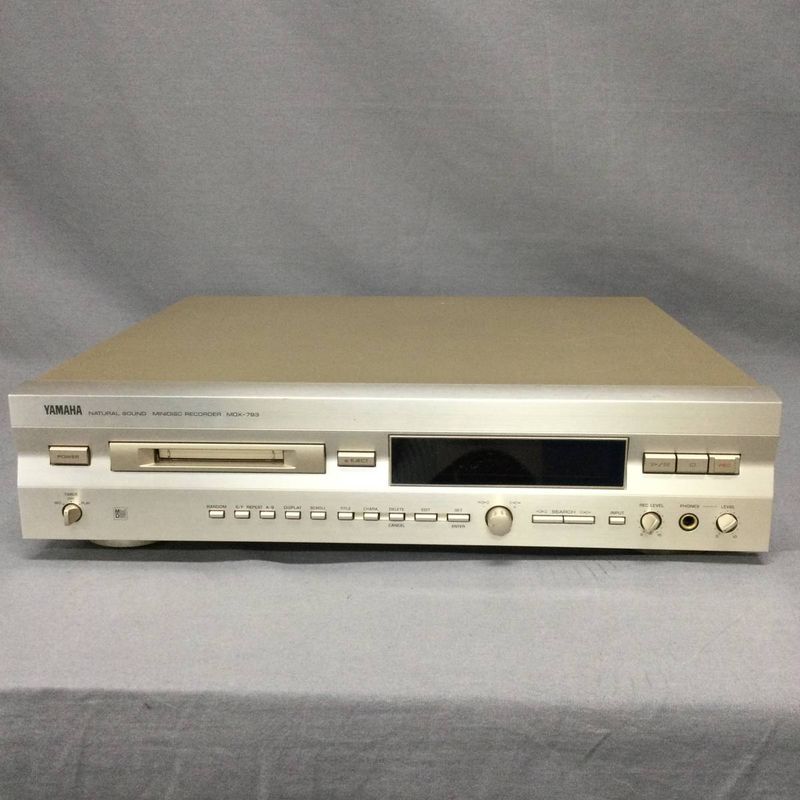

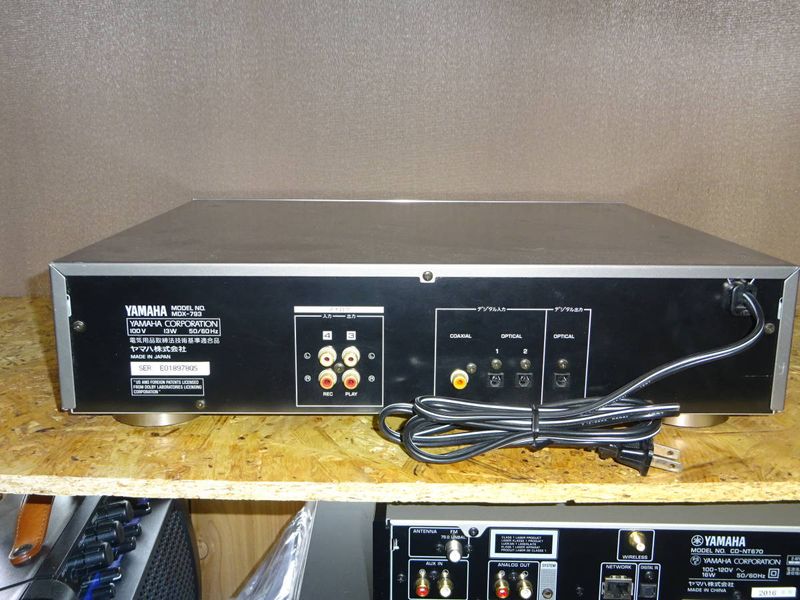

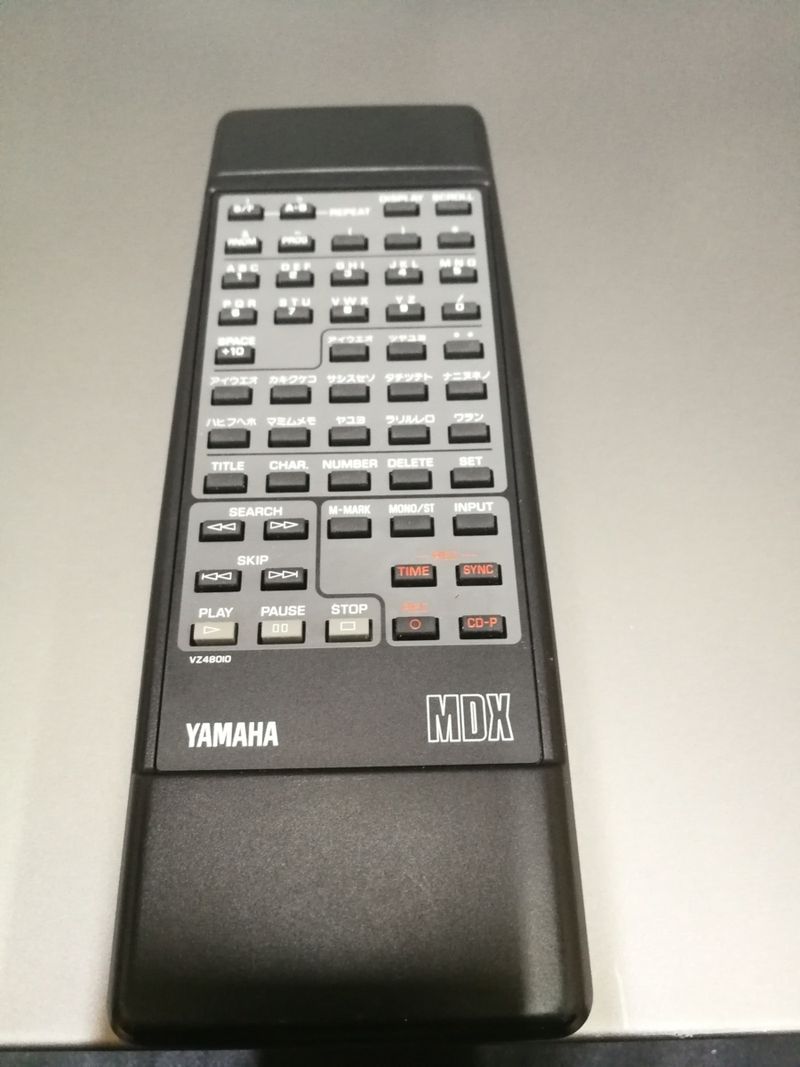

Photos
