JVC XM-D88
| Name | XM-D88 |
|---|---|
| Manufacturer | JVC |
| Released | 1997/01 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 141 x 129 x 260 mm |
| Weight | 2700 |
| ATRAC ver | 3 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| - | |
| Inputs | |
| Outputs | |
| Control |
JVC XM-D88 / XM-D88GD
- Type: Minidisc Player/Recorder
- Track System: 2-channel stereo
- Sampling Frequency: 44.1kHz
- Optical Pickup:
- Frequency Response: 20Hz to 20kHz
- D/A Converter:
- A/D Converter:
- Signal to Noise Ratio:
- Dynamic Range:
- Channel Separation:
- Distortion:
- Analogue Inputs: 500mV (line)
- Analogue Outputs: 0.5V (line)
- Digital Inputs: optical
- Digital Outputs:

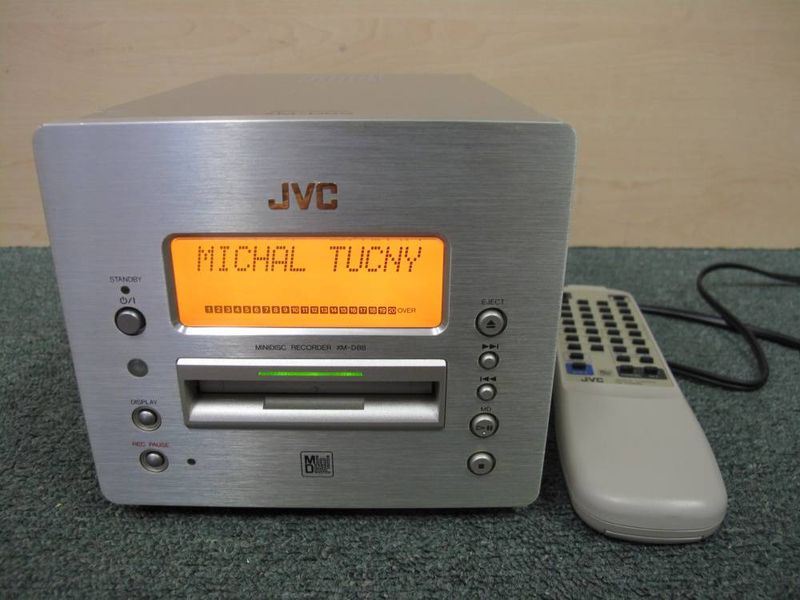

- Accessories: RM-RXMD88 remote control
- Dimensions: 141 x 129 x 260 mm
- Weight: 2.7 kg
- Year: 1997
When controlling volume via remote the amplifiers (JVC UX7000R) volume knob will turn by itself to reflect the volume change. See video below for demonstration.
Optical Pick-up: KMS-194 / KMS-260A (the service manuals lists both p.60 & p.89)
ATRAC IC: CXD2536CR
Content adapted from: hifi engine [*]
Manuals
JVC XM-D88GD Service Manual
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Video
Demonstration of remote volume knob adjustment:
9Nzqm653C4k
