JVC KW-SH505
| Name | KW-SH505 |
|---|---|
| Manufacturer | JVC |
| Released | 2004/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din W 178 x H 100 x D 169mm |
| Weight | 2500 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥57 750 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD |
| Outputs | |
| Control |
AKA “Digifine 2.1”
24bit DAC (manufactured by Burr-Brown Corporation)
“Amplifier gain control” and “Built-in amplifier OFF function” that can switch the maximum output of the built-in amplifier in 3 steps according to the allowable input of the speaker.
7 patterns of DSP that can set the sound field with one touch, “time adjustment” that can set the sound field characteristics of the speaker in 3 stages according to the vehicle type, 7 band equalizer that can finely adjust the sound quality, compressed audio BBE that can be played with high sound quality
Supports Japanese display of CD tag information, text information, MD text information, radio station names, etc.
Equipped with a “power flash” that blinks the CD eject button after the engine is stopped.
Built-in MOS-FET 50W x 4ch high power amplifier that allows you to enjoy powerful sound with high efficiency and little distortion.
Content adapted from: JVC Press Release [*] JVC Press Release (MiniDisc Wiki mirror) [*] JVC Product Page [*] Product Page 2 [*] Product Page 2 (MiniDisc Wiki mirror) [*] av.watch [*]

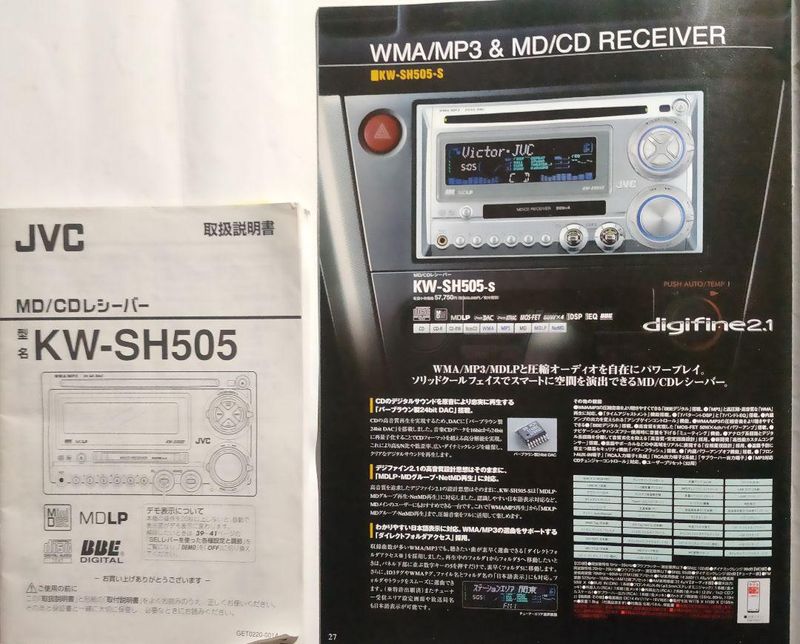

Manuals
Victor KW-SH505 User Manual JP
Installation Instructions
Repair

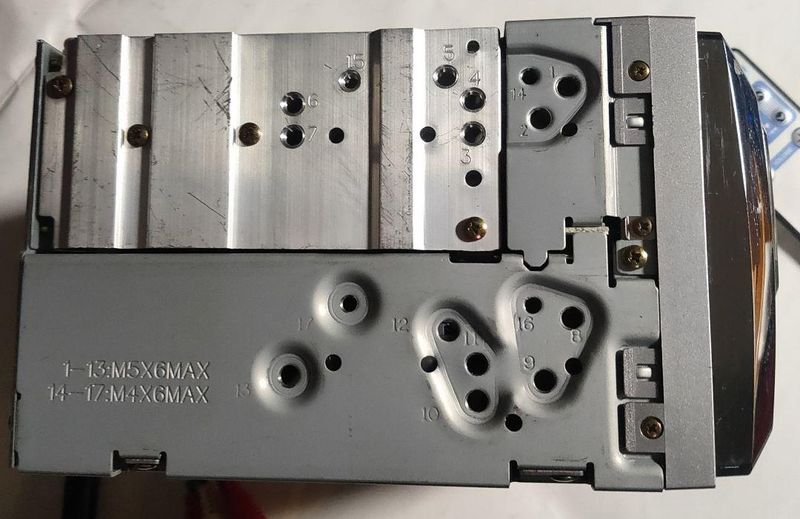

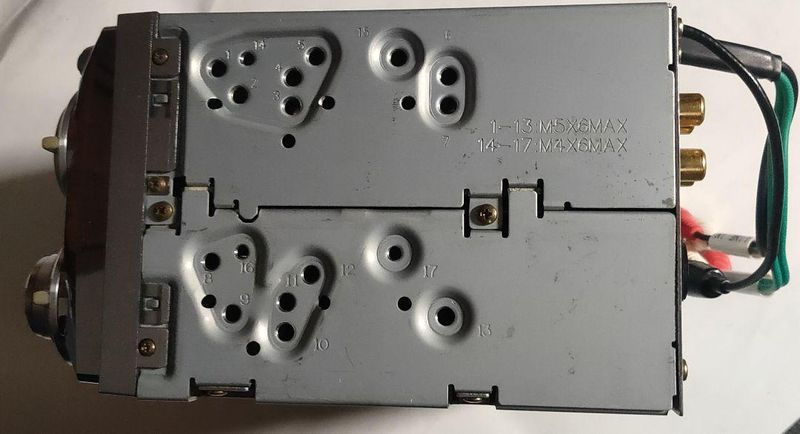

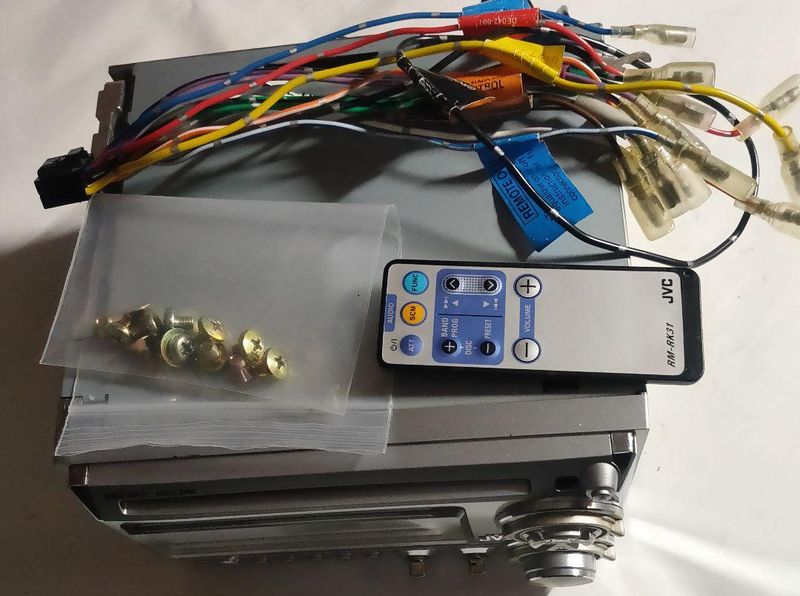

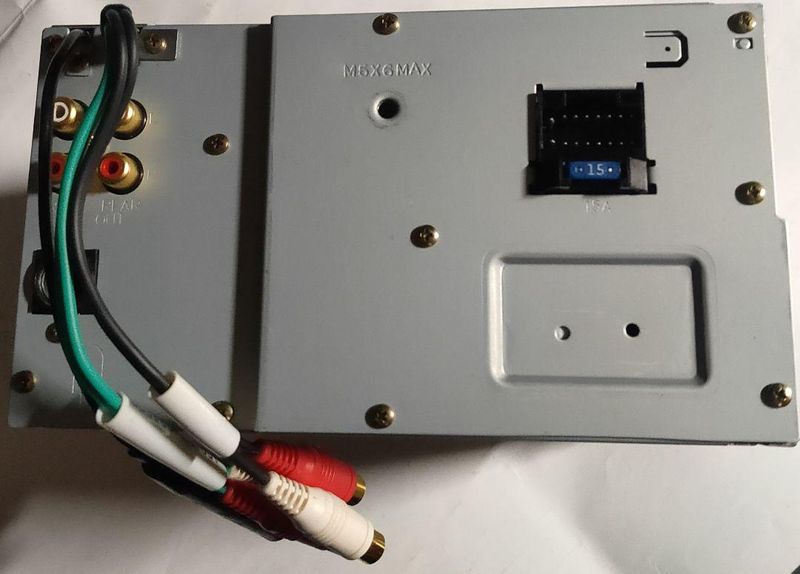

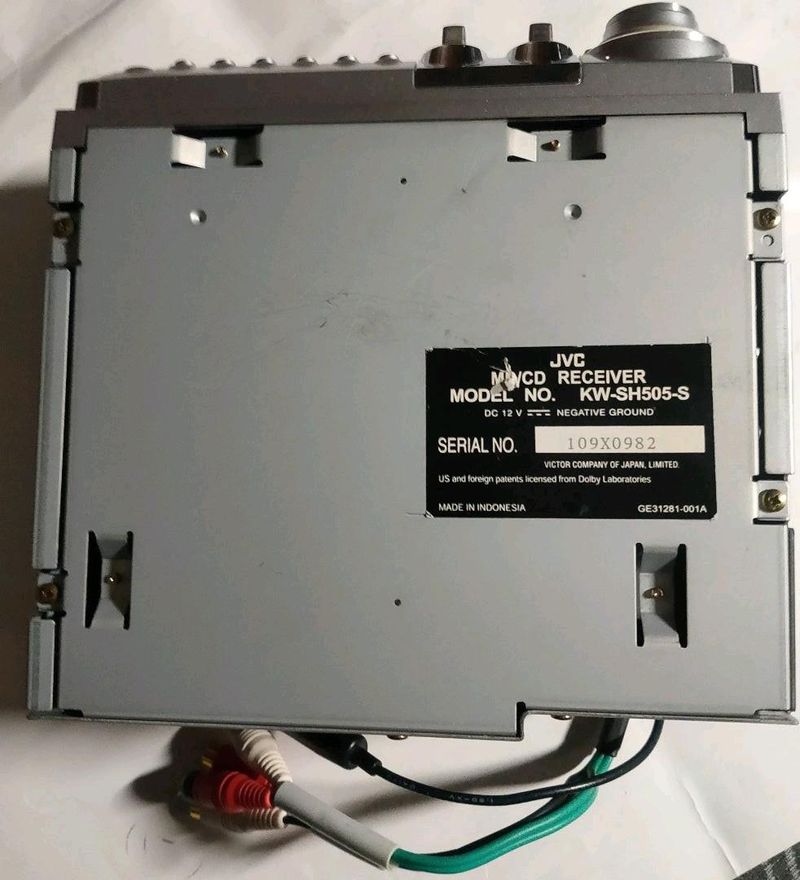

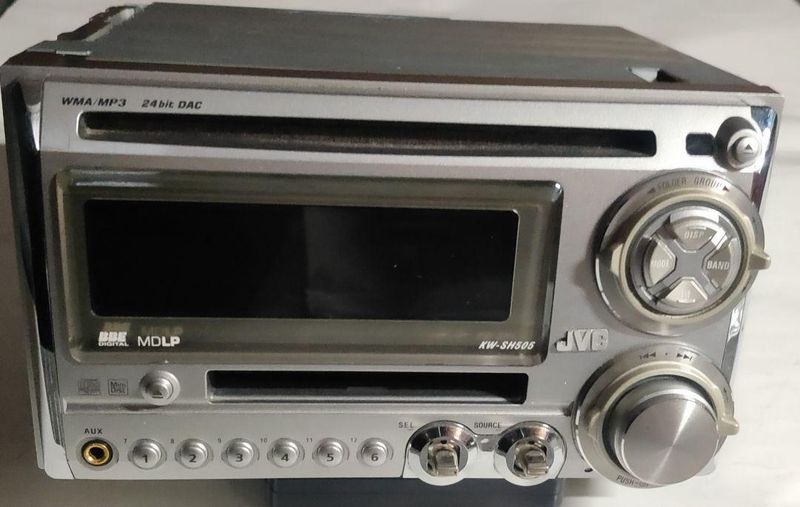

Photos
