JVC KW-MCD400
| Name | KW-MCD400 |
|---|---|
| Manufacturer | JVC |
| Released | 2002/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din (W) 178mm x (H) 100mm x (D) 165mm |
| Weight | 2.6kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥46 500 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD |
| Outputs | |
| Control |

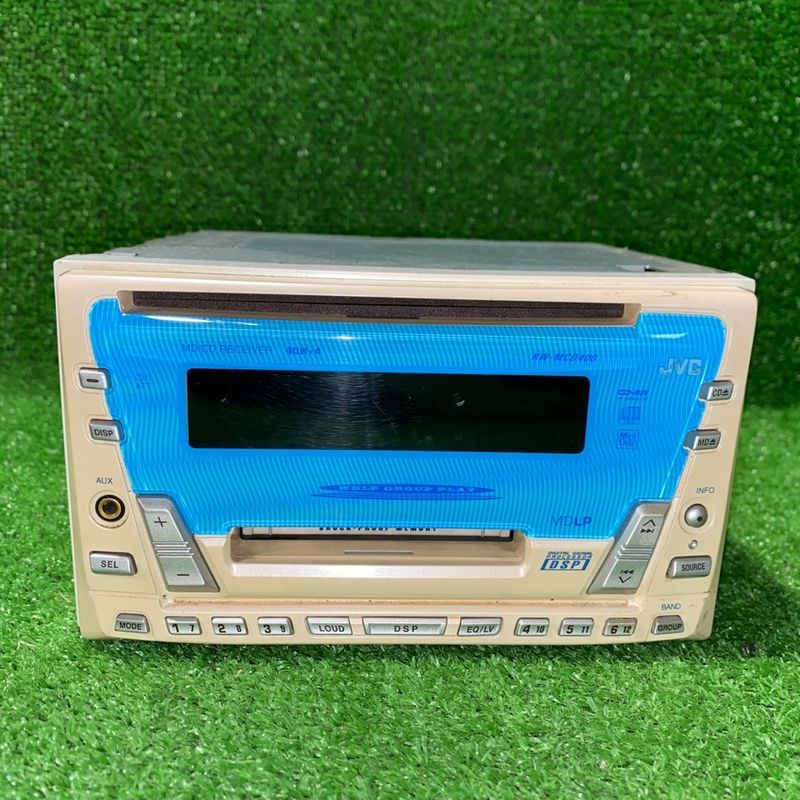

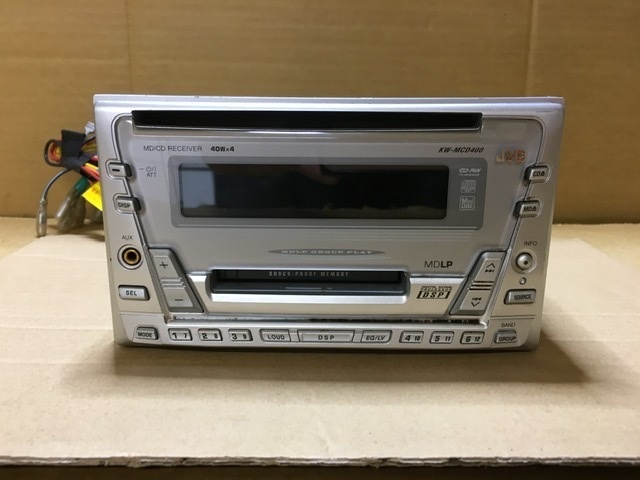

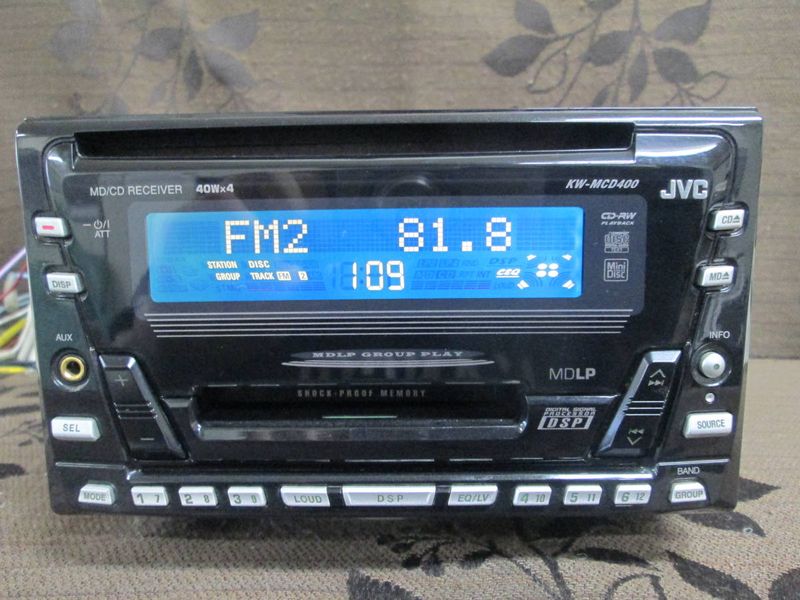

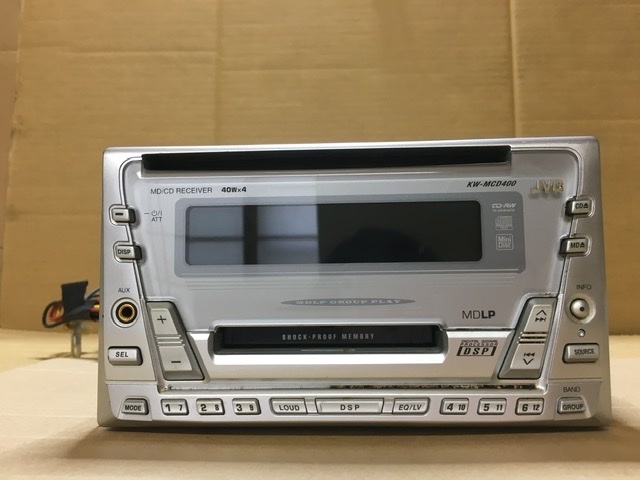

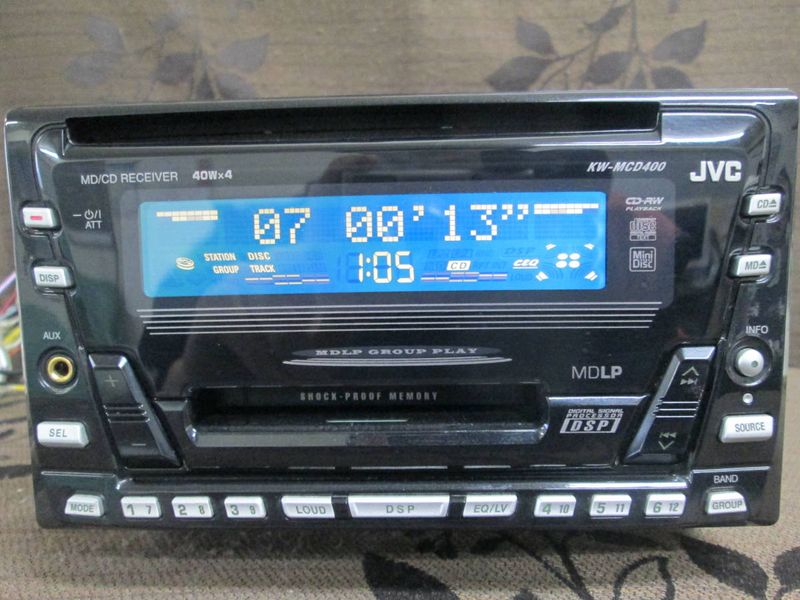

JVC KW-MCD400. Available in -W White, -B Black, -S Silver and somehow Blue as well despite not being mentioned in the press release.
The ATRAC DSP uses a 24-bit one, and the MD section also supports the MDLP group function. It also has a “direct group access function”.
The CD section also supports the display of CD text. The mechanical part adopts a 3-beam laser pickup and a digital servo circuit, and the external input terminal is also equipped with a stereo mini input in the front part.
【Main Specifications】
- CD frequency characteristics: 5Hz to 20,000Hz
- CD part SN ratio: 99dB
- CD section dynamic range: 98dB
- MD frequency characteristics: 20Hz to 20,000Hz
- MD part SN ratio: 93dB
- MD part dynamic range: 92dB
- FM reception frequency: 76MHz to 90MHz (FM12 station preset)
- AM reception frequency: 522kHz to 1,629kHz (AM12 station preset)
- Input / output terminal: Front stereo mini input x 1, BUS input (DIN) x 1
- Maximum output: 40W x 4
Content adapted from: JVC Press Release [*] JVC Press Release (MiniDisc Wiki mirror) [*] av.watch Press Release [*] av.watch Press Release (MiniDisc Wiki mirror) [*] kakaku.com [*]
Manuals
JVC KW-MCD400 User Manual JP
