TASCAM MD-CD1
| Name | MD-CD1 |
|---|---|
| Manufacturer | TASCAM |
| Released | 2005/10 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 2U (483 x 94 x 308mm) |
| Weight | 5.8kg |
| ATRAC ver | Type-R |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | |
| Power cable | AC |
| Price (launch) | |
| ¥99 750 | |
| - | |
| Inputs | RCA in, XLR in, Digital optical (TOSLINK) |
| Outputs | 1/4 inch headphone, RCA out, XLR out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard |
Likely the last device ever added to MiniDisc.org
Features:
- Supports SP, Mono, LP2 and LP4 modes (REC/PLAY).
- Edit function.
- Overwrite function.
- +/-12.5% pitch control.
- Dedicated Digital I/O (optical) and analog I/O (RCA).
- PS/2 Keyboard input for title input and external control.
- 4X speed duplication from CD→ MD.
- MD-CD continuous playback.
- RS-232C serial control.
- 2U rack mountable form factor.
- Wireless IR remote controller.
Note: There are three versions, Mk1, Mk2, Mk3. Mk1,2 are based on a Sony drive and support MD pitch control. Mk3 moves to a different drive (Sanyo?) and MD pitch control is removed (front panel is blanked).
IR Remote: RC-MC1
When dubbing from CD with CD-Text, both track and disc titles are copied.
Content adapted from: Minidisc.org Page [*] Tascam Press Release [*]
Manuals
Mk1
Quick Start Guide
Mk1 Owner's Manual (Rev B)
Service Manual (MD-CD1, LA-MC1), Jan 2005 [No schematics]

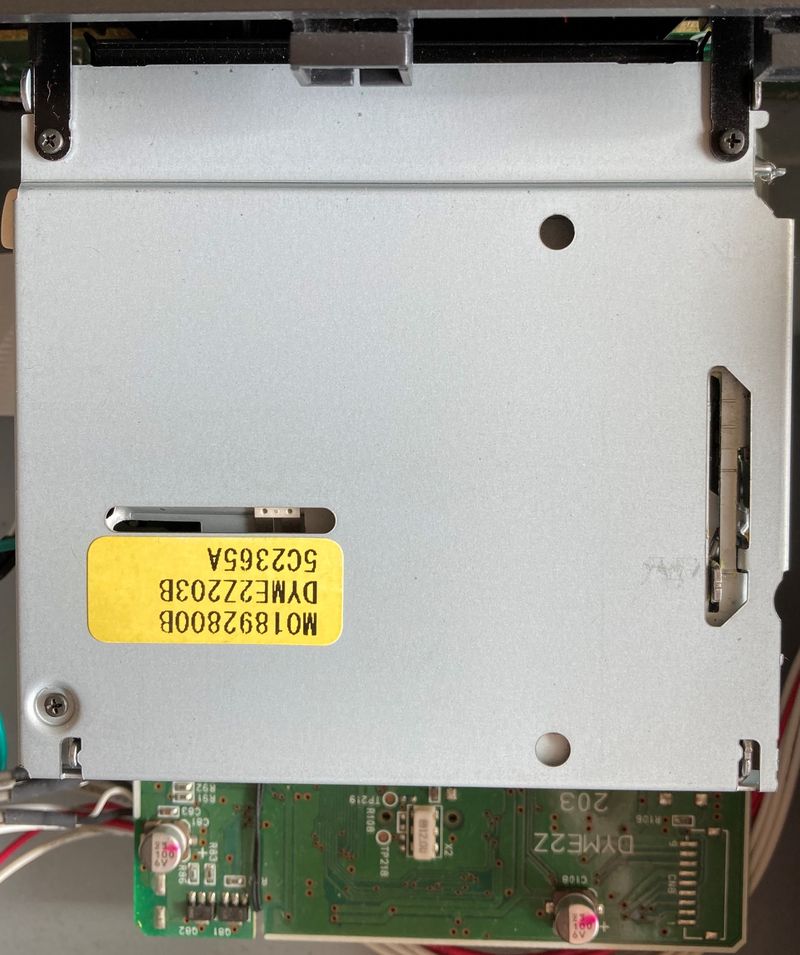

Schematics (Main PCB, Front PCB, LA-MC1 PCB, MD Drive [DYME2Z203])
RS-232C Protocol Specifications

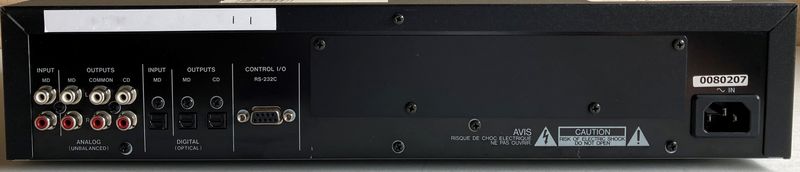

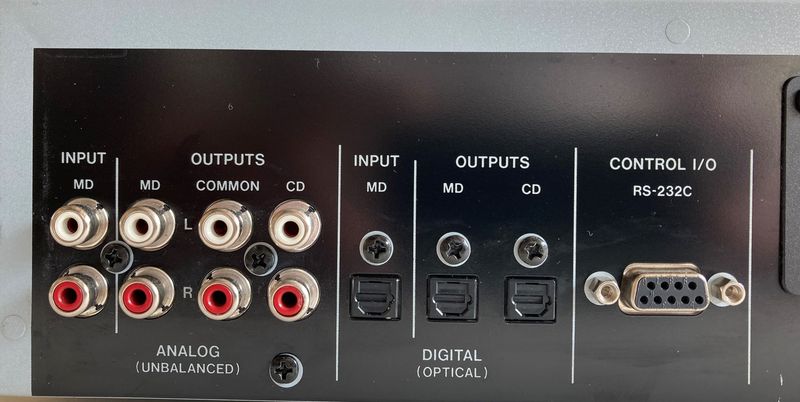

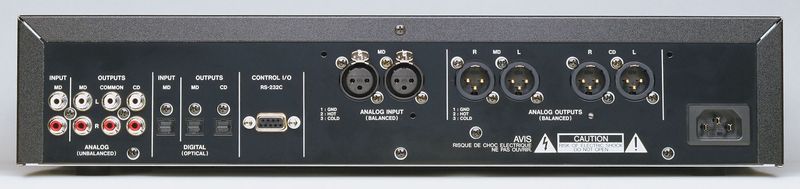

Rear Panel
Consultant's Specification
Technical Specification
Flyer
User Experience - Quirks
Mk2
Mk2 Owner's Manual
Technical Specification
Mk3
Mk3 Owner's Manual
Technical Specification
RS-232C Protocol Specifications
Firmware
MD-CD1 Mk3 Firmware Release Notes (v1.02-v1.08) and firmware update instructions
Mk3 Firmware v107
Mk3 Firmware v108
Repair
Mk1 (at least) has a few titling bugs. Dubbing titles from CD-R written by iTunes can lead to title corruption on later MD tracks (easily correctable using the PS/2 keyboard) [Note: similar issue with the Sony MXD-D4 so iTunes must be at fault - found that Nero ROM CD-R burner didn't suffer from titling issues]. User entry of titles has a few low-impact titling bugs/screen update issues. Has a few extra keyboard keys supported over Sony decks, like HOME and END, which are valuable when correcting track/disc titles.
Mk1 (at least) dubbing from CD to MD inserts a short gap (~500ms) between tracks which means flow-through tracks have a brief silence at the track boundary. See Quirks document above.
Respects SCMS. No menu function to disable.
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..

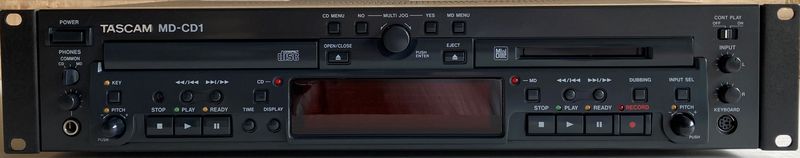

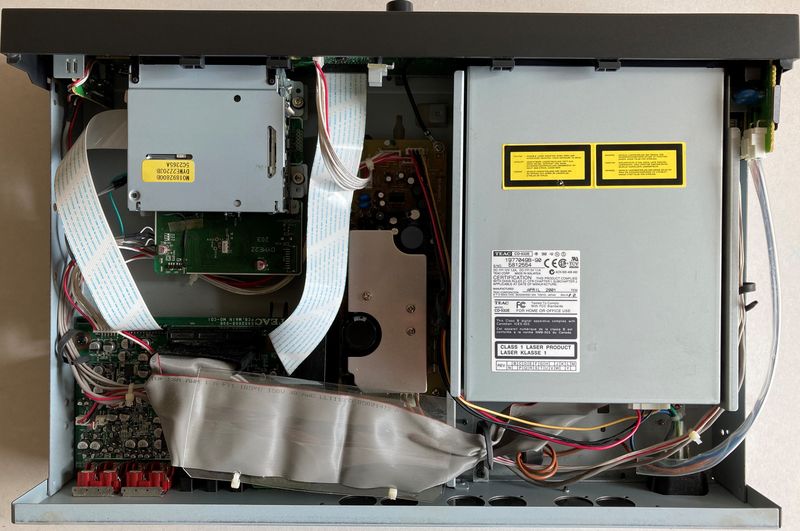

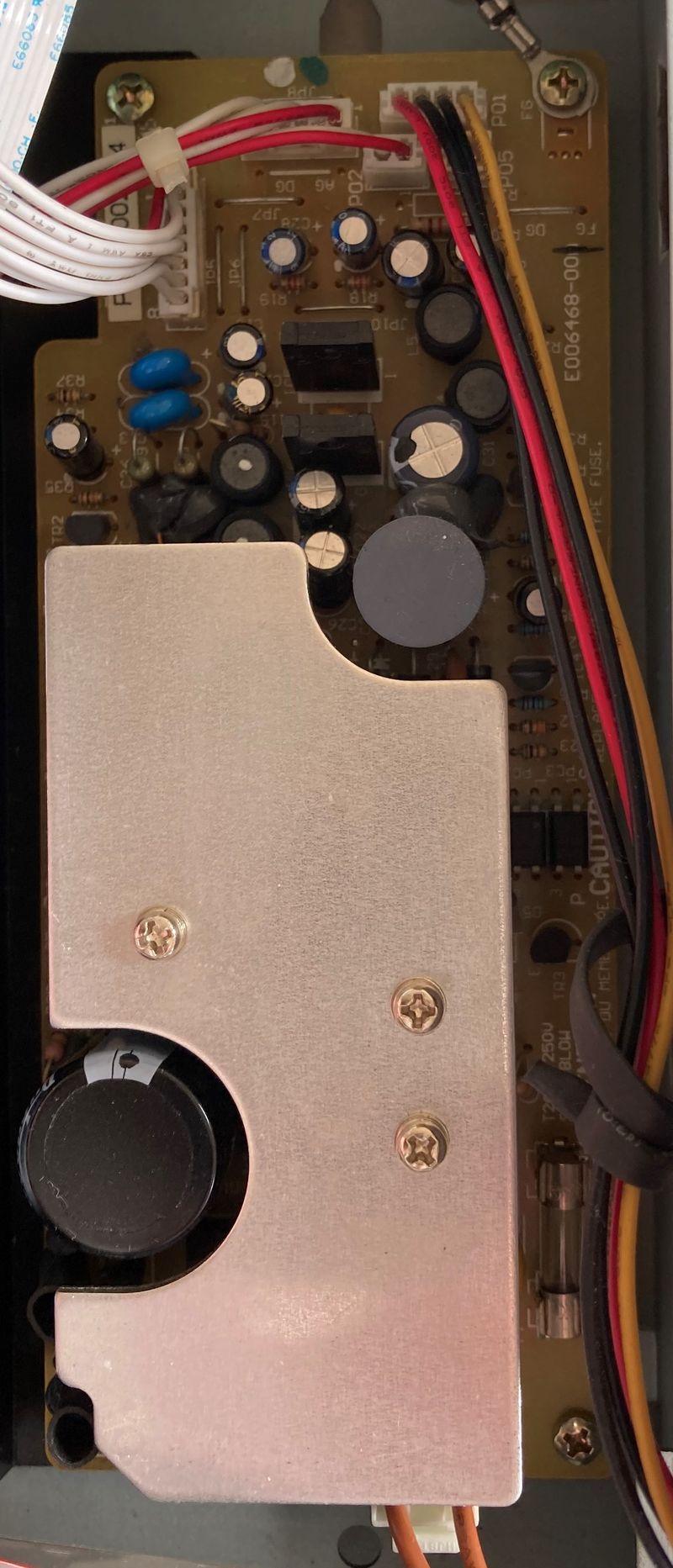

Mk1

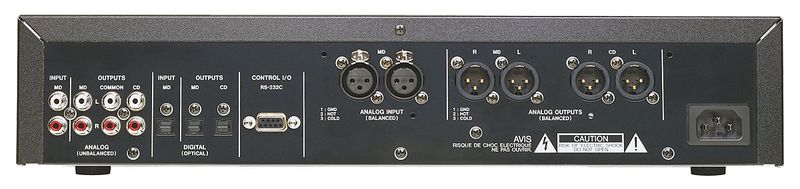

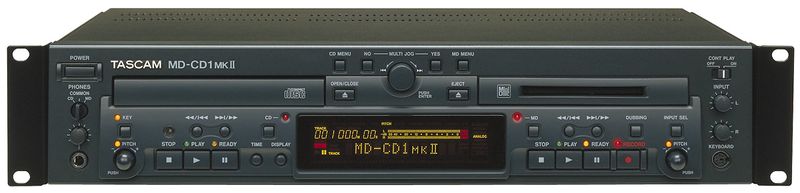

Mk2

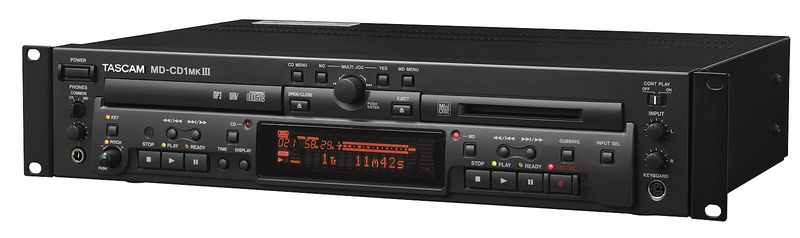

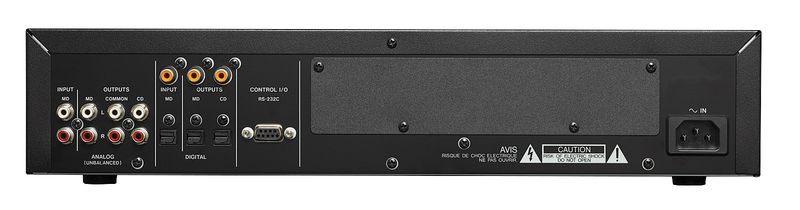

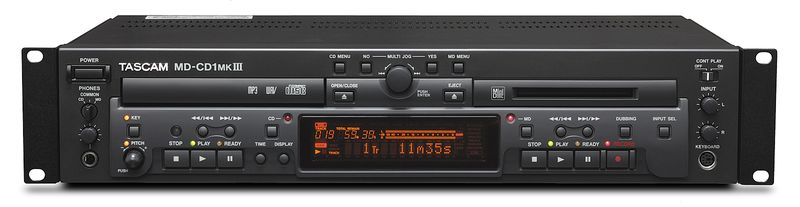

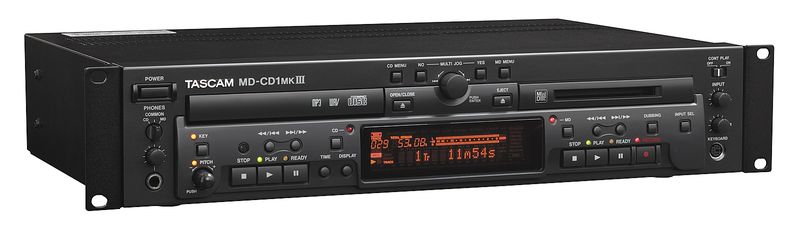

Mk3
