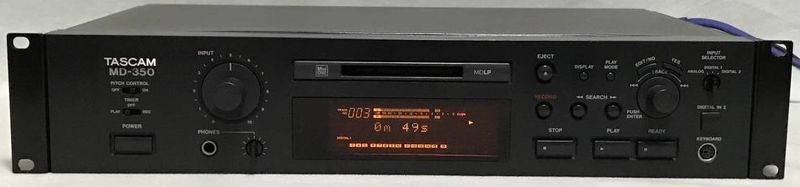

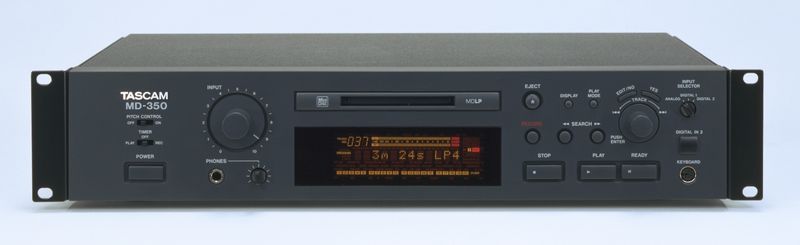

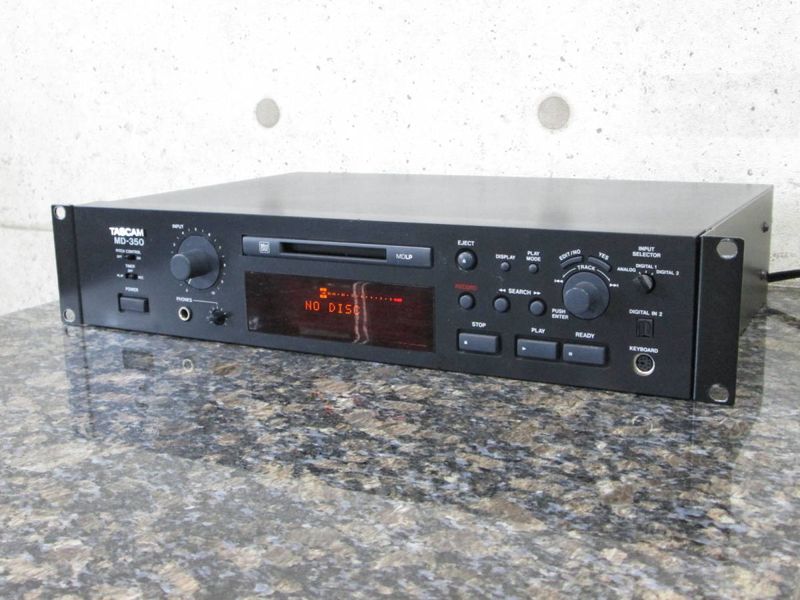

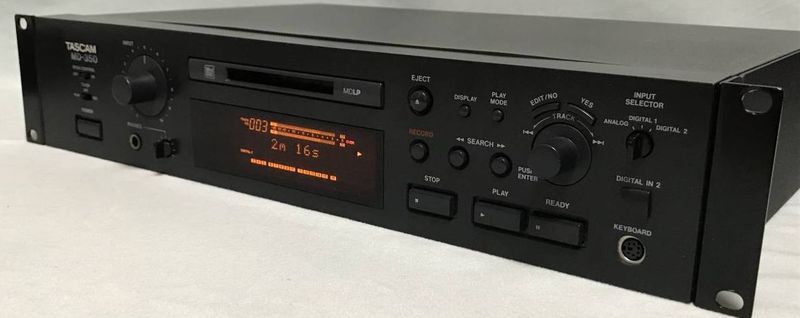

TASCAM MD-350
| Name | MD-350 |
|---|---|
| Manufacturer | TASCAM |
| Released | 2001/06 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 2U (482.6W x 94H x 313D mm) |
| Weight | 5.5kg |
| ATRAC ver | Type-R |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | |
| Power cable | AC |
| Price (launch) | $699 |
| - | |

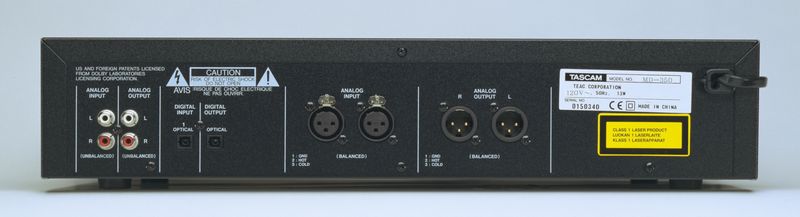

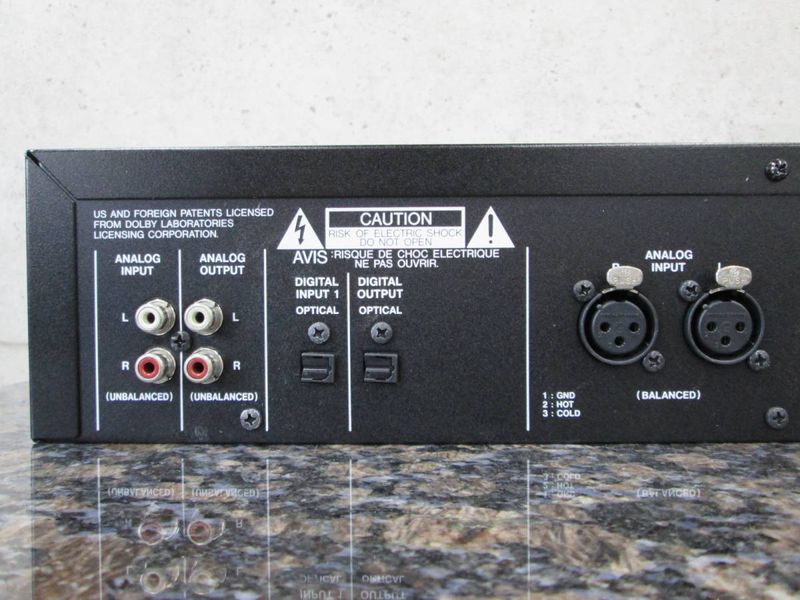

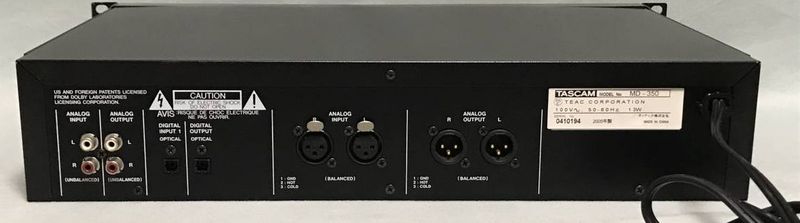

| Inputs | RCA in, XLR in, Digital optical (TOSLINK) |
| Outputs | 1/4 inch headphone, RCA out, XLR out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard |

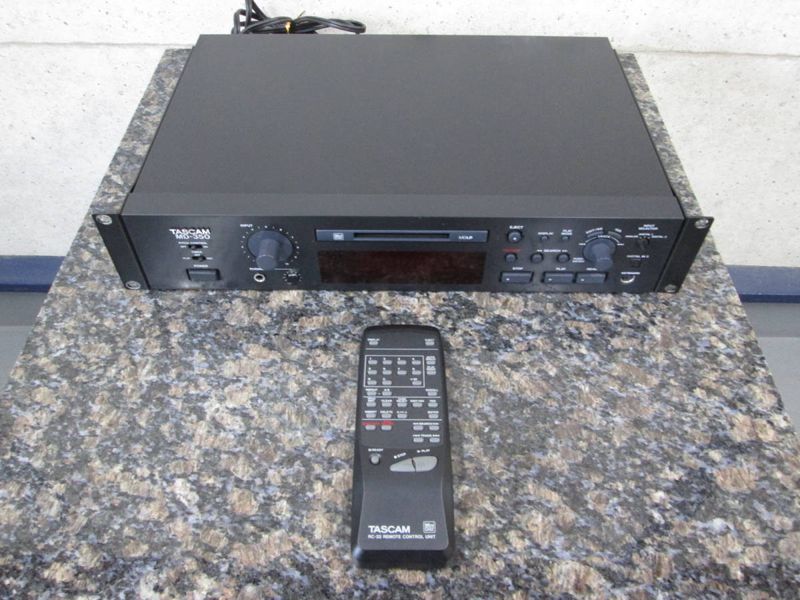

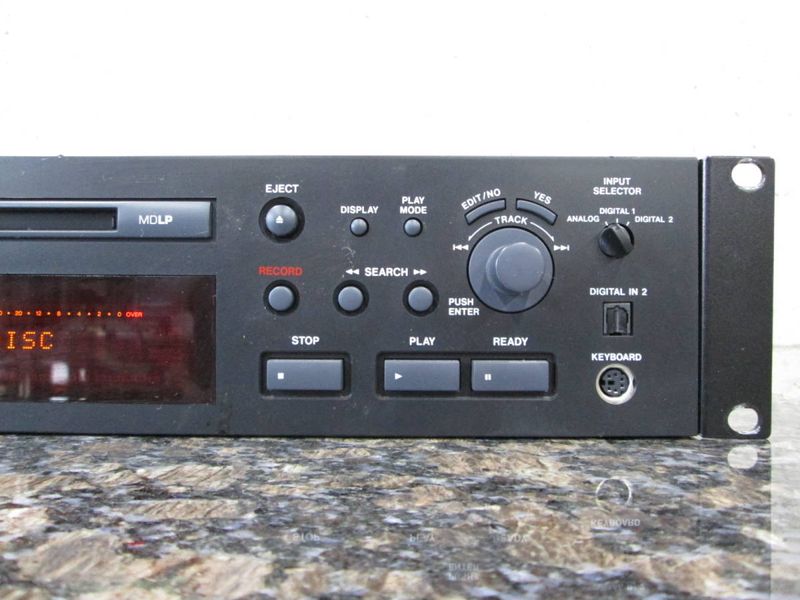

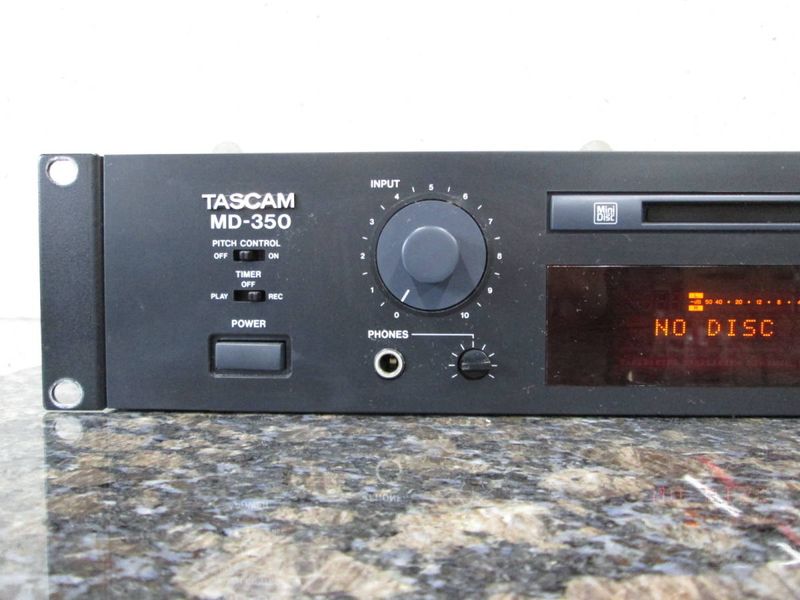

Features: 2U rack mount, MDLP capable pro-deck. Auto-ready (play one track & pause), and Auto-cue (cue to first audio in track) functions. Timer-play function. Pitch control. Keyboard port for titling. RC-32 wireless remote included. Second optical input port on front panel.
Specs:
- Dynamic Range: > 94dB (playback, 1khz, A filter)
- THD: < 0.013%
- Frequency Response: 20-20kHz +/-0.5dB (playback)
- SNR: > 94dB (playback, A filter)
- Headphone amp: 25mW + 25mW 32 ohms
IR Remote: RC-32
Drive:
M012529-00D
Alps
M012529-00C
Alps

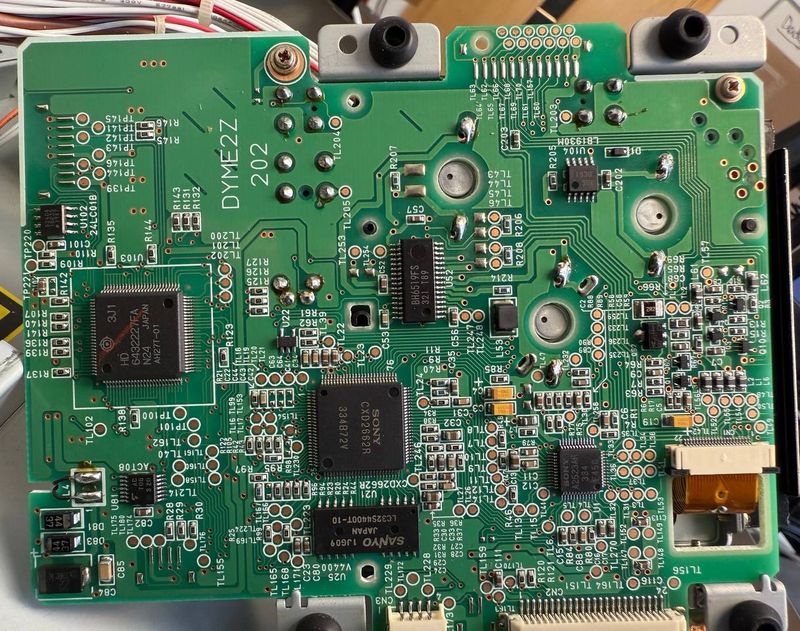

DYME2Z202D
DYME2Z202B
6G1765D

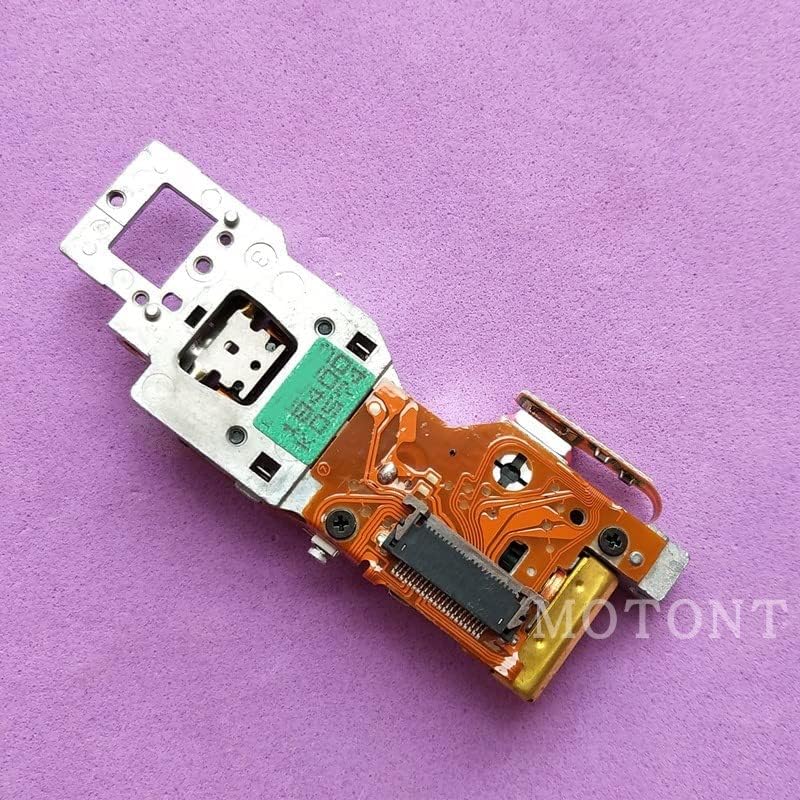

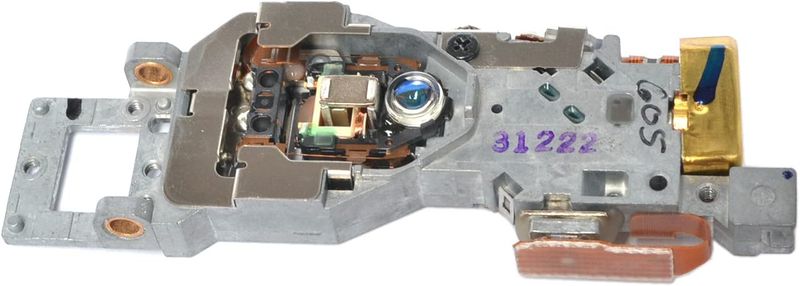

Optical Pickup:
KMS-260A
KMS-260E
9A08803300 / dv111-12
ATRAC IC: CXD2662R
Content adapted from: Minidisc.org Page [*] Tascam Press Release [*] Tascam Press Release (MiniDisc Wiki mirror) [*] Tascam Product Page [*] Tascam Product Page (MiniDisc Wiki mirror) [*]
Manuals
Owner's Manual
Service Manual (inc PCB layouts, schematics)
Technical Specification
Reviews
Resolution Magazine (note MD-350 is ATRAC3 Type-R/MDLP)
Repair
Respects SCMS. No menu functions to disable.

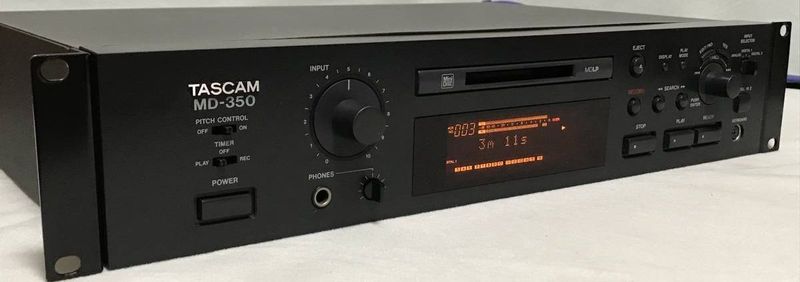

Photos
