TASCAM MD-CD1MKII
| Name | MD-CD1MKII |
|---|---|
| Manufacturer | TASCAM |
| Released | 2007/01 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | |
| Weight | |
| ATRAC ver | Type-R |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| - | |
| Inputs | N/A, RCA in, Digital optical (TOSLINK), CD |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard |
TASCAM MD-CD1MKII / MD-CD1MK2
Combined Features:
- COMMON output for CD and MD output (priority can be set)
- Headphone output with selectable source (MD, CD, or common)
- Dubbing from CD to MD (whole disc or track by track):
- 4 x: in SP mode
- 2 x: in MONO / LP2 / LP4 mode
- 1 x: from MP3 or WAV discs and when CD's pitch control/key control on
- Continuous playback between MD and CD (no limitation)
- Independent operation of MD and CD
- Auto title input from CD-text and ID3 tag

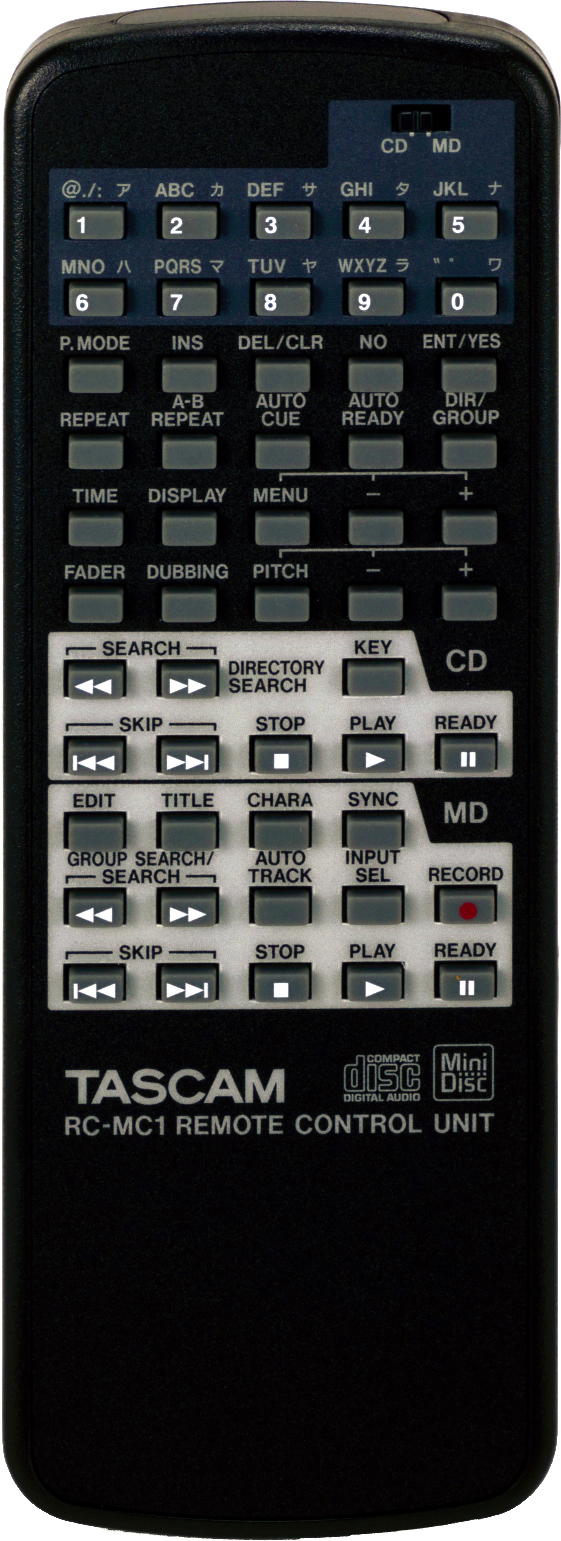

- Wireless remote controller
- RS-232C serial remote control
- LA-MC1 optional balanced I/O card
- 2U rack mount size
MiniDisc Features:
- Supports SP (stereo) / MONO / LP2 / LP4 modes
- Recording in different mode (ST/MONO/LP2/LP4) in the disc and playback the disc which contain the different mode of the song is possible
- Edit functions: erase, divide, combine, move, title
- Grouping function and group playback
- Overwrite
- Auto track increment with input audio level and track information data from S/PDIF input
- Manual Track increment by pressing the record button during recording
- Sync recording by input audio signal
- Input monitor
- Digital volume on input (-infinity, -54 to +18 dB)
- Fade in and out recording (1 to 30 seconds in 1 second steps)
- Pre recording (off, 1 to 6 seconds in 1 seconds steps)
- Various playback modes: all / single / program (up to 25 tracks) / random / group
- Various repeat modes: all / signle / program (up to 25 tracks) / random / A-B
- Auto cue
- Auto ready
- EOM (End of message) for indicate the end of track or disc (1 to 99 seconds in 1 second steps)
- Time search by numeric keys on remote controller
- Power on play
- Time display mode: track elapsed / track remain / disc elapsed / disc remain
- RCA unbalanced analog input and output
- S/PDIF optical digital input and output (SCMS)
- S/PDIF coaxial digital input and output (SCMS)
- Remote control, editing, and title input by PS/2 keyboard
CD Features:
- Applicable discs: audio CD / CD-R / CD-RW / CD-ROM (MP3/WAV)
- CD-text display (Stop: Disc title, Play: Track title)
- ID3 tag display (Song title)
- -50 to +16% pitch control with selectable steps (0.1 to 1%) for audio CD
- +/-6 semi-tone key control in semi-tone steps for audio CD
- Key control without affecting playback speed
- Various playback modes: all / single / program (up to 99 tracks) / random
- Various repeat modes: all / signle / program (up to 99 tracks) / random / A-B
- Auto cue (-72 to -24 dB in 6 dB steps)
- Auto ready
- Digital volume on output (-infinity, -54 to +18 dB)
- Fade in/out playback (1 to 30 seconds in 1 second steps)
- EOM (End of message) for indicate the end of track or disc (1 to 99 seconds in 1 second steps)
- Time search by numeric keys on remote controller
- Power on play
- Time display mode: track elapsed / track remain / disc elapsed / disc remain (When playing the MP3 file or WAV file: track elapsed)
- Directory play mode for MP3 discs or WAV discs
- RCA unbalanced analog output
- S/PDIF optical digital output
- S/PDIF coaxial digital output
- Remote control by PS/2 keyboard
Content adapted from: Tascam Product Spec Page [*]
Manuals
TASCAM MD-CD1MKII Owner Manual
|TASCAM MD-CD1MKII Product Information
Repair

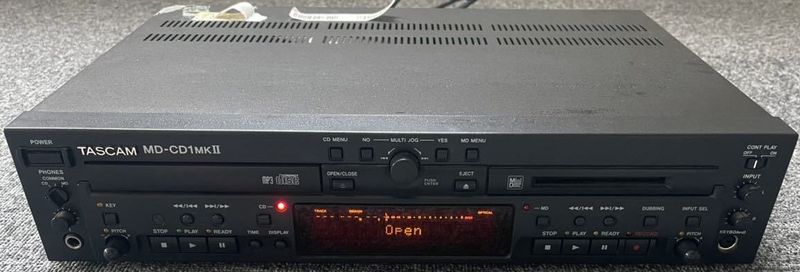

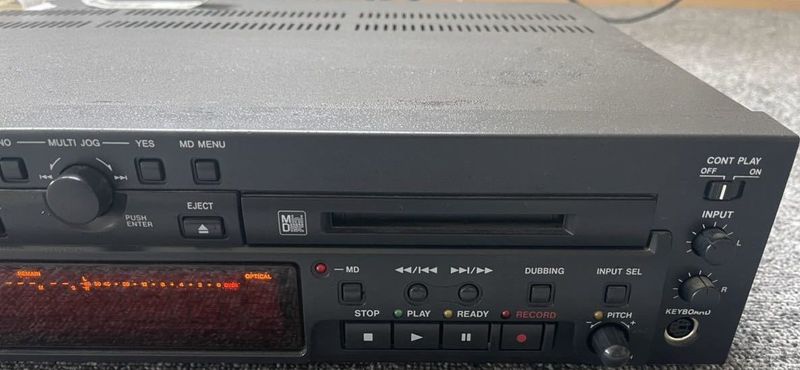

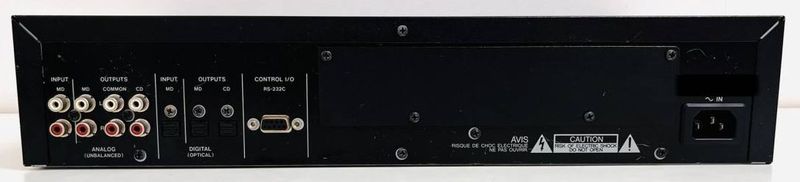

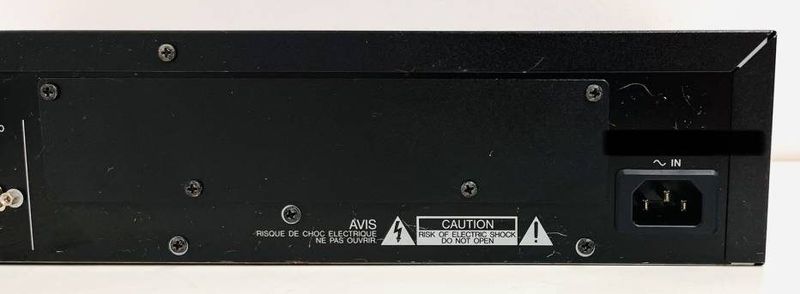

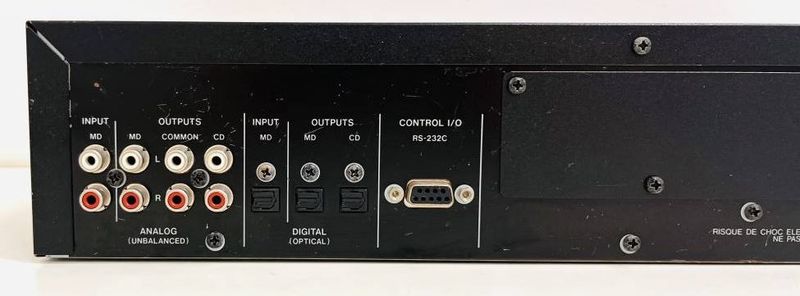

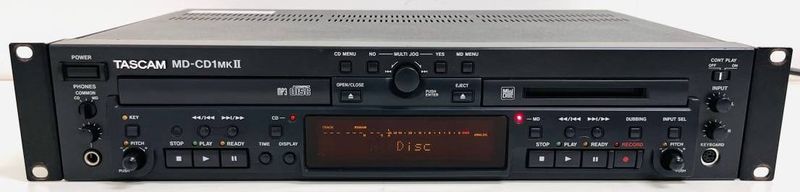

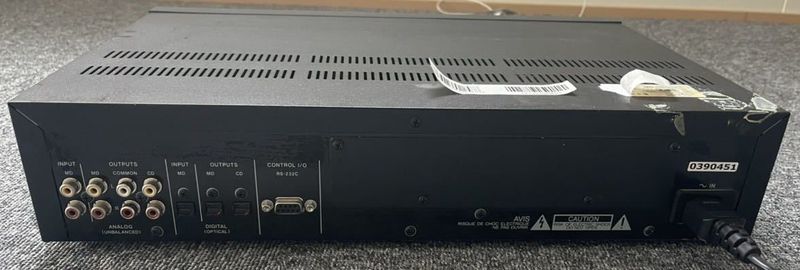

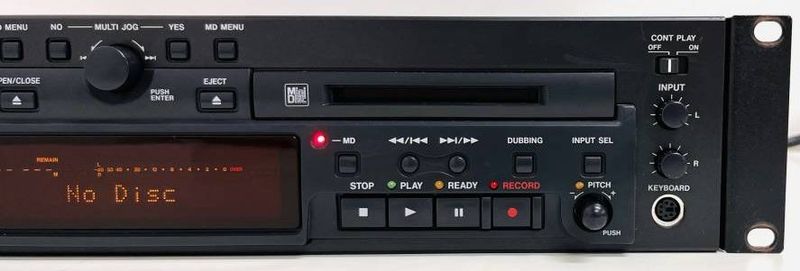

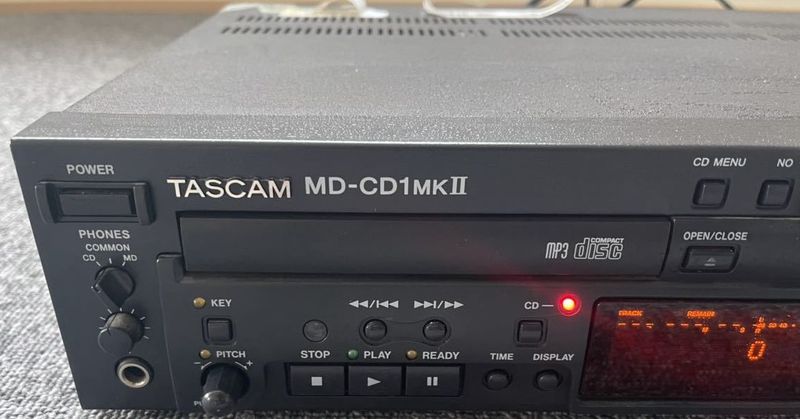

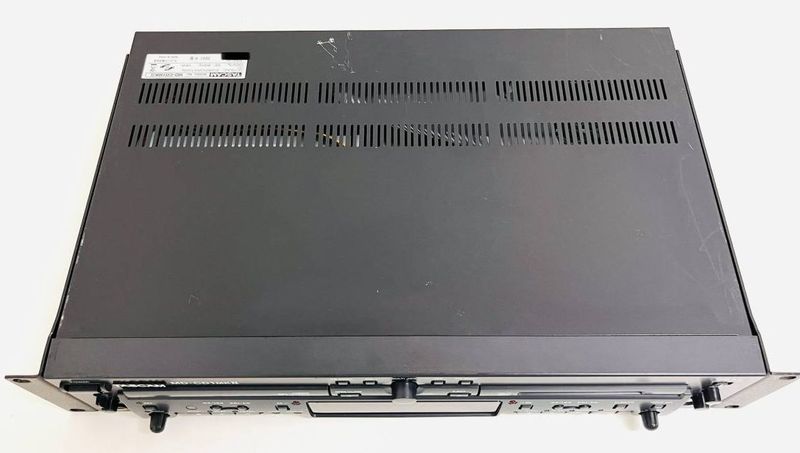

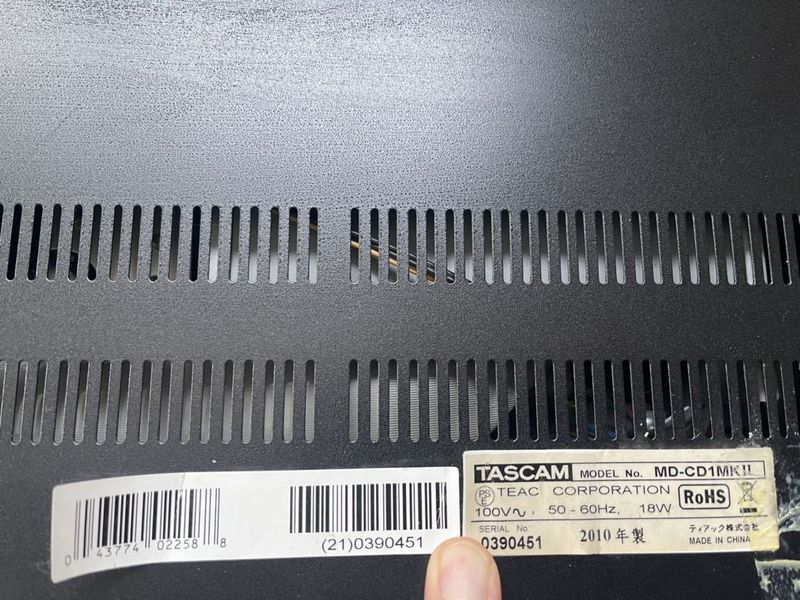

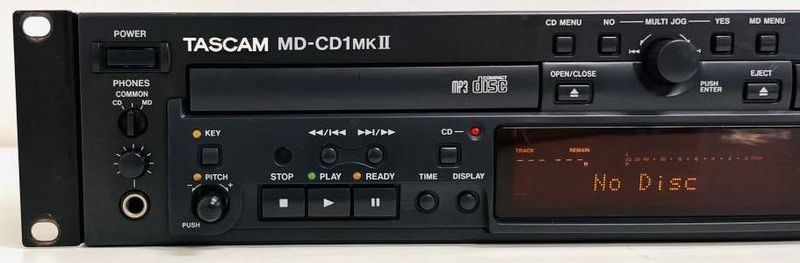

Photos
