TEAC MD-5mkII
| Name | MD-5MKII |
|---|---|
| Manufacturer | TEAC |
| Released | 2001/03 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 100H x 435W x 310D mm |
| Weight | 4.5Kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |

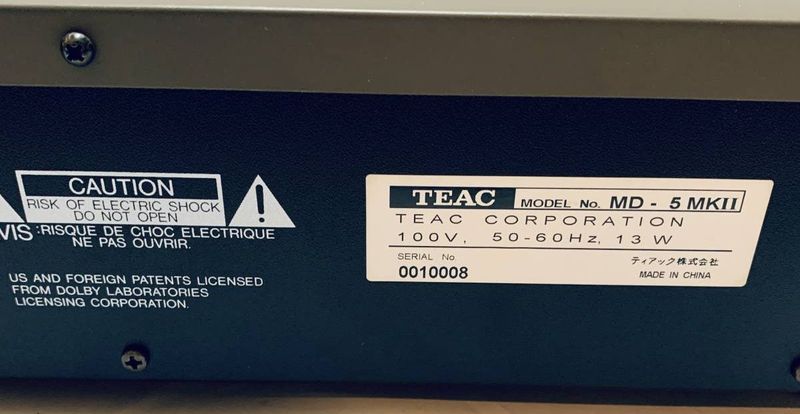

| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| ¥50 000 | |
| - | |

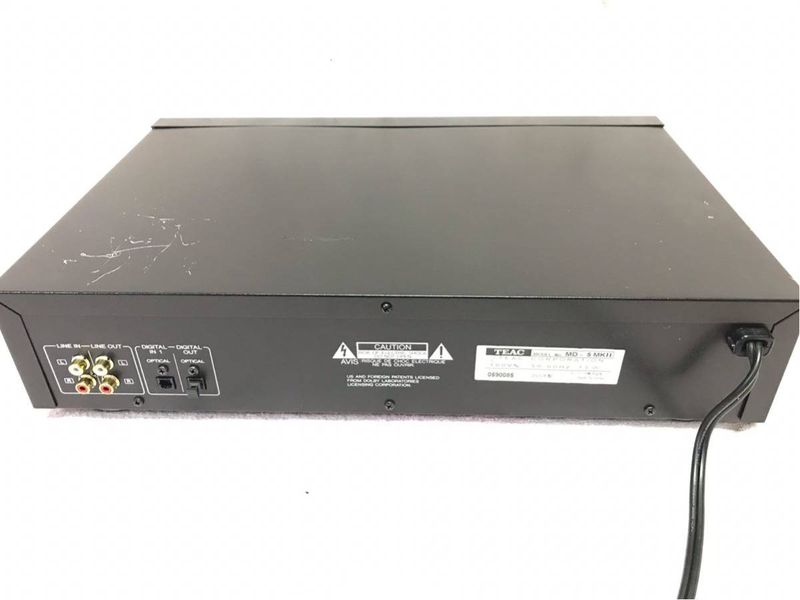

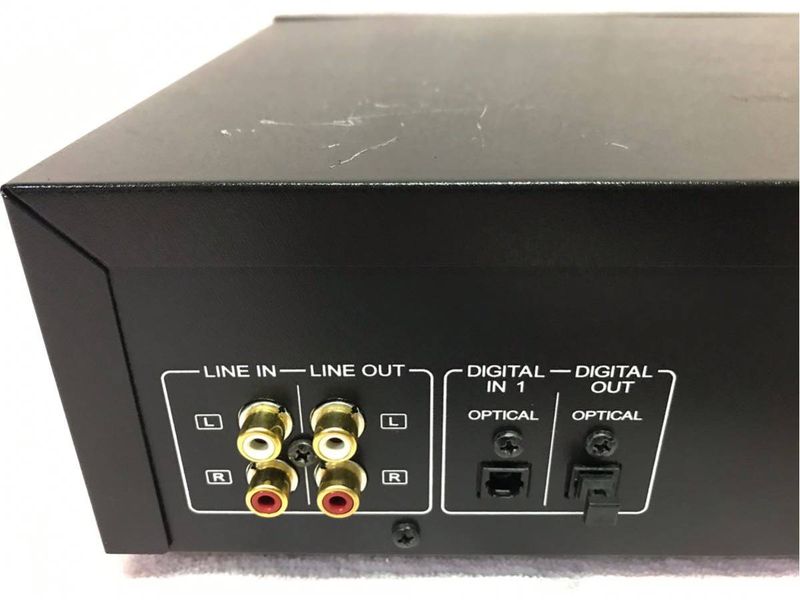

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard |
Teac MD-5MK2 / MD-5 MK2 / MD-5 MKⅡ (alternate spellings)

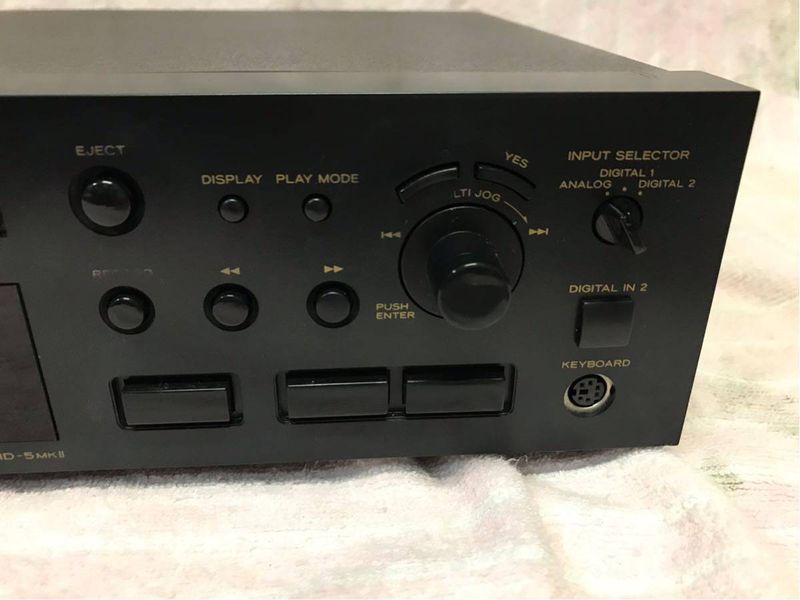

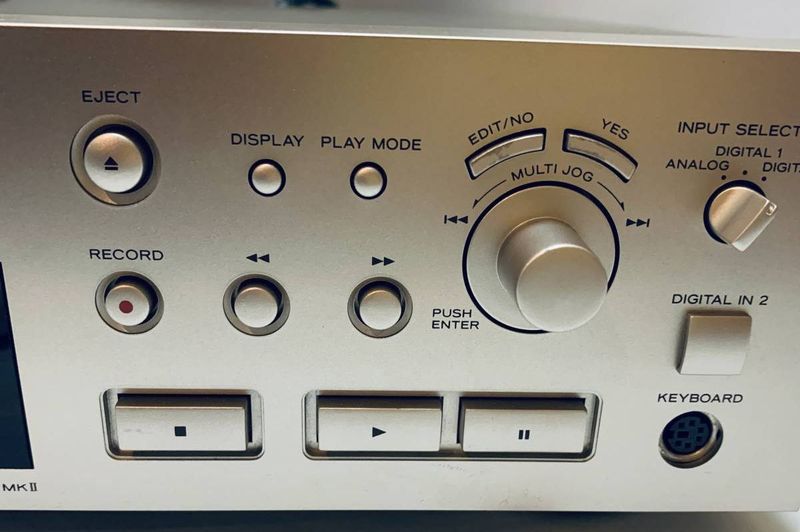

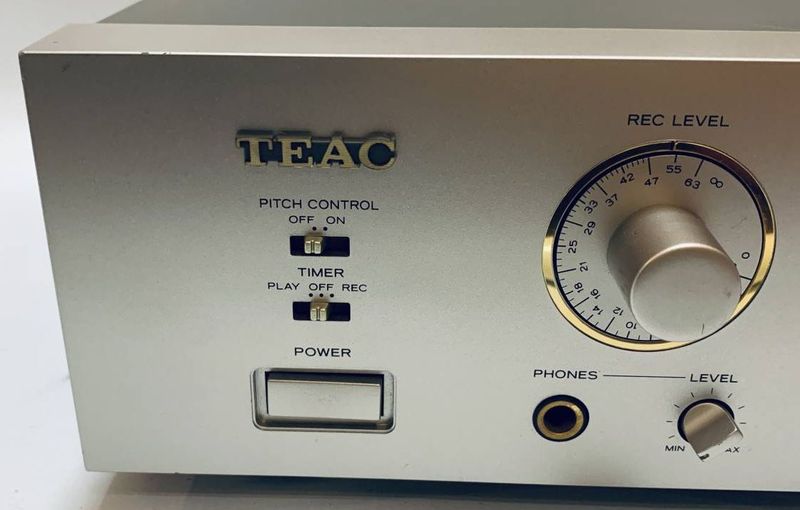

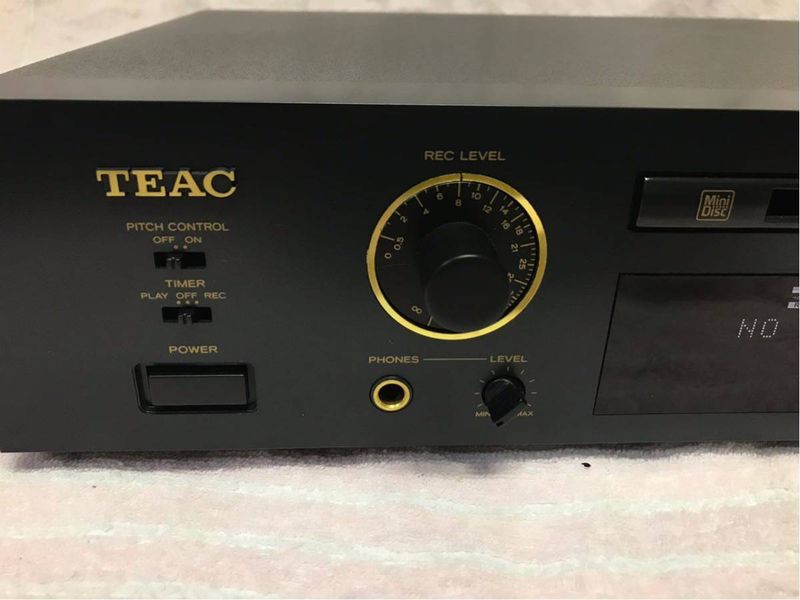

Features: MDLP compatible. Digital recording volume control, PS2 connector for using a standard PC keyboard for title input, pitch control (+/- 12% in 0.1% increments).
Content adapted from: Teac Product page [*] Teac Product page (MiniDisc Wiki mirror) [*] Minidisc.org Page [*] tukipie.net [*]
Manuals
Teac MD-5MKII Japanese Manual
Repair
(repair links go here)

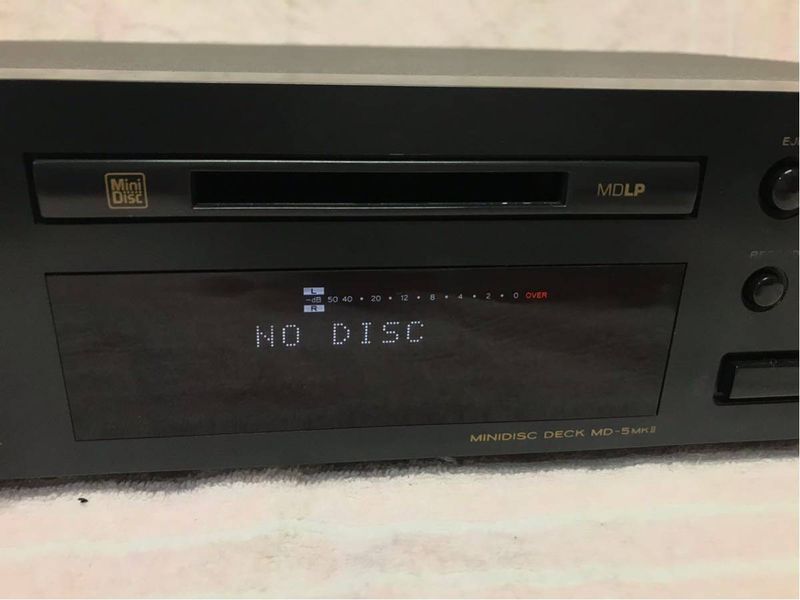

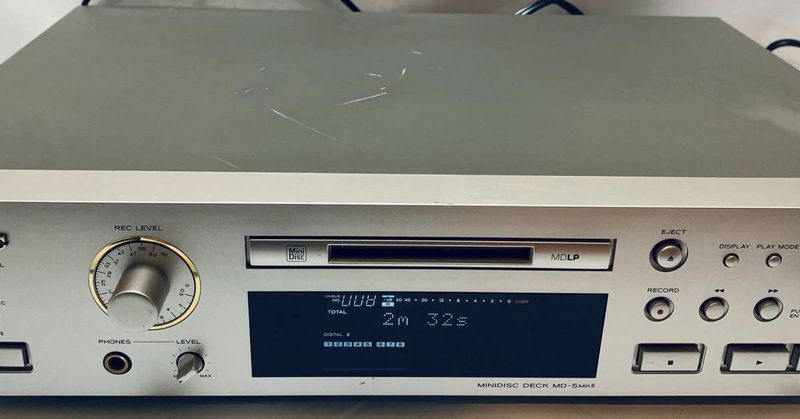

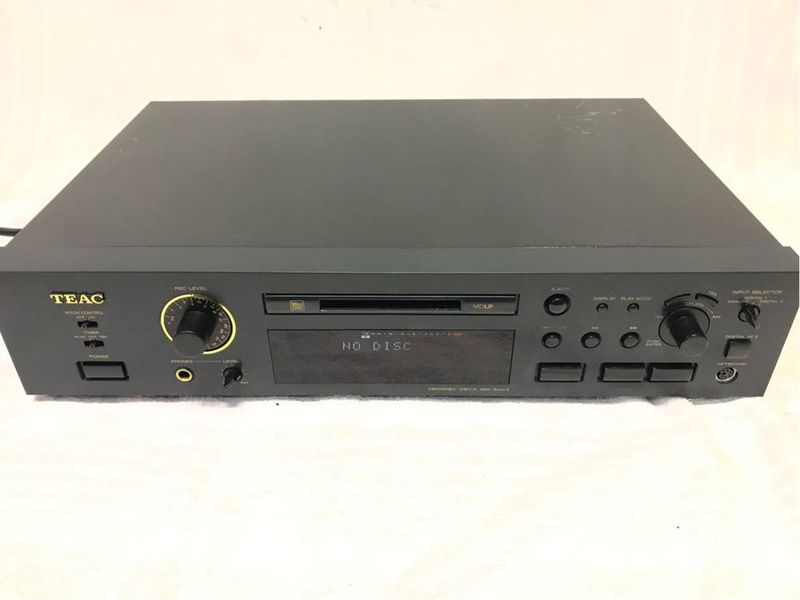

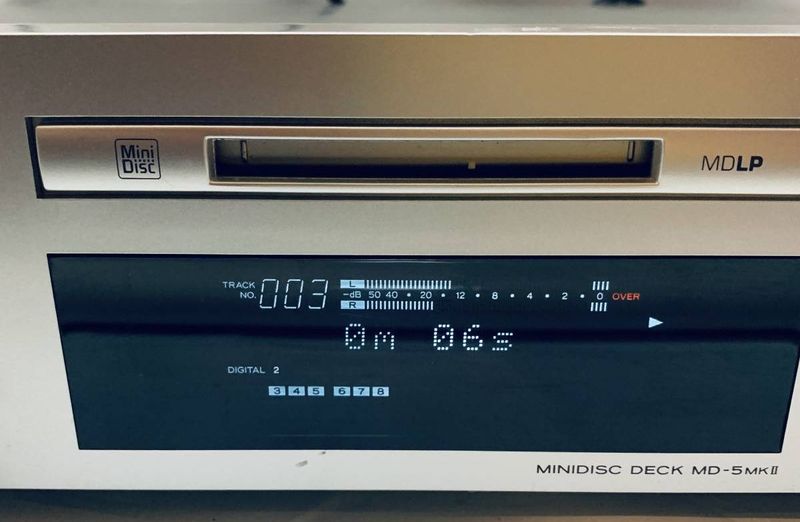

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
