Sony Qualia 017
| Name | Q017-MD1 |
|---|---|
| Manufacturer | Sony |
| Released | 2004/06 |
| Device type | portable |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 91.4 x 79.0 x 15.3mm |
| Weight | 244g |
| ATRAC ver | Type-S |
| Battery | 1x |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 6 |
| Power cable | Center positive |
| Price (launch) | $1 900 |
| ¥189 000 | |
| - | |
| Inputs | |
| Outputs | 3.5mm headphone |
| Control | Remote (Sony) |
“Q017-MD1” Incorrectly listed as a netMD capable device on the minidisc.org site, the Qualia 017 is actually a playback only device. Machined from a solid block of brass, it has a very distinctive design.
A few things to note if you are trying to find one today.
- It can only be charged using the supplied dock.
- The headphone connector is unique. You must use the supplied remote or 3.5mm adapter. (Same as the MZ-E10? Wiki page supporting claim [*])
- It has a battery shut-off switch inside of the disc bay.
- Internal rechargeable battery is removable/replaceable with just a driver. No full teardown is required.
Content adapted from: Sony Press Release [*] Sony Press Release 2 [*] Sony Press Release 2 (MiniDisc Wiki mirror) [*], Sony Japan Qualia 017 Page [*], Qualia 017 Minidisc.org Page [*] av.watch [*]
Manuals
Q017-MD1 User Manual
Qualia 017 Brochure/Specs pdf
Photos

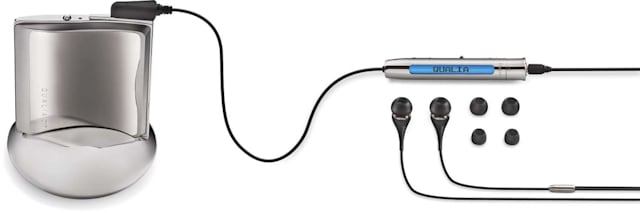

Press Photos:
Have photos or data to add? Edit the page! We do not accept contributions via email..
