Sony MZ-B10
| Name | MZ-B10 |
|---|---|
| Manufacturer | Sony |
| Released | 2003/02 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 118.2 x 24.0 x 75.4mm |
| Weight | 150g (190g w/ batteries) |
| ATRAC ver | Type-S |
| Battery | 2x AA |

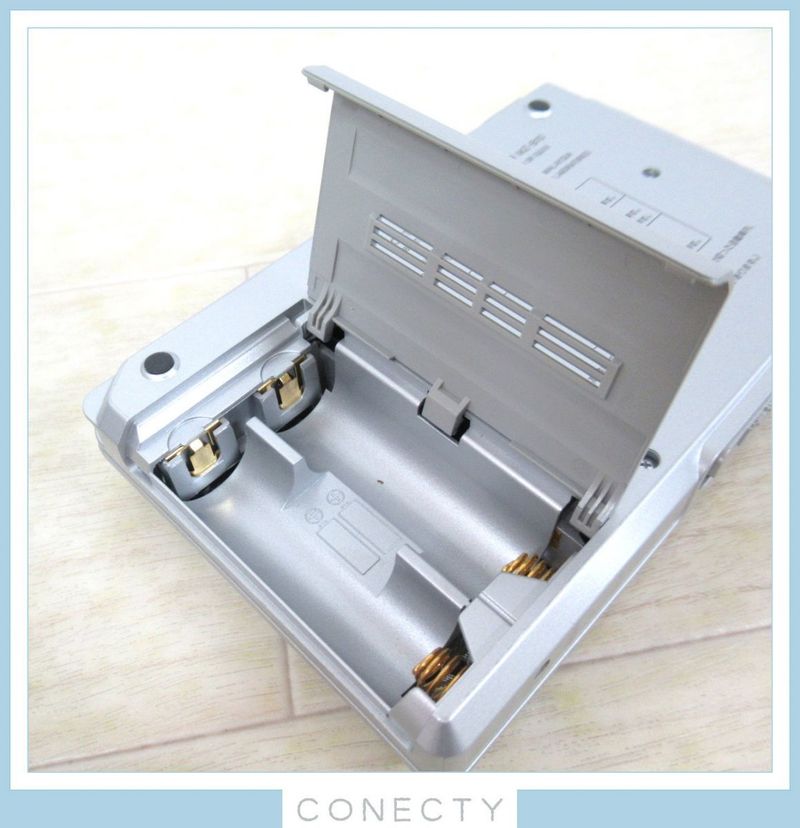

| Battery notes | Wired in parallel (can run on a single AA) |
| Sidecar (depr) | No |
| Voltage | 1.5 |
| Power cable | Center positive |
| Price (launch) | $216.99 |
| ¥20 400 | |
| - | |

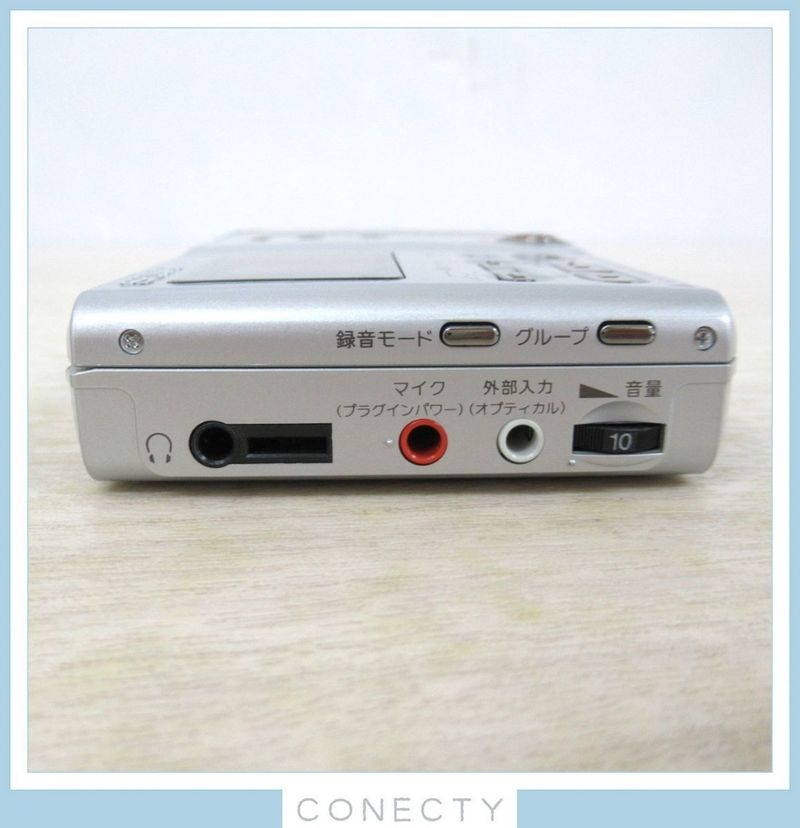

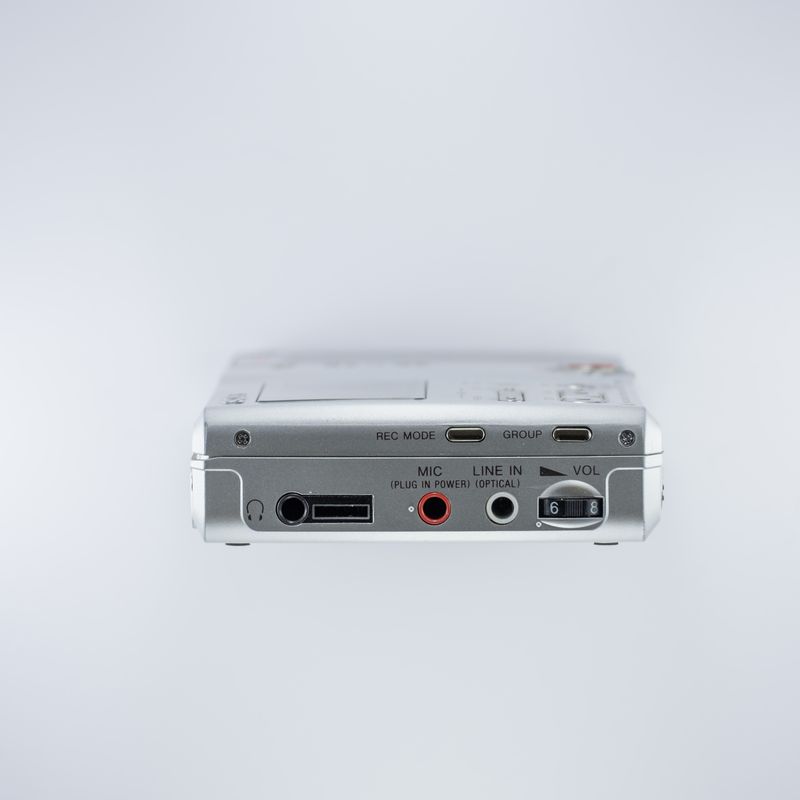

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone, Built-in mic |
| Outputs | 3.5mm line out (analog-only), Built-in speaker |
| Control | Remote (Sony) |

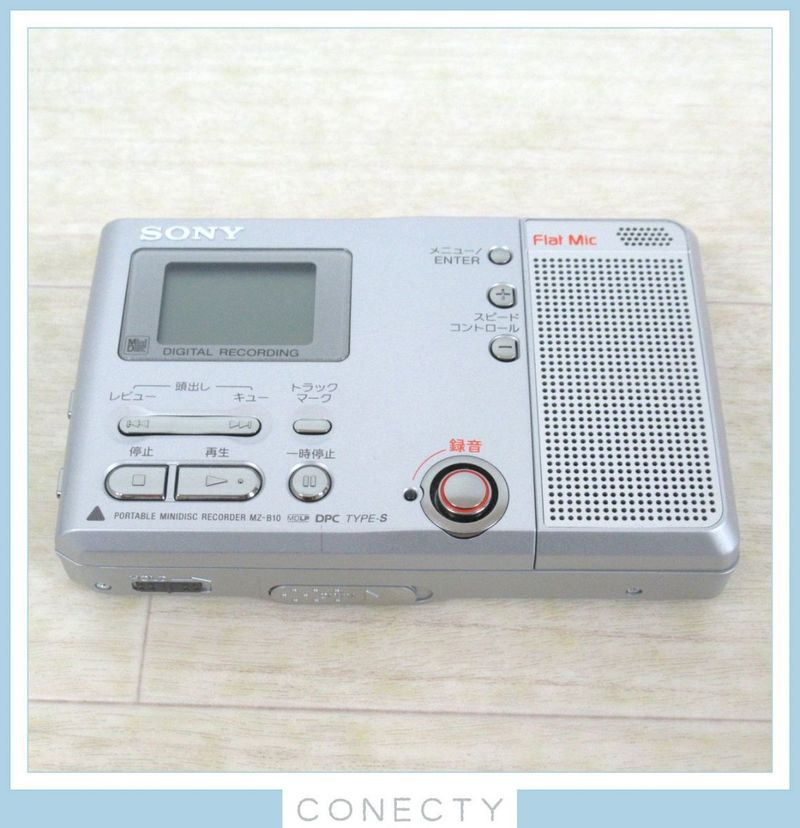

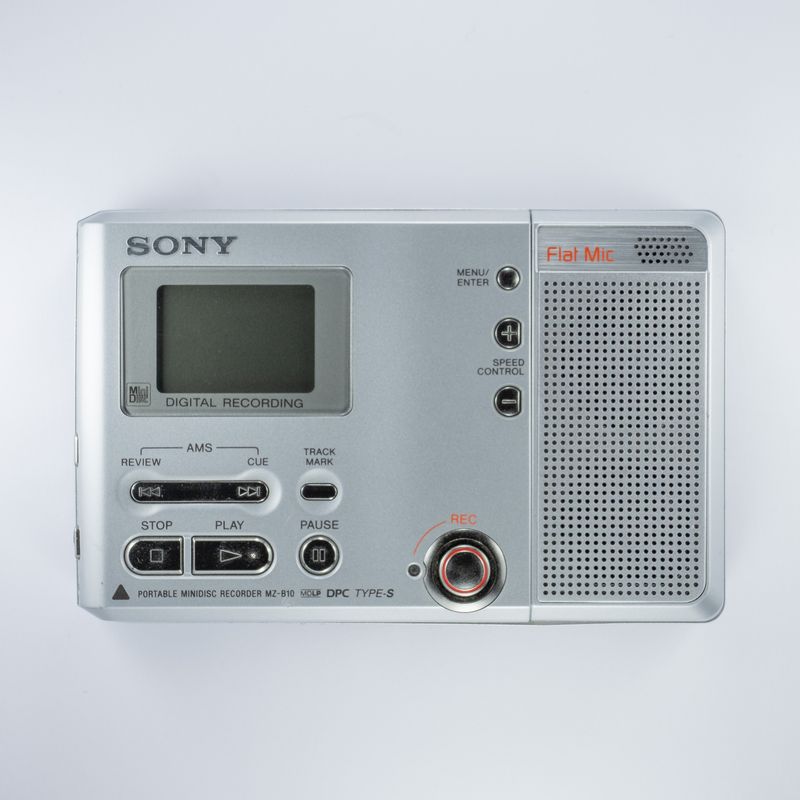

Dedicated voice recorder. Has track button on remote, voice activated recording, and built in microphone and speaker. This model supports Type-S recording, as well as synchro recording from an optical source. VERY long battery life (quoted at 20 hours of recording with both AAs and 100 hours of playback), which is probably helped by the fact that it is wired in parallel.
The MZ-B10 uses the same ATRAC IC (CXD2680-207GA) as many portable NetMD units, so if a breakout PCB could be made to connect to the correct place on the BGA chip, theoretically a USB IC and port could be added, allowing NetMD. Note the USB functionality may have been removed from the firmware.
ATRAC IC: CXD2680
Content adapted from: Minidisc.org MZ-B10 Page [*], Sony Catalog [*], Sony Product Page [*] Sony Product Page (MiniDisc Wiki mirror) [*] Sony ecat Page [*] Sony ecat Page (MiniDisc Wiki mirror) [*] SonyStyle page [*] SonyStyle page (MiniDisc Wiki mirror) [*]
Manuals
MZ-B10 User Manual
MZ-B10 FR User Manual
MZ-B10 Service Manual
