Sony PDF-HD7

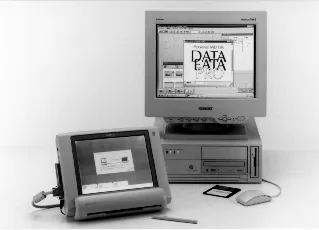

PDF-HD7 “DATA EATA PRO”. A further evolution of the PDF-5 and PDF-5mk2. This unit includes a 540MB hard drive to supplement the 140mb MD Data storage.

Display

• Screen size: 10.4 inch
• Liquid crystal type STN (Monochrome)
• Resolution 640 × 480 dots
• Display scale: 8 shades of grey

Storage

• Drives: MD data drive (1) + Hard disk (1)
• Media used: Recording MD data disk
• Storage capacity: MD up to 140MB - HDD up to 540MB
• MD approx 1,000 pages A4 - HDD approx. 3,000 pages A4
• Save transfer rate: MD: about 0.5-1.0 sec/page A4 - HDD approx. 0.1-0.2 seconds/page A4
• Read access speed: MD: about a second - HDD: about 0.05secs

Scanner

• Scan method: Line sensor type, single page
• Scanner type: Detachable, with cable
• Document size: A4, A5, B5, Letter (up to 0.1mm thick), Postcard size, Business card size (up to 0.4mm thick)
• Resolution: 200 dpi - 8 pixels/mm lateral and vertical
• Read mode: Text (1-bit) or photo (8-bit grey; error diffusion). Has contrast settings.
• Read speed: Approx. 4s per page A4
• Input Device: Touch panel type (dedicated pen input)
• External interfaces:
• * AUX 1: Mini jack (for expansion)
• * AUX 2: Half-pitch 20-pin (for expansion)
• * RS232C: Mini DIN 9-pin (for fax modem)
• * Printer: Amphenol Half Pitch 26-pin two-Way Centronix (for printer & PC link)
• Power: AC100V adapter; output 12V/1.65A
• Body dimensions: Width 308mm × height 258mm × depth 76mm
• Weight: 2.6kg

—- Content adapted from: Sony Press Release [*]

It seems the device will accept any IDE 2.5“ hard disk drive with capacity greater than 540MB; mine came without a disk at all and just a packet of three screws where the original would sit. I added a 40GB drive which was recognised and could be initialised for each of the three 'drawers' of the 'filing cabinet' concept space. However it is certain that any extra capacity above 540MB is not going to be used by the unit.
