Sony DPA-1
| Name | DPA-1 |
|---|---|
| Manufacturer | Sony |
| Released | 1996/11 |
| Device type | misc |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 274x242x65mm |
| Weight | 2.3kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| ¥118 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), 3.5mm microphone |
| Outputs | 3.5mm line out (analog-only), 3.5mm headphone |
| Control |
MD Data disc machine, compliant with the Picture MD standard.
Features: Picture MD editing deck that records still images from video, S-video and cordless IR inputs, allows you to add audio clips and compile them into albums, then displays them on a TV or through cordless IR to a Sony video printer. It can also be used as a normal Audio MD recording and playback deck (using audio MDs), but has no digital audio connectors. Playback modes: Album at a time, picture at a time, slide show (with/without sound, with/without comments).
Specs: IR interface: IrDA 1.152Mbps. Image output format: NTSC. Pixel count: 640×480. Audio freq. response: 20-20KHz +/-2dB. Image compression: JPEG.
Connections: comm adapter (mini DIN8), image input (pin jack x 2), image output (pin jack), svideo i/o (4 pin mini DIN jack), audio i/o (pin jack), mic input (stereo minijack), headphones
Content adapted from: Sony Info Page [*] Sony Info Page (MiniDisc Wiki mirror) [*] Minidisc.org [*]
Manuals
Repair
Photos

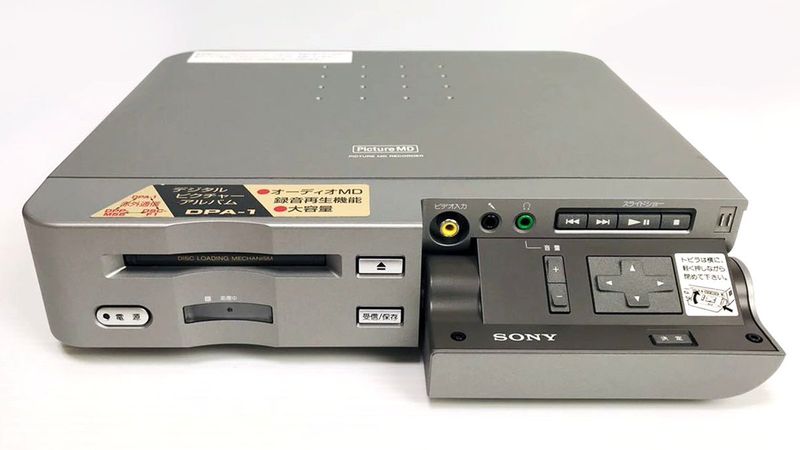

Sony DPA-1 via @Obsolete Sony on twitter [*]
Have photos or data to add? Edit the page! We do not accept contributions via email..
