Sony MDS-S41
| Name | MDS-S41 |
|---|---|
| Manufacturer | Sony |
| Released | 1999/01 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |

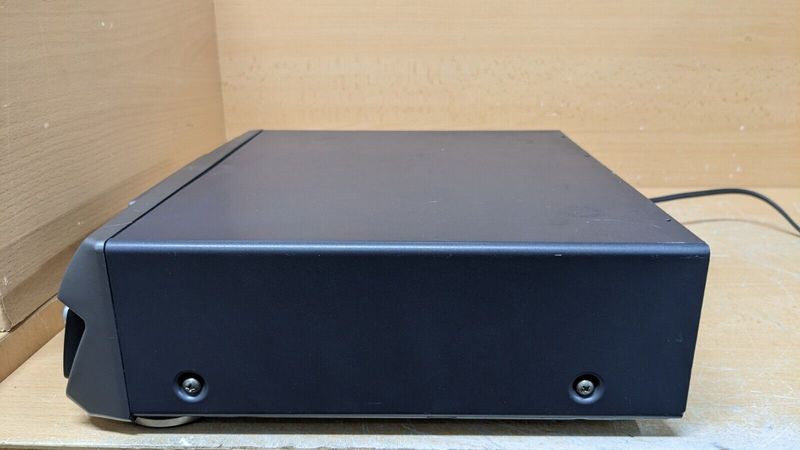

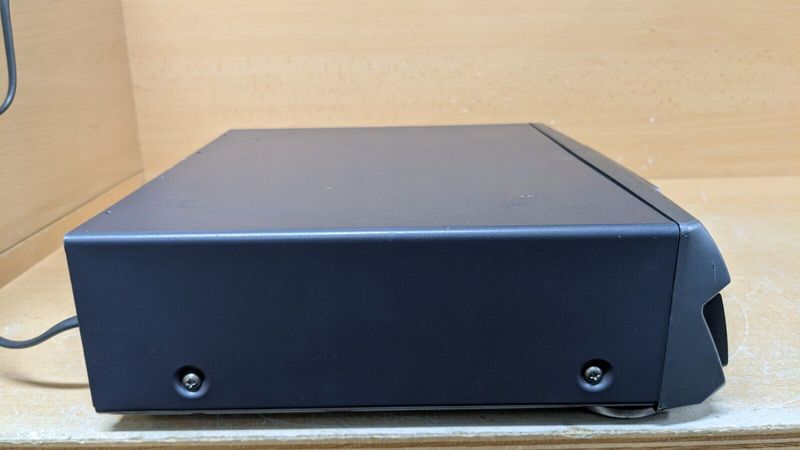

| Dimensions | 280 x 90 x 283mm |
| Weight | 3.0kg |
| ATRAC ver | 4.5 |
| Power cable | AC |
| Price (launch) | |
| - | |

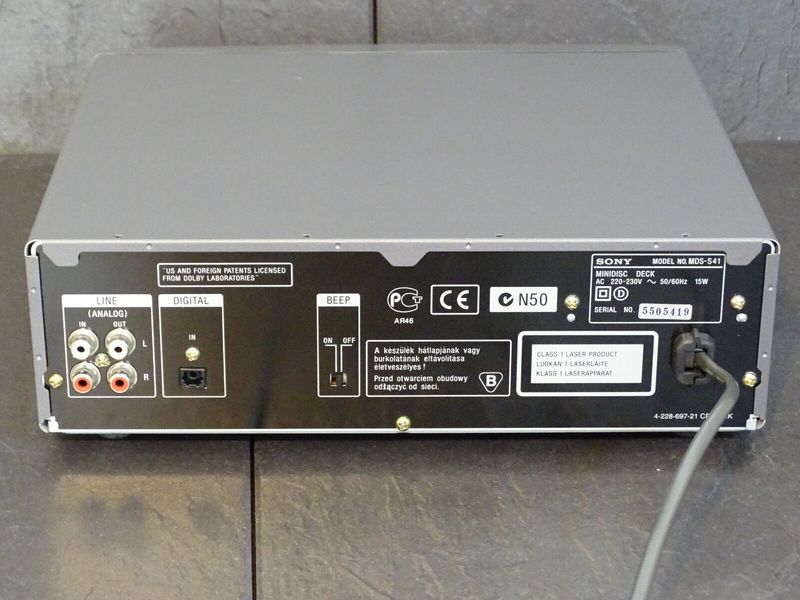

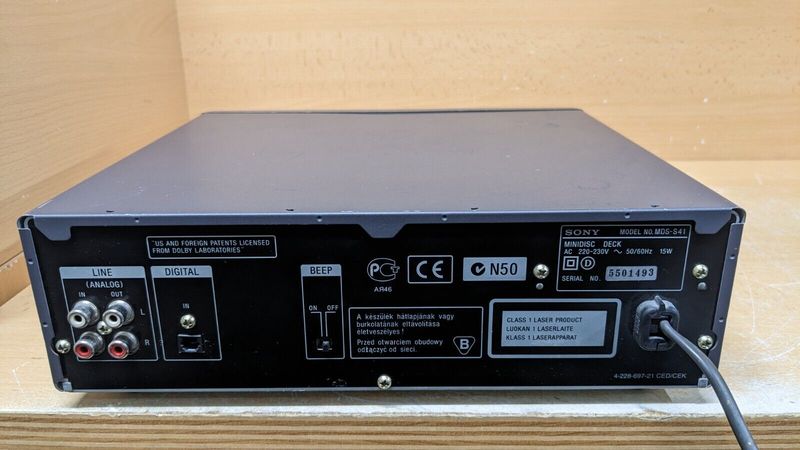

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control |

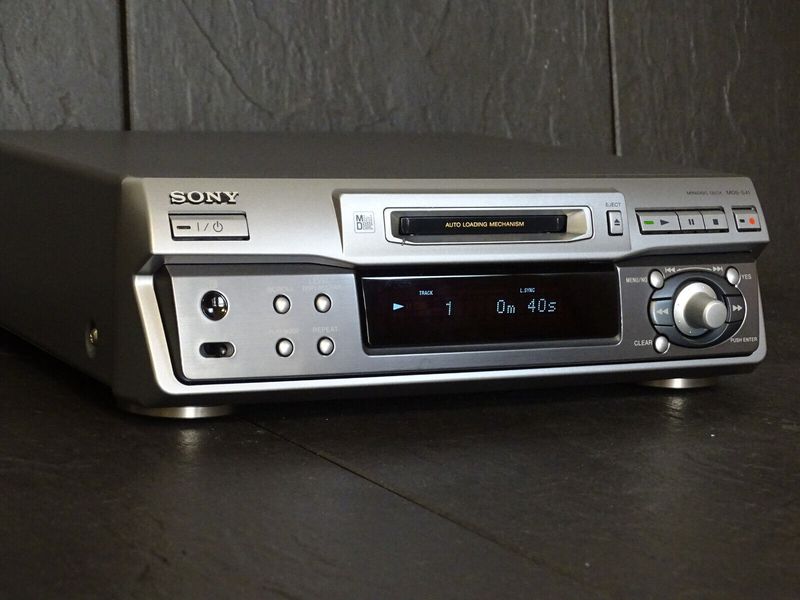

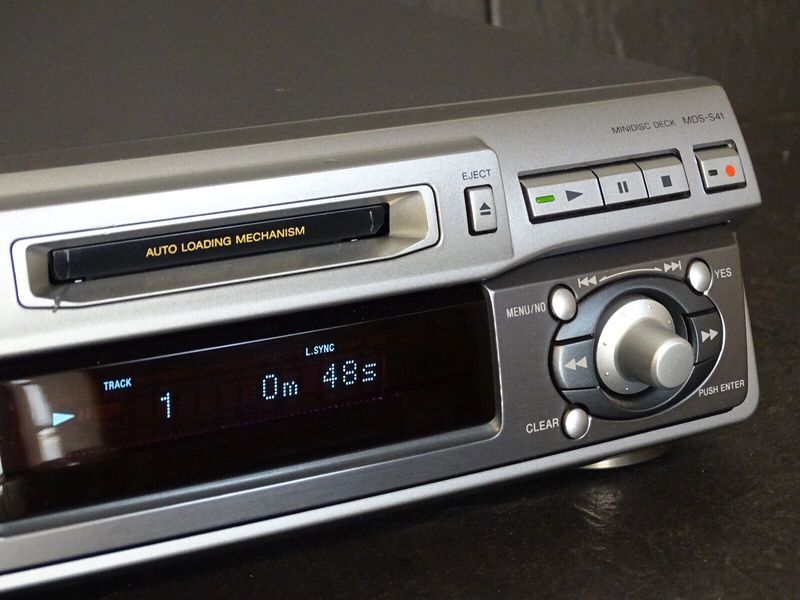

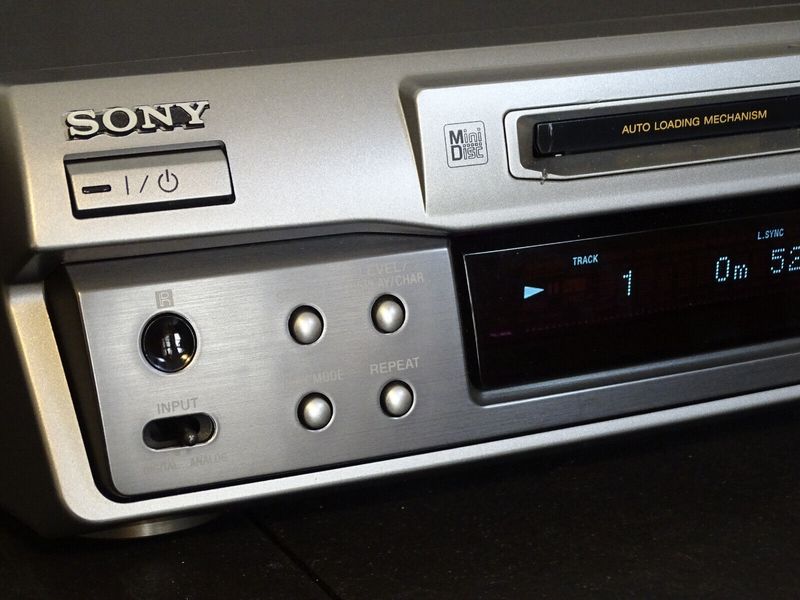

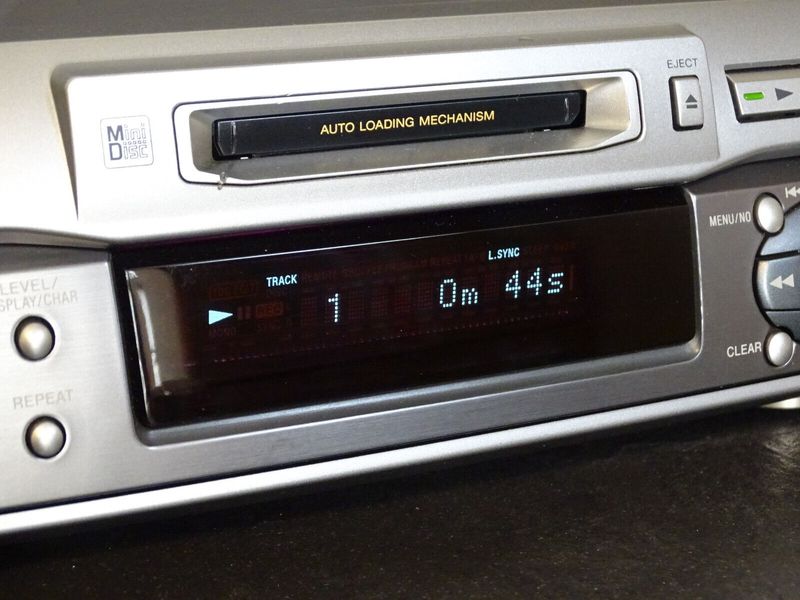

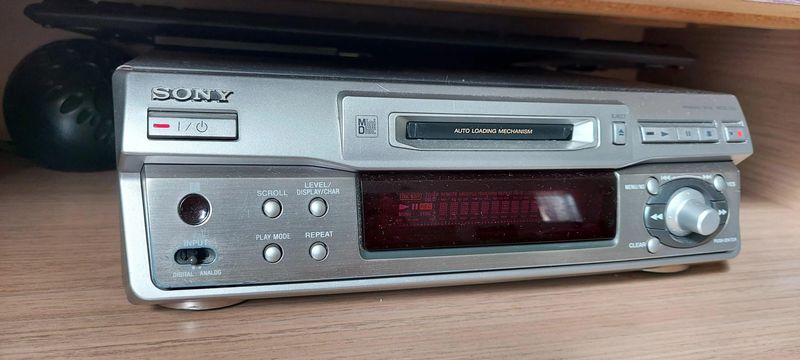

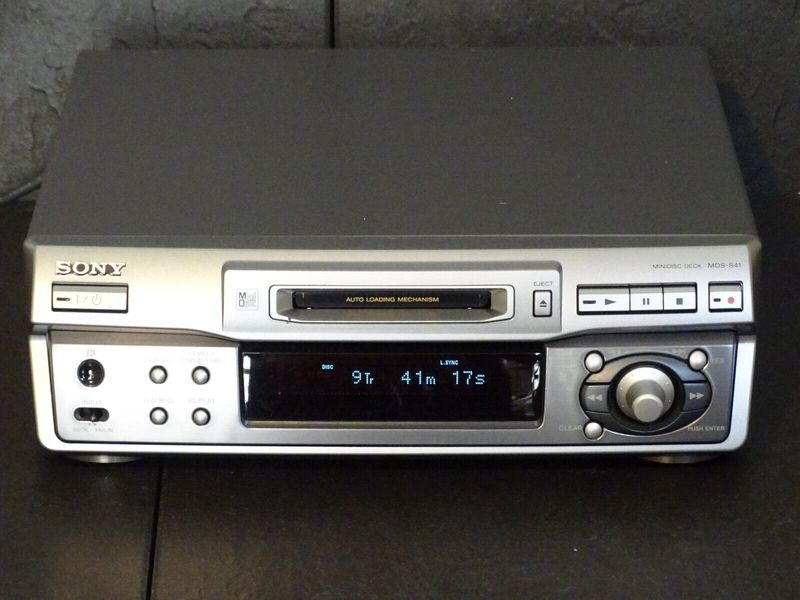

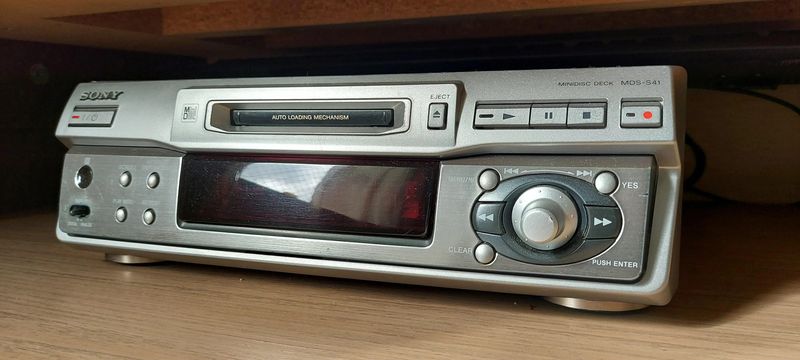

Compact MD deck. Had two variations, black and silver. Supports auto-on with disc insert, Has the usual music sync recording, time machine, and smart space functions.
Seems to be mostly an export unit for the US / CA / AEP / UK / E / AUS markets. The service manual states it is identical to the MDS-40, except it has an “E1 core transformer.” and a few minor changes.

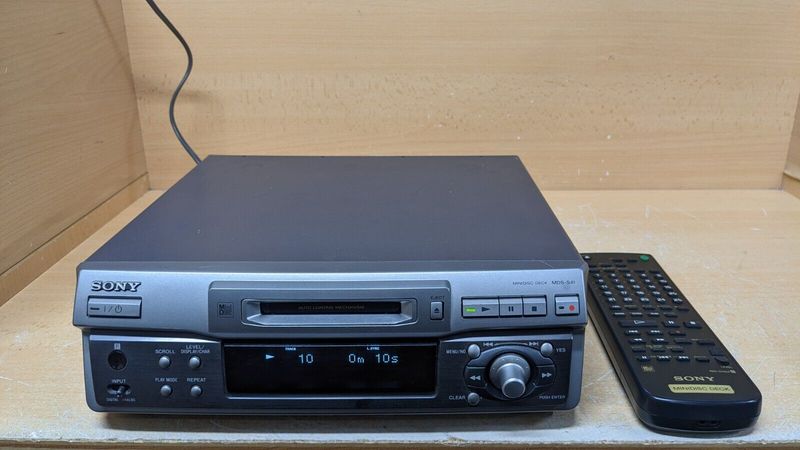

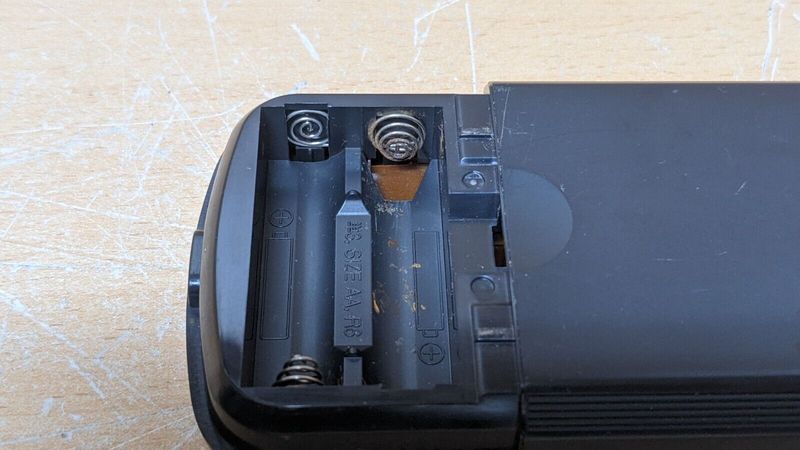

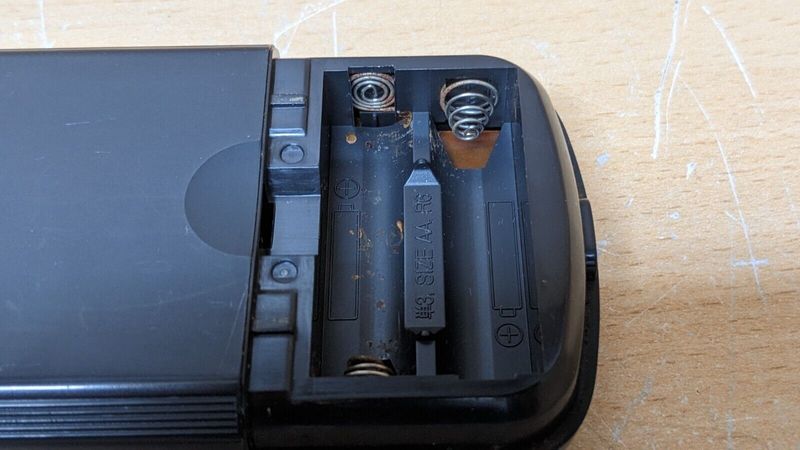

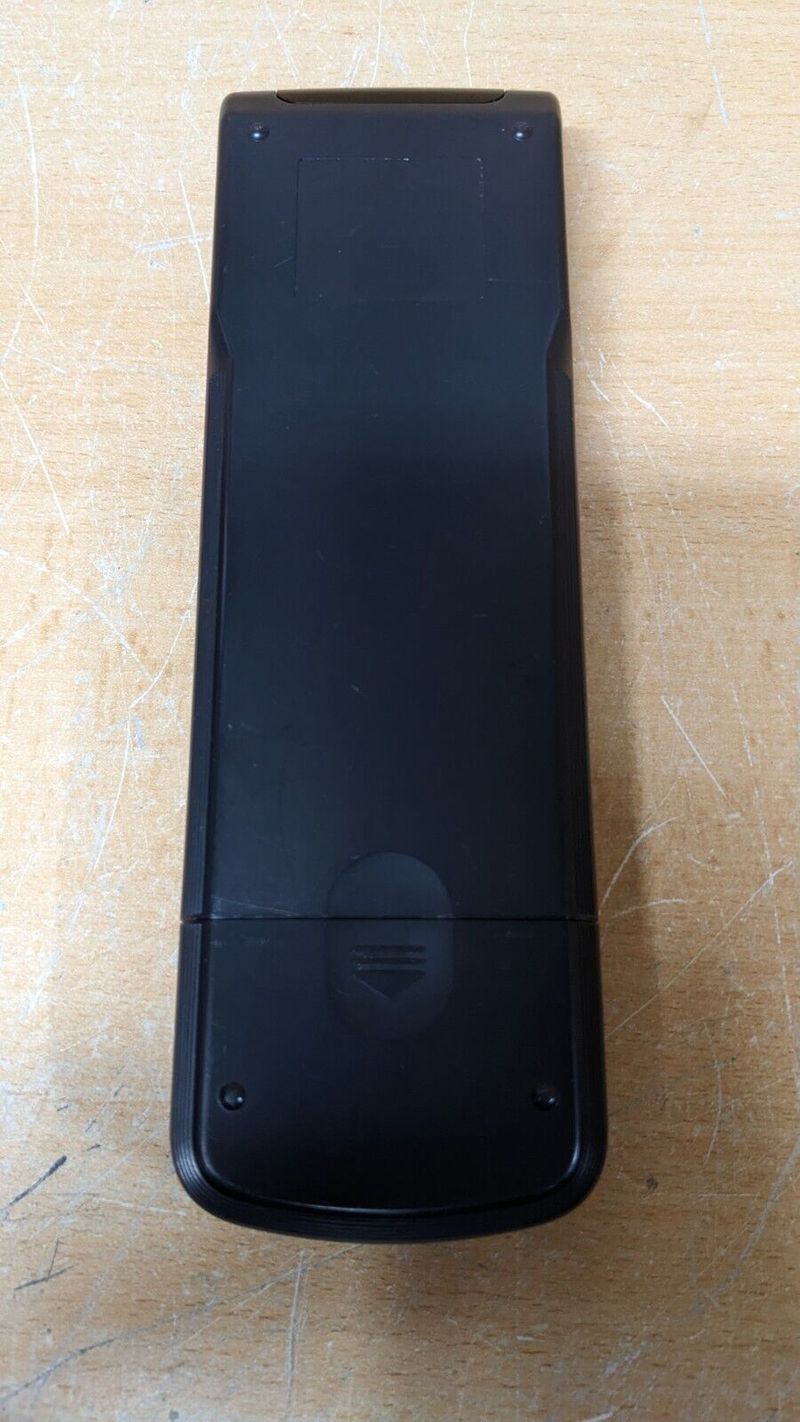

Shipped with RM-D30M remote.
Had support for the PCLK-MD1 and PCLK-MD2 PC Link Kits.
Model Name Using Similar Mechanism: MDS-JE520 MD Mechanism Type: MDM-5A Optical Pick-up: KMS-260A/J1N ATRAC IC: CXD2654R
Content adapted from: Audio Heritage (Japanese) [*], Minidisc.org [*]
Manuals
MDS-S41 User Manual
MDS-S41 Service Manual ENG
MDS-S41 Service Manual (Brazilian)

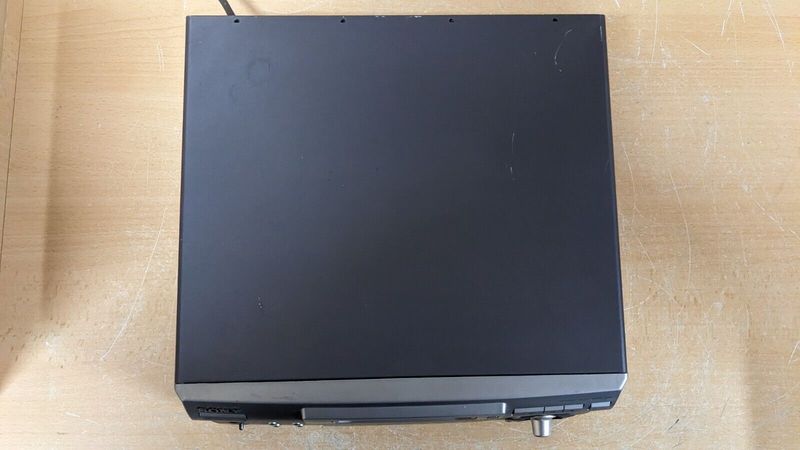

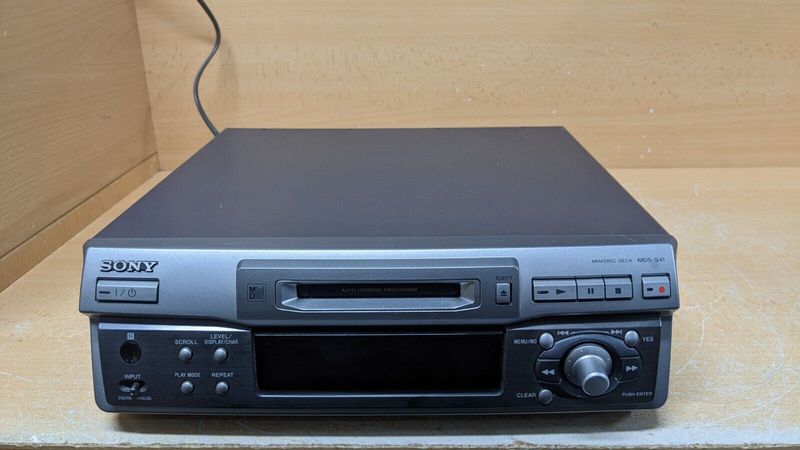

Photos
