Sony MDS-S1
| Name | MDS-S1 |
|---|---|
| Manufacturer | Sony |
| Released | 1994/11 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 310 x 90 x 345mm |
| Weight | 3.5kg |
| ATRAC ver | 3 |
| Power cable | AC |
| Price (launch) | |
| ¥69 000 | |
| - | |

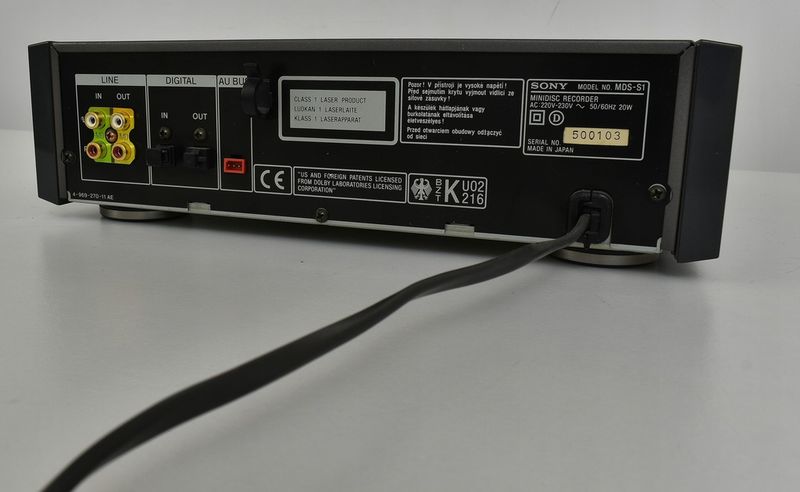

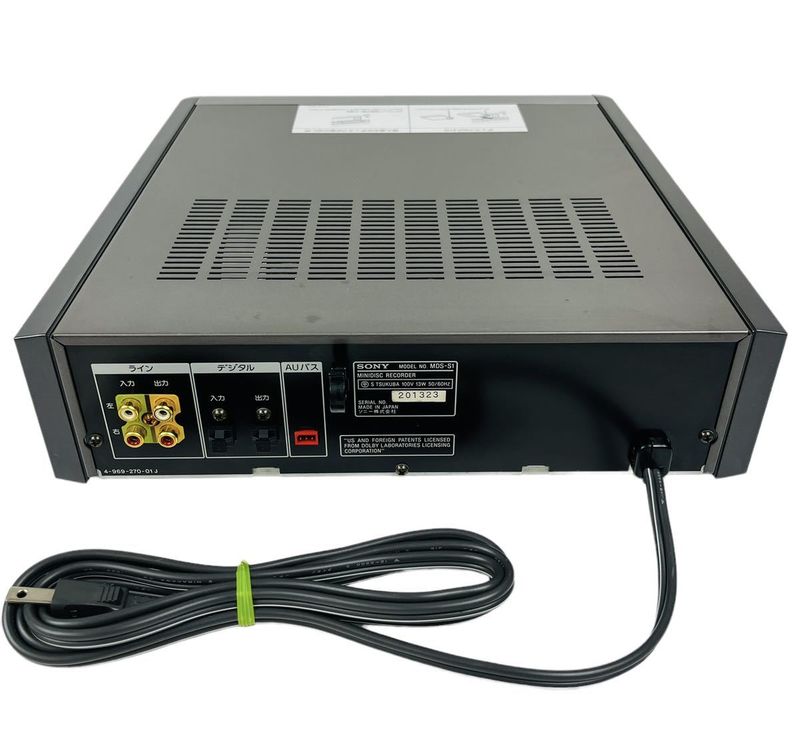

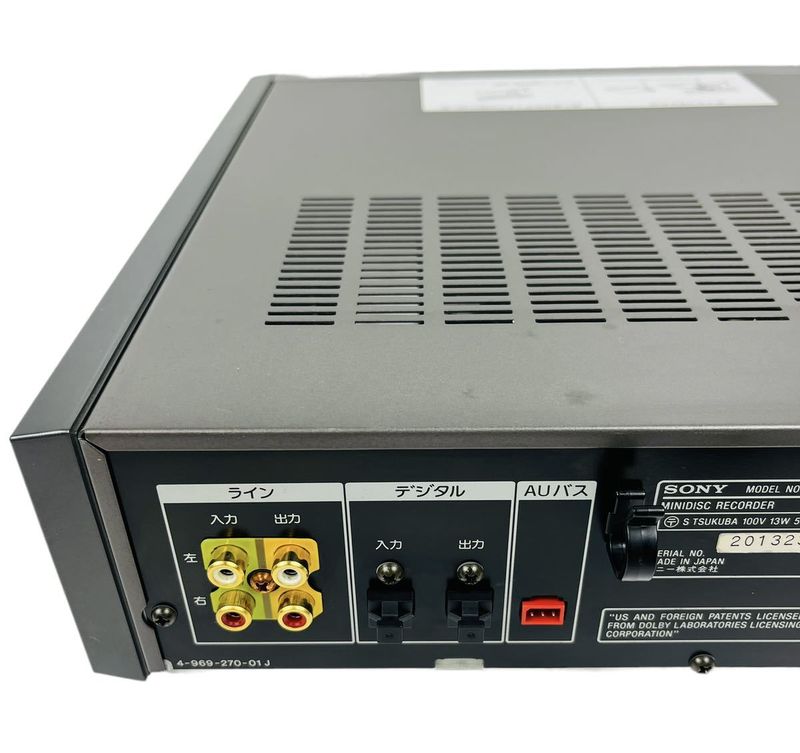

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | 3.5mm control |

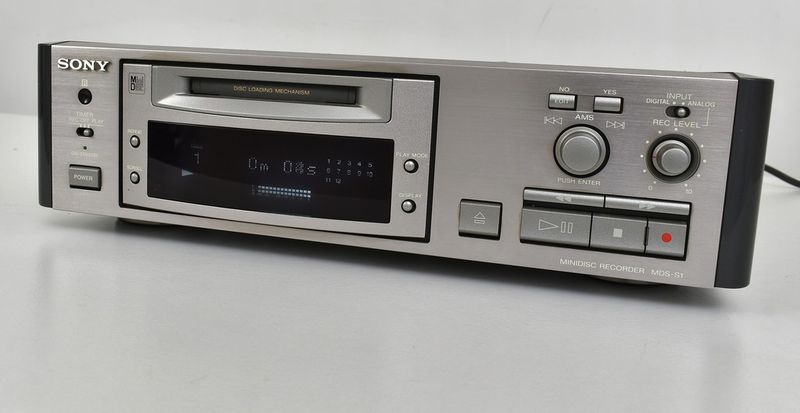

Compact deck from Sony's high end “La Scala” midi Component S series, S1 and S2.
Powers on with disk insert, and has an audio bus connector to link with other Component S system devices for automatic input and CD Synchro recording, CDP-S1. JQKGAN5WfIA
Can only playback mono discs, will not record them.

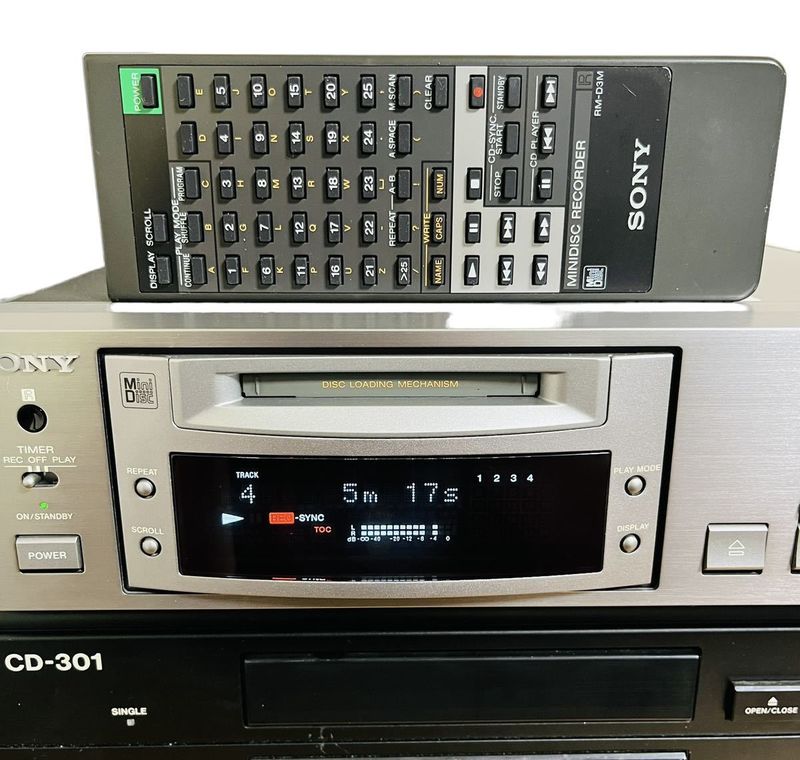

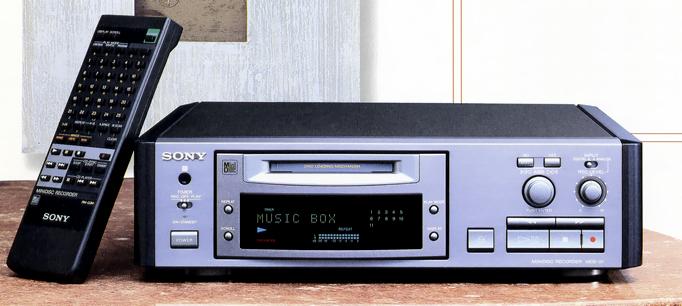

Came with RM-D3M Remote.
Model With Similar Mechanism: MDS-302
Mechanism Type: MDM-2A
Base Unit Type: MBU-2
Optical Pick-up Block: KMS-210A/J-N
ATRAC IC: CXD2536R
Content adapted from: Audio Heritage Page (Japanese) [*]
Manuals
MDS-S1 Service Manual
MDS-S1 Service Manual Supplement 1
MDS-S1 Service Manual Supplement 2

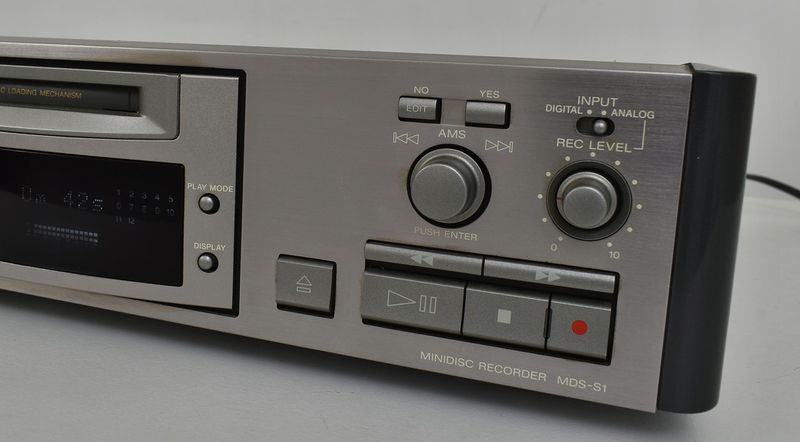

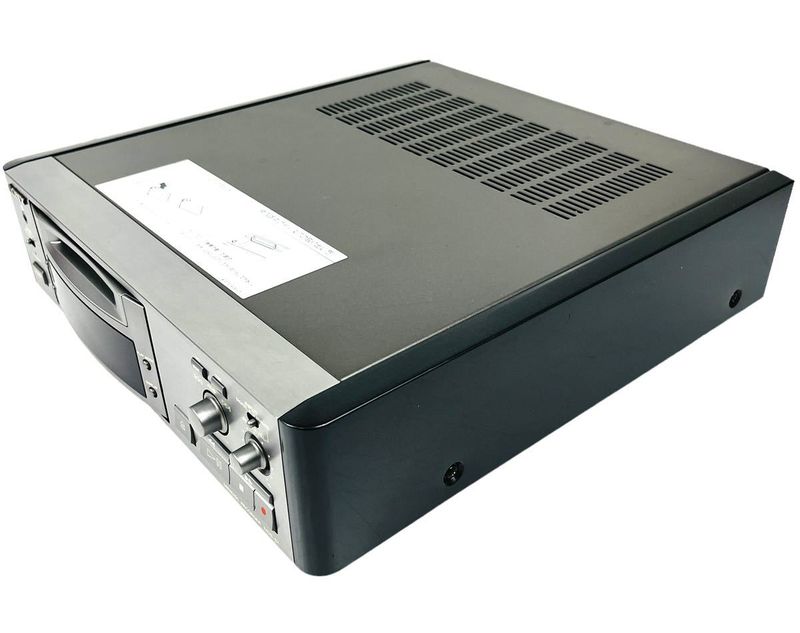

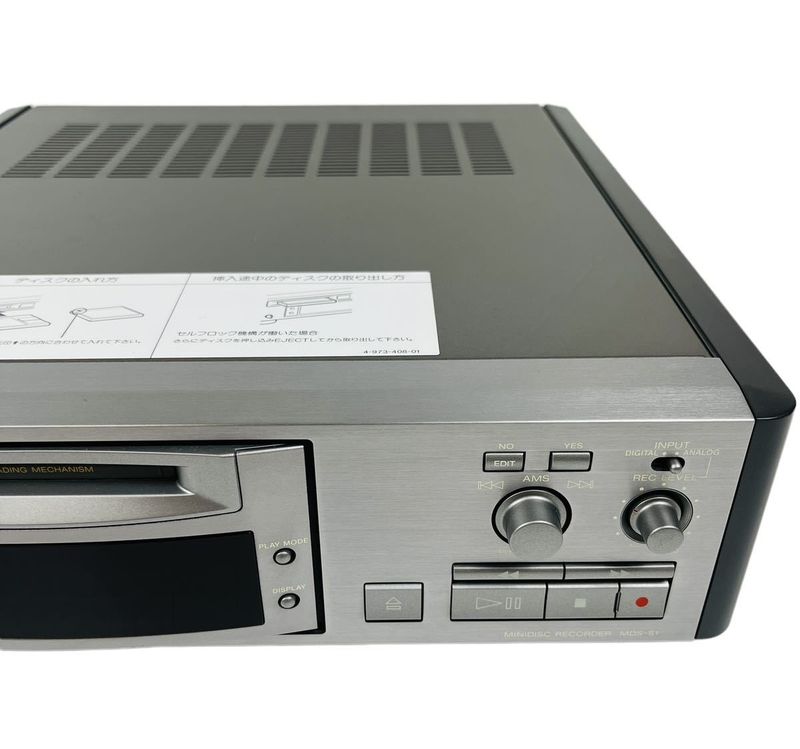

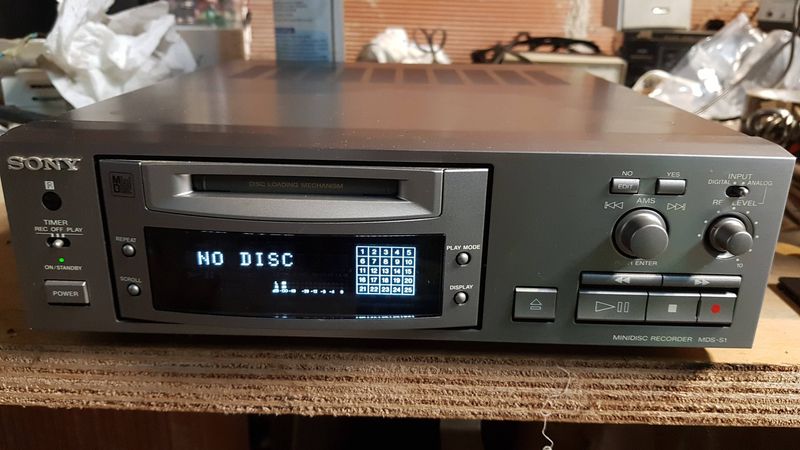

Photos
Oy3G4X1ksTs
