Sony MDS-JE700
| Name | MDS-JE700 |
|---|---|
| Manufacturer | Sony |
| Released | 1996/10 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 430 x 107.5 x 315 mm |
| Weight | 4.4Kg |
| ATRAC ver | 4 |
| Power cable | AC |
| Price (launch) | |
| ¥69 000 | |
| - | |

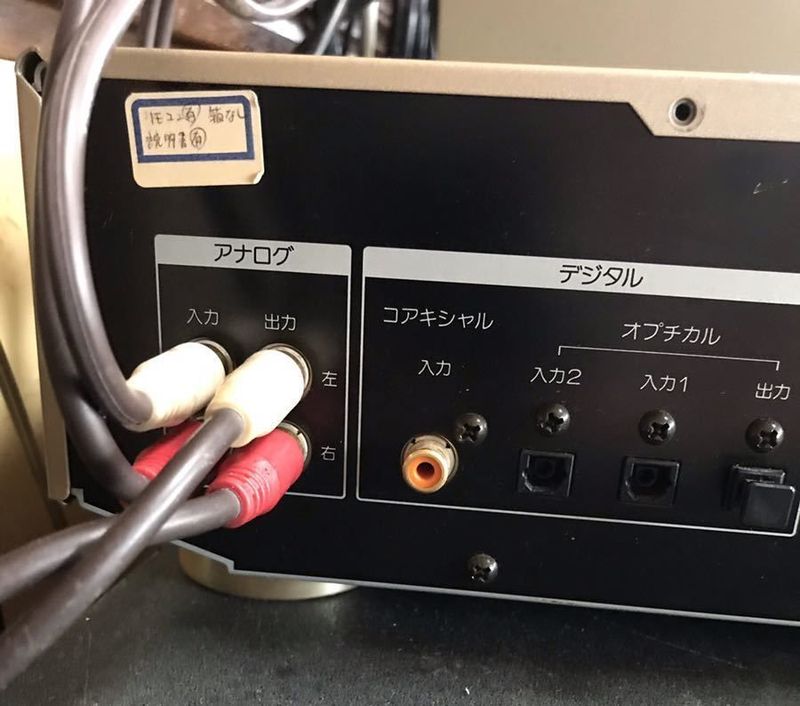

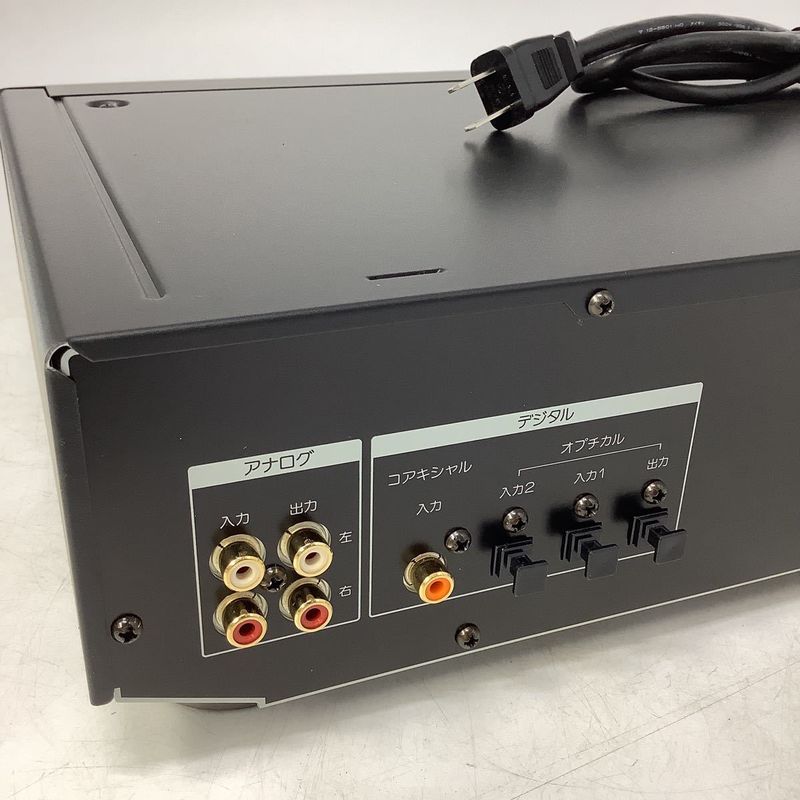

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |

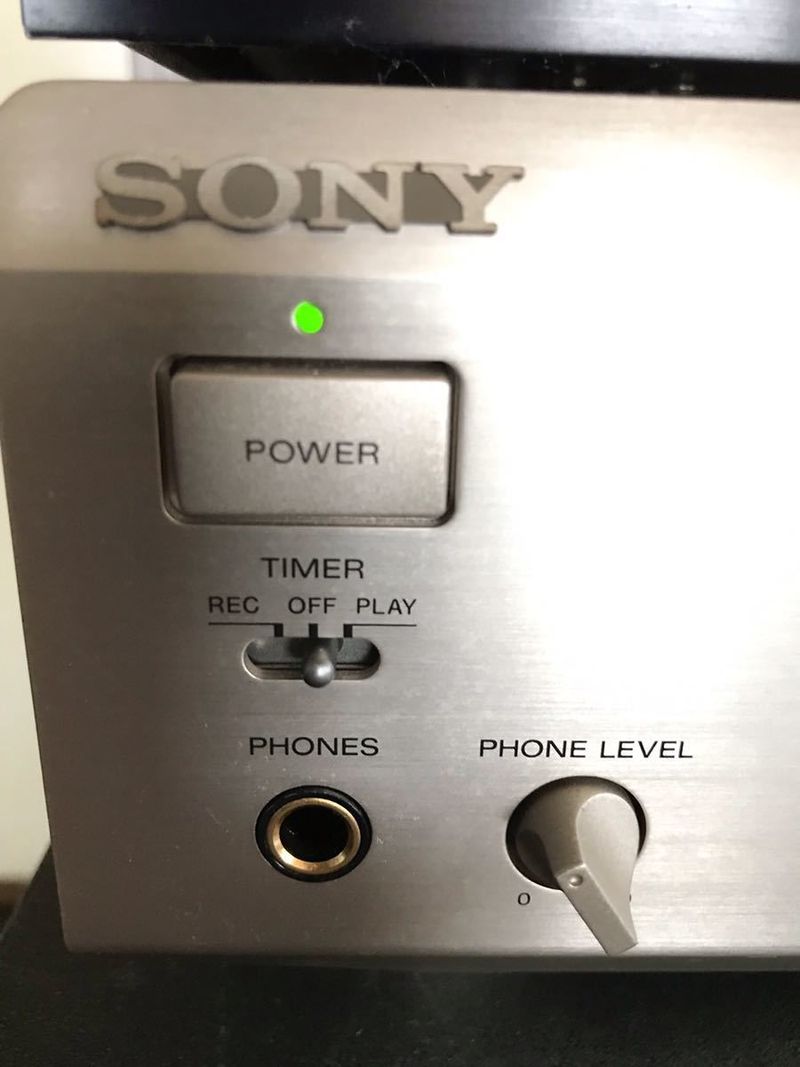

| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control |

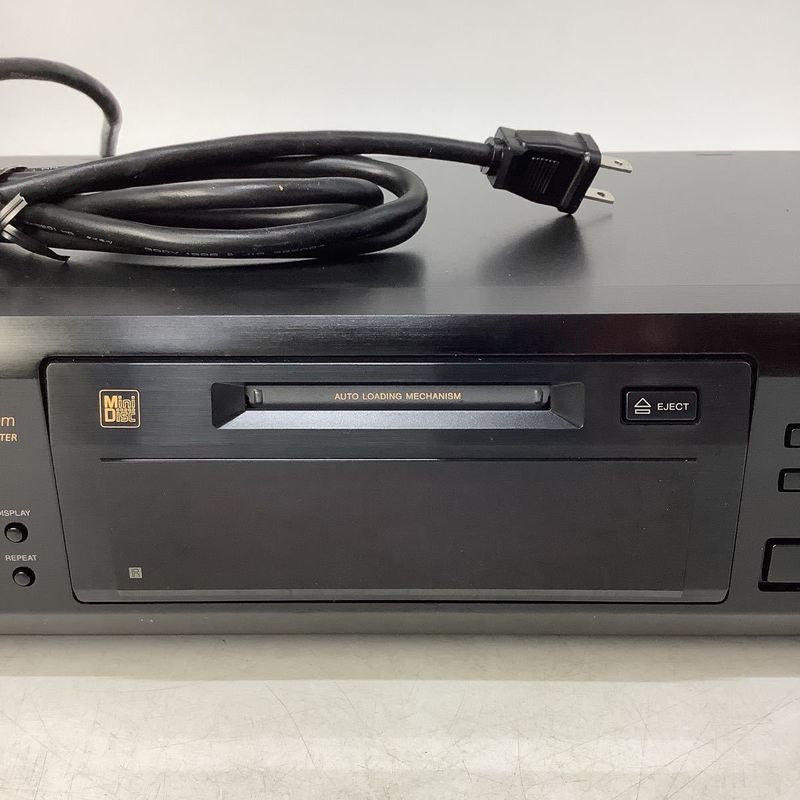

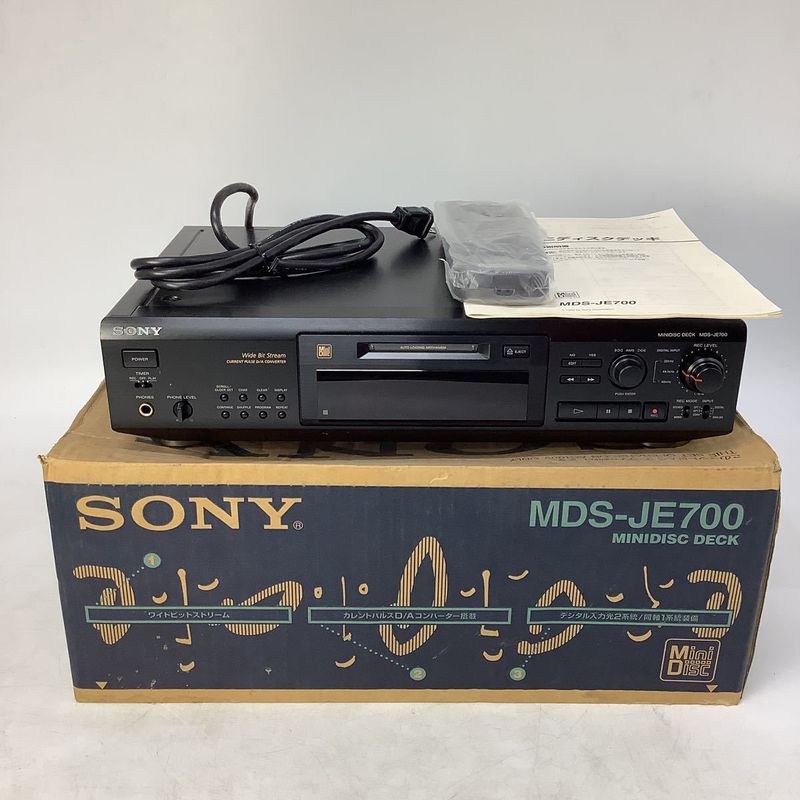

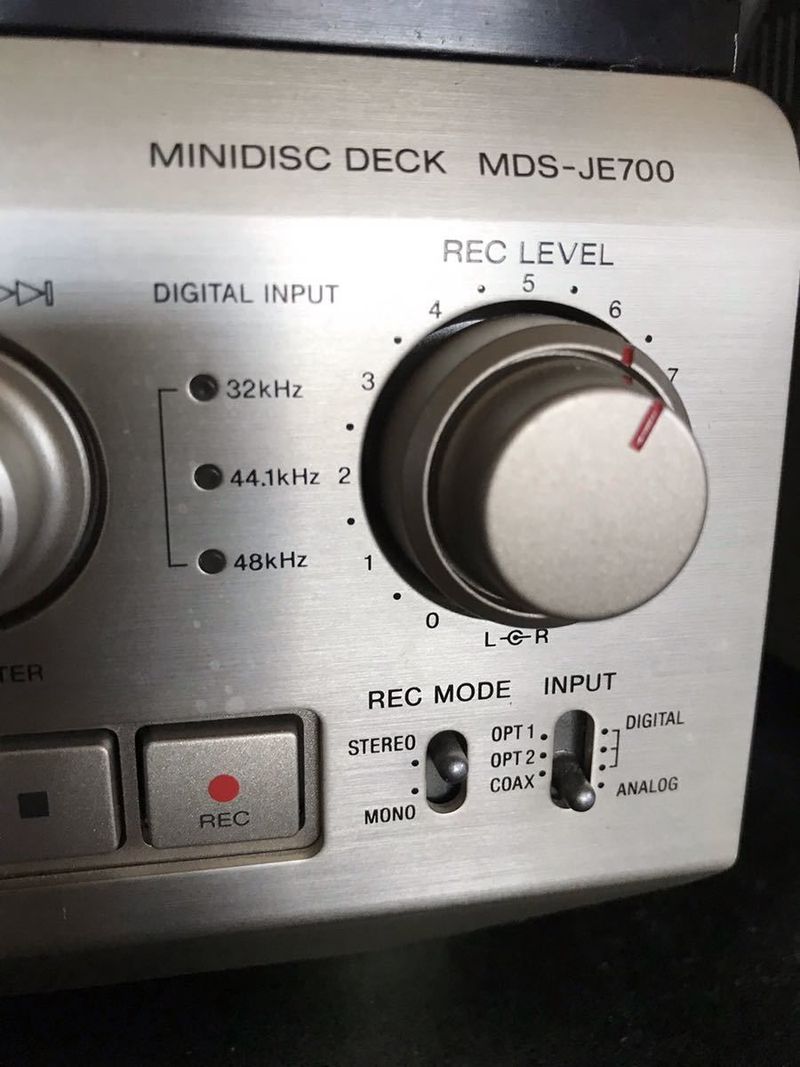

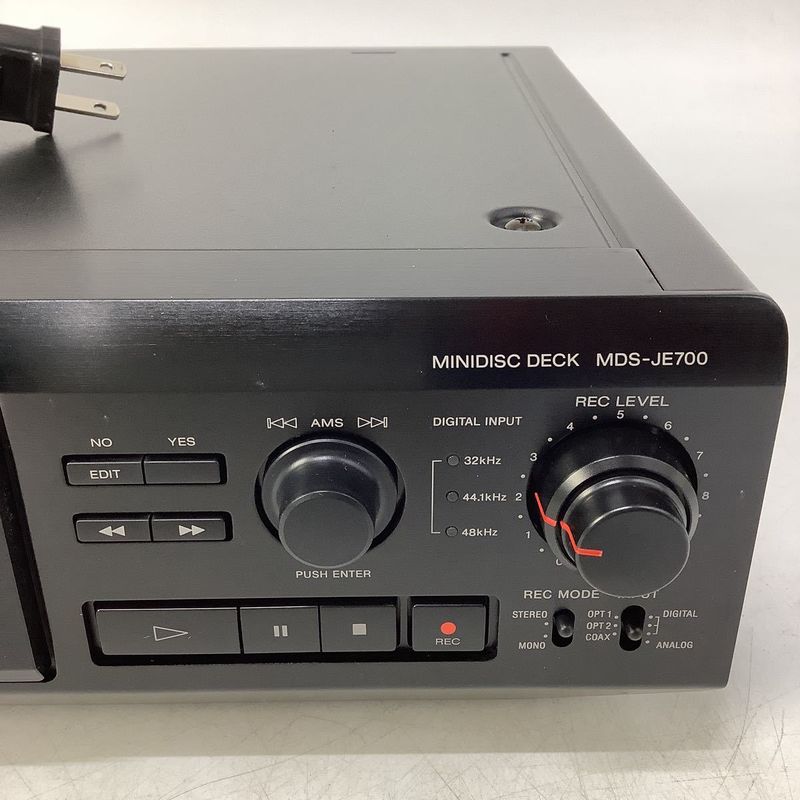

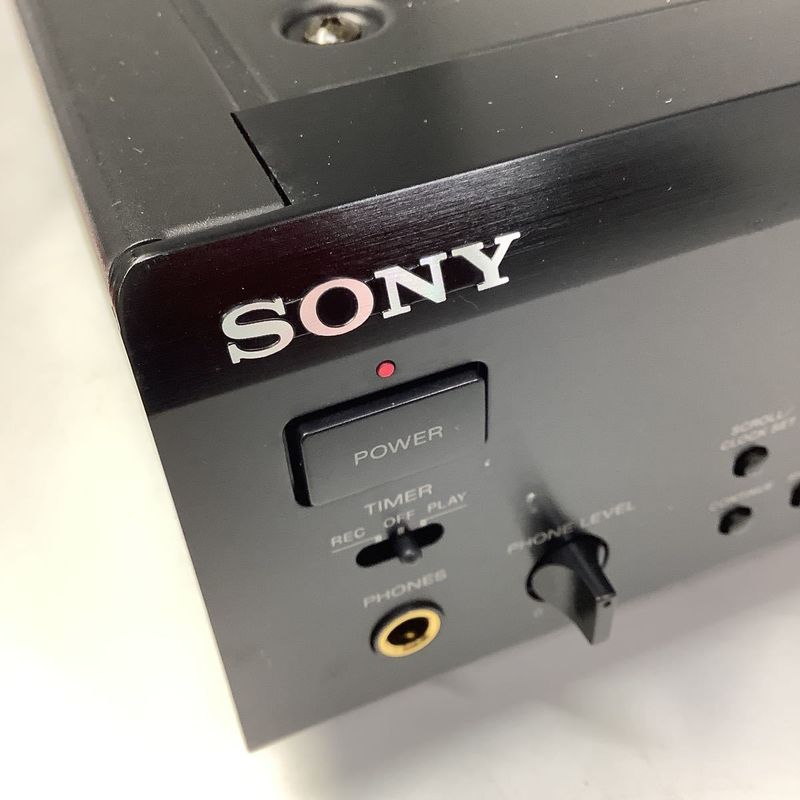

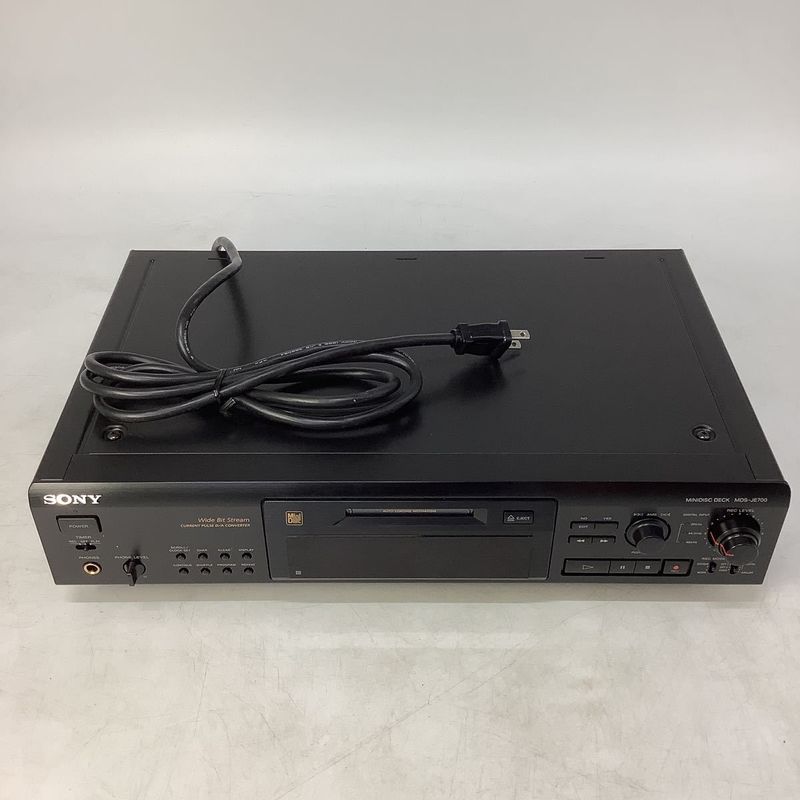

Features: ATRAC 4 (IC: CXD2650R, same as Sony MDS-JE500/MDS-S37). Current Pulse DAC. Sampling rate converter. 2 second “time machine” function. A-B erase. Separate L/R recording level controls. R-Core transformer. Available also in black. Remote controller: RM-D10M. Optional keyboard like controller/titler: RM-D10P. Essentially the same unit as the Sony MDS-J3000.
Specs: Freq resp: 5-20kHz +/-0.3dB, S/N: > 100dB (digital rec/play), > 94dB (analog rec/play), Dynamic Range: > 98dB (digital), > 94dB (analog), THD < .003% (digital), < .005% (analog), Wow/flutter: less than 0.001% W-Peak.
Model Name Using Similar Mechanism MDS-JE500
MD Mechanism Type MDM-3A
Optical Pick-up TypeKMS-260A/J1N
ATRAC Encoder/Decoder: CXD2650R (Digital Signal Processor, Digital Servo Signal Processor, EFM/ACIRC Encoder/Decoder, 2 MBIT DRAM)
Content adapted from: Minidisc.org Page [*]
Manuals
MDS-JE700 User manual
MDS-JE700 Service manual
