Sony MDS-JB920
| Name | MDS-JB920 |
|---|---|
| Manufacturer | Sony |
| Released | 1998/07 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 430 x 108 x 295mm |
| Weight | 4.9kg |
| ATRAC ver | 4.5 |
| Power cable | AC |
| Price (launch) | $480 |
| ¥69 000 | |
| - | |

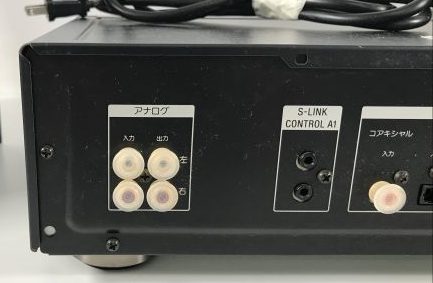

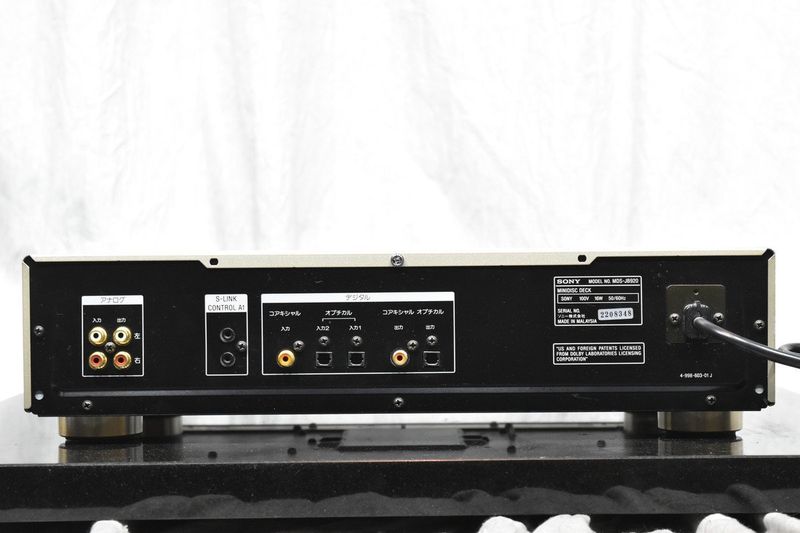

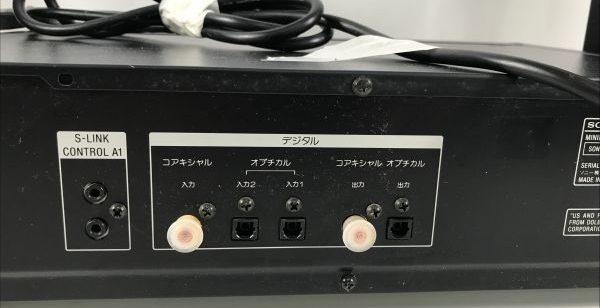

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK), Digital coaxial |
| Control |

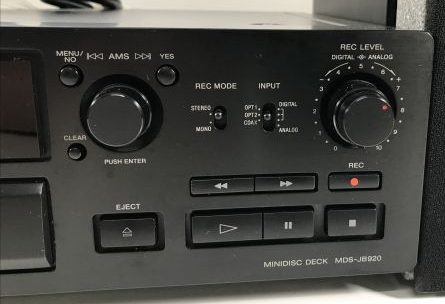

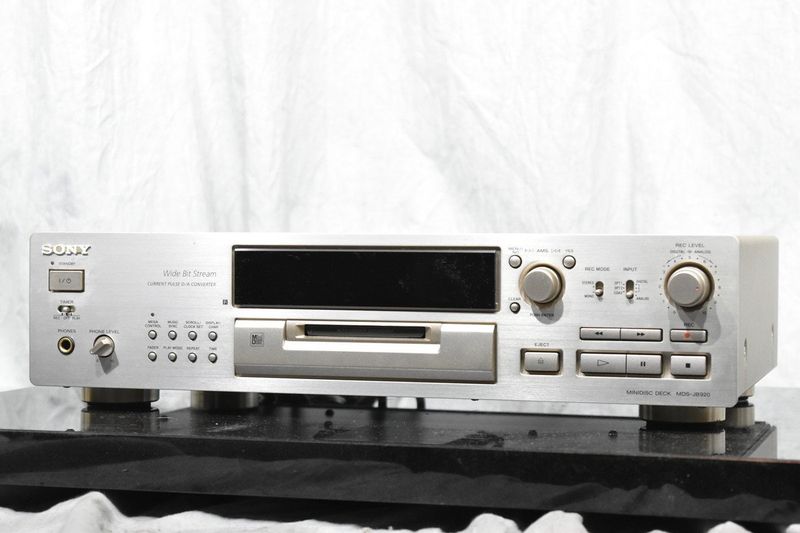

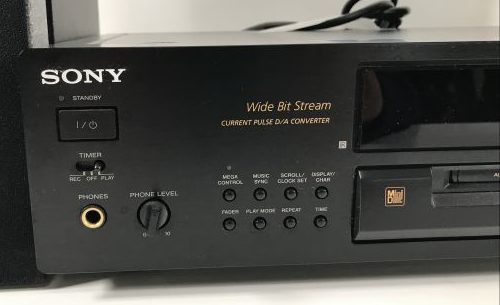

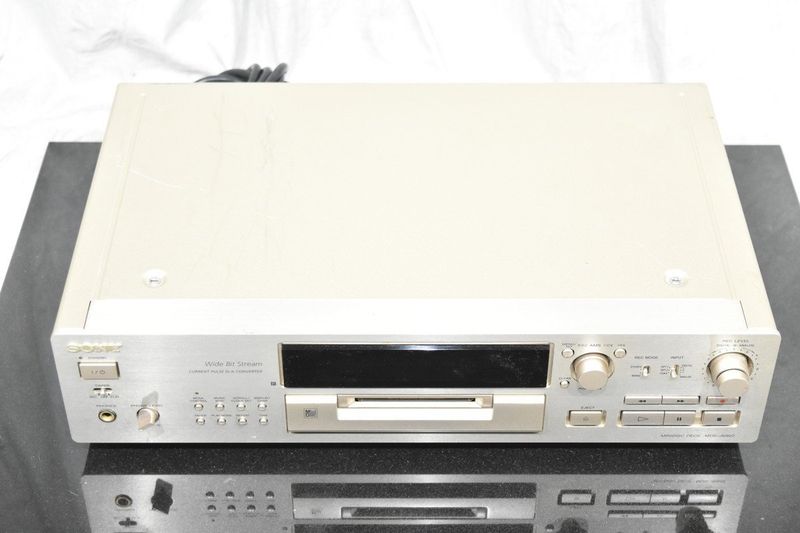

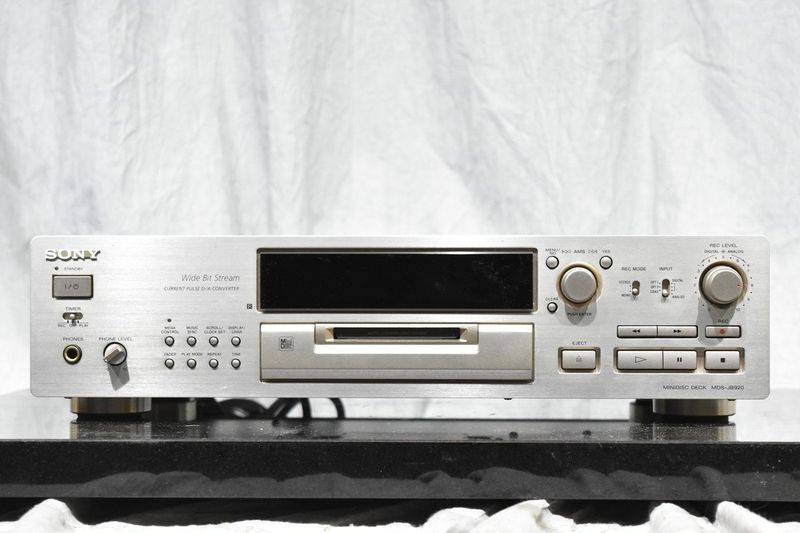

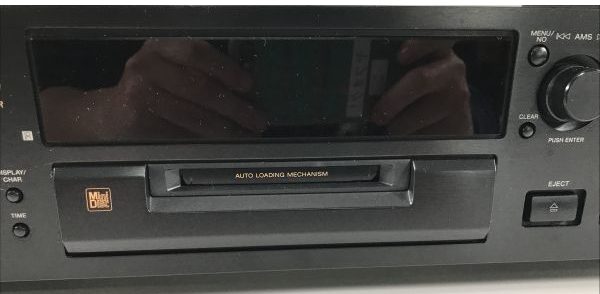

Atrac 4.5 Minidisc deck. Priced middle of the range with “an emphasis on sound quality” according to Sony. Aluminium front panel, digital REC level, R-Core transformer, 'Wide Bit Stream' support, two-line front panel display, and supports automatic copying of CD-Text track titles when recording from a Sony CD deck connected with CONTROL A1.
Supports Sony S-link, so it can connect with similar Sony products. Can also work with the PCLK-MD1 PC connection kit.

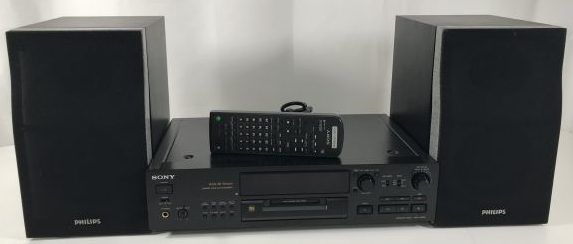

Remote: RM-D18M (see product park source). Minidisc.org says it shipped with the RM-D17 remote (maybe foreign markets?)
Guts are identical to MDS-PC1.
Content adapted from: Minidisc.org page [*], Sony Press Release [*] Sony Product Park [*] Sony Product Park (MiniDisc Wiki mirror) [*]
Manuals
- MDS-JB920 User manual
- MDS-JB920 Service manual
- MDS-JB920 Service manual supplement-1 (Not very exciting - just an AMS silver knob!)
