Sony MDS-JA333ES
| Name | MDS-JA333ES |
|---|---|
| Manufacturer | Sony |
| Released | 2000/10 |
| Device type | deck |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 430 x 123.5 x 375.5mm |
| Weight | 10.5kg |
| ATRAC ver | Type-R |
| Power cable | AC |
| Price (launch) | |
| ¥100 000 | |
| - | |

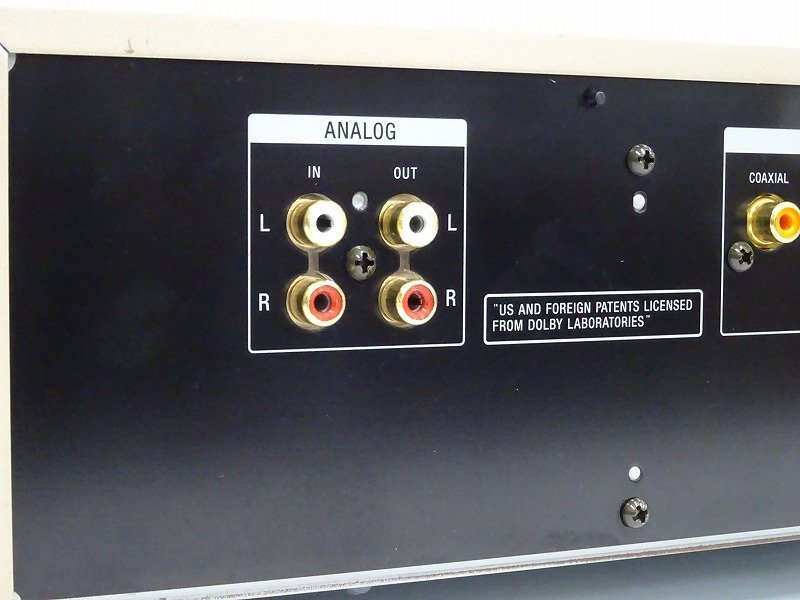

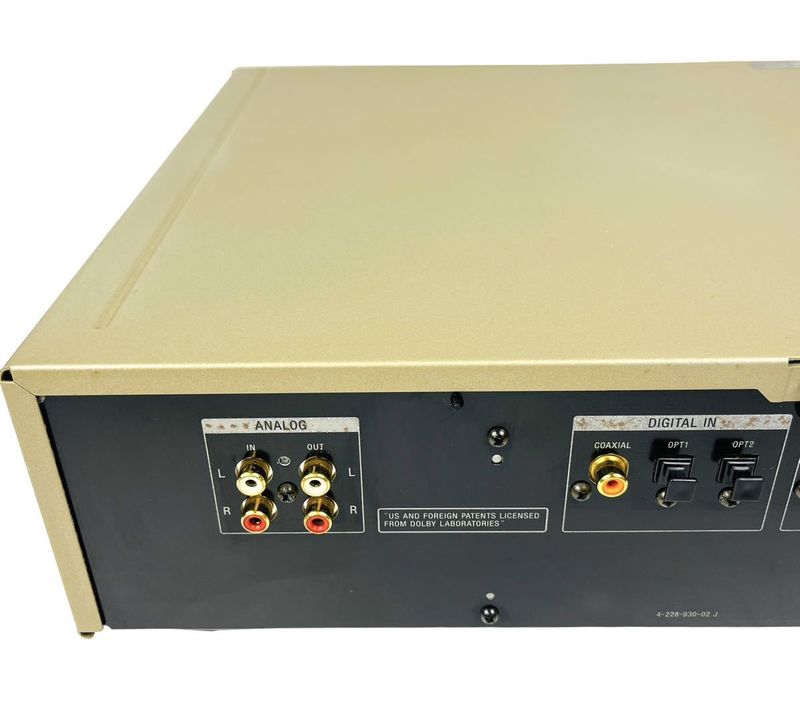

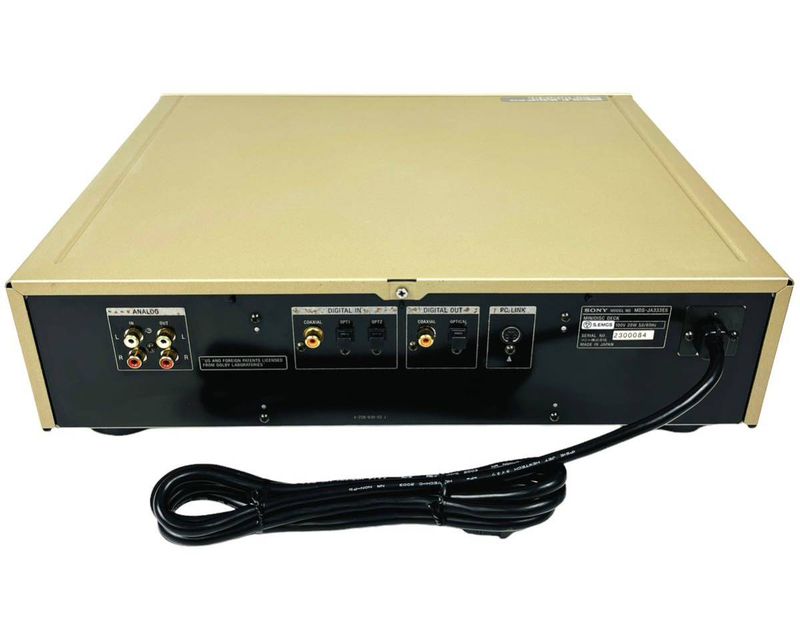

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |

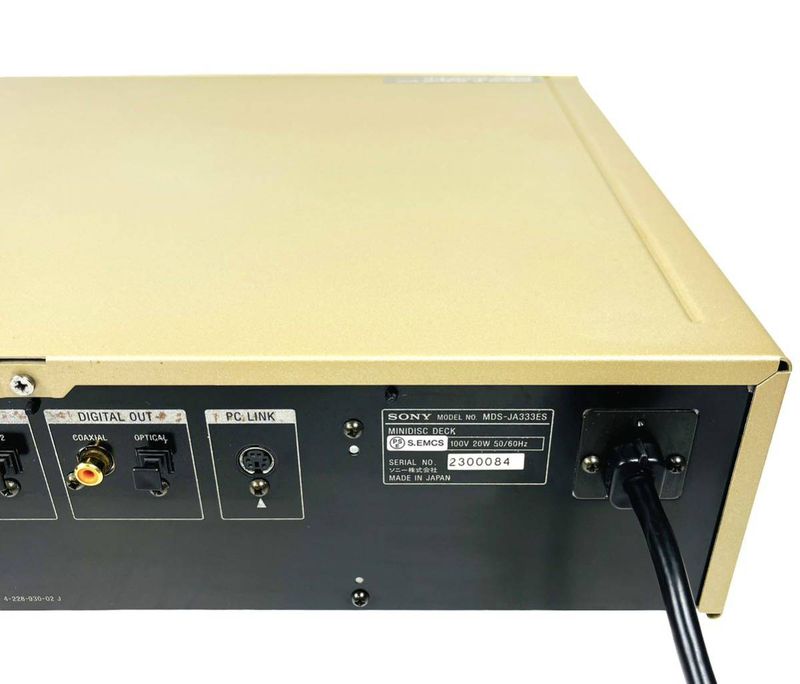

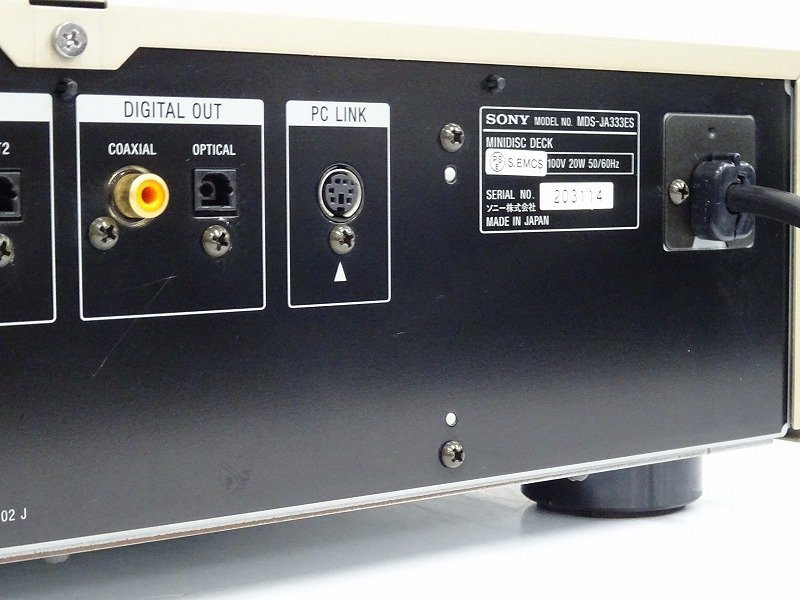

| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK), Digital coaxial |
| Control | Remote (Sony), PC Link |
Features: ATRAC with Type-R DSP, MDLP recording modes (ATRAC3), Scale Factor Edit [*], digital and analog record level control, variable coefficient digital output filter, digital record level adjustment, 6 second Time Machine recording capability, sampling rate converter. PC connectable using PCLK-MD1 or PCLK-MD2 kit.
Specs: 24bit Sigma-Delta ADC, 24bit current-pulse DAC (S-TACT IC, with 128x oversampling), SNR: > 106dB, Dynamic Range > 106dB, THD .0025%

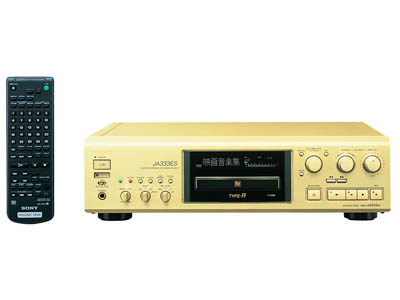

Remote: RM-D50M
MD Mechanism Type: MDM-6J
Base Unit Type: MBU-5J
Optical Pick-up: KMS-260B/J1N
IC121 ATRAC Encoder/Decoder CXD2662R (according to the service manual)
Links: Sony's Japanese page [*] for this unit ( machine translation [*]). Sony Product Park [*] Sony Product Park (MiniDisc Wiki mirror) [*] A Sony MDS-JA333ES flyer ( page1 [*], page2 [*]) is scanned in.
![page1 [*]](https://www.minidisc.org/sony_mdsja333es_release1.jpg){kind=link}
![page2 [*]](https://www.minidisc.org/sony_mdsja333es_release2.jpg){kind=link}
Manuals
MDS-JA333ES User Manual ENG / GB / FR
MDS-JA333ES Service Manual ENG
Repair

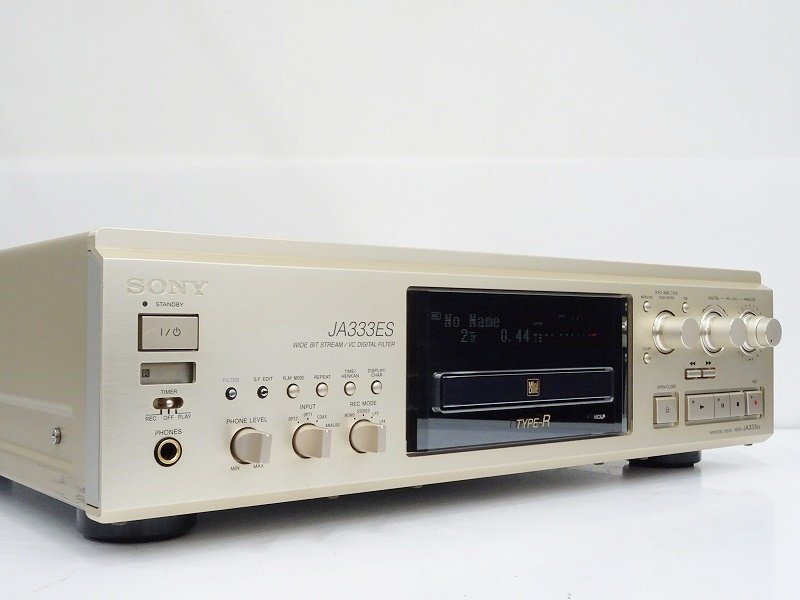

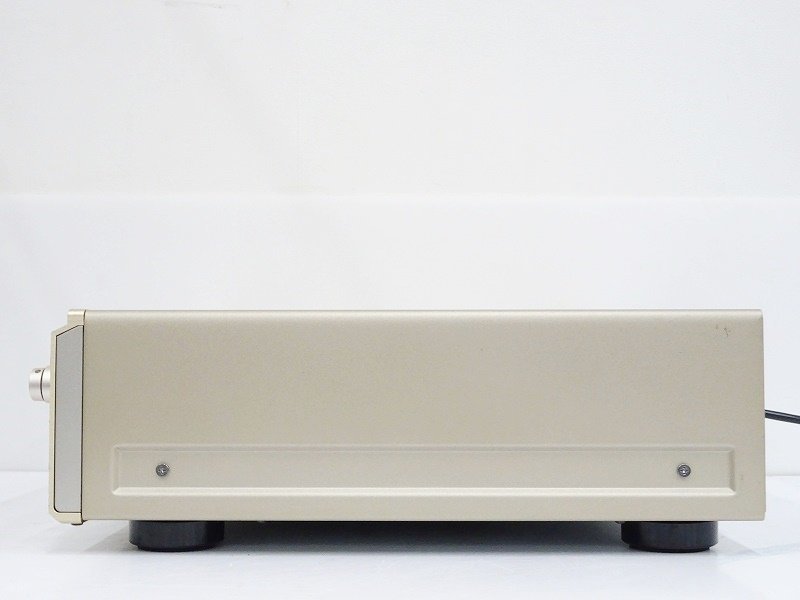

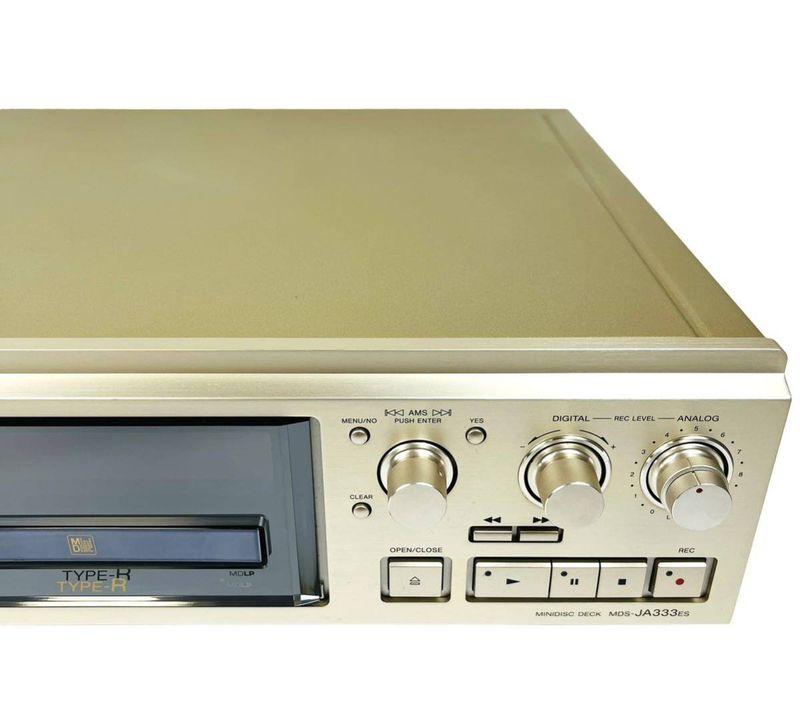

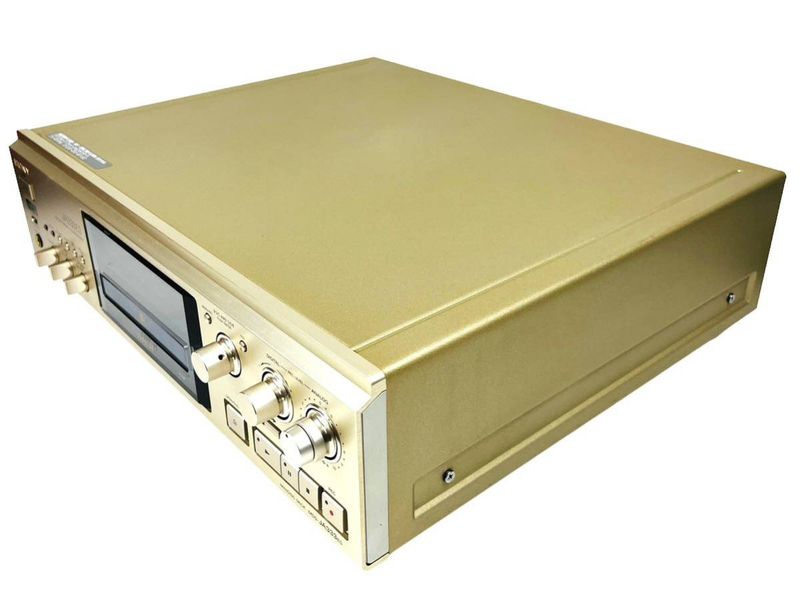

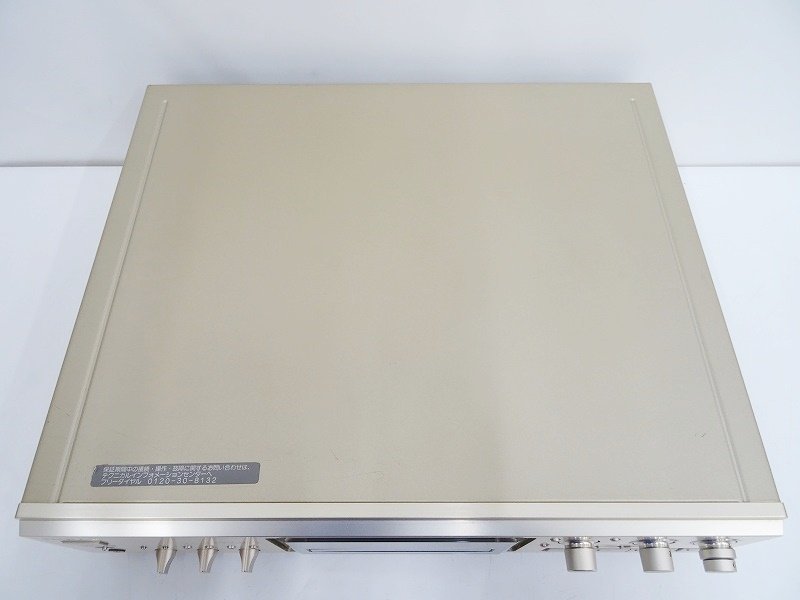

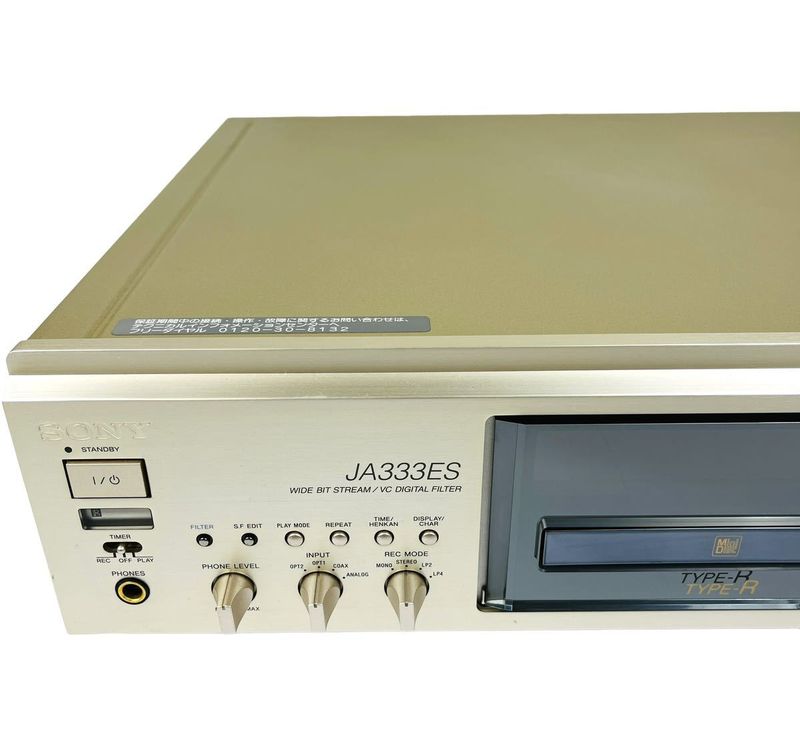

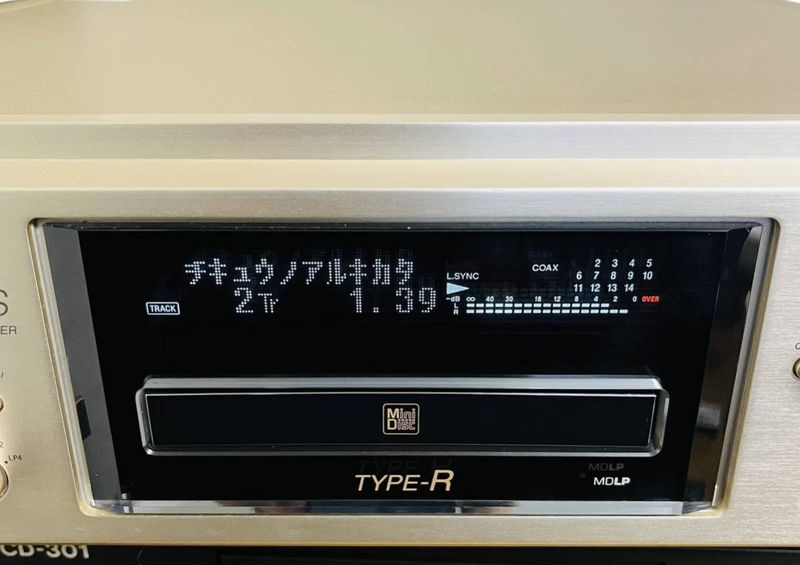

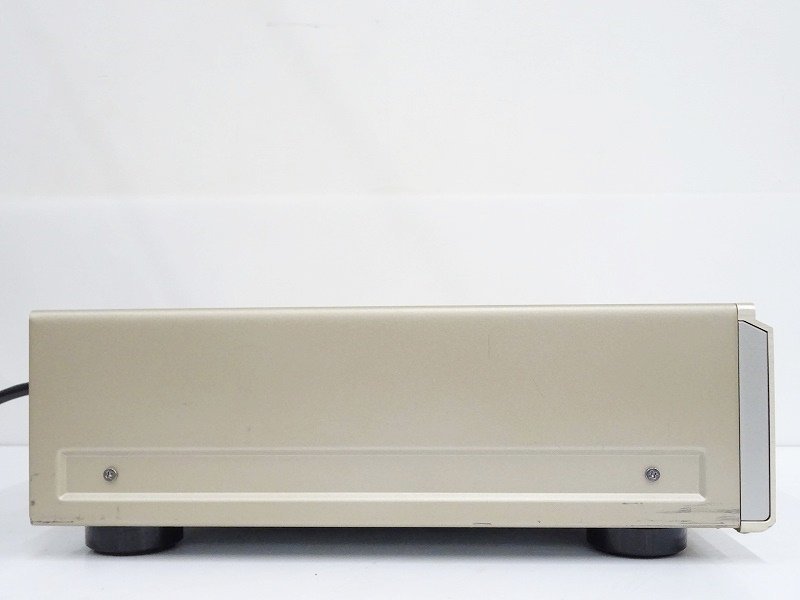

Photos

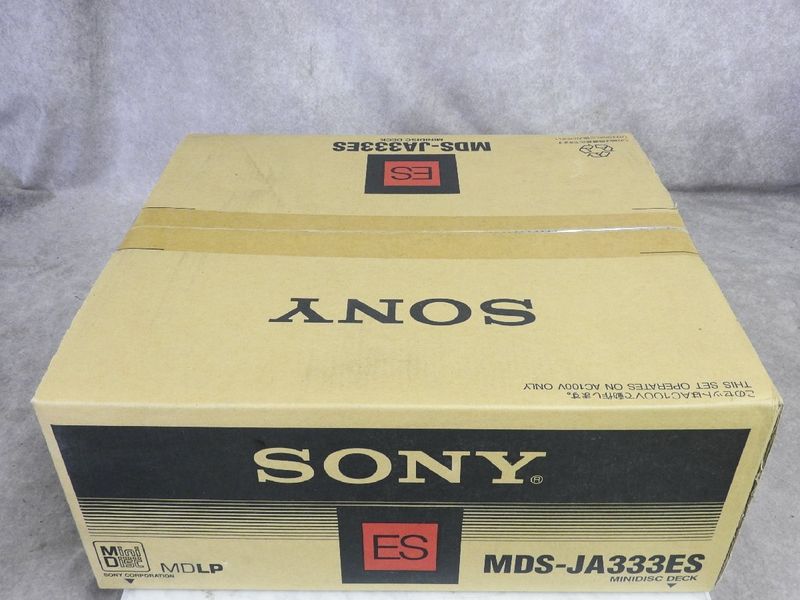

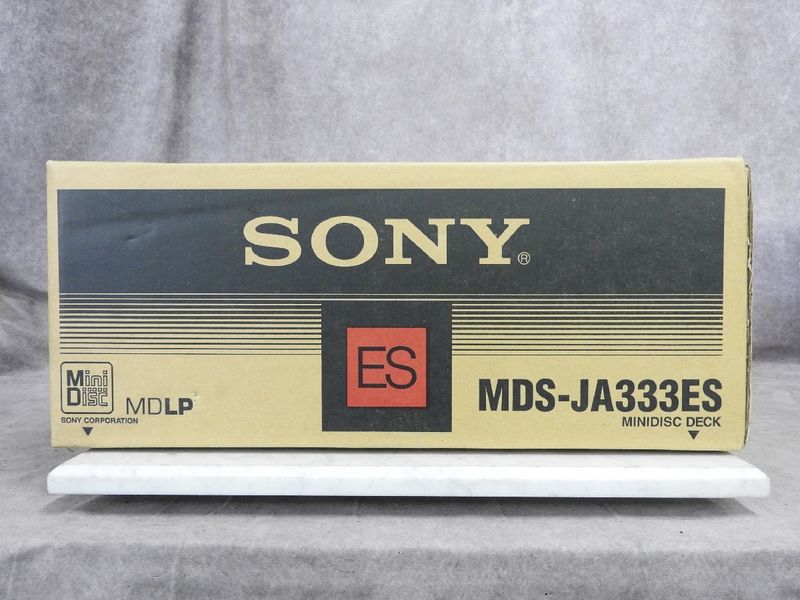

SONY MDS-JA333ES box:
