Sony ZS-M3
| Name | ZS-M3 |
|---|---|
| Manufacturer | Sony |
| Released | 1995/12 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 520x227x234mm |
| Weight | 6.9kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| ¥72 000 | |
| - | |

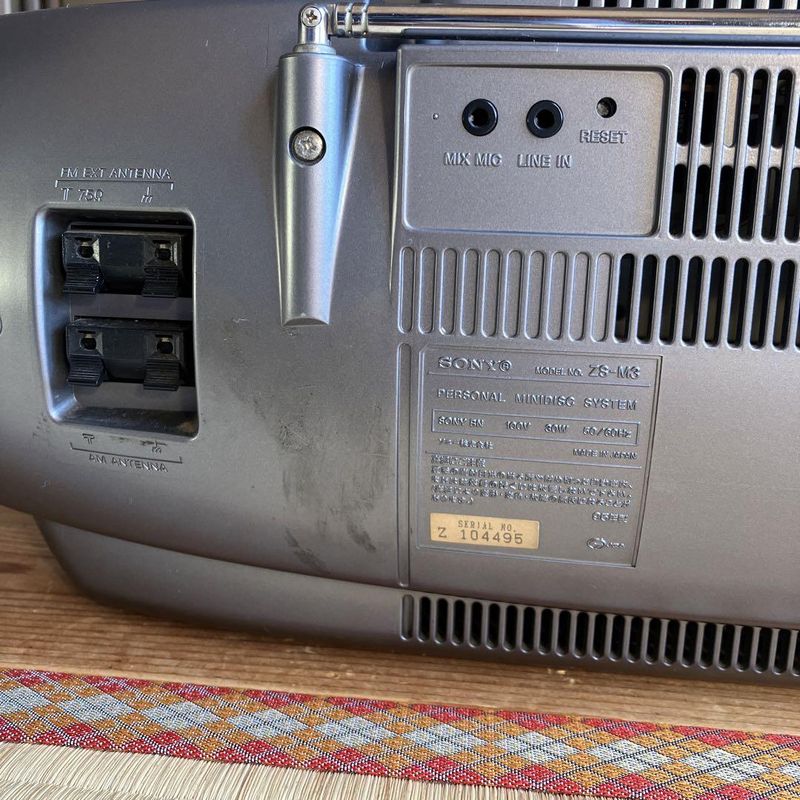

| Inputs | 3.5mm line in (analog-only), 3.5mm microphone, CD, Radio recording |
| Outputs | 3.5mm headphone, Built-in speaker |
| Control |

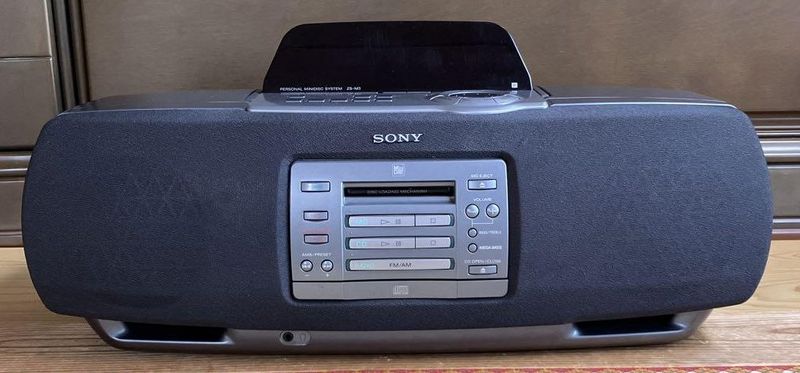

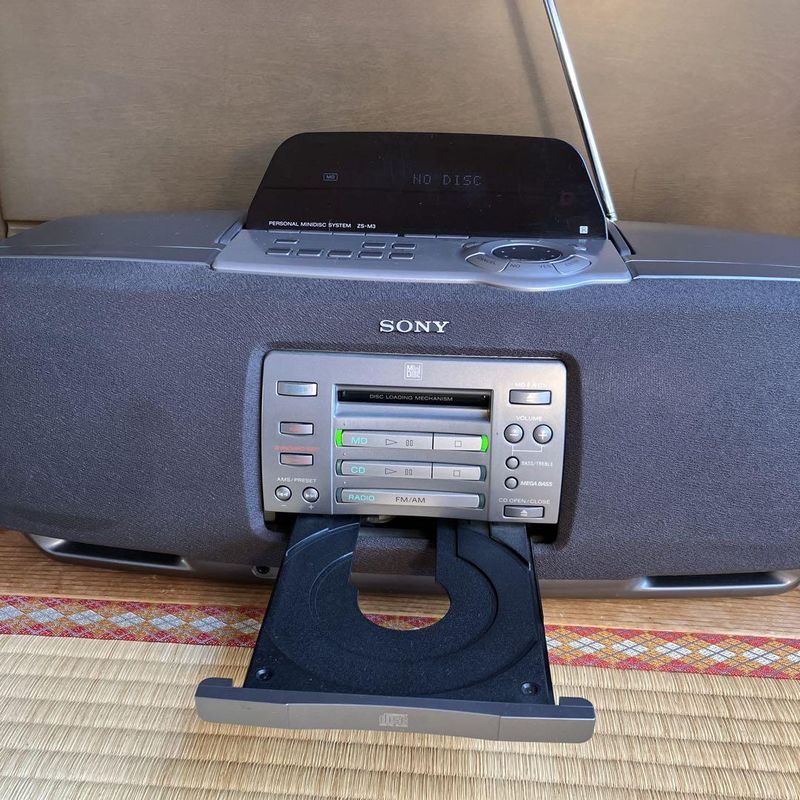

Radio/MD/CD boombox.
Features:
- CD → MD digital recording (one touch recording and edit (program) recording).
- CD: shuffle play, program play (up to 20 songs), 1/all repeat, music calendar.
- MD play mode: shuffle play, program play (up to 20 songs), 1/all repeat, music calendar.

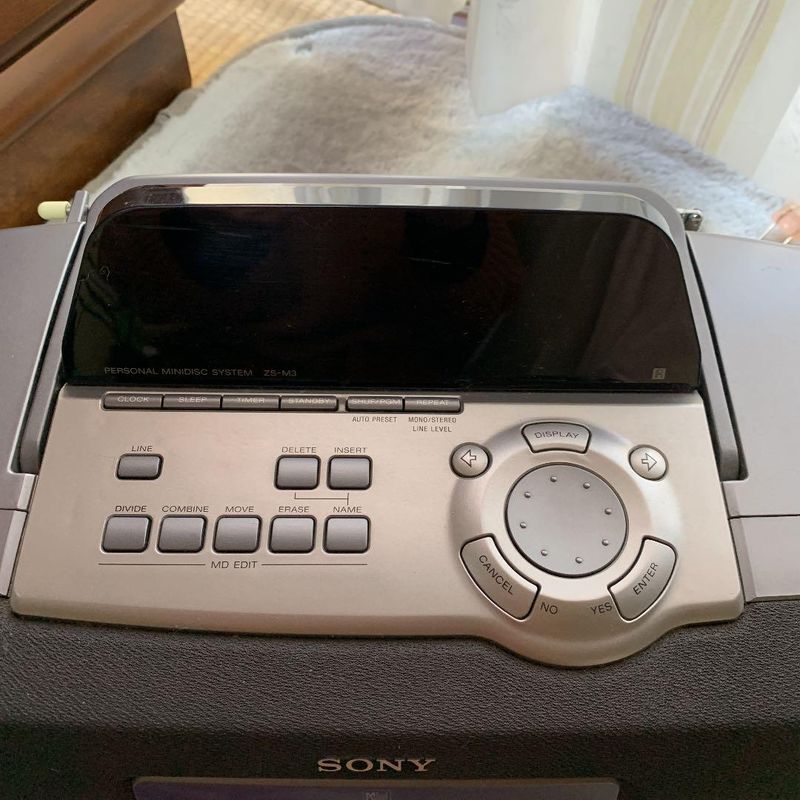

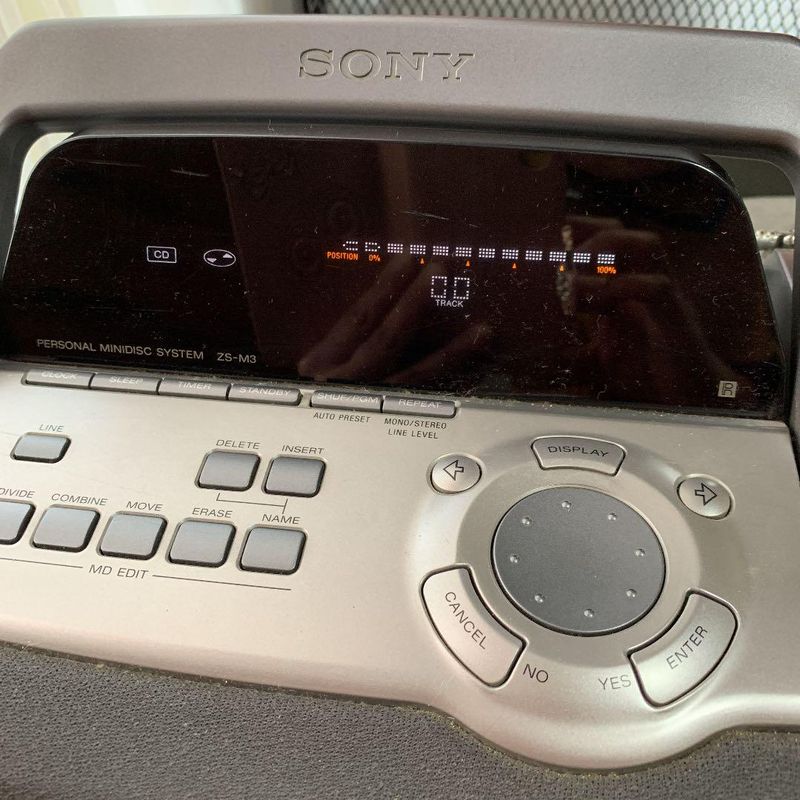

- All normal editing functions done with separate divide/ combine/ move/ erase/ name buttons, katakana titling input.
- Tuner: 12 AM/FM presets, AM stereo/FM stereo/TV VHF mono (Japanese ch. 1-3), Auto station name display “A.B.I.” (Japan only?).
- Timer: clock/timer, sleep function, timer/sleep sound power setting(?), timer start.
- Mega bass, full range 8cm cone speaker. 7w+7w,

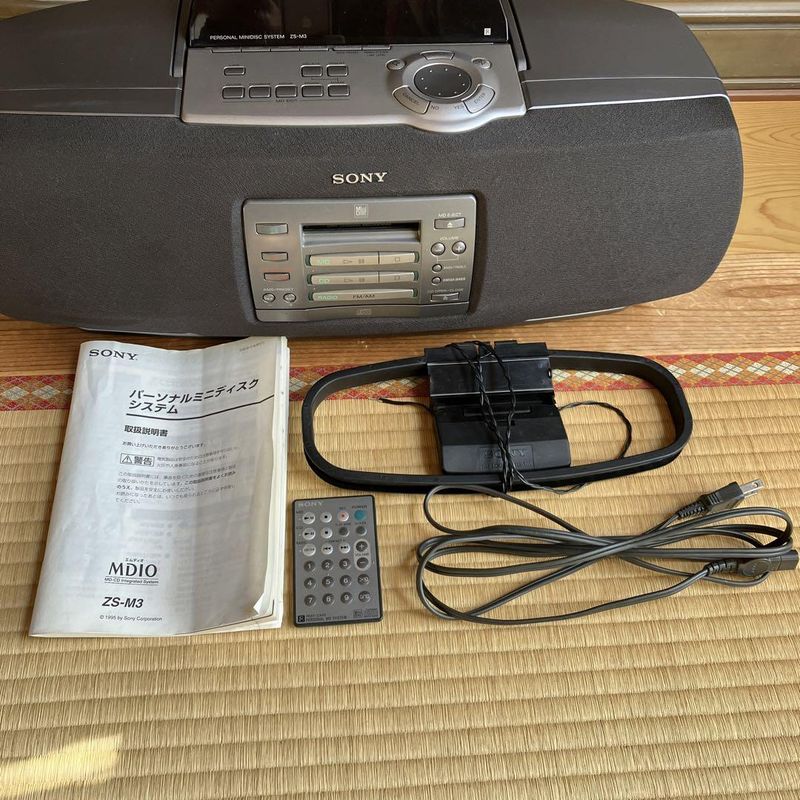

- Remote included.
Specs:
- 20-20kHz +1/-2dB.
- FM/TV: 76-90MHz, AM: 531-1629kHz

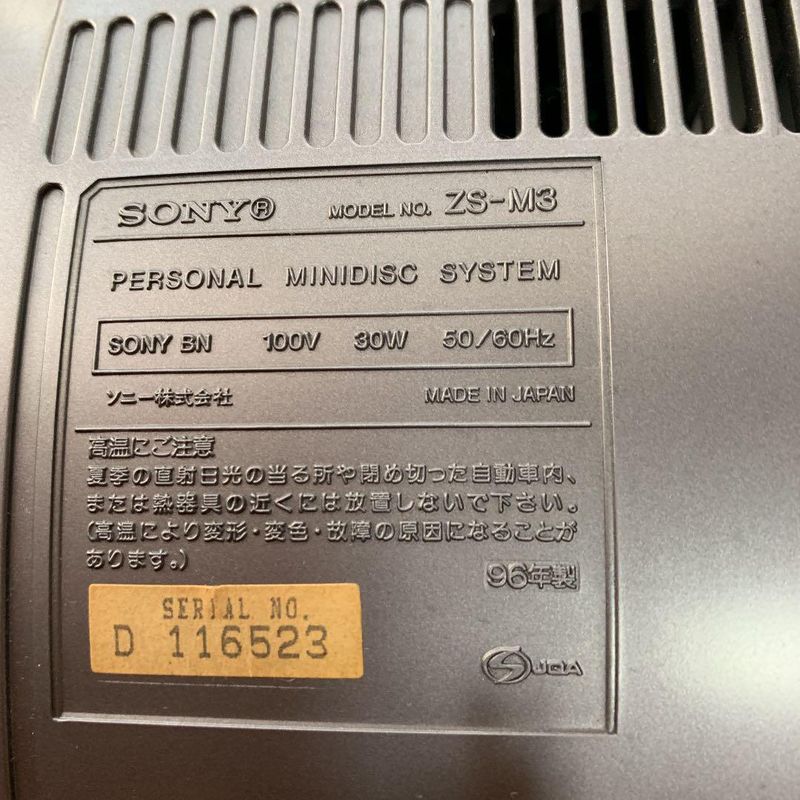

- Power consumption: 30w, 100VAC.

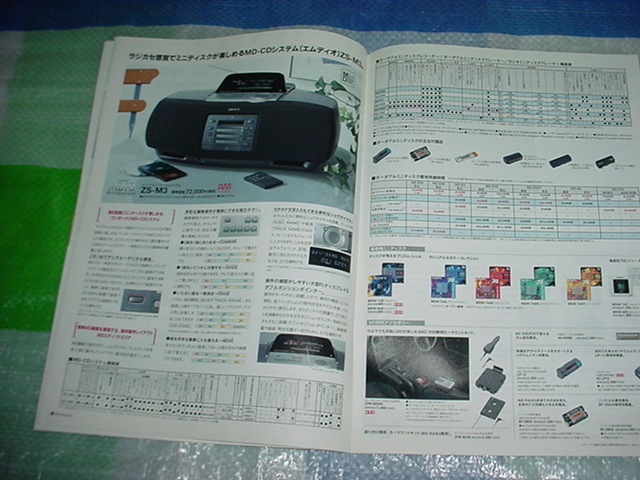

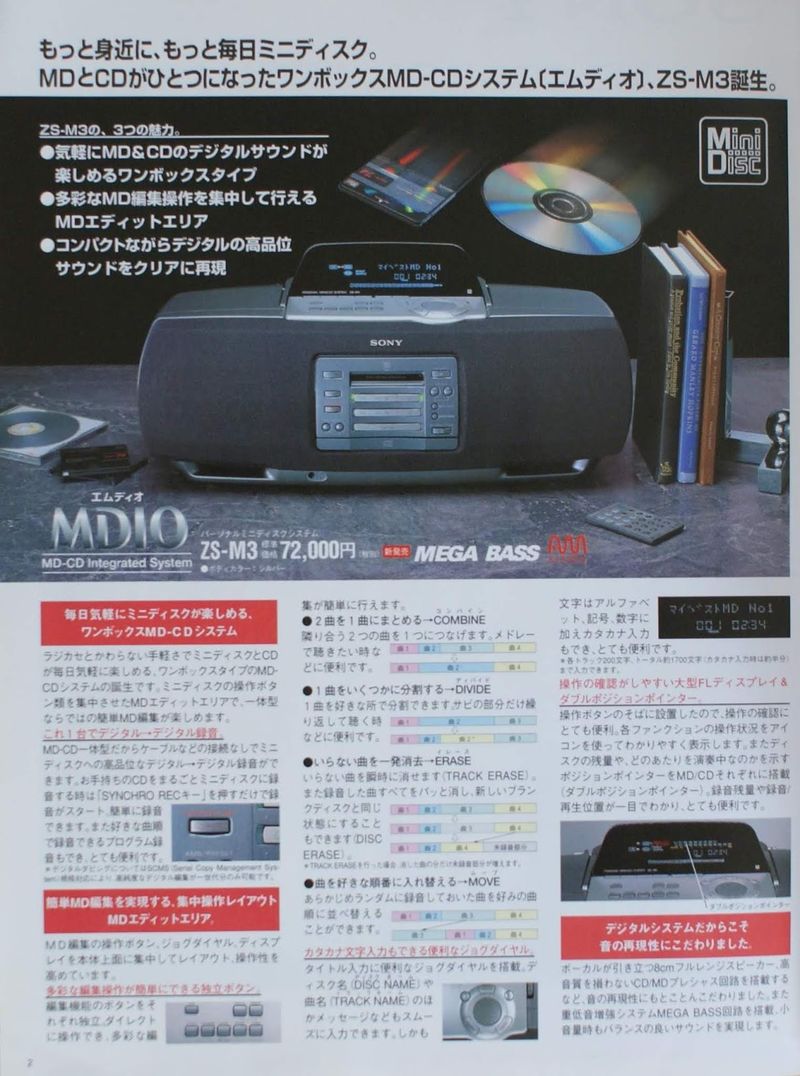

Content adapted from: Minidisc.org page [*] 1000mozi.blogspot.com [*] Still listed in the Sony April 1997 catalog ( cover)
