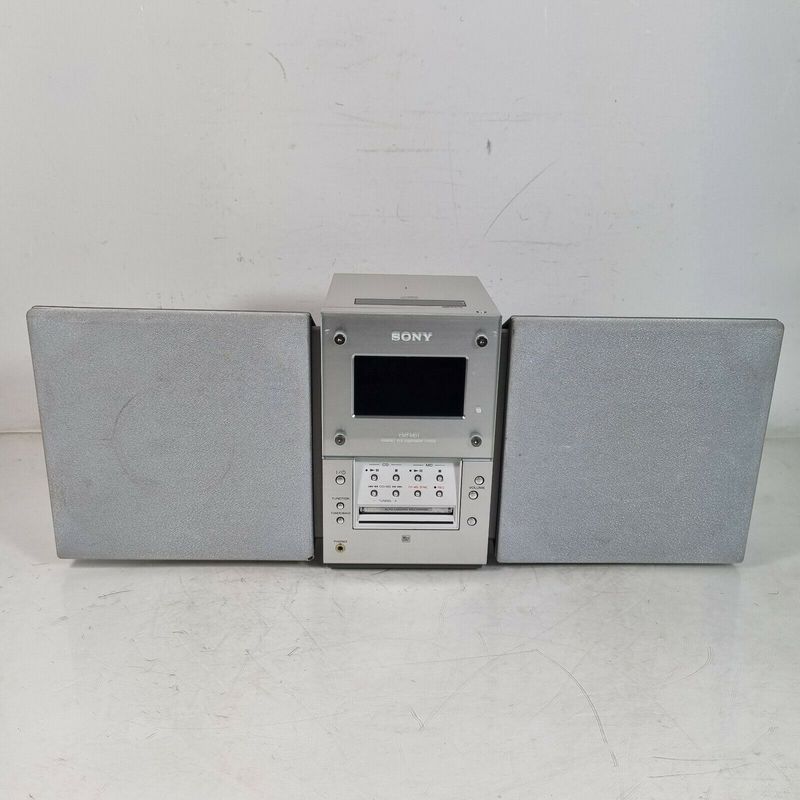

Sony CMT-MD1
| Name | CMT-MD1 |
|---|---|
| Manufacturer | Sony |
| Released | 1998/01 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 130 x 215 x 245mm (main unit) |
| Weight | 4.6kg (main unit) |
| ATRAC ver | 4 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | $600 |
| ¥80 000 | |
| - | |

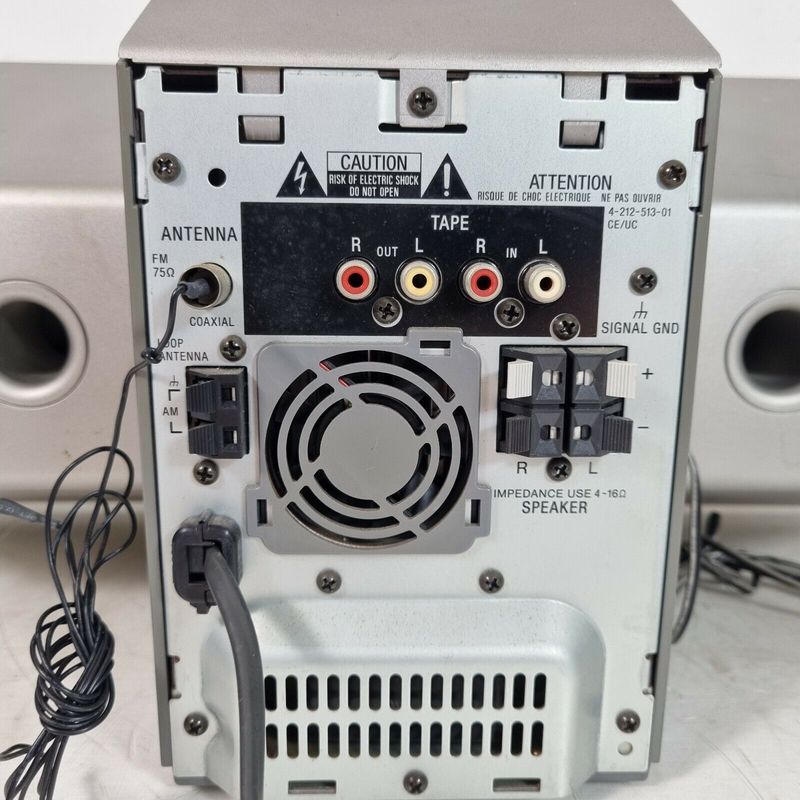

| Inputs | RCA in, CD, Radio recording |
| Outputs | RCA out, Speaker amplifier |
| Control |
Main unit part#: HCD-MD1EX

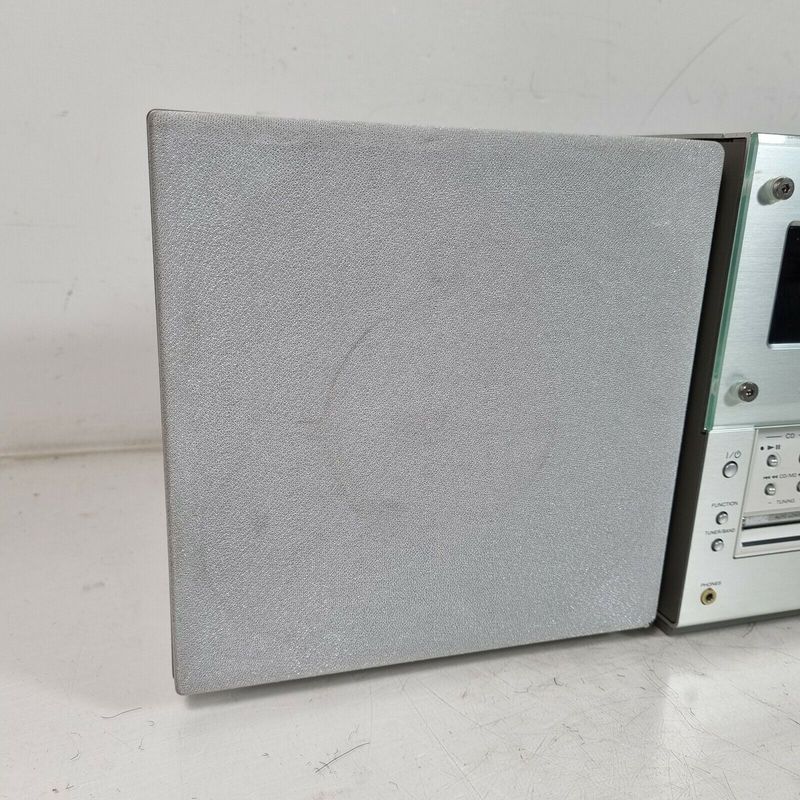

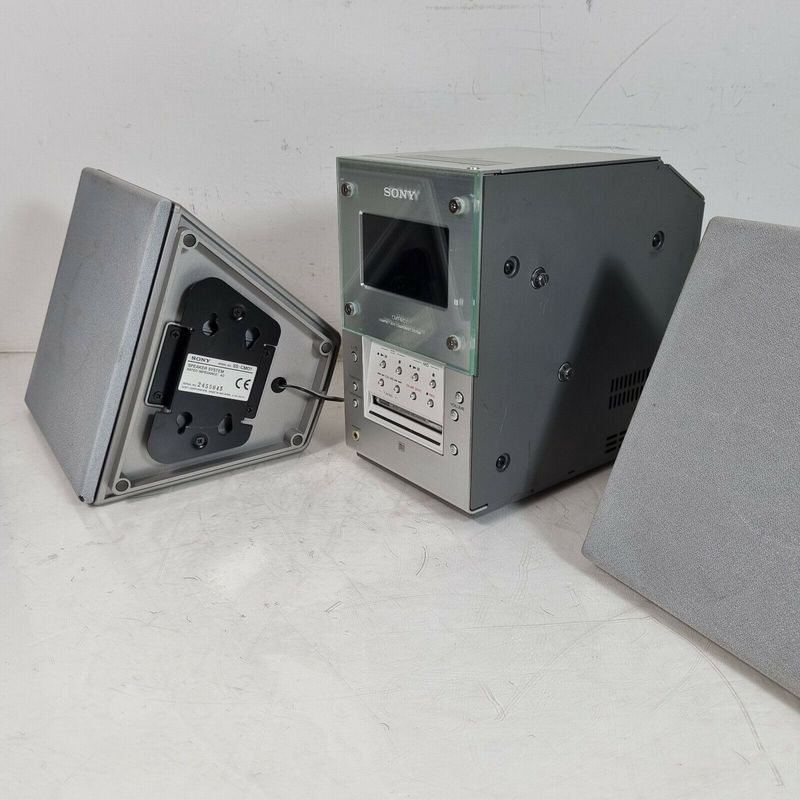

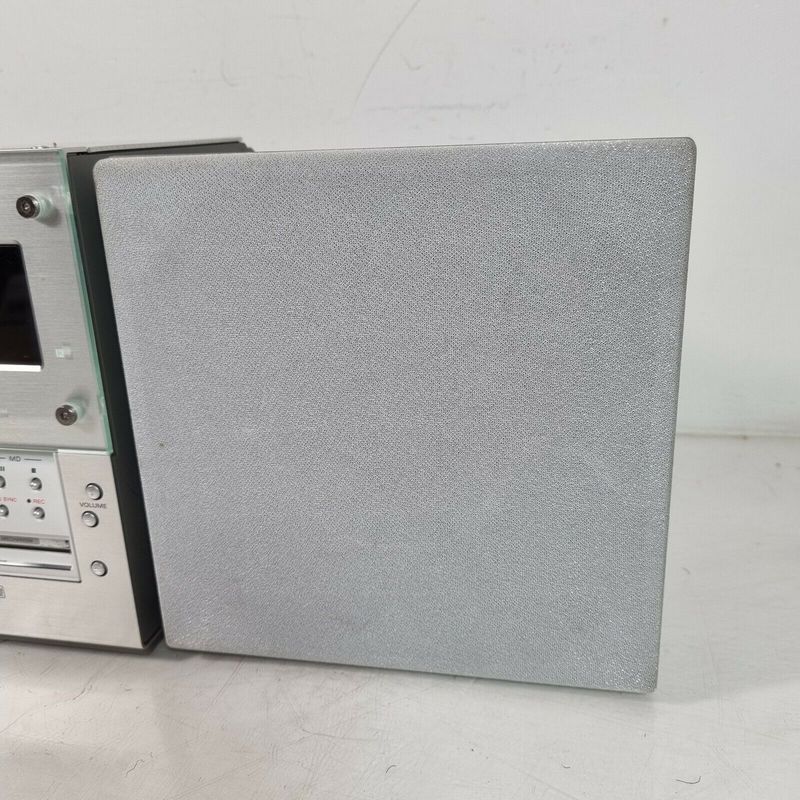

Features: Disc Memo feature (Assign names to CDs), clip on/off speakers with detachable grilles, DBFB bass, pre-programmed equalizer functions (5 different modes), Digital AM/FM radio with up 20 user-selectable station memories
Specs: Full-range bass reflex speakers. 15W + 15W RMS Power. Radio frequencies from 76 to 108MHz. 80W electric consumption.
Remote: RM-SMD1

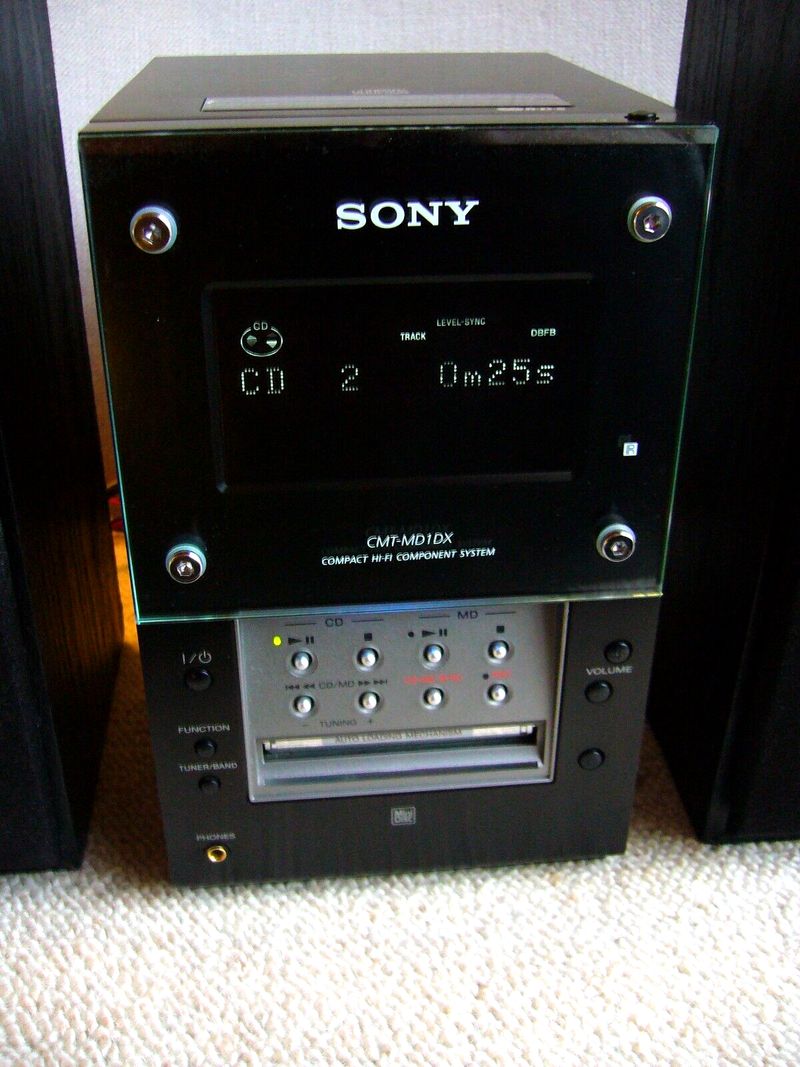

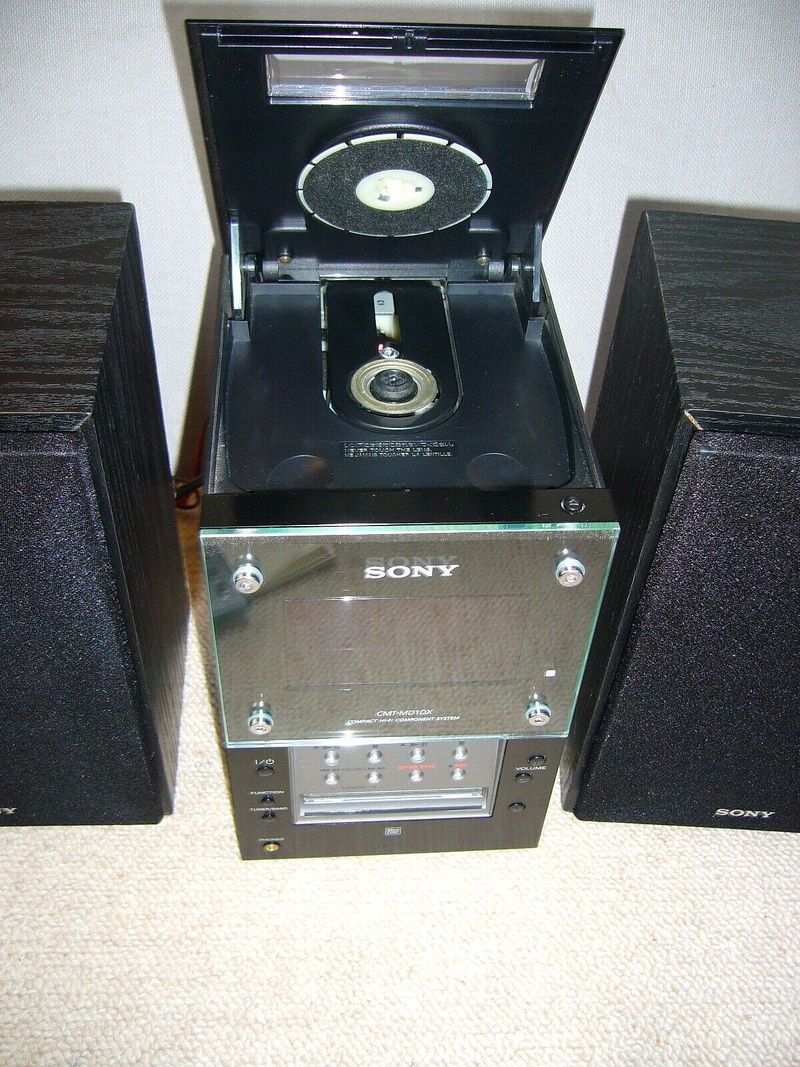

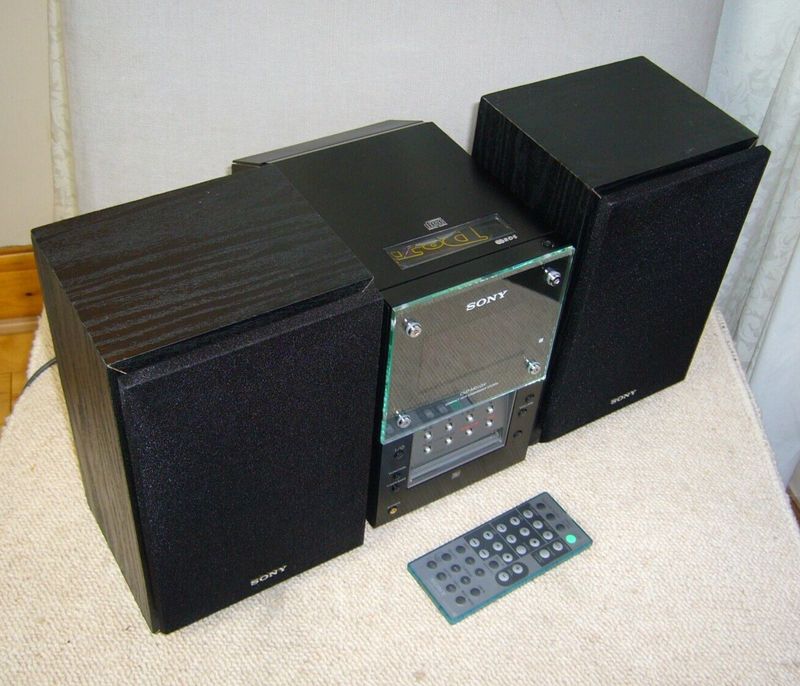

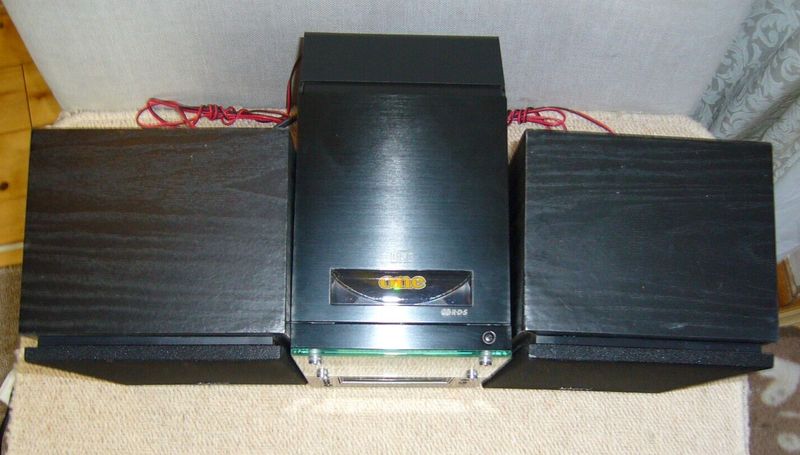

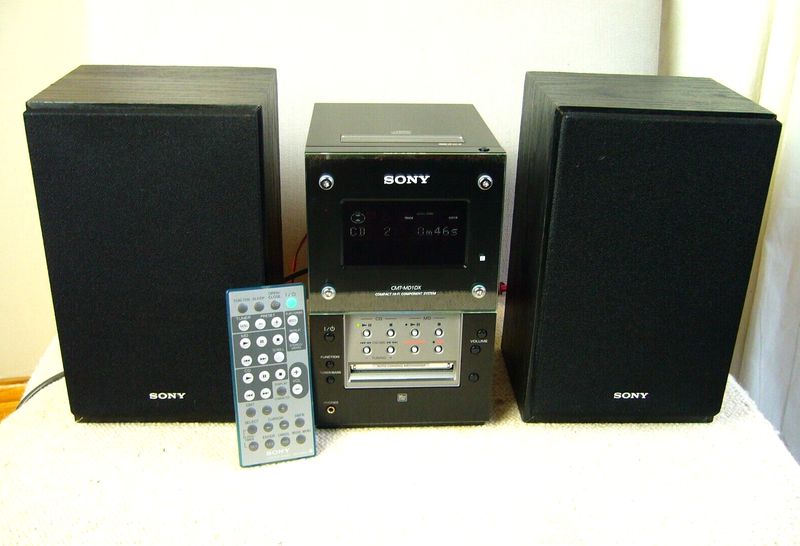

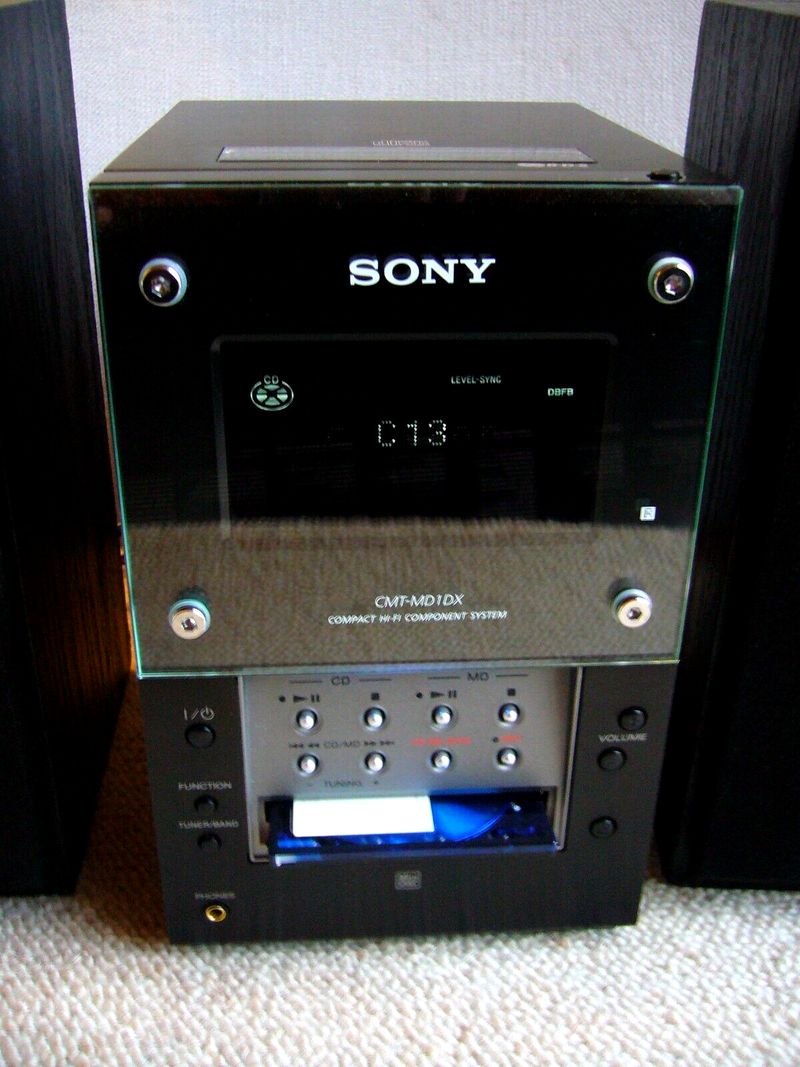

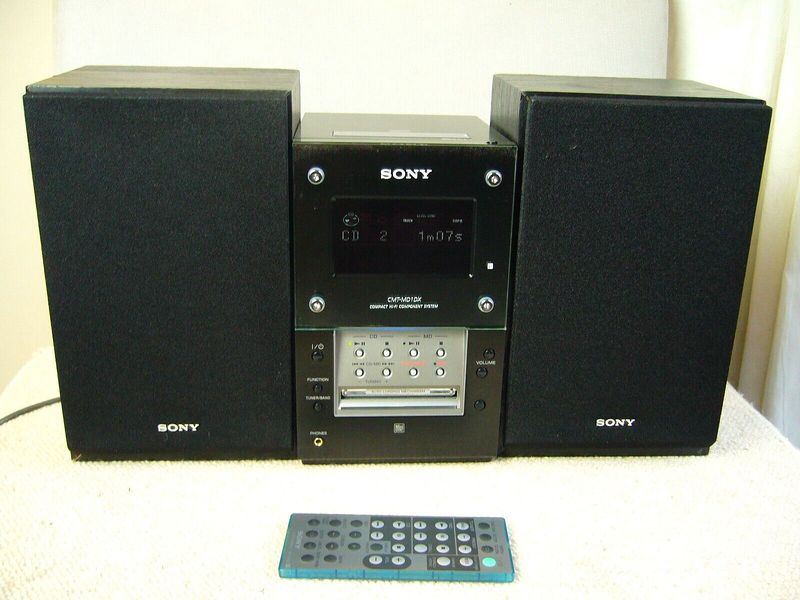

Variants: CMT-MD1DX comes with black (higher quality?) speakers, but the same base unit.
Model Name Using Similar Mechanism: HCD-MD333
Section Mechanism Name: MDM-3J
Optical Pick-up Name: KMS-260A/J1N
ATRAC IC: CXD2652AR
Content adapted from: Minidisc.org page [*], Sony ProductsPark Page [*] Sony ProductsPark Page (MiniDisc Wiki mirror) [*] ChannelDuo [*] atwiki.jp [*]
Manuals
CMT-MD1 User Manual (120 pages)
CMT-MD1 Service manual (v1.1 94 pages)
HCD-MD1DX Service Manual (v1.3 94 pages)
