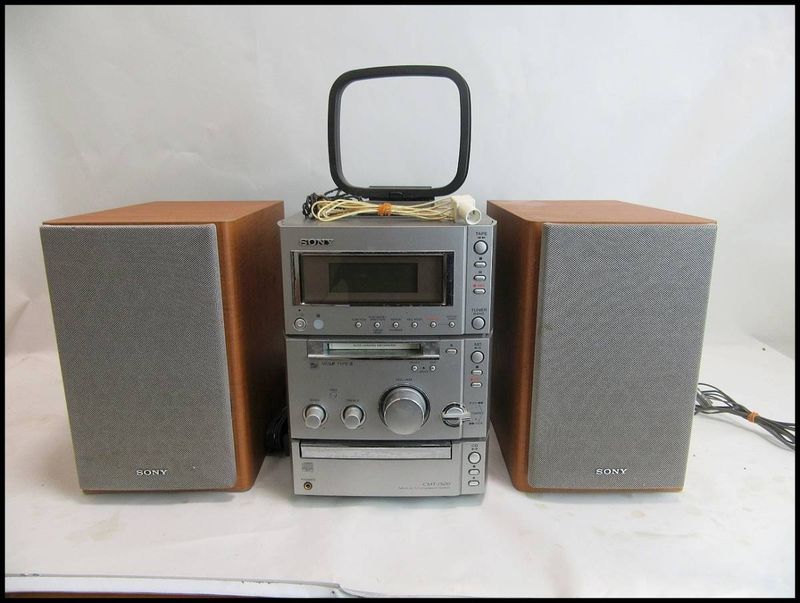

Sony CMT-J500
| Name | CMT-J500 |
|---|---|
| Manufacturer | Sony |
| Released | 2002/06 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | Body: 175 x 240 x 341.5mm Speaker: Speaker: Each 152 x 240 x 258.5mm |
| Weight | Body: about 6.1kg Speaker: about 2.6kg each |
| ATRAC ver | Type-S |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| - | |
| Inputs | CD, Radio recording, Tape deck |
| Outputs | |
| Control | PC Link |

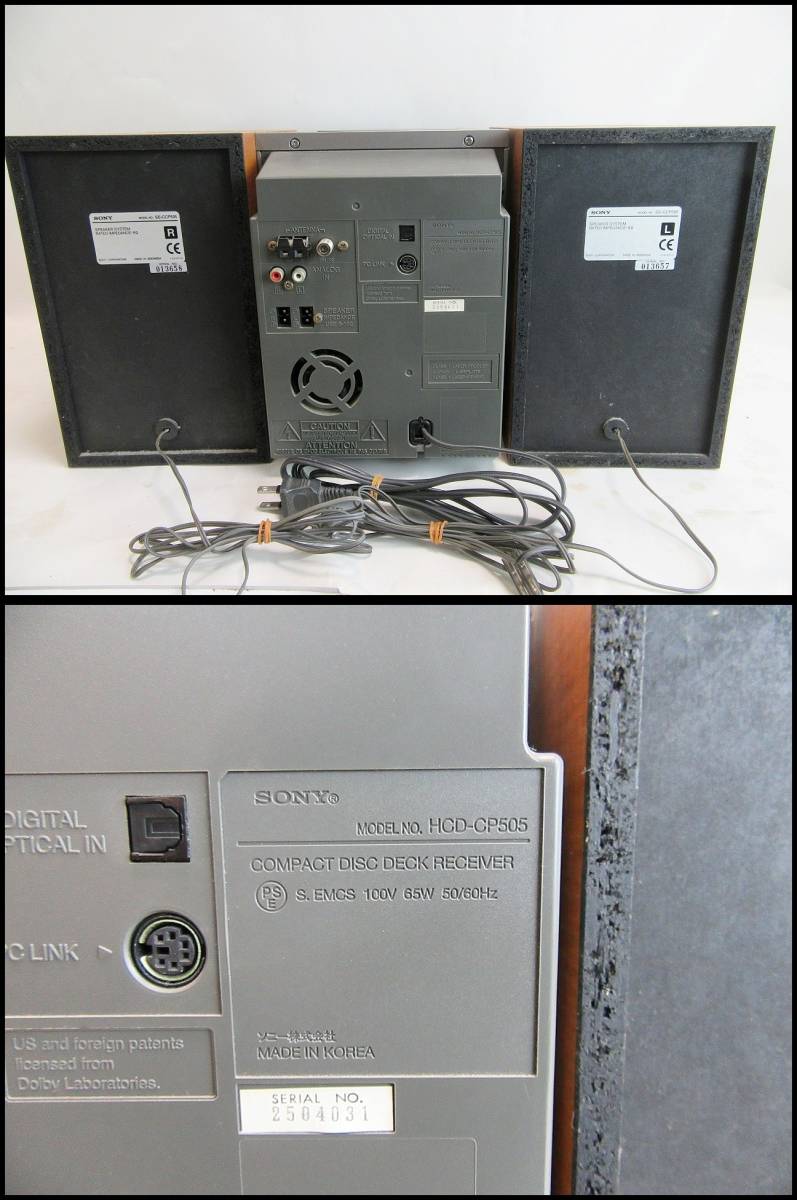

Japanese version of the CMT-CP505MD. Both units use the HCD-CP505 as their main unit, however the J500 says it only supports 100v, whereas the CP505MD says 230v.

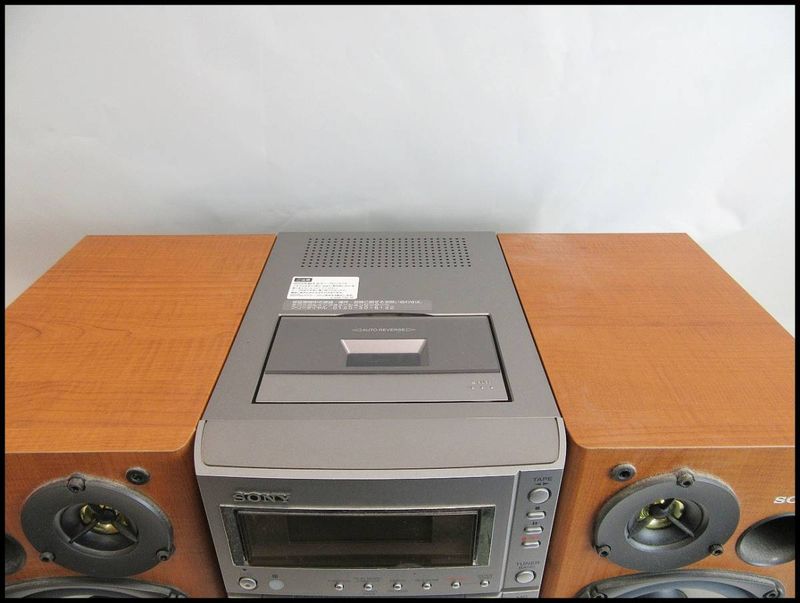

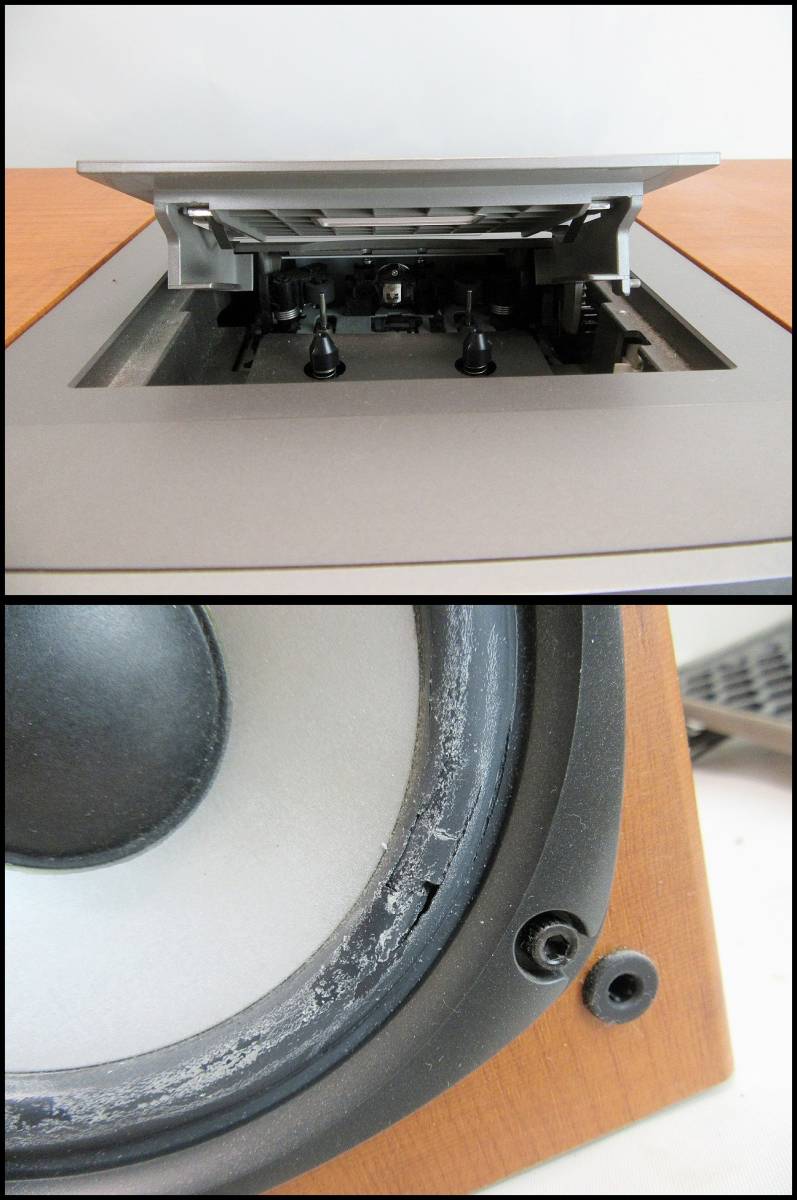

4x speed recording from CD to MD. Simultaneous recording from CD to MD and cassette is possible. SF (scale factor) edit function that can adjust the audio level of recorded MDs
Supports PC-Link via PCLK-MN20
Practical maximum output (JEITA 6Ω) 35W + 35W
approximately 0.3W power draw in standby when the display is off
Remote control: RM-SJ100
Content adapted from: Sony product page [*] Sony product page (MiniDisc Wiki mirror) [*] Sony ecat page [*] Sony ecat page (MiniDisc Wiki mirror) [*] Spec Page [*] Spec Page (MiniDisc Wiki mirror) [*] Sony Audio Component Catalog 04-2003 plala.or.jp [*] kakaku.com 06-2002 Release date [*] Sony's page said "coming soon" until Dec-2002 [*] Sony's page said "coming soon" until Dec-2002 (MiniDisc Wiki mirror) [*]
Manuals
Sony CMT-J500 Setup Guide (2 pages)

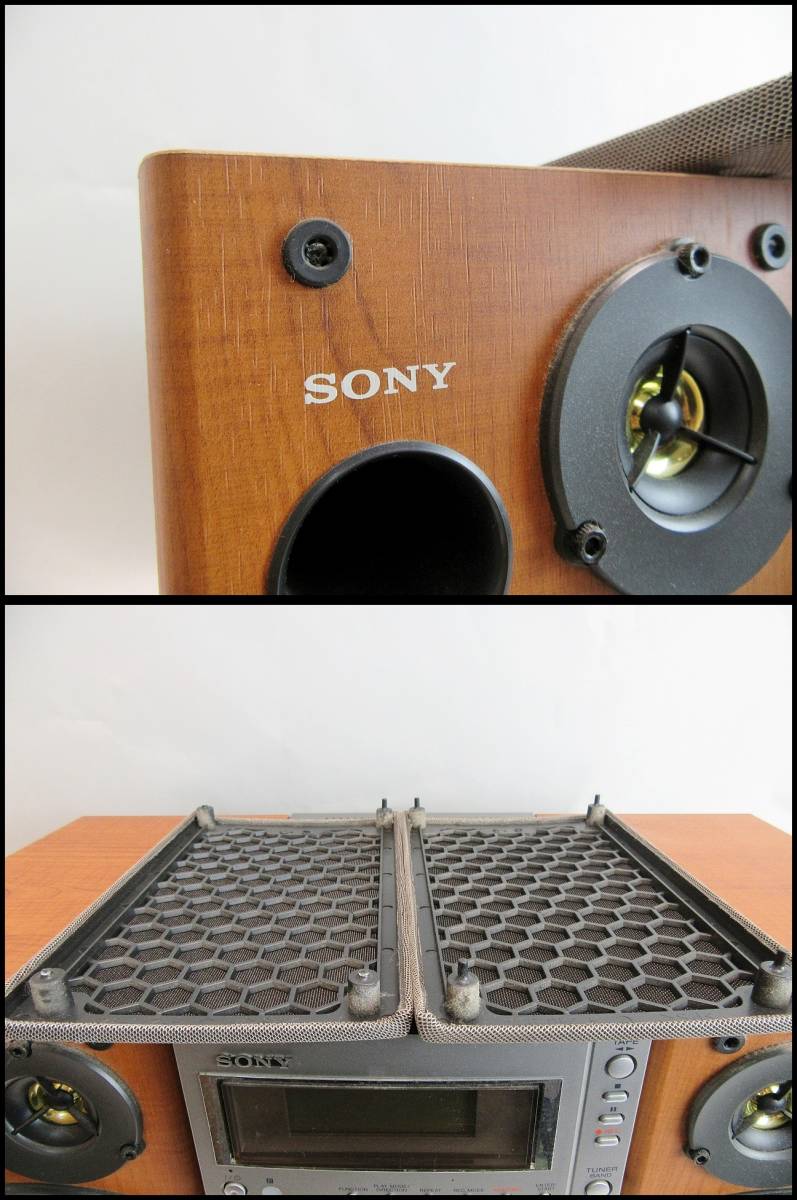

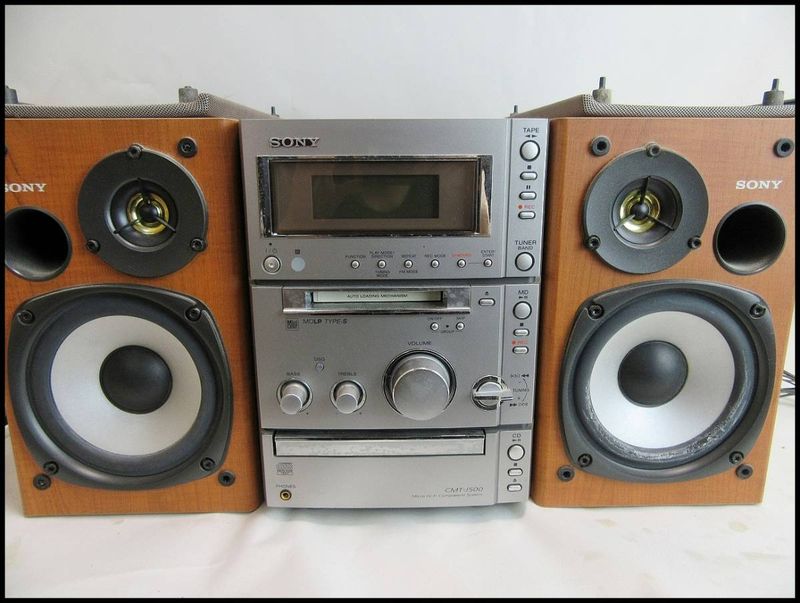

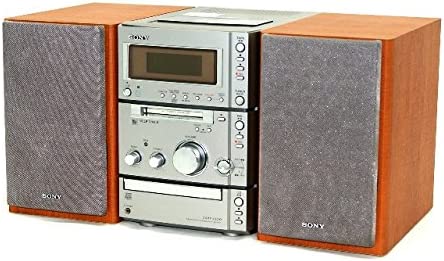

Photos
