Sony CHC-CL5MD
| Name | CHC-CL5MD |
|---|---|
| Manufacturer | Sony |
| Released | 2001/05 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 215 x 285 x 421mm Main Body, 410 x 285 x 260mm Speaker |
| Weight | 16.2kg |
| ATRAC ver | Type-R |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100, 230 |
| Power cable | AC |
| Price (launch) | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording, Tape deck |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control | Remote (Sony), PC Link |
Similar to HCD-CL5MD (they share the same service manual)
3CD, 1MD, 1 Cassette, FM/AM Tuner device. Capable of direct CD → MD transfers and supports MDLP and CD-Text.
Has Toslink input, supprts resampling 32 kHz, 44.1 kHz and 48 kHz
Optional PC-Link, PCLK-MN10A, for easy retitle/editing support. Note that this is not netMD.
It does seem possible to record directly to MD from the radio. It also supports MD → Cassette transfers.
MD Mechanism Type: MDM-7B
Optical Pick-up Type: KMS-260B/K1NP
ATRAC IC: CXD2662R
DAC IC: UDA1350AH
Content adapted from: CHC-CL5MD Minidisc.org Page [*] Sony Hungary Product Page [*] Sony Hungary Product Page (MiniDisc Wiki mirror) [*]
Manuals
Sony CHC-CL5MD User Manual
Sony CHC-CL5MD HCD-CL5MD Service Manual

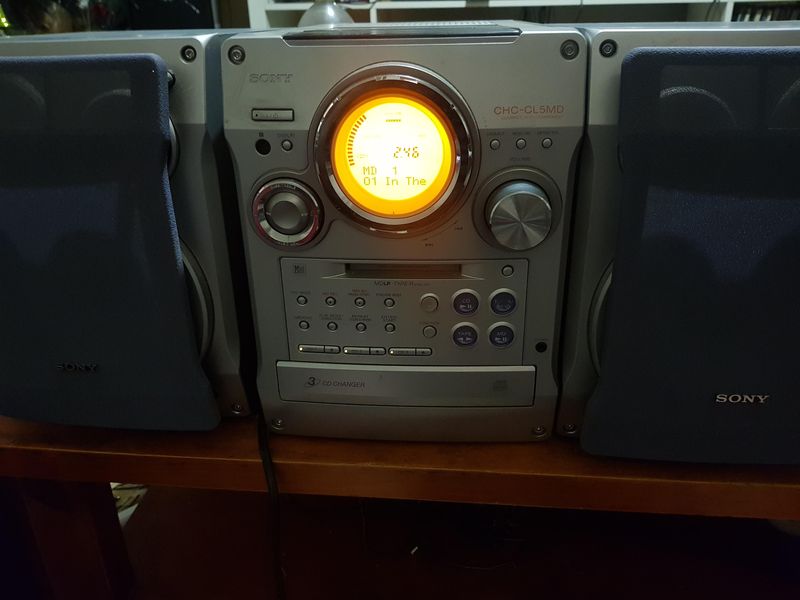

Photos
