Sony WX-C900MD
| Name | WX-C900MD |
|---|---|
| Manufacturer | Sony |
| Released | 1996/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 178 x 100 x 171 mm |
| Weight | 2.5kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥128 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | Speaker amplifier |
| Control |
Features: First double DIN size MD*CD+DSP+Equalizer audio master unit. DSP/7 Band graphic equalizer. Custom file for tone settings, input with rotary encoder. While looking at the display you can sequence through the control menu. Equipped with a “rotary commander” for safe operation while driving.
Specs:
- Amp: 35W x 4 (4Ω load 1kHz)
- CD: 5hz-20Khz S/N 104dB.
- MD: S/N 104dB
- FM: 76.0-90.0 MHz, AM: 522kHz-1629kHz

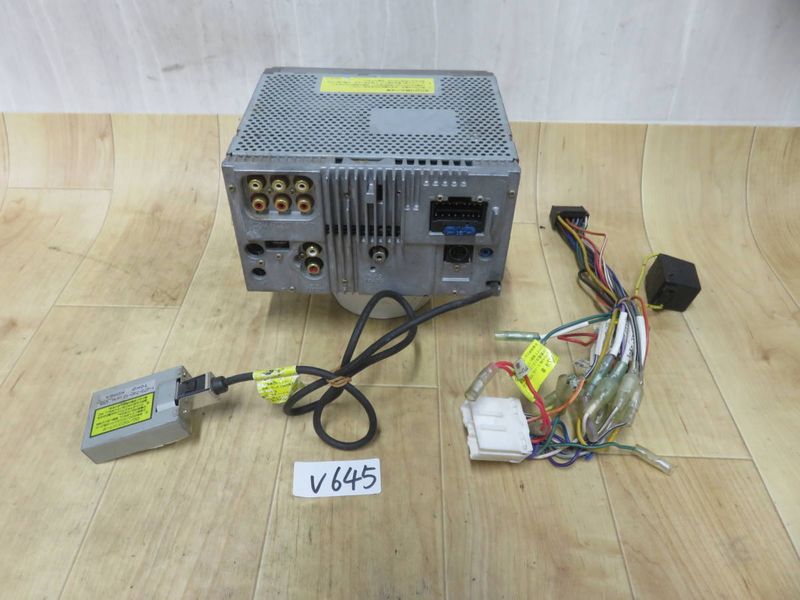

The odd half-sized USB port on the back is for connecting the FMX-77 accessory.
Remotes: RM-X2S (rotary encoder), RM-X41
Content adapted from: Minidisc.org page [*] Winner of Good Design Award [*]
Manuals
User manual (Japanese)
Mounting guide (Japanese)
Repair

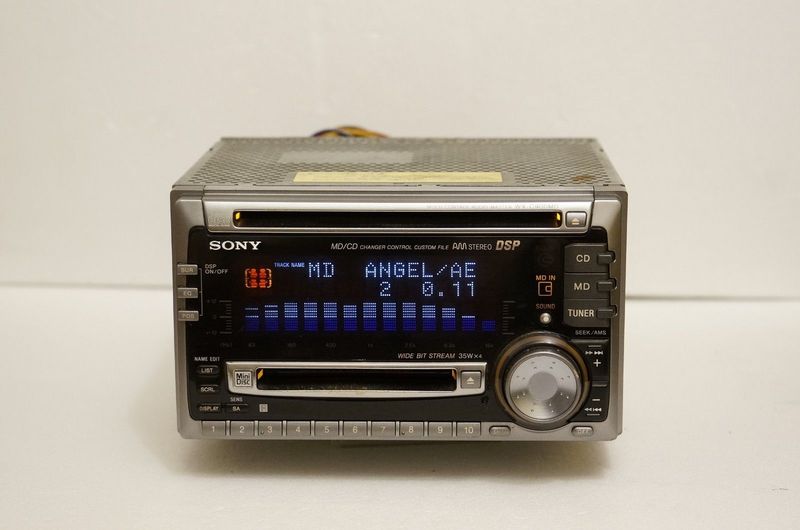

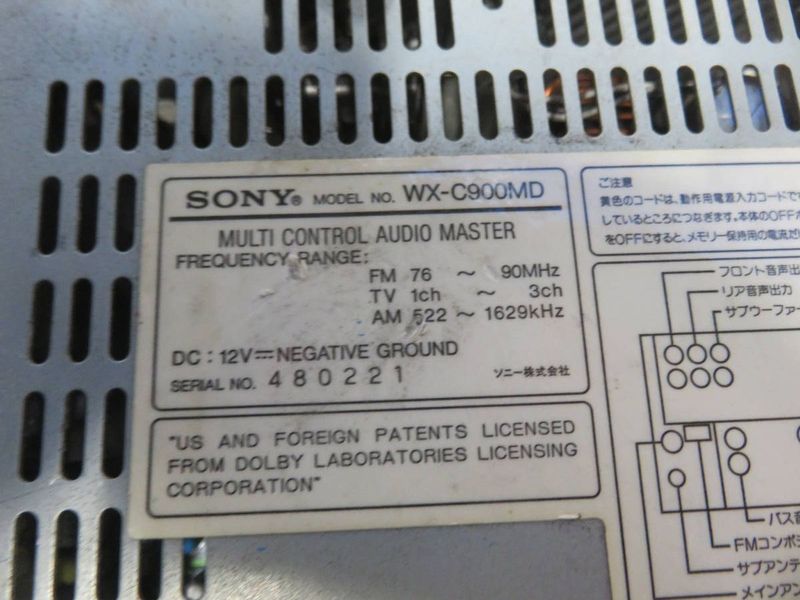

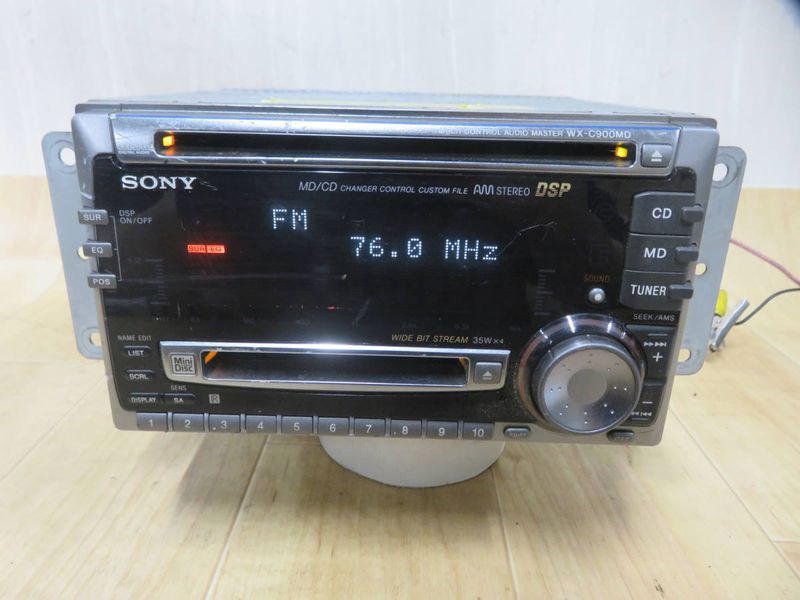

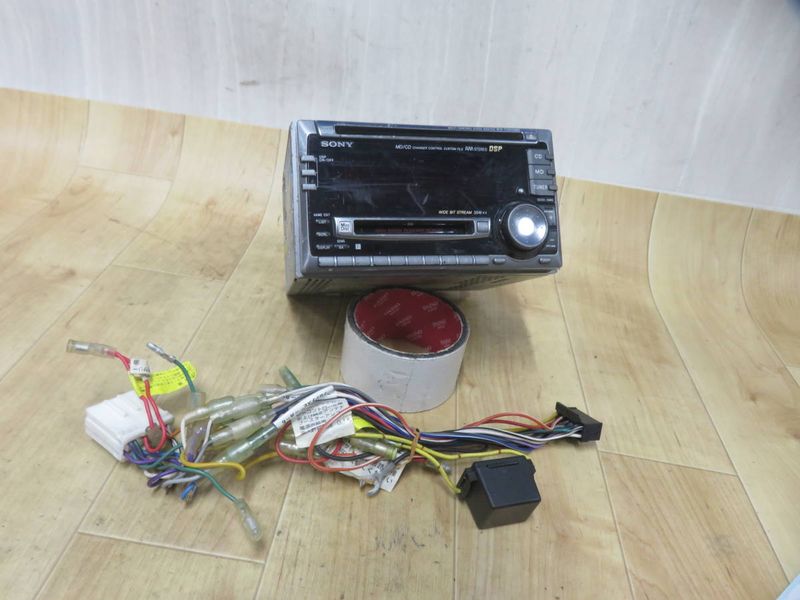

Photos

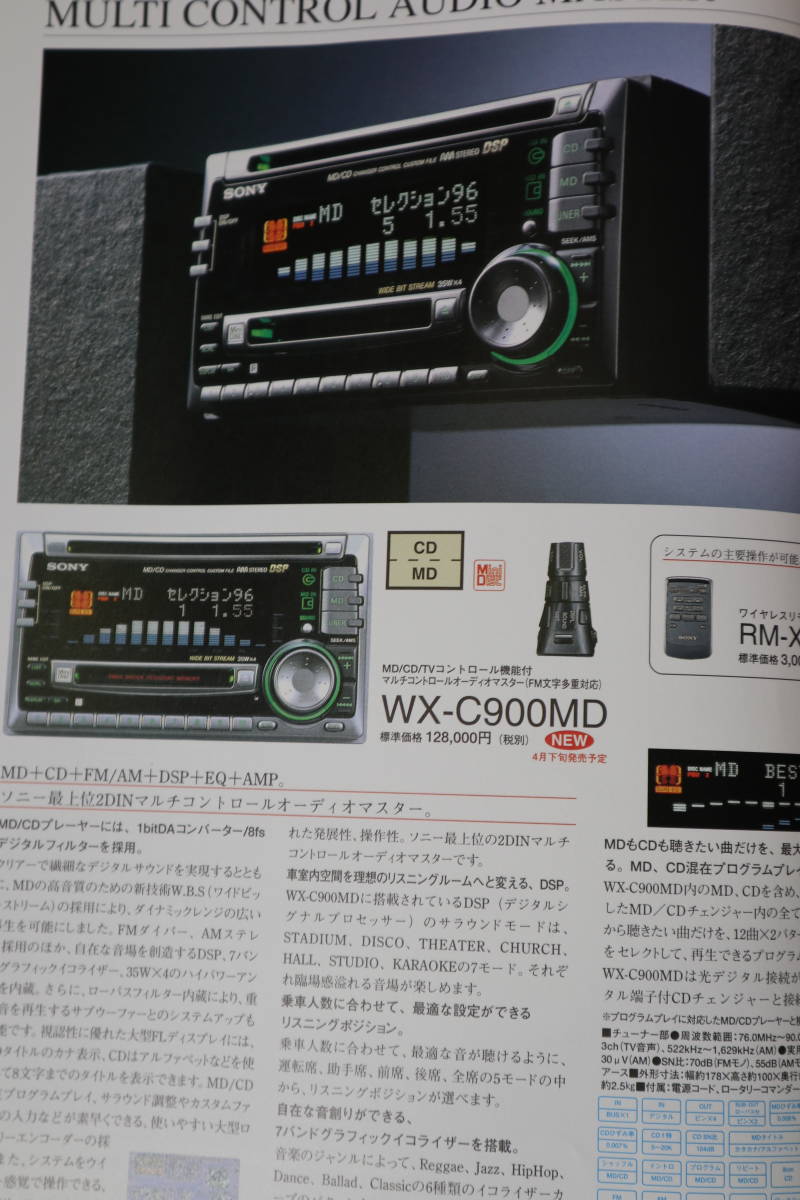

Sony 96 car audio catalog:

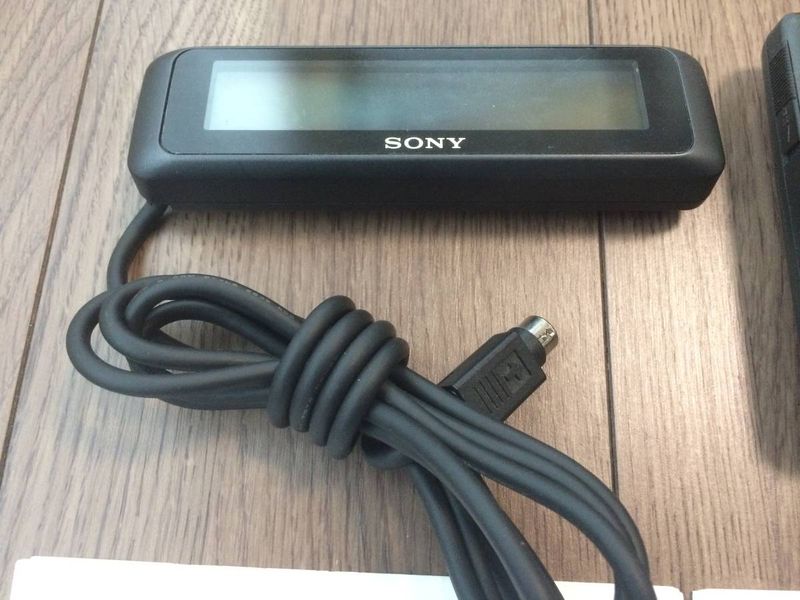

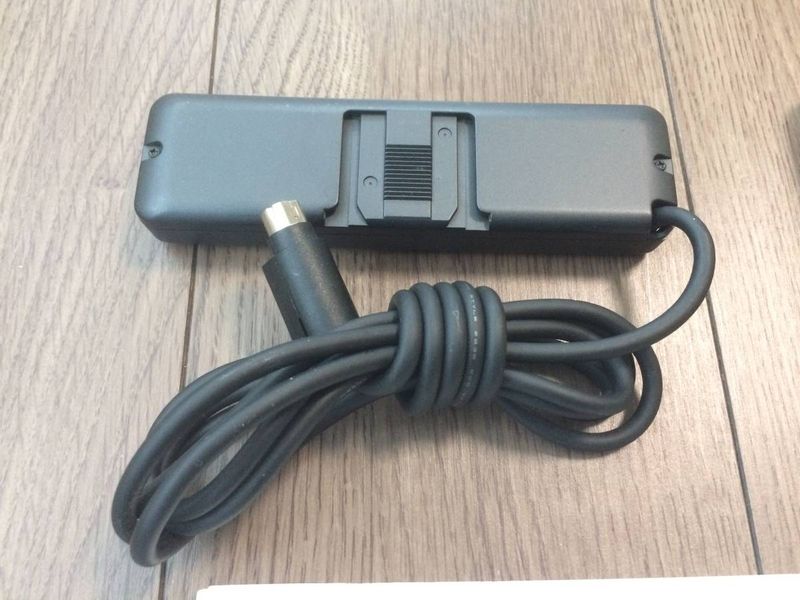

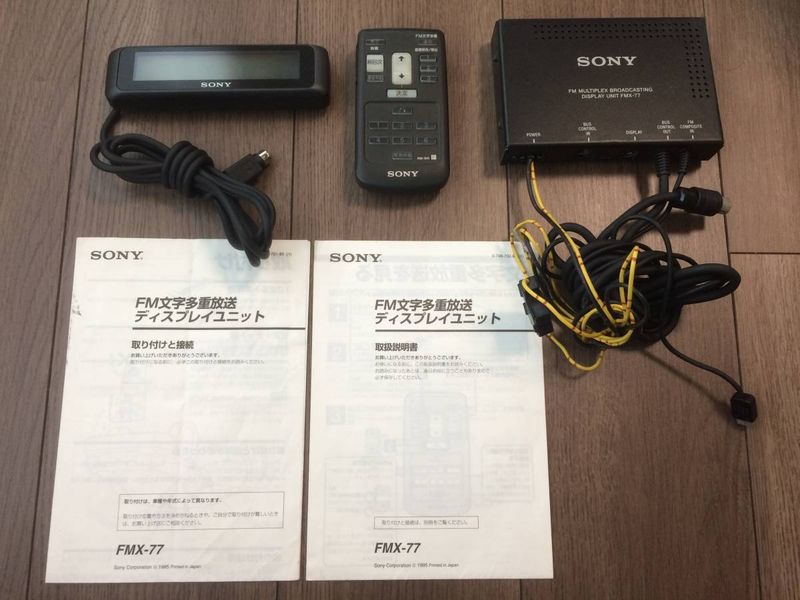

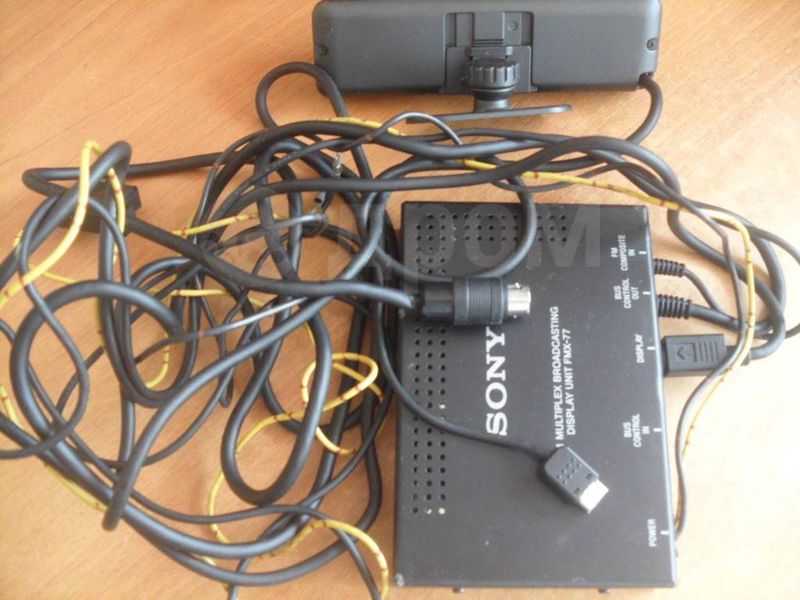

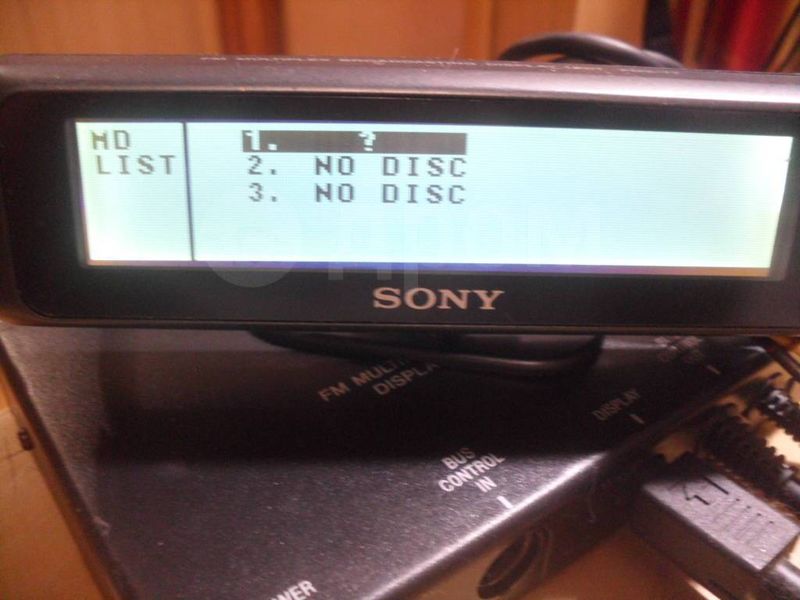

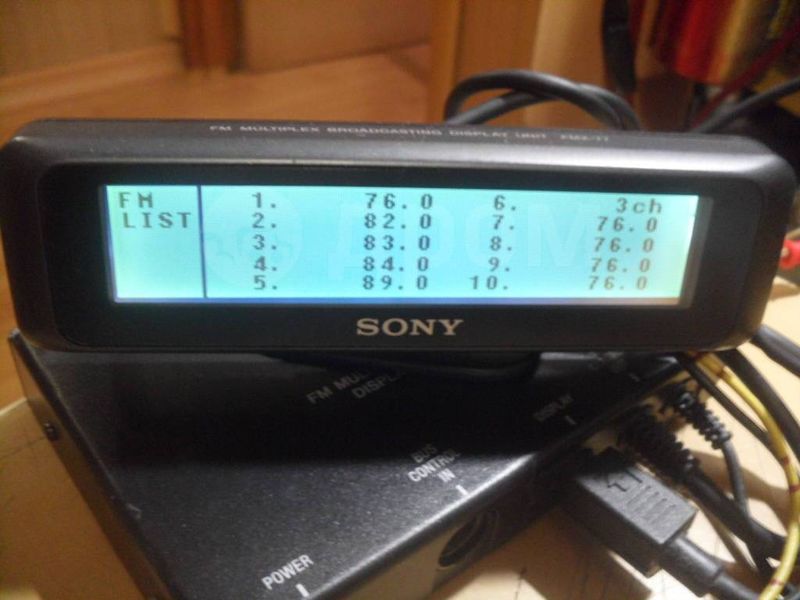

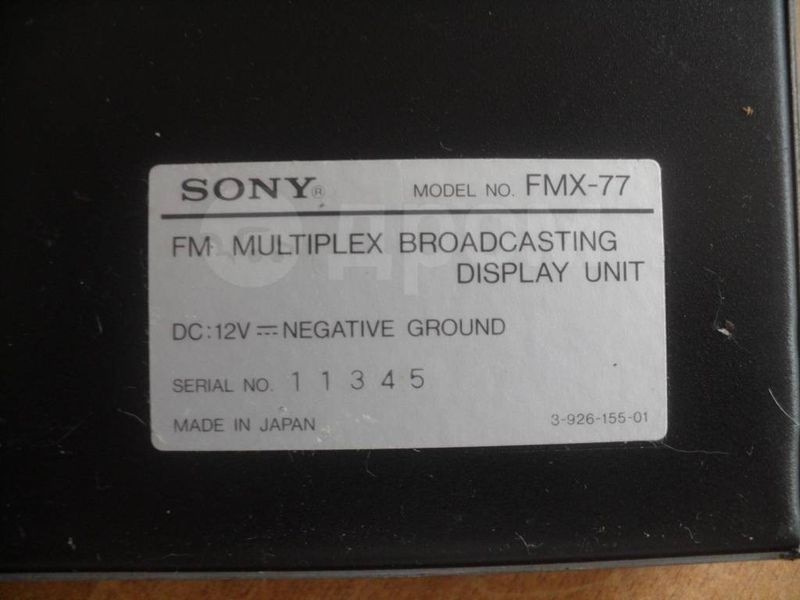

Sony FMX-77:

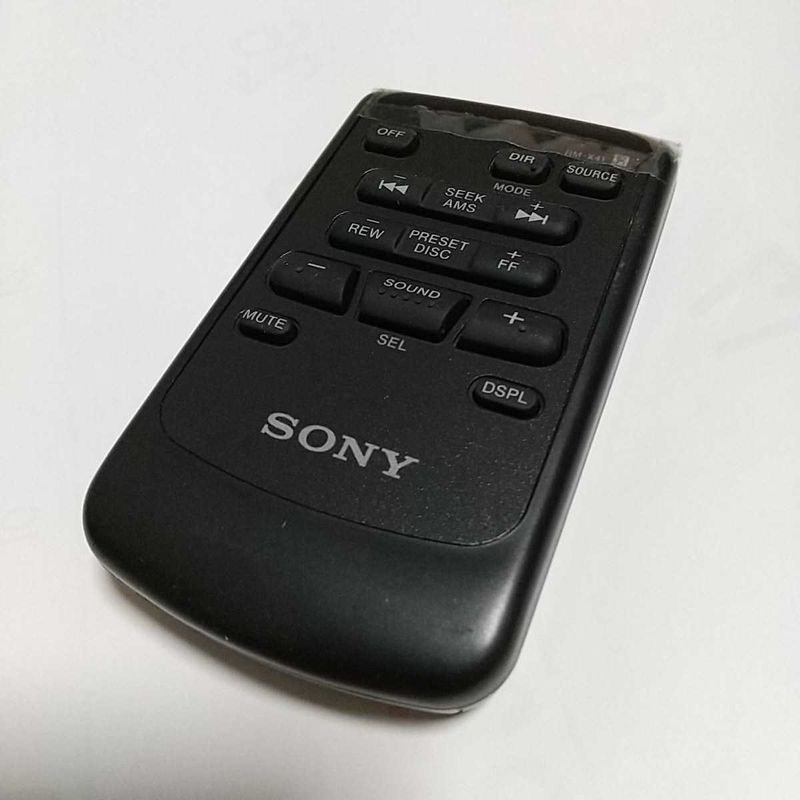

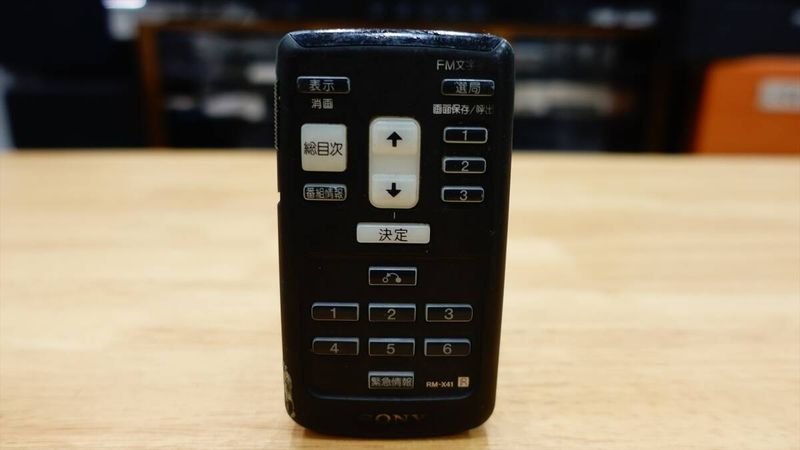

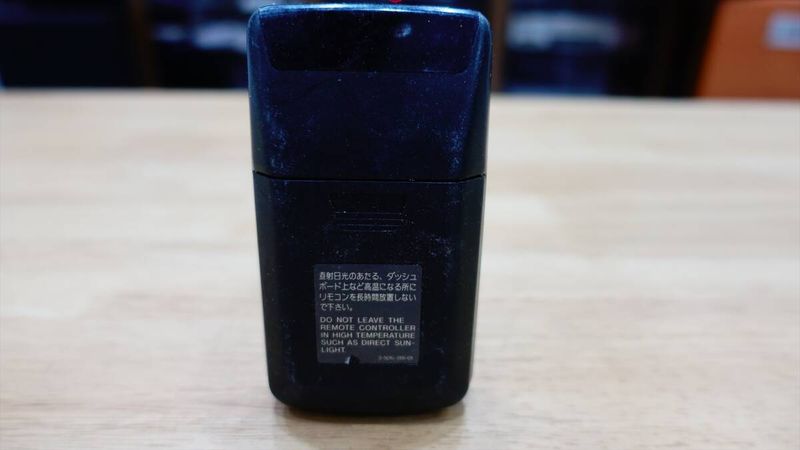

There are apparently 2 different rm-x41 remotes:
