Sony MDX-G77REC

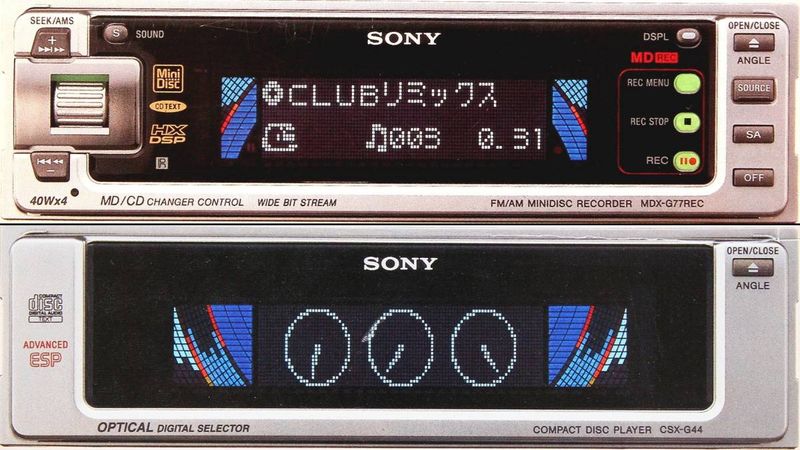

Compatible with CSX-G44 [*] CSX-G44 (MiniDisc Wiki mirror) [*] supporting optical CD audio in. Requires use of the XA-D110 adapter and one of Sony's optical cables: RC-97 (2m), RC-98 (5m), RC-103 (60cm).

Features:

• Single DIN size in-dash AM/FM/MD receiver with recording capability.
• Recording source can be AM, FM or attached MD/CD changer(s) (digital recording from CDs is possible).

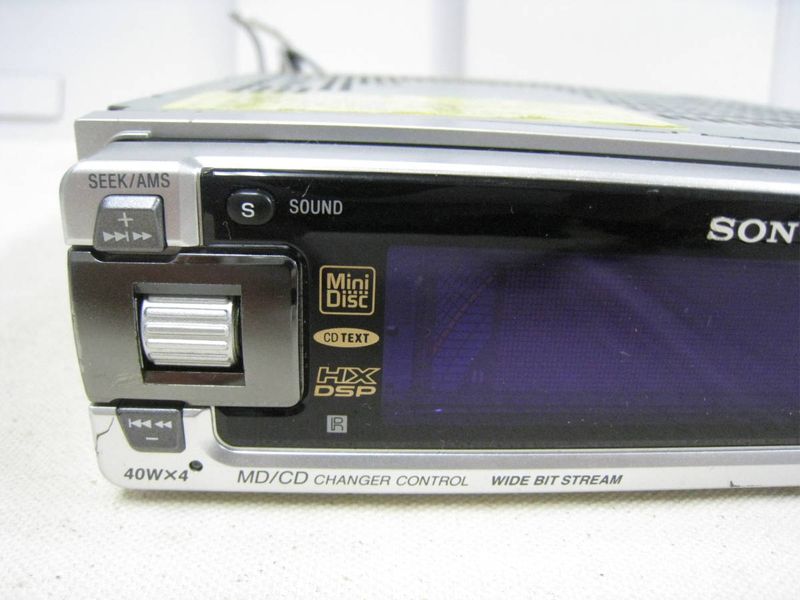

• 10 second time-machine recording. ``Jog-roller'' control for volume, editing, track selection, etc.
• Full editing capabilities (titling/erase/move/divide/combine) available only when car is stopped with parking brake set.
• Features “Dynamic Sound Stage Organizer” (DSO) DSP function to adjust sound stage so that driver feels to be at apparent center of listening field.
• Flip out (down?) type front panel has 6 electrically settable display angles, with built-in setting memory.

Included remote commander: RM-X4S
Supports wireless remote commander: RM-X99 (not included)

Specs: SNR: 94dB, Freq. resp: 5-20kHz, FM band: 76-90MHz, AM band: 522-1629kHz, Amplifier: 40w X 4, Power consumption: 10 amps

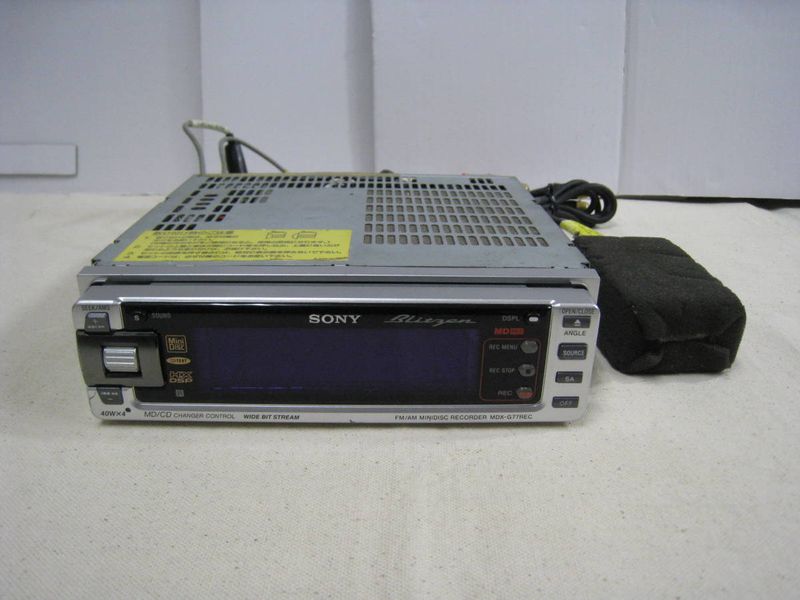

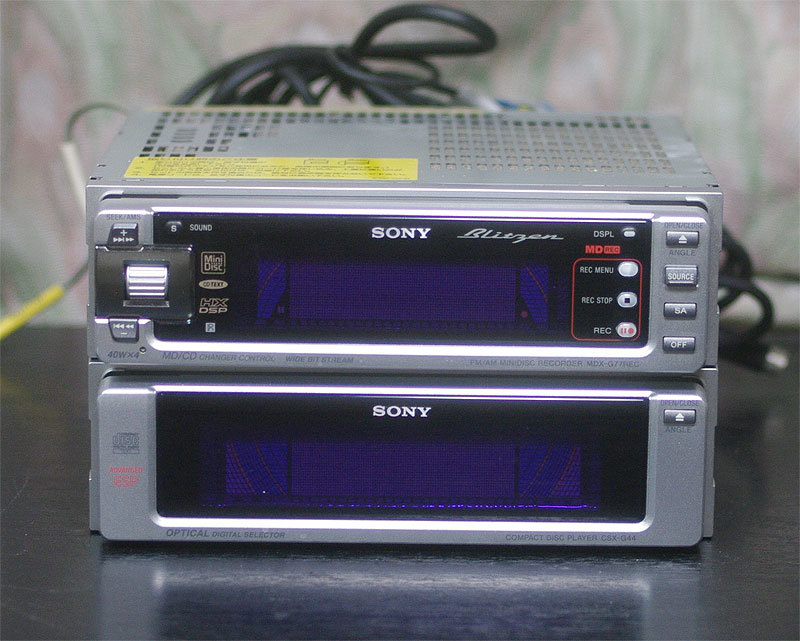

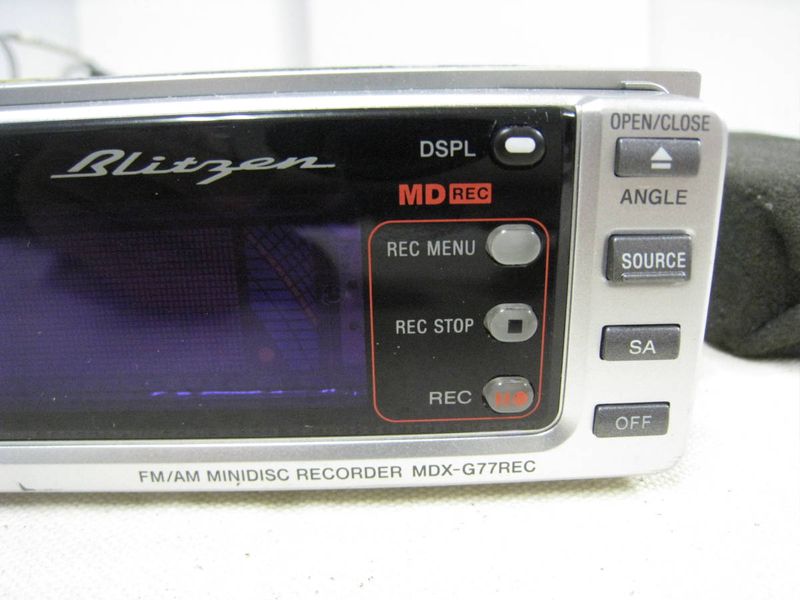

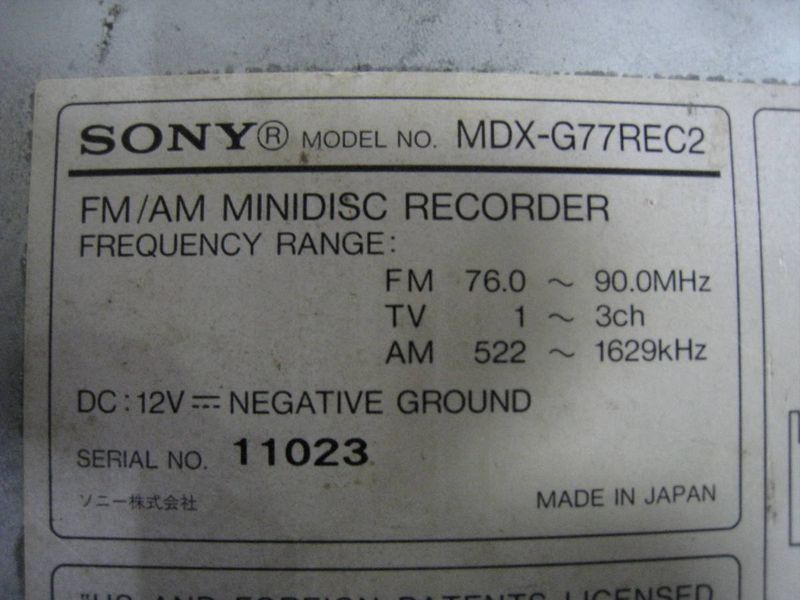

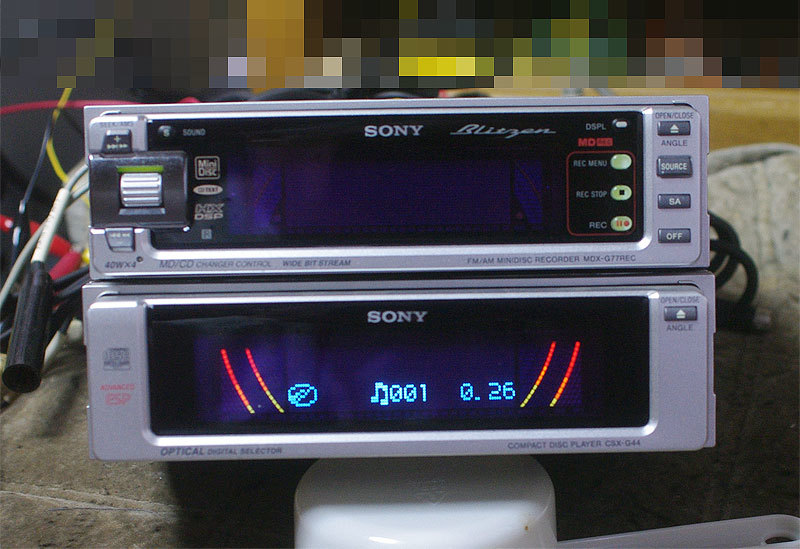

• A MDX-G77REC2 updated version had been a manufactory installed in Subaru BH Legacy Blitzen. Front panel still has original record “MDX-G77REC” and label “Blitzen” in the top right.

• link1 [*] link2 [*] link3 [*]

Content adapted from: Sony Press Release [*] Minidisc.org [*] Sony MDX-G77REC [*] Sony MDX-G77REC (MiniDisc Wiki mirror) [*] sony.jp/ServiceArea [*]

MDX-G77REC User manual (Japanese)

MDX-G77REC Mounting guide (Japanese)
