Sony MDX-F5800
| Name | MDX-F5800 |
|---|---|
| Manufacturer | Sony |
| Released | 2004/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 1-Din 178 x 50 x 181mm |
| Weight | 1200 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥44 100 | |
| - | |
| Inputs | |

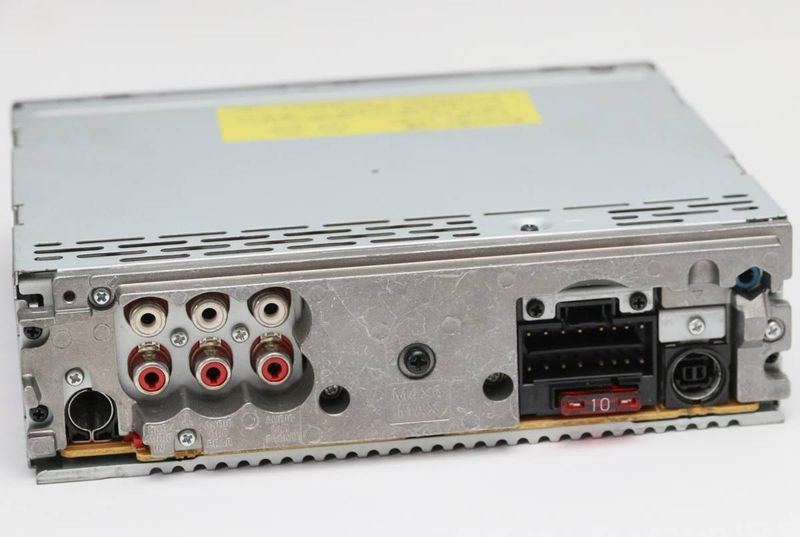

| Outputs | RCA out, Speaker amplifier |
| Control | 3.5mm control |
- Supports MDLP
- European band radio (AM/FM/UKW/MW/LW)
- Wide bit stream
- Repeat, shuffle functions
- Changer control for external CD/MD changer with ID3 tag and CD-Text display.
- Tuner Type: SSIR-EXA. Tuner features Automatic Bandwidth Control (?), Best Tuning Memory and RDS EON.
- Amp: Dynamic Soundstage Organizer (DSOII), 3-Band equalizer, separate bass/treble controls.
- Subwoofer switch, switches between rear and sub outputs.
- 2 color display
- IR sensor for remote control
- Integrated 24hour clock

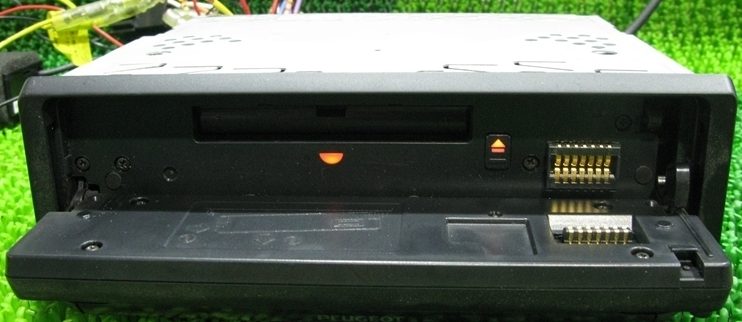

- Removable front panel
- Mute on incoming phone call
- ISO connection
- Operating angles 0-45 degrees
- Optional Remotes: Infrared: RM-X114, Safety Commander (wired remote): RM-X45
- Freq resp: 10-20kHz, SNR: 90dB. Amp: 4x27w DIN into 4 ohms.
Was also offered bundled with a 10 CD changer XDC-80M [*]
MD Mechanism Type: MG-165A-138
Optical Pick-up: KMS-242E
ATRAC IC: CXD2667R
Content adapted from: Minidisc.org page [*] Sony Product Page [*] Sony Product Page (MiniDisc Wiki mirror) [*] msrp [*] sony.jp/ServiceArea [*]
Manuals

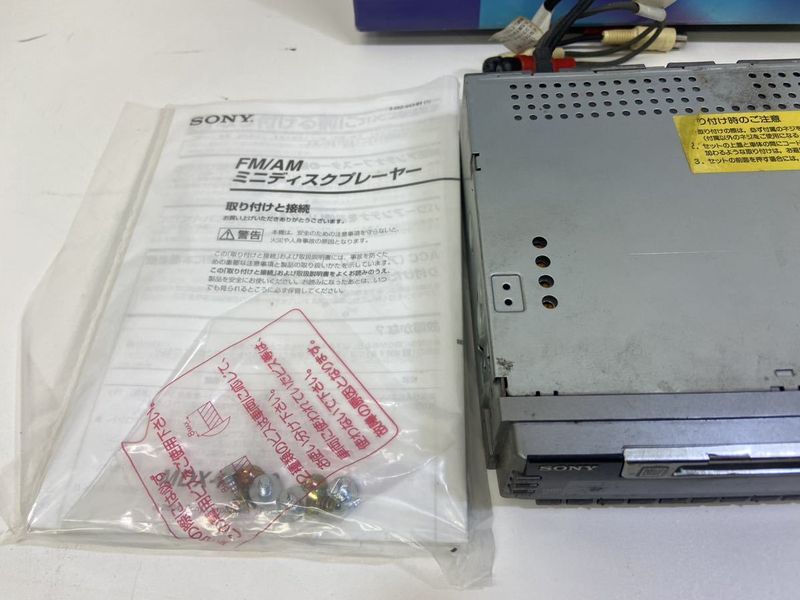

Sony MDX-F5800 User Manual ENG Installation Guide
Sony MDX-F5800 Service Manual Supplement
