Sony MDX-CA580
| Name | MDX-CA580 |
|---|---|
| Manufacturer | Sony |
| Released | 2001/05 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 88-108MHz |
| Dimensions | 182 x 53 x 162mm |
| Weight | 1200 |
| ATRAC ver | 4 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| - | |

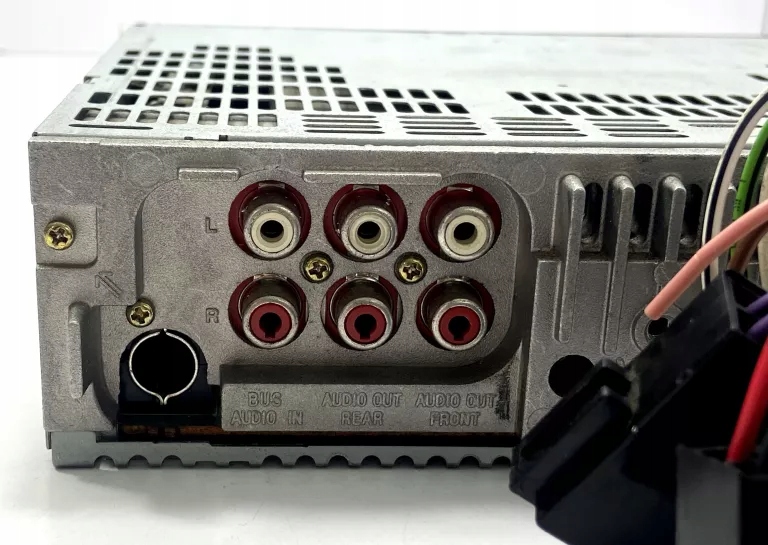

| Inputs | RCA in |
| Outputs | RCA out, Speaker amplifier |
| Control |
- Multi color segmented display
- Key Illumination: Green
- Safety Commander interface: 3.5 mm + IR Sensor for wireless commander

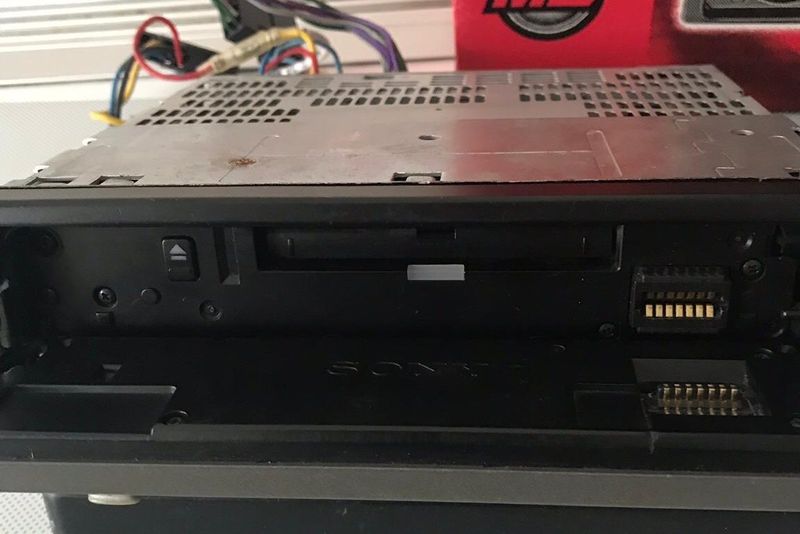

- Removable front panel
- Clock
- Repeat, Shuffle
- Telephone Attenuator

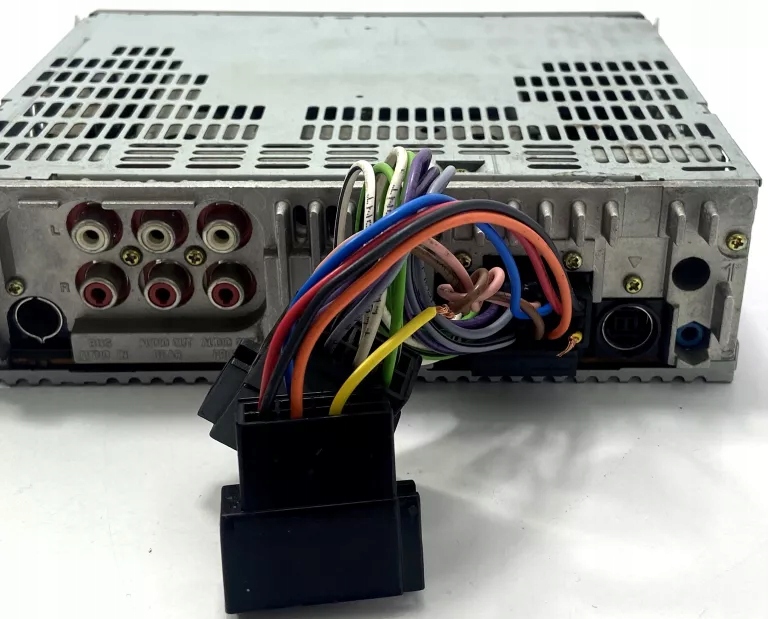

- ISO connector
- 3 Level D-Bass function
MD player:
- 4 Mbit 10 sec Shock Resistant memory
- Wide Bit Stream
- D/A conversion: 1 bit
- Frequency response: 10-20000 Hz
- Signal to noise ratio : 90 dB
- DAC Burr-Browm PCM1718E/2K
- Sony Unilink MD Changer support up to 7 units, with Title/Scroll
- MD disc Title/Scroll on a unit display
Tuner:

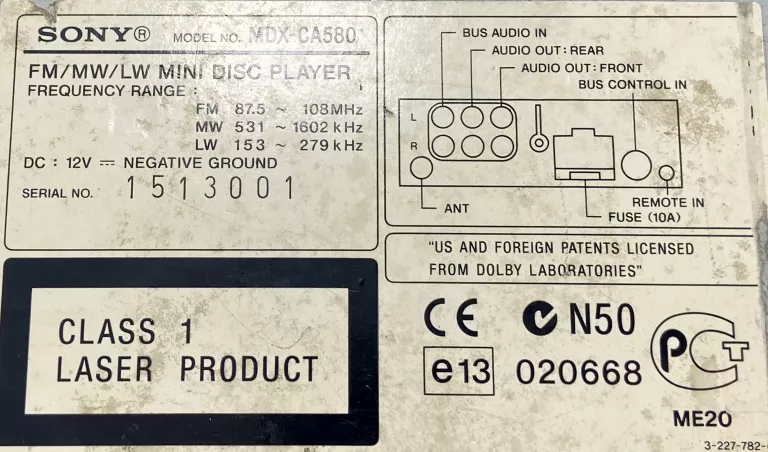

- FM 87.5 - 108 MHz
- SSIR-EXA ABC tuner
- FM-18/MW-6/LW-6 Presets - using BTM (Best Tuning Memory)
- RDS/EON
CD Changer control:
- CD Text
- Custom file
- CD/MD List function
- CD Title/Scroll
- Repeat, Shuffle
Amplifier:
- Separate Bass
- Treble control
- Dynamic Bass
- Pre-amp output: Front and Rear.
- 4 x 26 W output power, 4 x 50 W maximum.
Base Mechanism Type: MG-164NA-138
Optical Pick-up: KMS-241C
ATRAC IC: CXD2652AR
Content adapted from: Minidisc.org page [*]
Manuals
MDX-CA580 User manual (Multi ENG/DE/FR/IT/NL) 152pg
MDX-CA580 Service manual
