Sharp MD-DR77
| Name | MD-DR77 |
|---|---|
| Manufacturer | Sharp |
| Released | 2004/04 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 78.9w x 18.0h x 71.9d mm |
| Weight | 101g (131g w/batt) |
| ATRAC ver | Sharp 8 |
| Battery | "Gumstick" |
| Battery notes | |
| Sidecar (depr) | 1xAA |
| Voltage | 5 |
| Power cable | Center positive |
| Price (launch) | |
| ¥30 000 | |
| - | |
| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm line out (analog-only), 3.5mm headphone |
| Control |
Features:
- One-bit digital amp w/4-pole headphone plug.
- Backlit-LCD remote.
- Recording-start button on remote (!)
- Recording level control can be set automatically (for analog sources) or manually (for analog and digital sources).
- Syncro-start recording from analog and digital sources.
- Playback speed control.
- “Favorite-track playback” remembers up to 10 favorite tracks on up to 9 disks.
- Group mode support.
- High/Low microphone input sensitivity selector.
- Charge-stand.
- Character-stamp
- Timer alarm (avoid missing your train stop).
- Available in silver, blue and black.

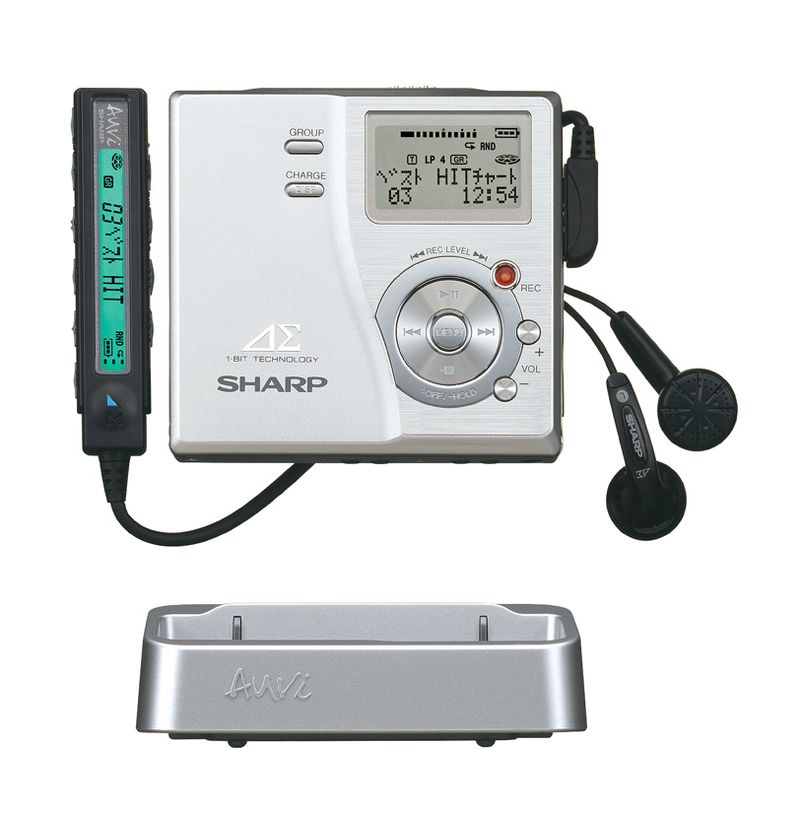

Included Accessories: LCD remote, Headphones, NiMH cell (with case), AC adapter, external AA case, charging stand, carrying pouch
Specs: Headphone amp: 8mW+8mW (@32k ohm), Line: 125mV (@10k ohm, -12dB), Freq resp. 20-20kHz +/- 3dB

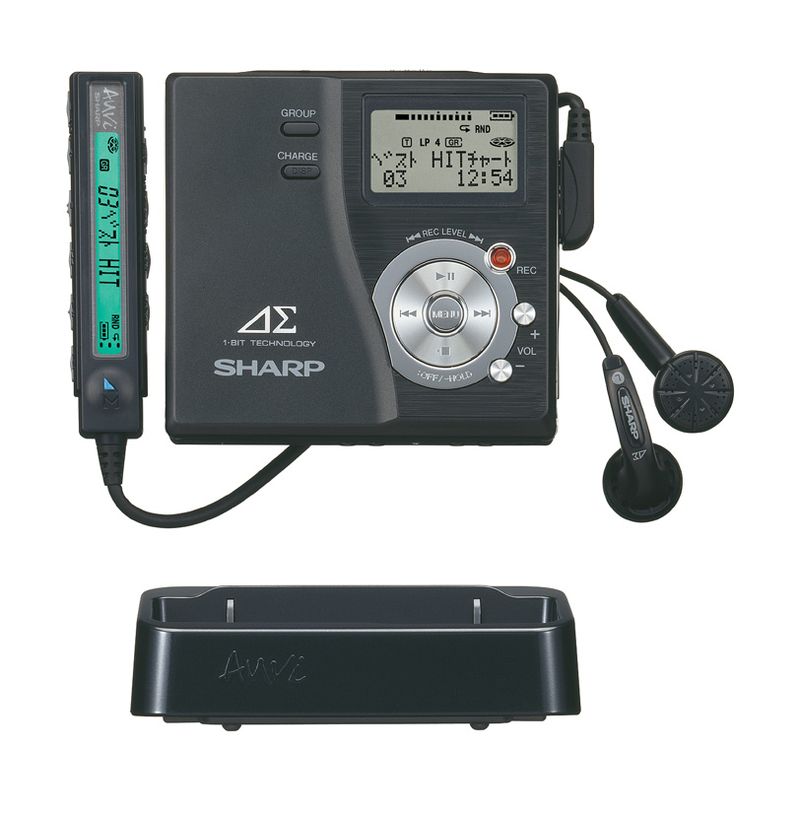

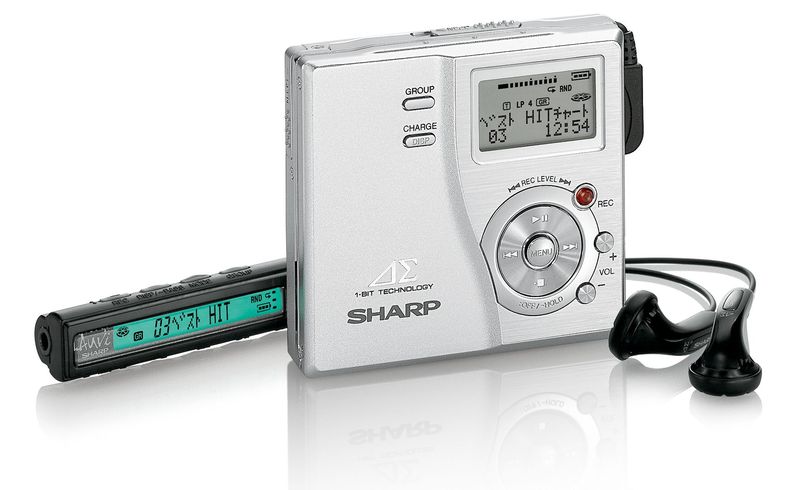

Content adapted from: Minidisc.org Page [*] Press Images [*]
Manuals
Sharp MD-DR77 User Manual JP
Repair
(repair links go here)

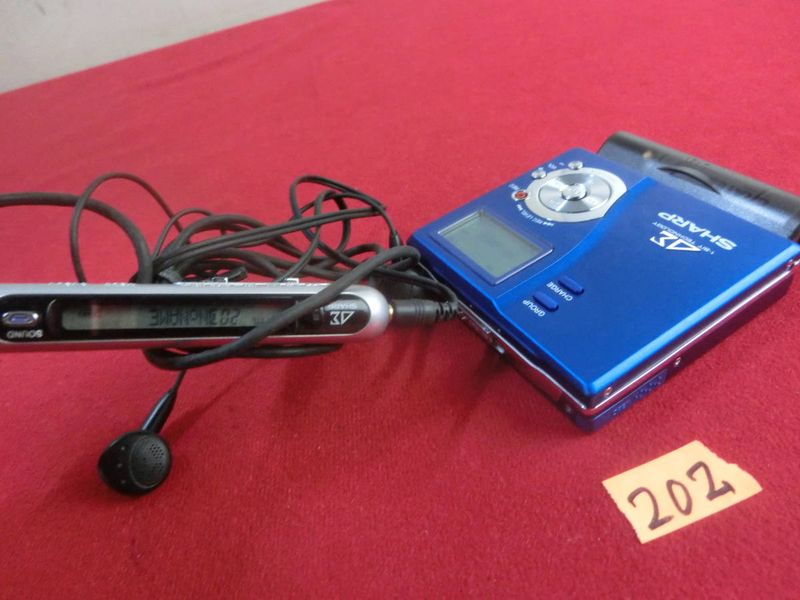

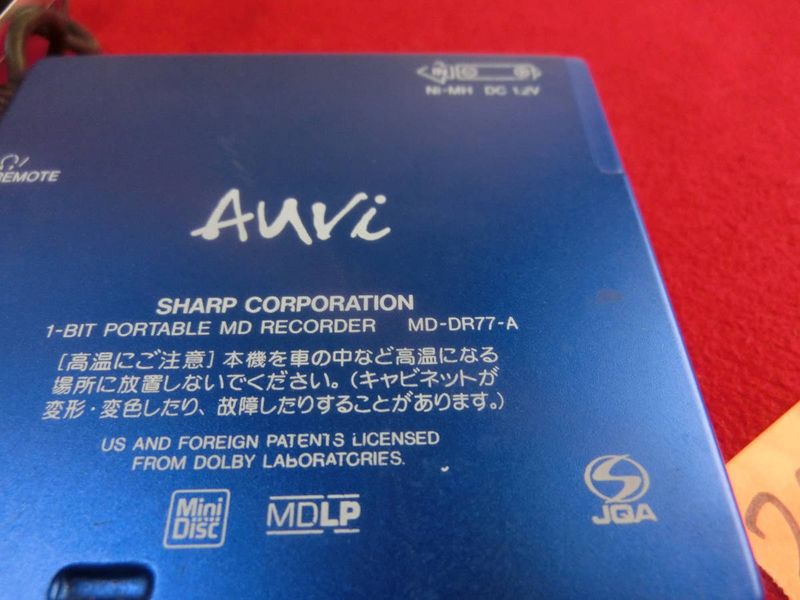

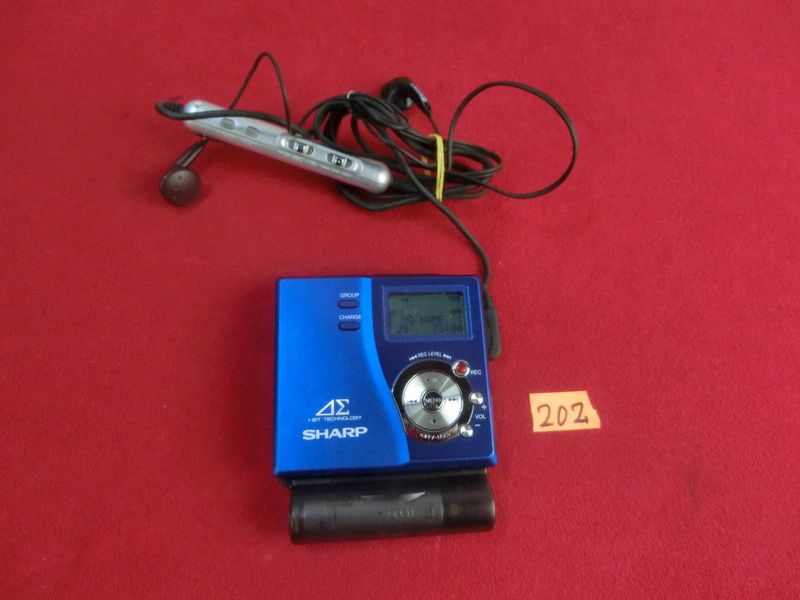

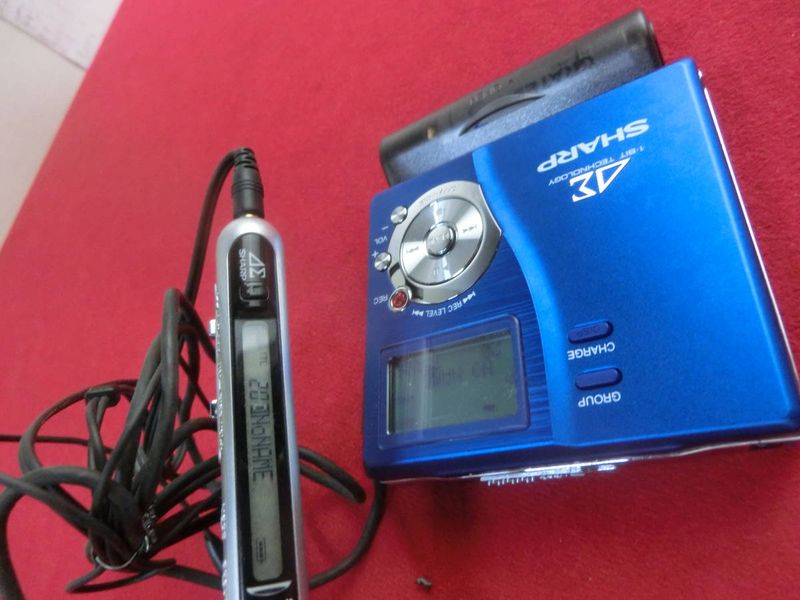

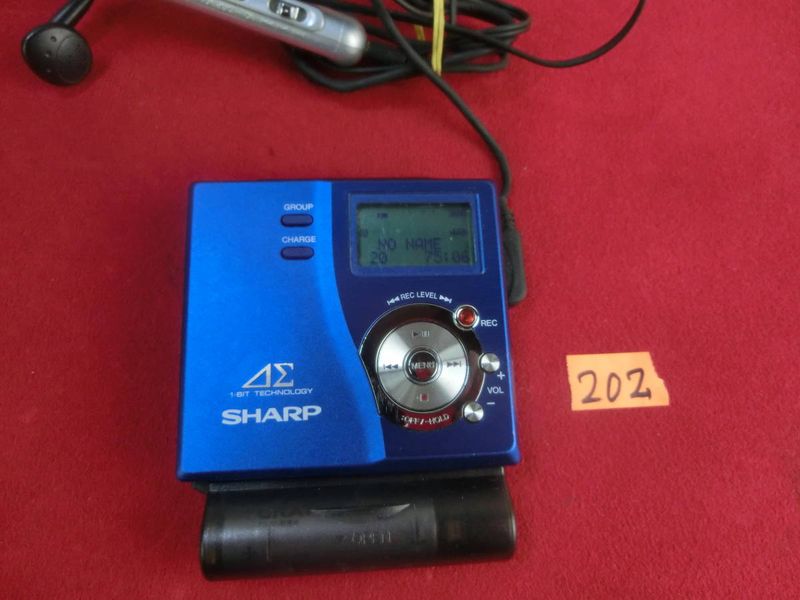

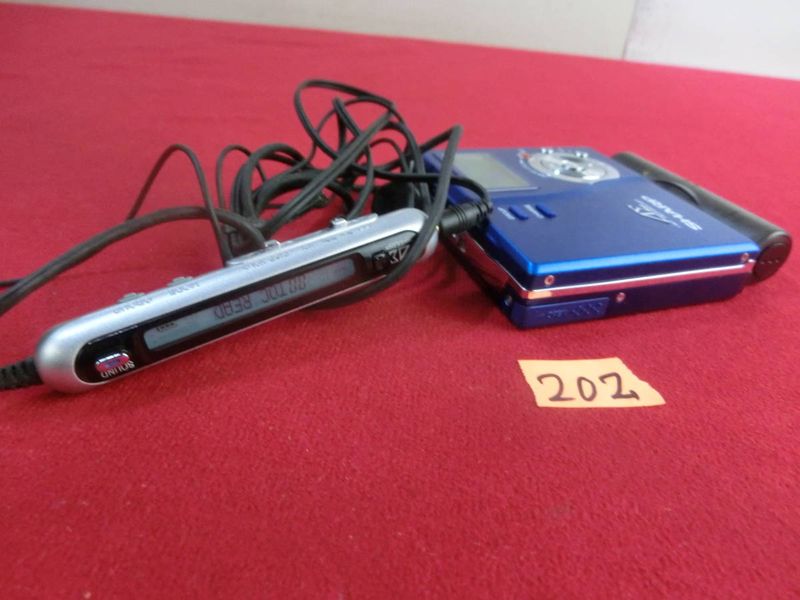

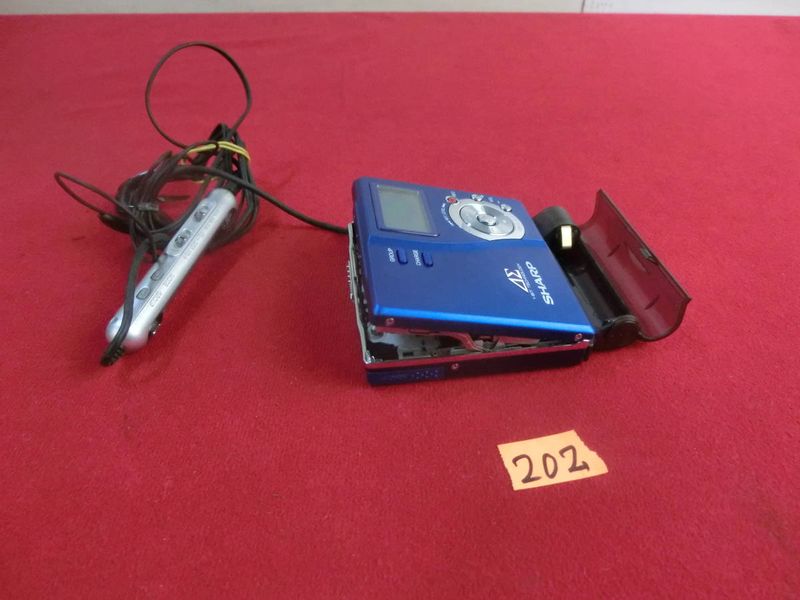

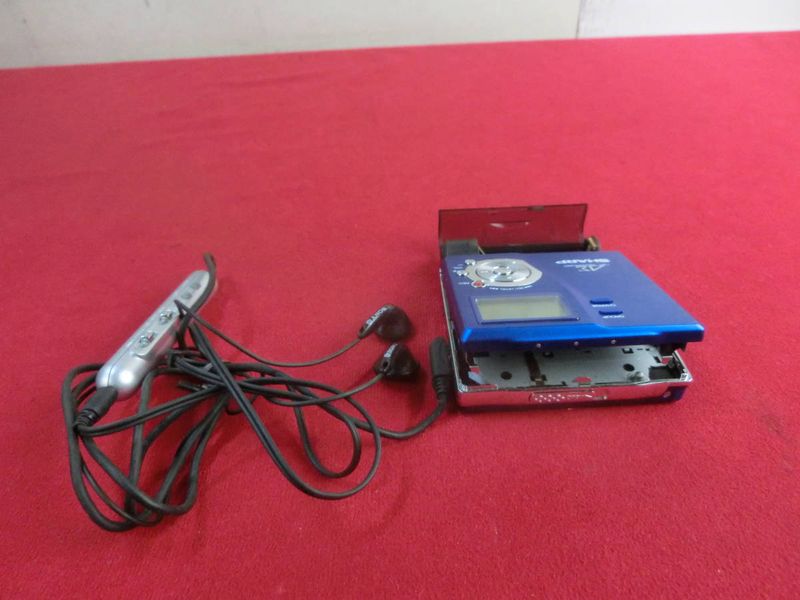

Photos
