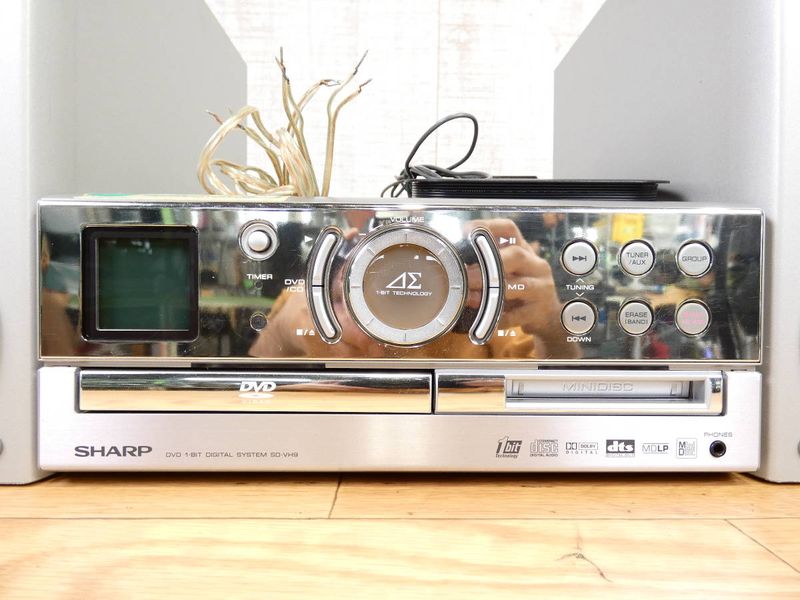

Sharp SD-VH9
| Name | SD-VH9 |
|---|---|
| Manufacturer | Sharp |
| Released | 2003/10 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 262 (depth)110 (width)×272 (height)× mm |
| Weight | About 5.0kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| - | |

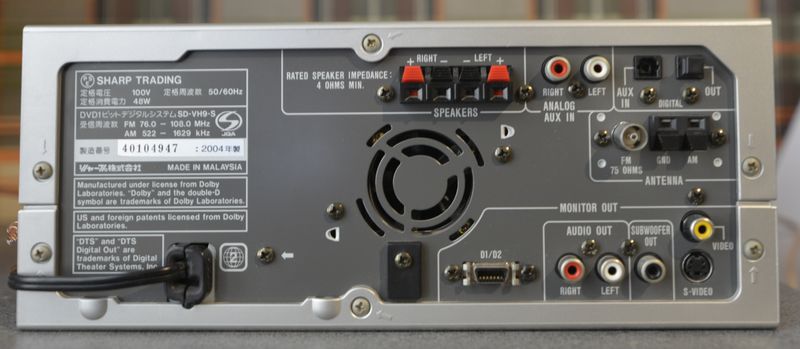

| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK), other |

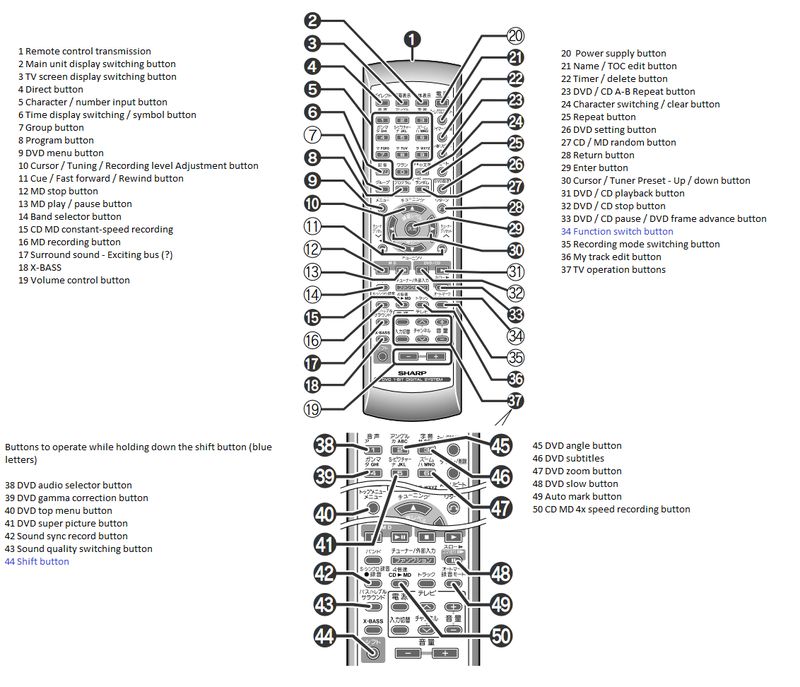

| Control |
Available in SD-VH9-S (silver)
Features:
- One bit digital amp (5.6MHz sampling, double Sharp's previous machine's rate).
- 4X CD→MD dubbing.
- 10 key cell-phone like title entry.
- Unit may be operated horizontally or vertically.
- Digital recording level control (-4dB~+8dB in 2dB steps).
- DVD Drive : CD-R/CD-RW recorded by DVD video DVD-R/DVD-RW (video mode/VR mode)/music CD/CD-R/CD-RW/MP3 format
- FM:76.0-108.0MHz (TV voice 1-3CH)
- AM:522～1,629kHz
- Timer functions: daily-timer, once-timer, sleep-timer.
- Amp: 20W+20W, Delta-sigma ADC - minimum 4Ω
- Headphone output : 16-50Ω
Video output with Terminal-D (D2) or S-video or Video out (single Yellow RCA)
Content adapted from: Minidisc.org page [*], Sharp press release (Japanese, Archived) [*] Sharp press release (Japanese, Archived) (MiniDisc Wiki mirror) [*] Details Page [*] Details Page (MiniDisc Wiki mirror) [*] press images [*] av.watch [*]
Manuals
Sharp SD-VH9 User Manual JP
