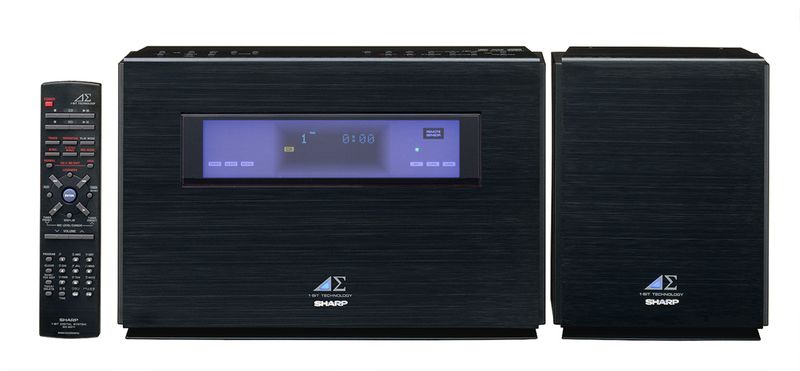

Sharp SD-SG11
| Name | SD-SG11 |
|---|---|
| Manufacturer | Sharp |
| Released | 2001/06 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 318 (width) x 210 (height) x 93 (depth) |
| Weight | 3700 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| ¥120 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out |
| Control |

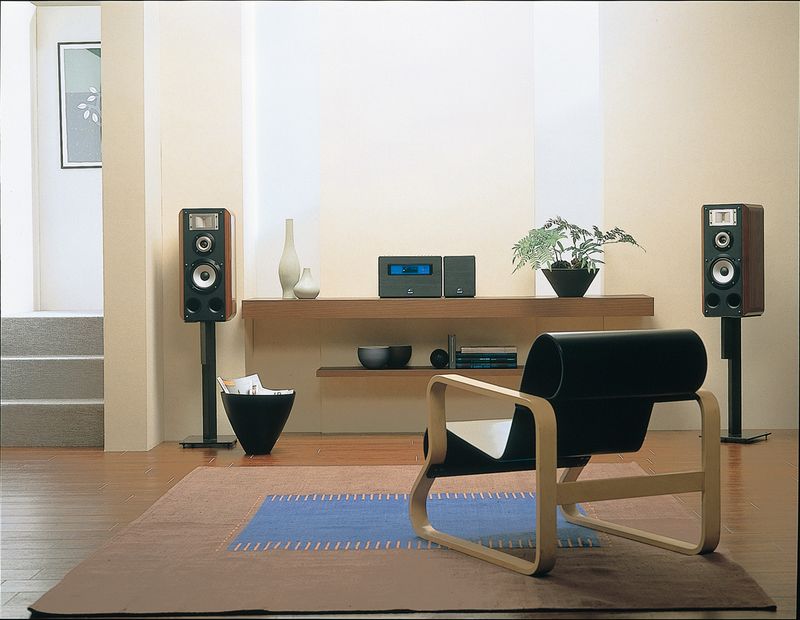

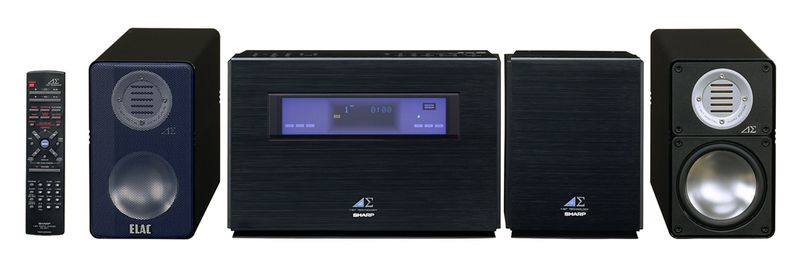

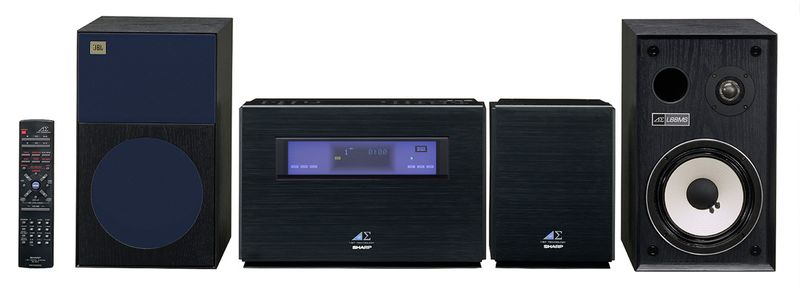

Two special limited edition models that combine the SD-SG11 (main unit part# SG11EV) with JBL and ELAC speakers were released. “SD-SG11JV” (172,000 yen) that combines JBL's “L88M”, June 25th “SD-SG11EV” (300,000 yen) that combines ELAC's “CL310JET AUDIO EDITION”, June 1st. All speakers are Sharp original specifications based on the original product.
MD / CD / Tuner section
- Frequency characteristics (CD, MD): 20-20,000Hz (+ 1 / -3dB, EIAJ)
- Tuner reception frequency: FM 76.0 to 108.0MHz, AM 522 to 1,629kHz

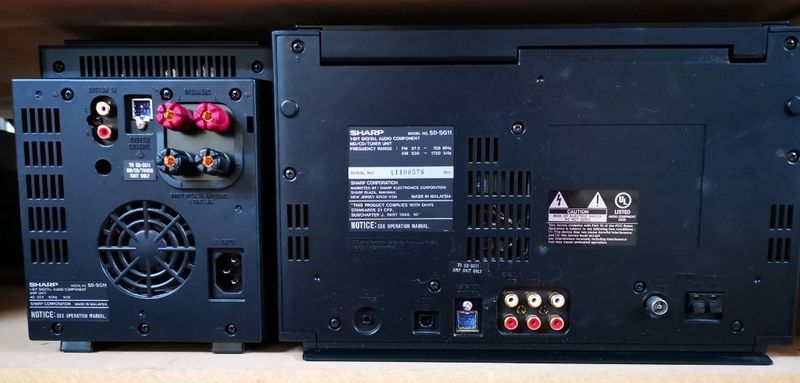

- Input terminal: Optical digital x 1, analog (L / R) x 1
- Output terminal: Analog (L / R) x 1, Headphones x 1, System audio (L / R) x 1

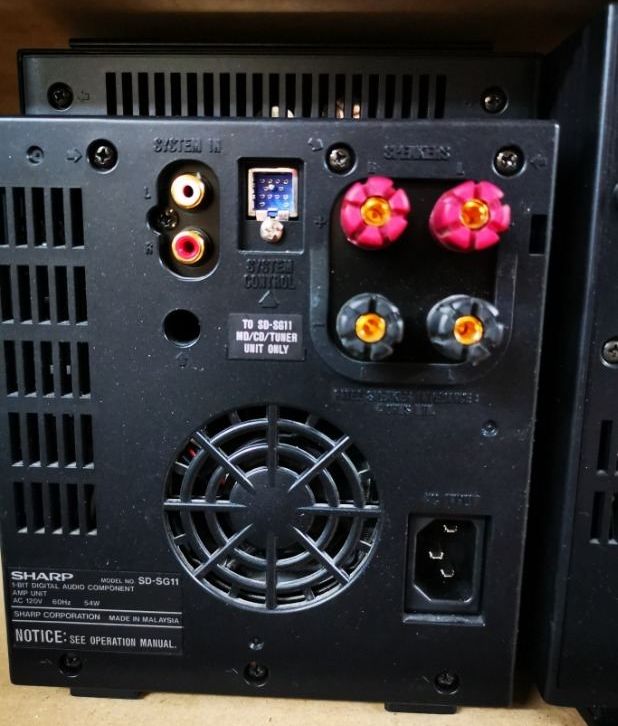

Amplifier / Transformer section
- Practical maximum output: 25W x 2 (4Ω, 1kHz, EIAJ)
- A / D noise shaping: 7th-order delta-sigma modulation
- Input terminal: System audio (L / R) x 1
- Output terminal: Speaker output (4Ω)
- Power consumption: AC 60W
Supports katakana characters
FM: 76.0-108.0MHz
Content adapted from: Sharp Press Release [*] Sharp Press Release (MiniDisc Wiki mirror) [*] av.watch [*]
Manuals
Sharp SD-SG11 User Manual JP
Sharp SD-SG11EV User Manual JP
Sharp SD-SG11JV User Manual JP
Repair

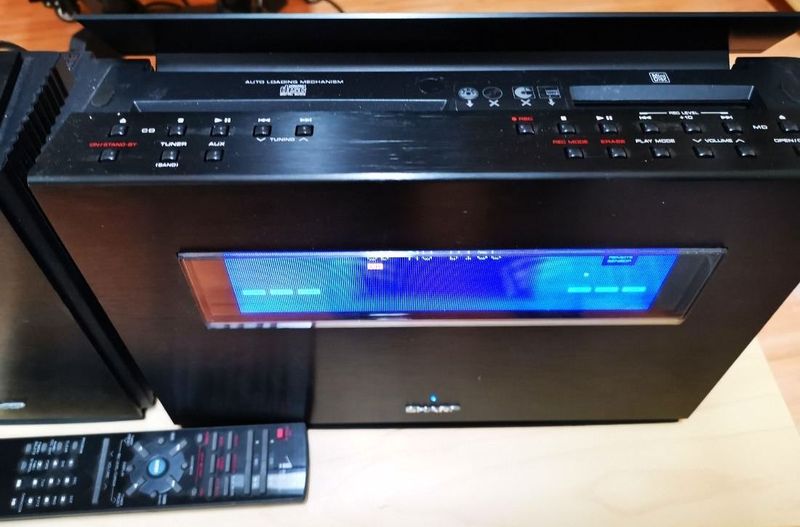

Photos
