Sharp SD-FX1
| Name | SD-FX1 |
|---|---|
| Manufacturer | Sharp |
| Released | 2001/01 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 442 x 284 x 182mm |
| Weight | 6.1kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| ¥55 000 | |
| - | |
| Inputs | RCA in, CD, Radio recording |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control |
Available in SD-FX1-S (Platinum Silver) and SD-FX1-W (Pearl White)
Features: MD/CD/AM/FM, MDLP, 2X CD→MD dubbing, 4-mode multicolor display, 1-bit amplifier samples signals at 2.8 million times per second (64 times that of CD sampling).
Supports CD-Text display.
Specs: 10W (5W+5W) output, 8 cm woofer, 4 cm tweeter, world-band FM radio (76-108MHz), 100VAC.
Content adapted from: Sharp Press Release [*] Sharp Press Release (MiniDisc Wiki mirror) [*] Details Page [*] Details Page (MiniDisc Wiki mirror) [*] Minidisc.org page [*] image source [*]
Manuals
Sharp SD-FX1 User Manual JP
minidisco Users guide translated to English
Repair

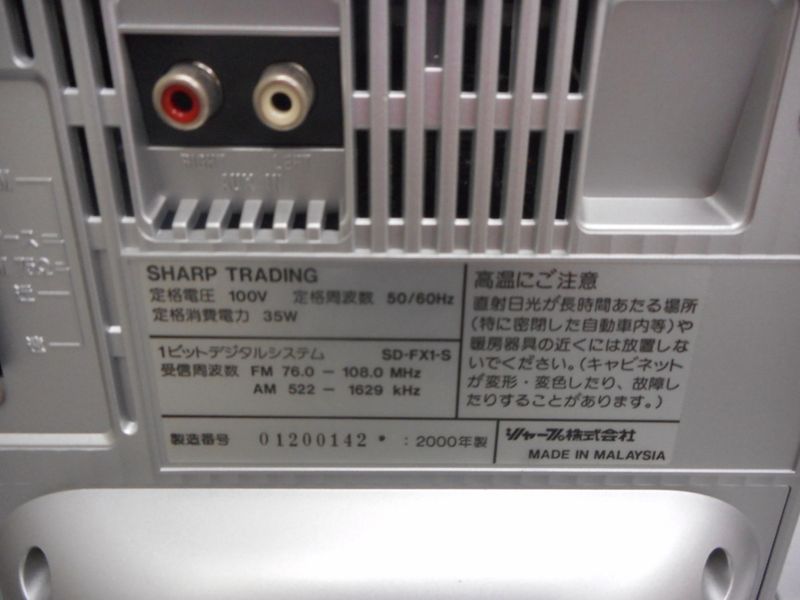

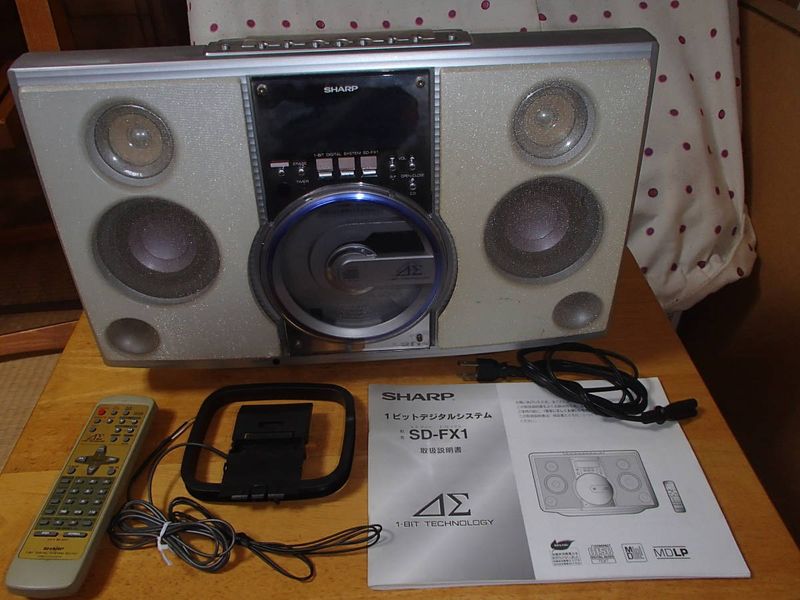

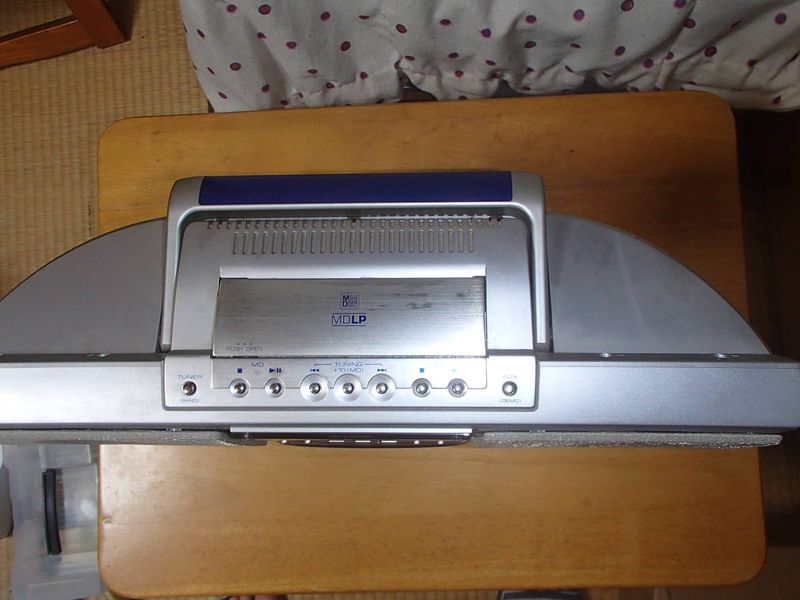

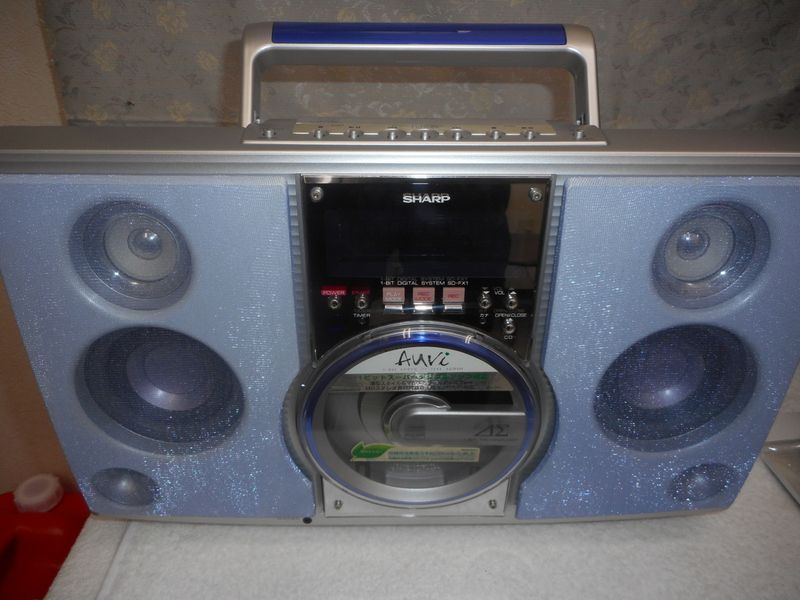

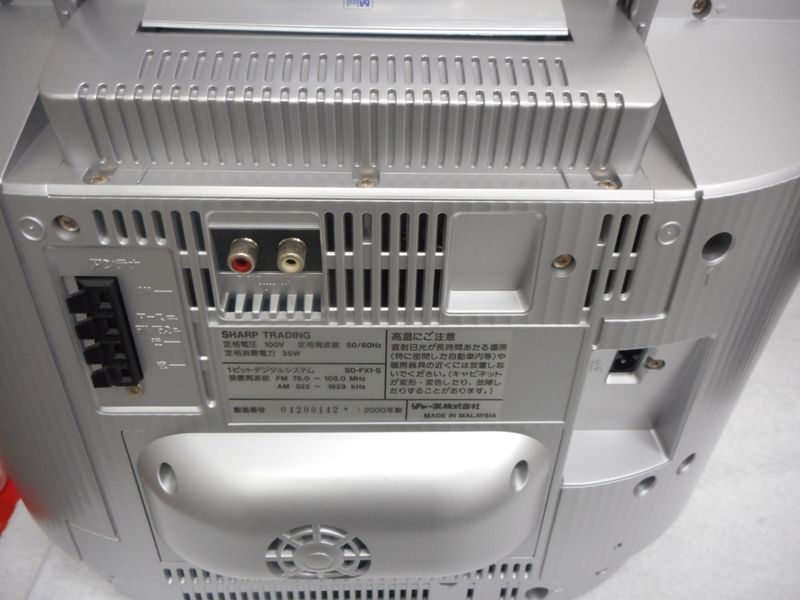

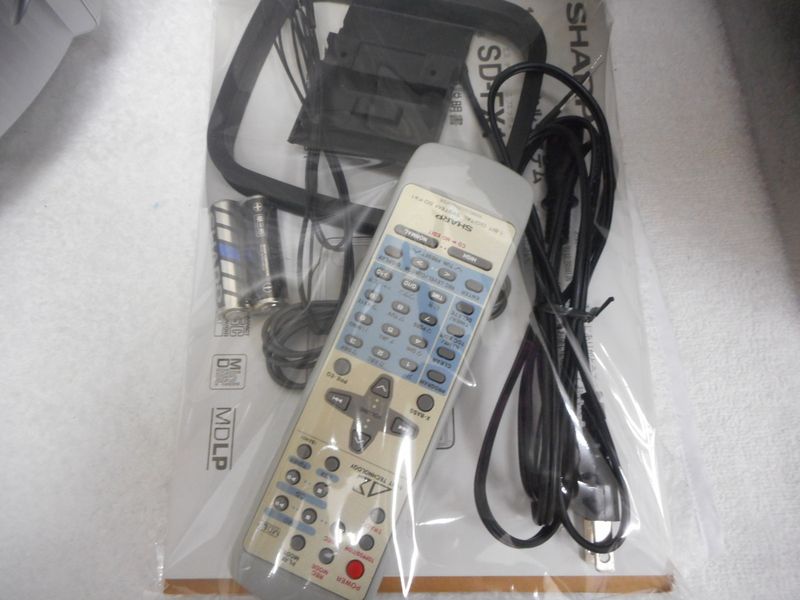

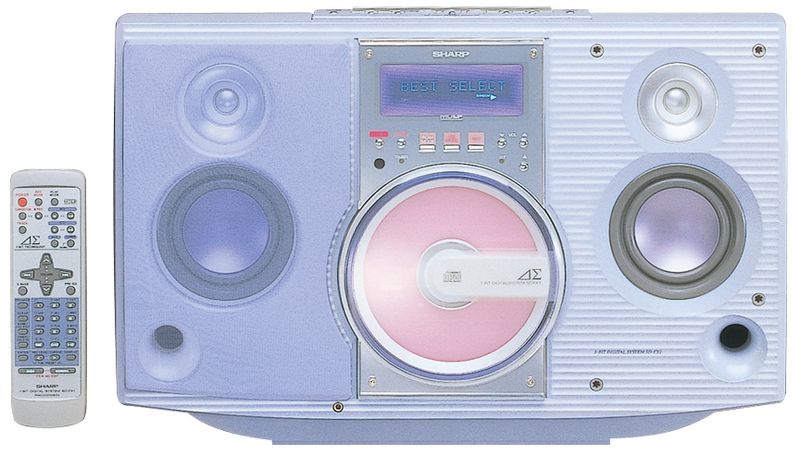

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
