Sharp SD-CX2
| Name | SD-CX2 |
|---|---|
| Manufacturer | Sharp |
| Released | 2001/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 330 (width) x 208 (height) x 187 (depth) mm |
| Weight | 5100 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| - | |

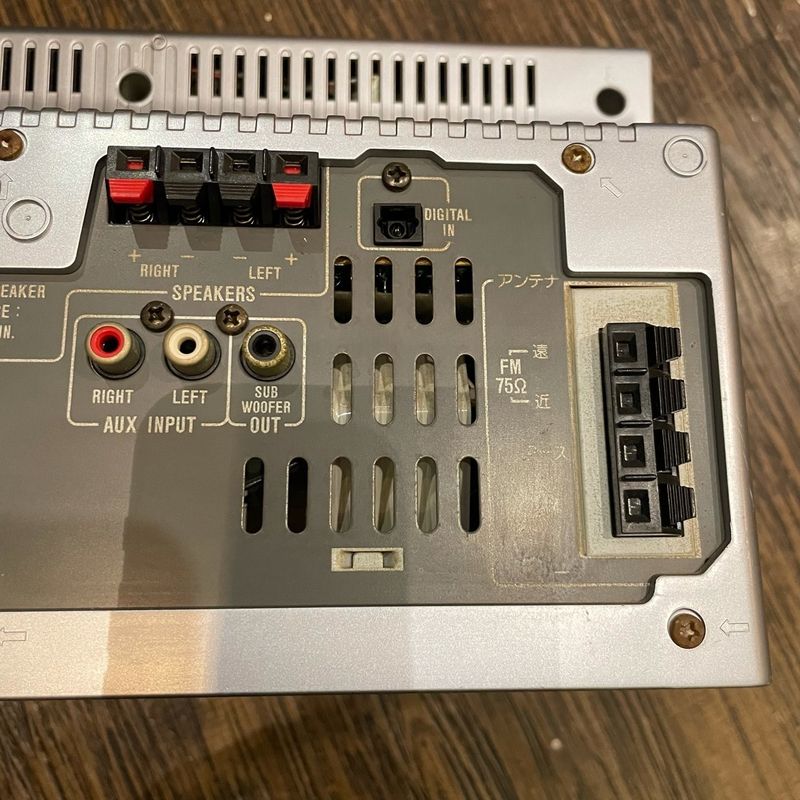

| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | 3.5mm headphone |
| Control |

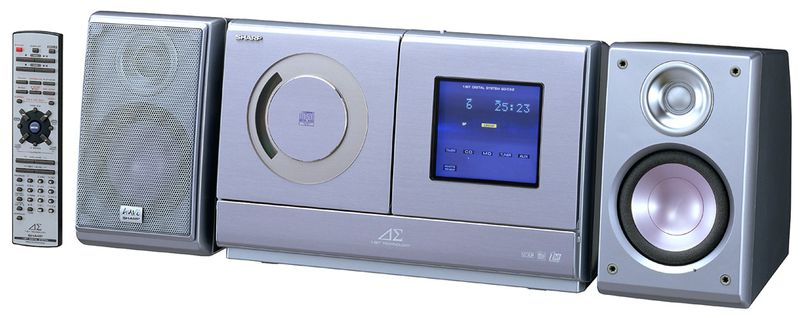

Sharp SD-CX2. Released alongside the SD-CX3. The difference between the two seems to be the included speaker package.
- Audio system “Auvi” equipped with original “1 bit digital amplifier”
- “1 bit digital amplifier” that amplifies 1 bit signal by ultra high speed sampling of 2.8MHz and obtains resolution equivalent to 64 times that of CD powered by.
- The A / D converter is equipped with a “high-precision 1-chip delta-sigma modulation LSI”. The deterioration of sound quality is prevented by converting an analog signal into a 1-bit signal and performing digital transmission / amplification processing.
- In addition to being able to record at double speed from a CD to an MD, it is also equipped with a “top position recording function” that allows you to additionally record the first song of the MD with a single touch, and a “hypertrack edit function” that allows you to specify while listening to the song to be edited. * Equipped with “X-BASS circuit” that reproduces deep bass and 4-mode preset sound function of FLAT / HEAVY / POPS / SOFT.
Supports CD Text and Katakana characters for MD

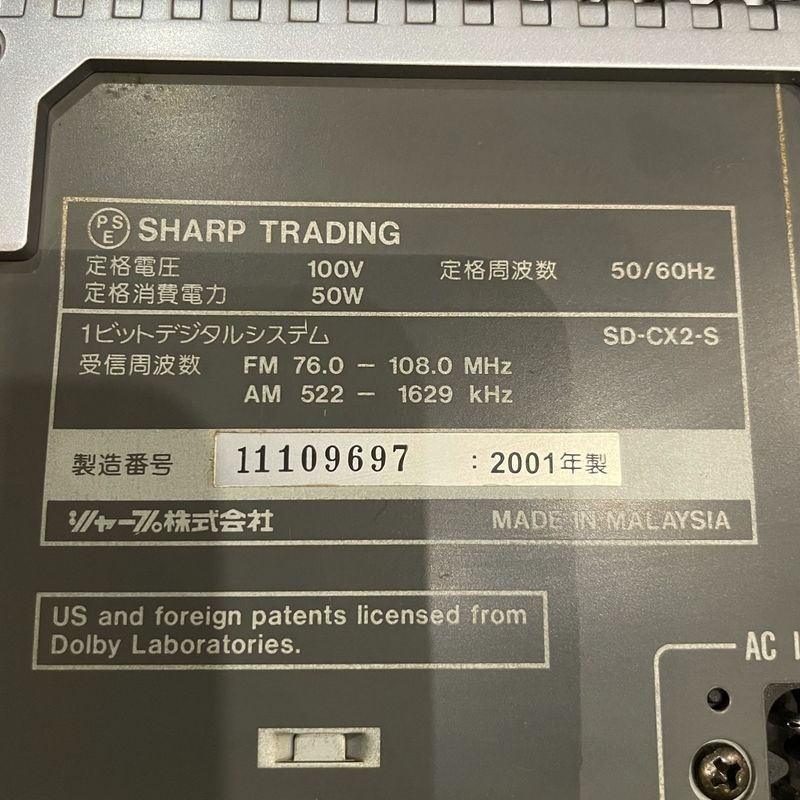

FM: 76.0-108.0MHz

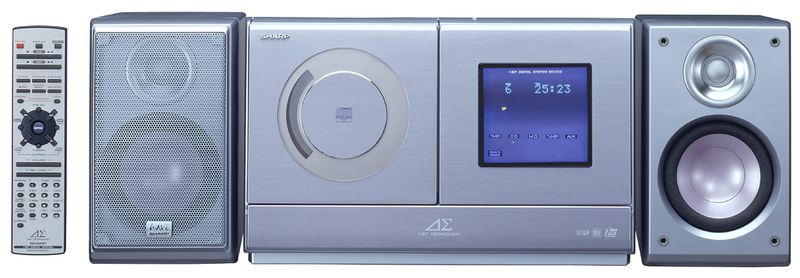

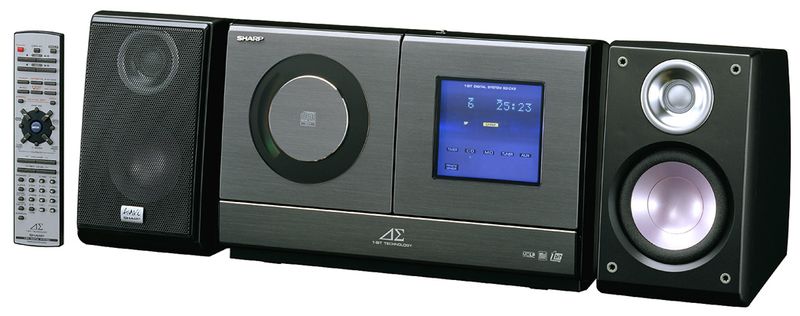

Content adapted from: Sharp Press Release [*] Sharp Press Release (MiniDisc Wiki mirror) [*] Sharp News Page [*] press images [*]
Manuals
Sharp SD-CX2 Japanese Manual
Repair

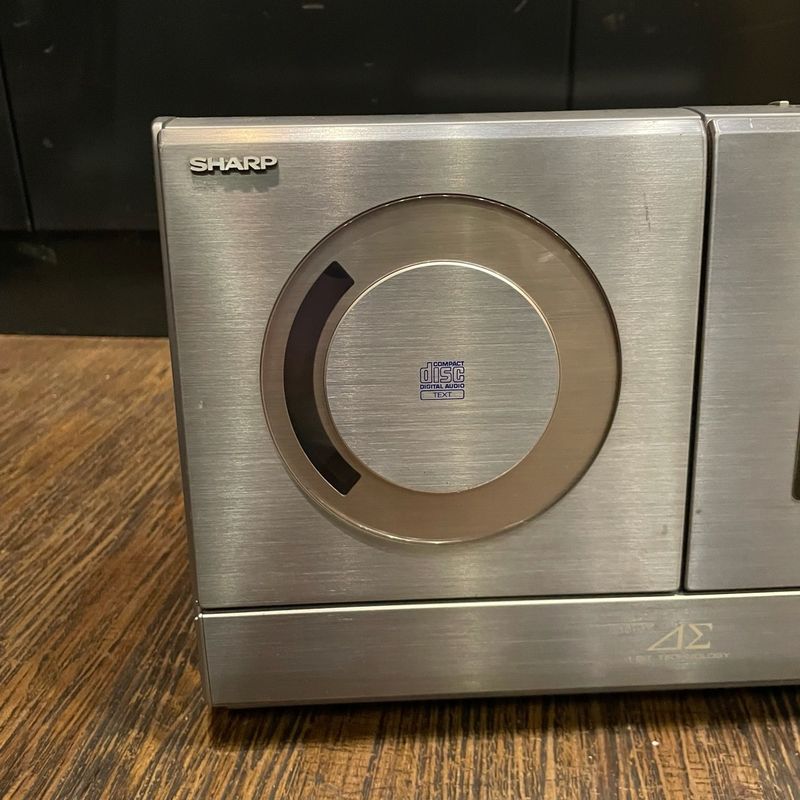

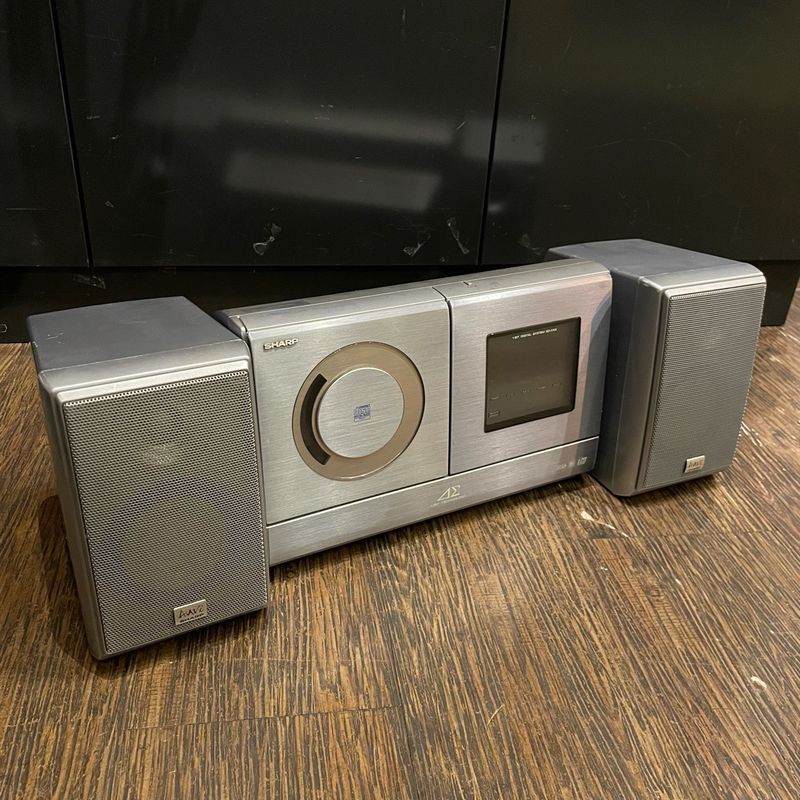

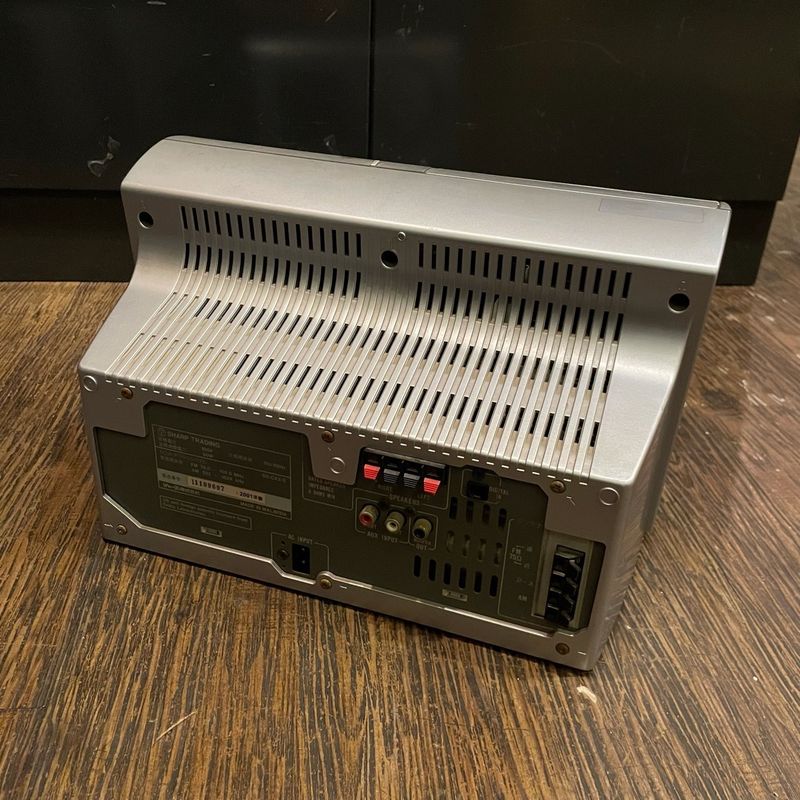

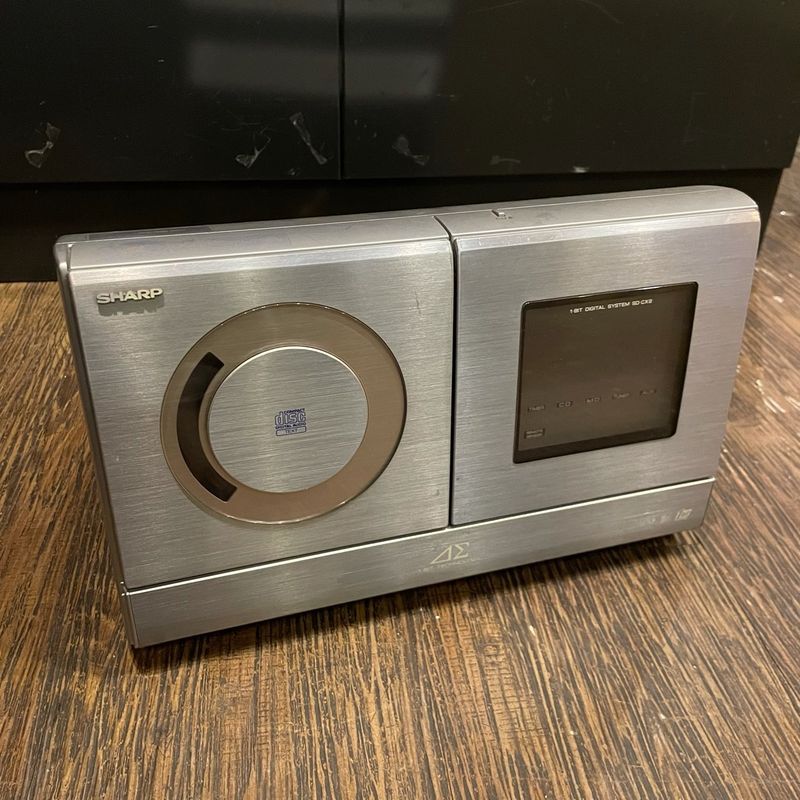

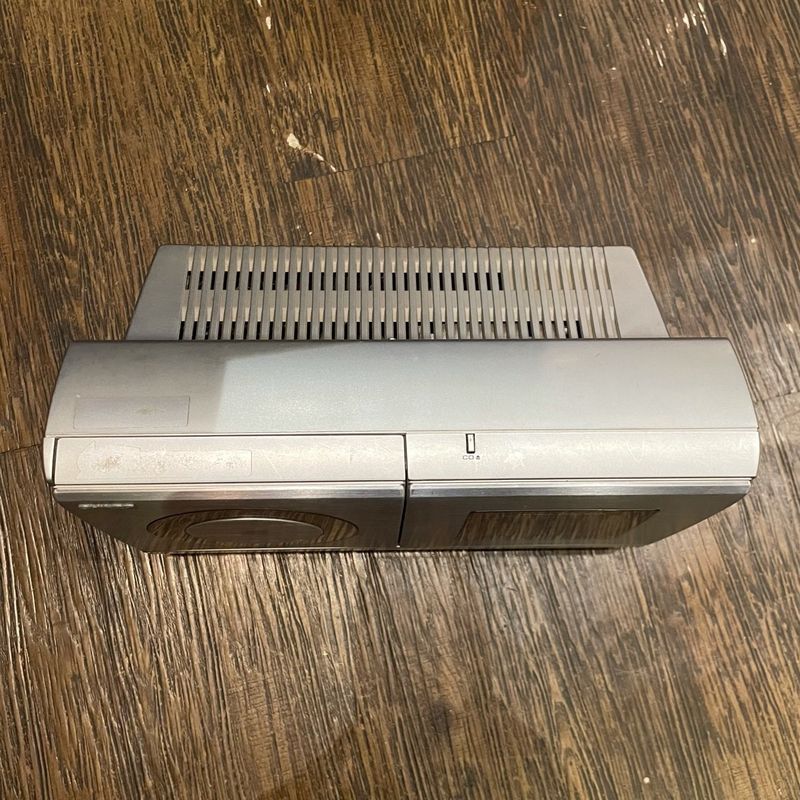

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
