Sanyo CDF-MC2
| Name | CDF-MC2 |
|---|---|
| Manufacturer | Sanyo |
| Released | 2003/01 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-DIN 178 (W) x 100 (H) x 160 (D) mm (excluding protrusions) |
| Weight | 2200 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥60 000 | |
| - | |
| Inputs | N/A |

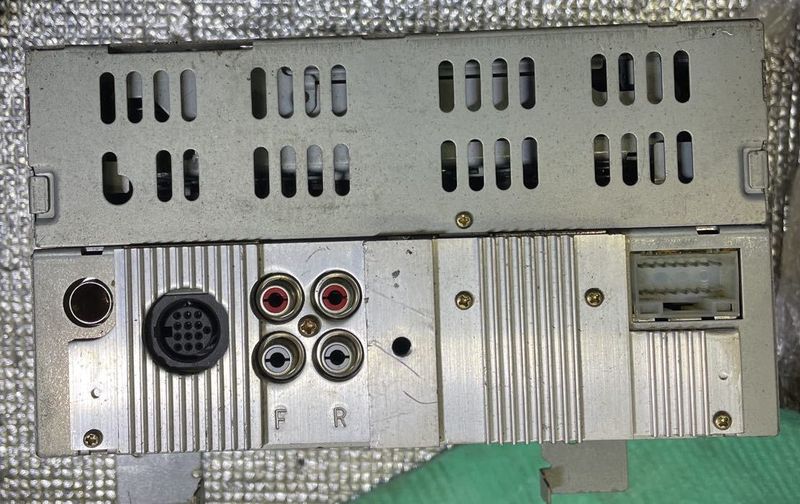

| Outputs | RCA out, Speaker amplifier |
| Control |

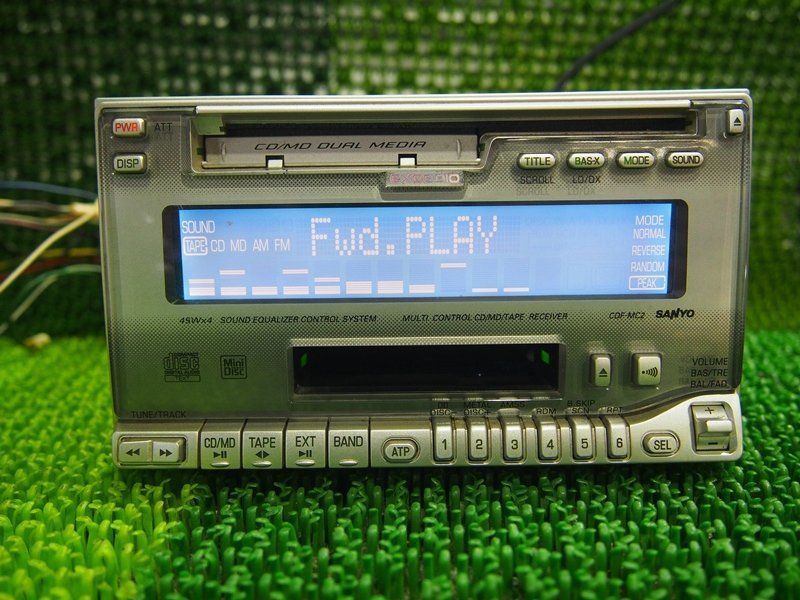

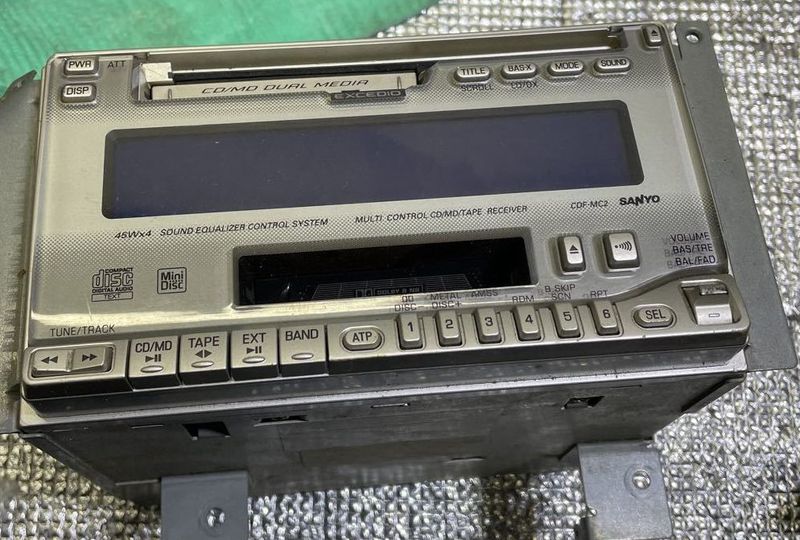

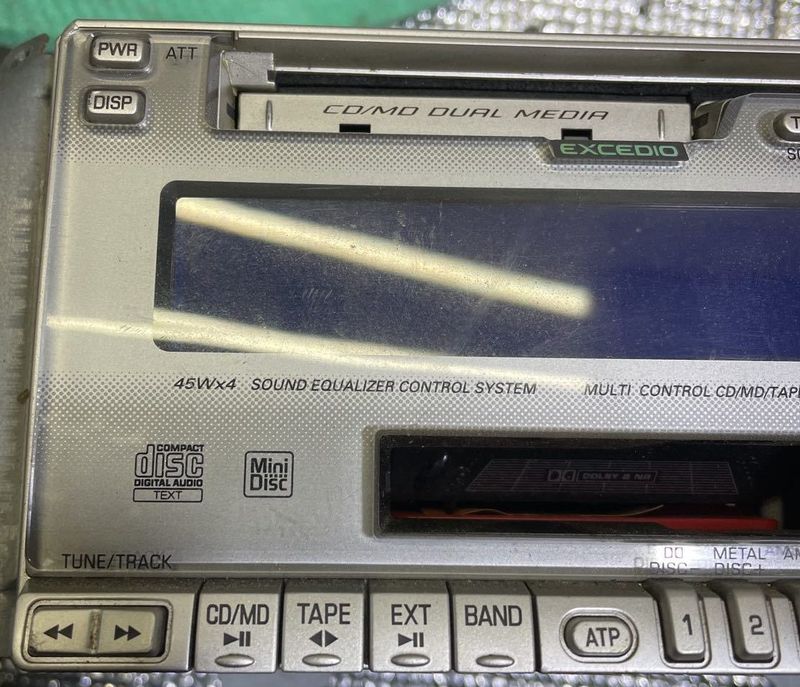

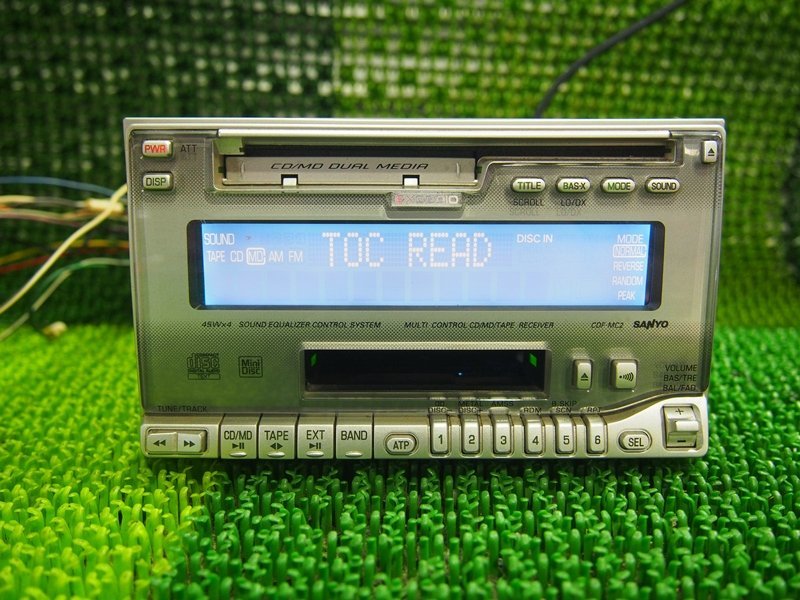

in-dash CD/MD/Cassette receiver
- Accepts CDs and MDs in a single slot, cassettes in a second slot.
- MDLP support, with group mode function.
- CD-R and 80mm (mini-)CD capable.
- CD/MD scrolling title display.
- Shuffle/scan/repeat play modes.
- Japanese FM band (76-90Mhz).
- 4-mode spectrum analyzer.
- 6-mode preset equalizer.
- CD changer control.
- Amp: 45W x 4, SNR: MD: 90dB, CD: 85dB, Cassette: 50dB (60dB w/Dolby)
MD / CD player part
- Frequency characteristics… 20 ～ 20,000Hz
- SN ratio… CD: 85dB, MD: 90dB
Cassette deck part
- Frequency characteristics… 30 ～ 16,000Hz
- SN ratio… 60 / 50dB (Dolby ON / OFF)
- Harmonic distortion rate… 0.13% (1kHz)
Tuner section
- Reception frequency… FM: 76 ～ 90MHz, AM: 522 ～ 1629kHz
- Practical sensitivity… FM: 12dBf, AM: 28dB
- SN ratio… FM: 60dB, AM: 50dB
Amplifier part
- Maximum output… 45W × 4 (14.4V, 4Ω)
- Sound quality adjustment… BASS: ± 10dB (100Hz), TREBLE: ± 10dB (10kHz)
common part
- Power supply voltage… DC14.4V (11 to 16V)
- External dimensions: 178 (W) x 100 (H) x 160 (D) mm (excluding protrusions)
- Weight: 2.2 kg
Content adapted from: Minidisc.org page [*] Sanyo Product Page [*] Sanyo Product Page (MiniDisc Wiki mirror) [*]
Manuals
Video
Basic demo MRh-oiApsDw

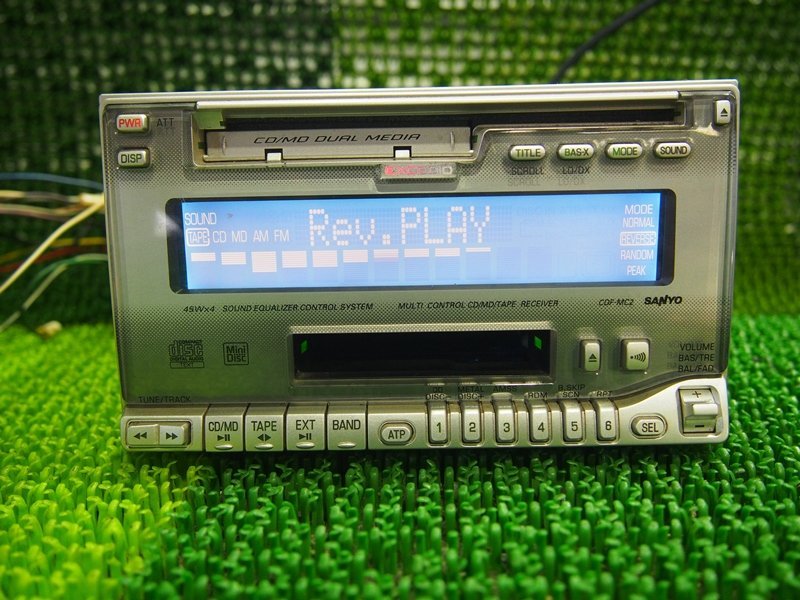

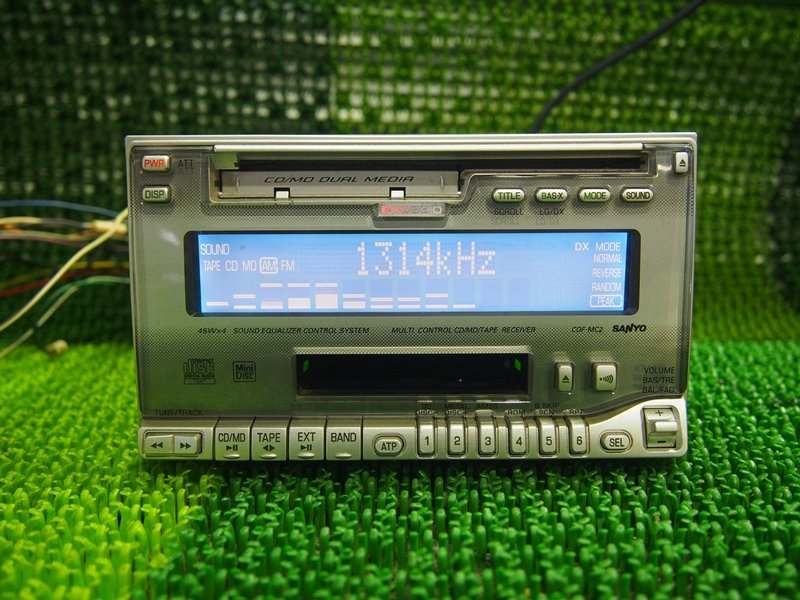

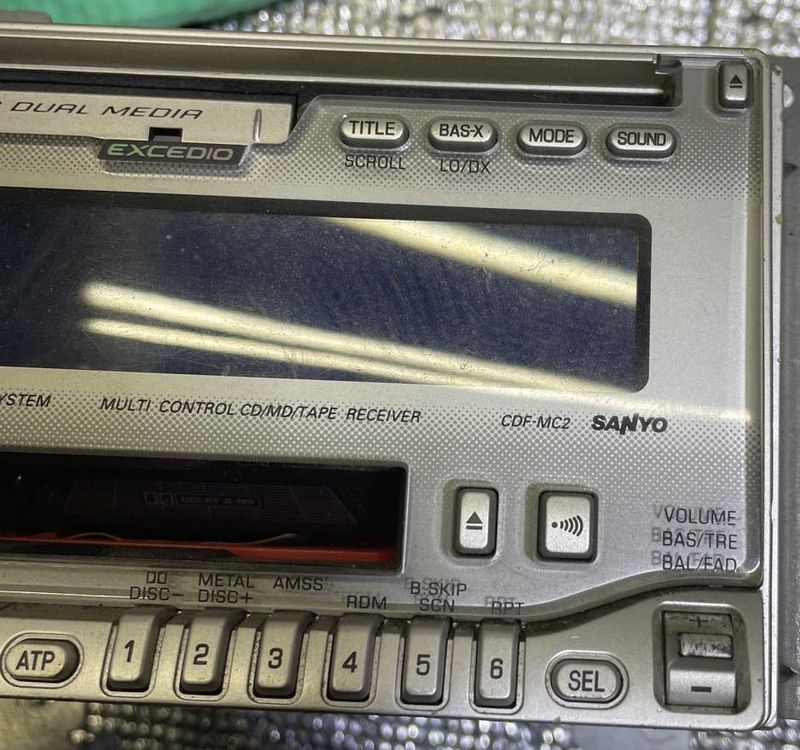

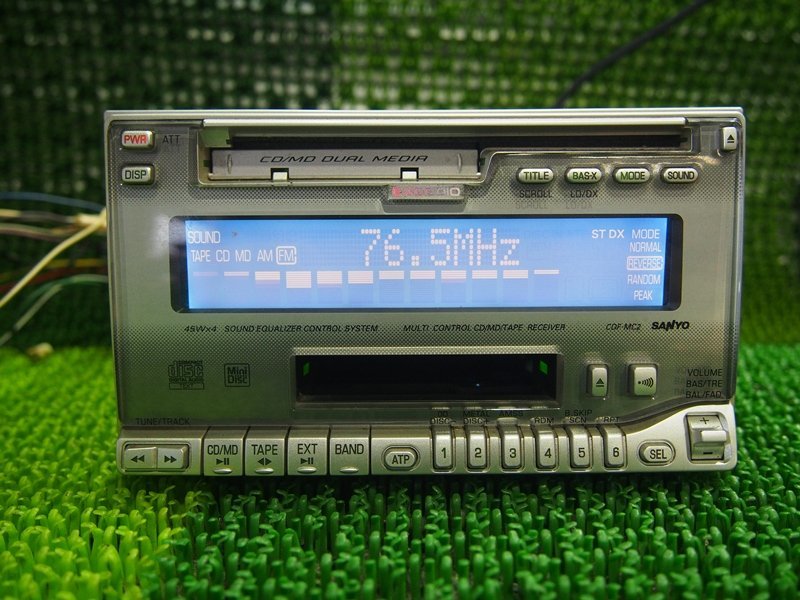

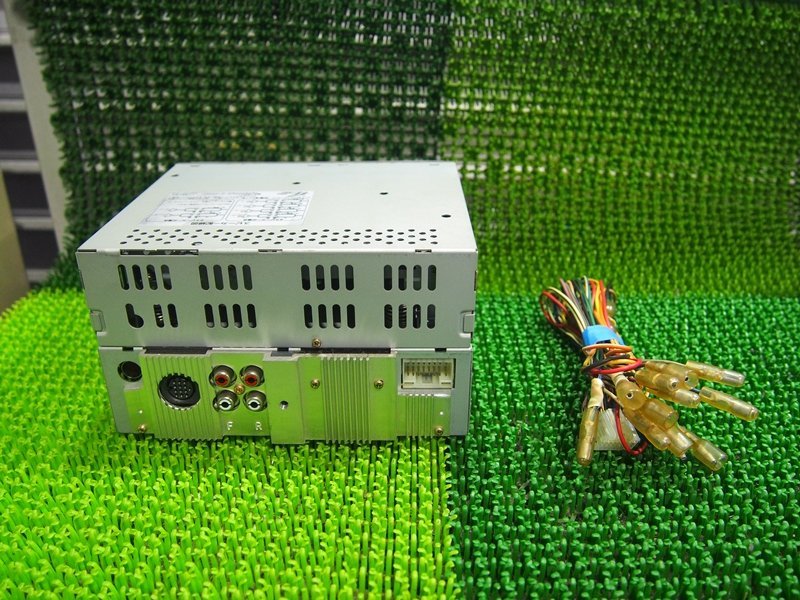

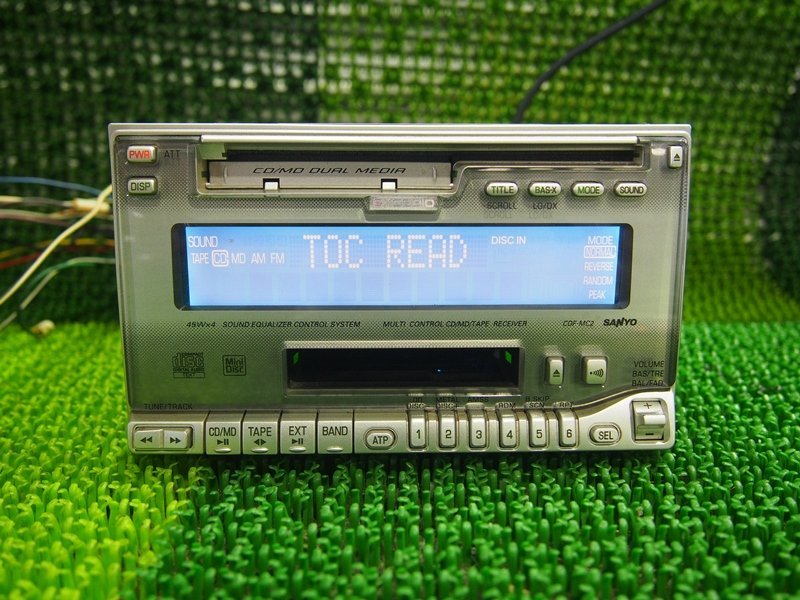

Photos
