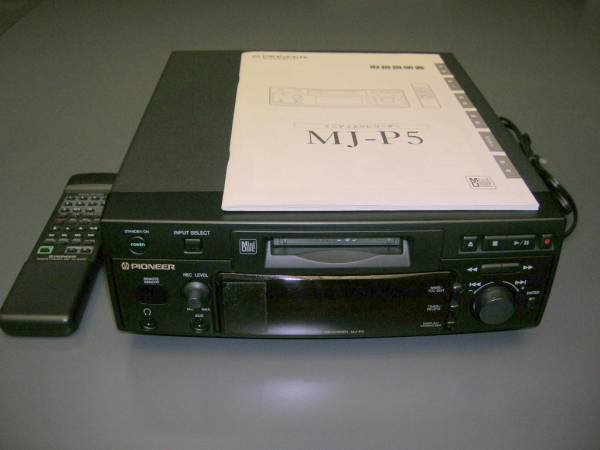

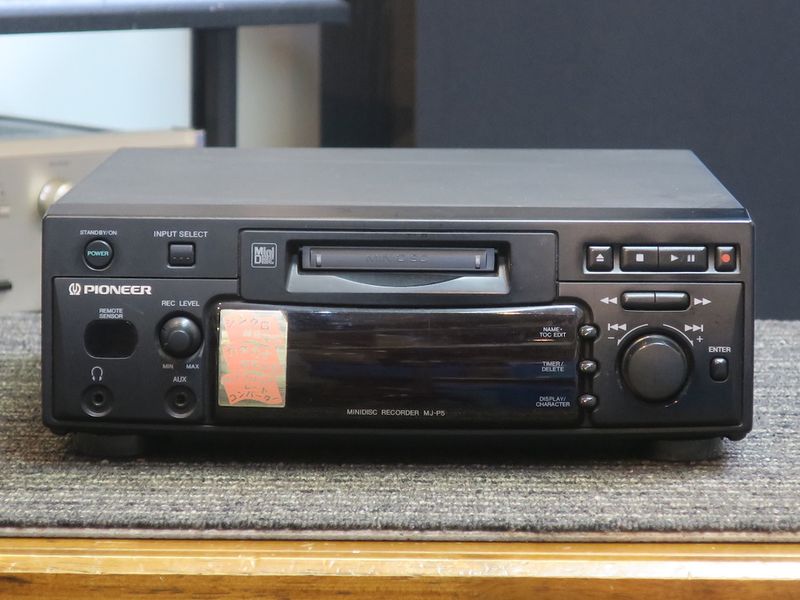

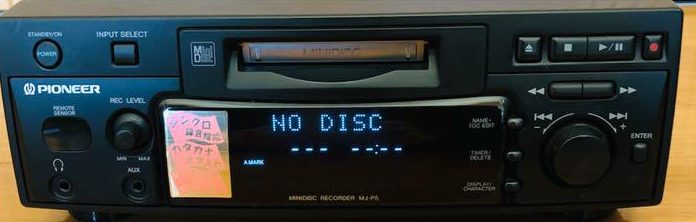

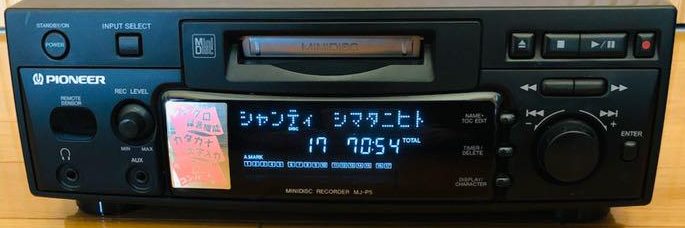

Pioneer MJ-P5
| Name | MJ-P5 |
|---|---|
| Manufacturer | Pioneer |
| Released | 1995/12 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 270 (W) x 98 (H) x 311 (D) mm |
| Weight | 3.1kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |

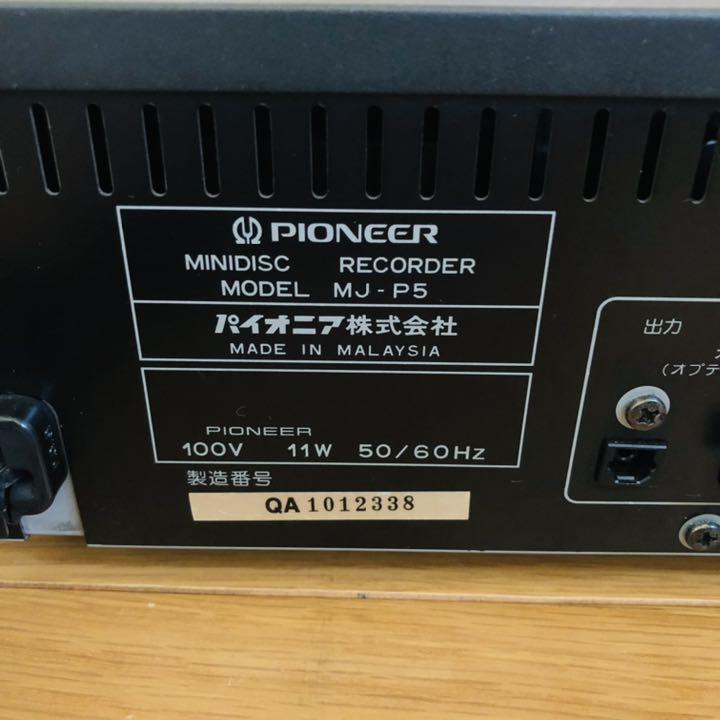

| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| ¥59 000 | |
| - | |

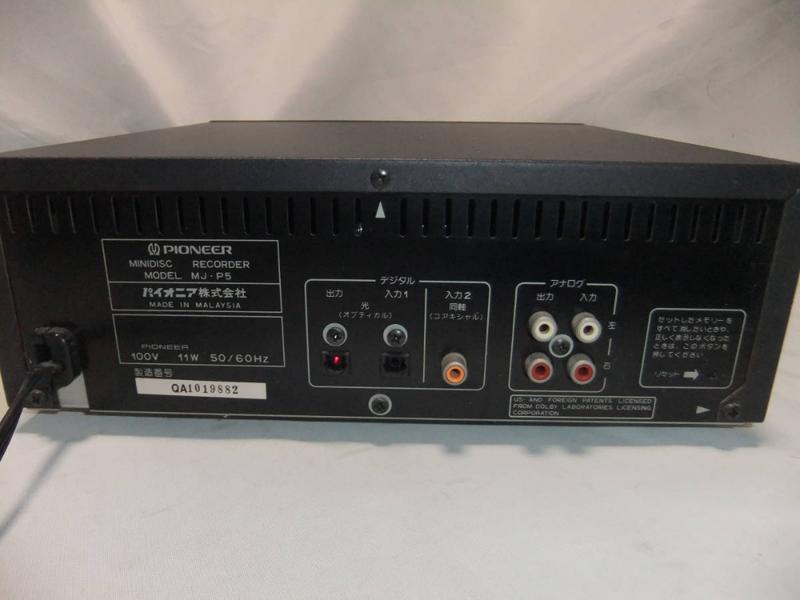

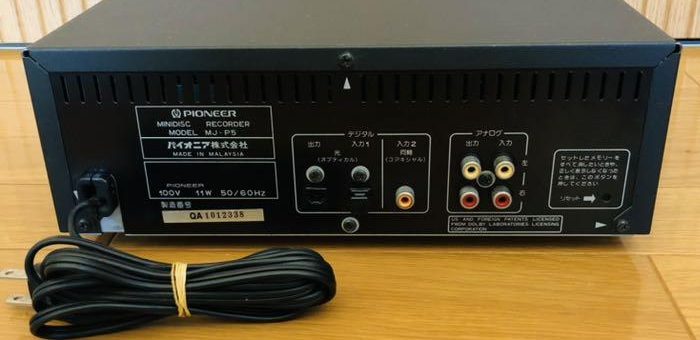

| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control |
Proper model# is MJ-P5-S. See also: Sharp MD-R1, Kenwood DM-F70
Features:
- Synchro recording (start recording when audio appears at input)
- Sampling rate converter
- Monaural 2x long-time recording mode
- Title search
- Equipped with an automatic recording date and time record that allows you to record and check the date and time (year/month/day) recorded on the MD
Criticism: Sampling rate conversion is a very convenient feature. It will be a must for MD decks before long. But be careful to check the performance. I found the specs of Sharp's sampling rate converter in IEEE trans. on consumer electronics. They are .. S/N 90dB, Distortion 0.005% (1kHz) That's about 14-bit accuracy. I've not yet checked the sound quality myself, but I'm afraid that it will affect the sound quality of low level music [when sampling rate conversion is used]. -Takeshi SASAKI

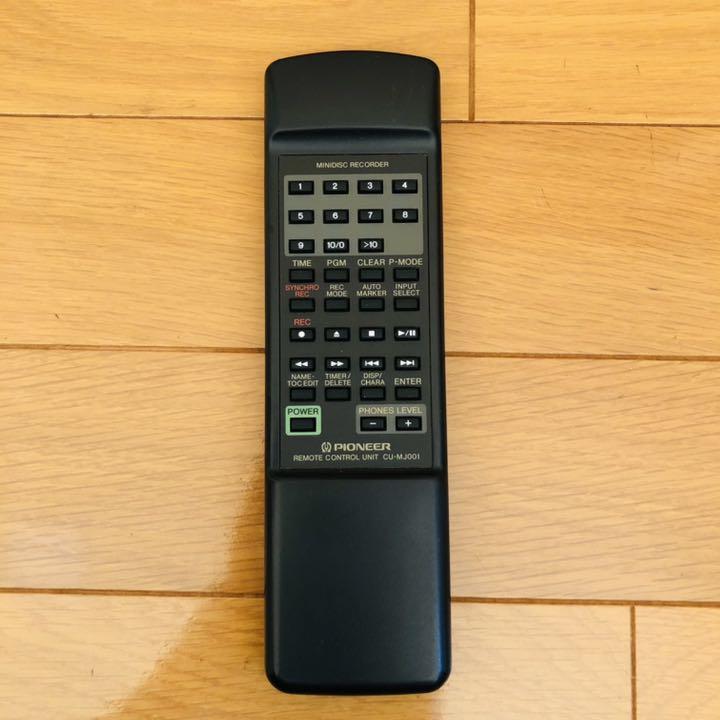

Remote: CU-MJ001
Content adapted from: Minidisc.org page [*] Pioneer Press Release [*] Pioneer Press Release (MiniDisc Wiki mirror) [*] - silver model released Oct-1996 Pioneer History page saying it was released 12-1995 [*]
Manuals
Repair

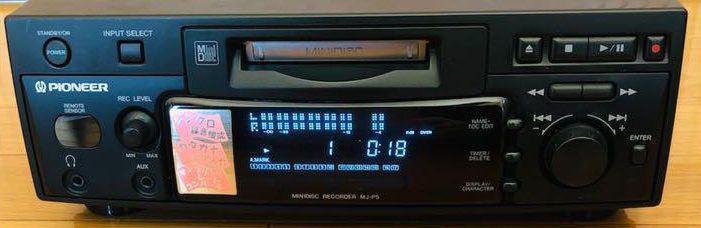

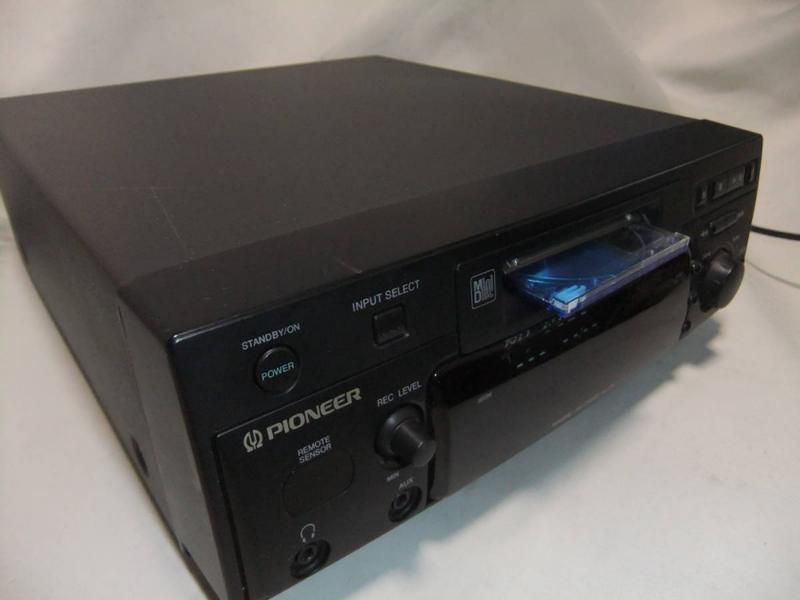

Photos
