Pioneer MJ-NS1

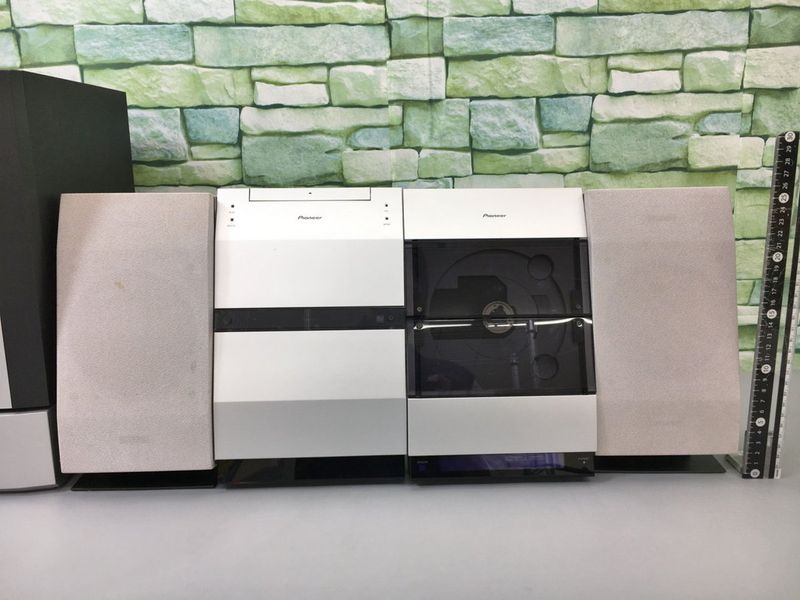

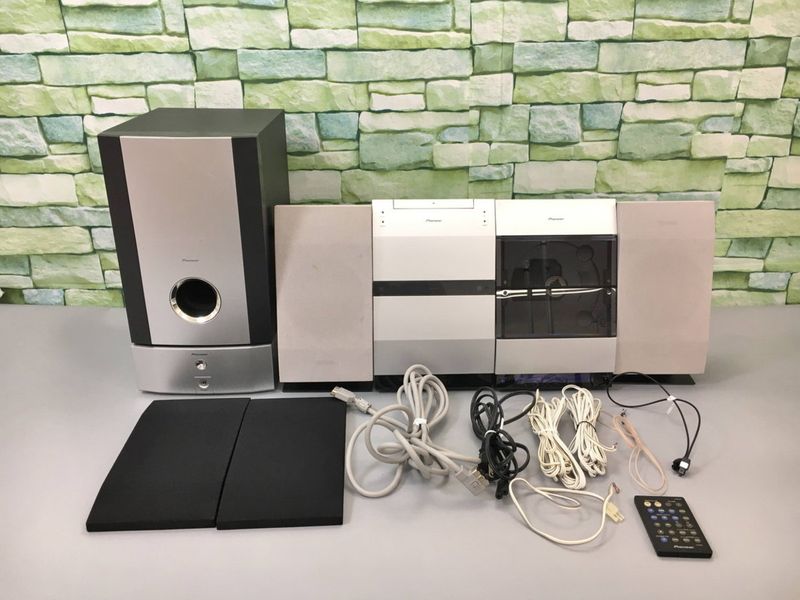

Part of the Pioneer X-NS1 component system

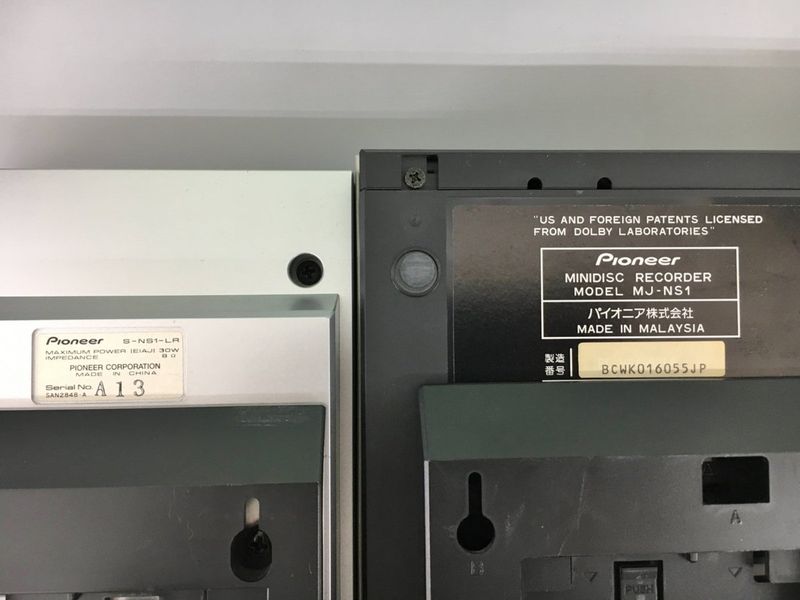

MJ-NS1 - MD recorder
XC-NS1 - Stereo CD Tuner
CT-NS1 - Stereo cassette deck

M-NS1 - Stereo power amplifier

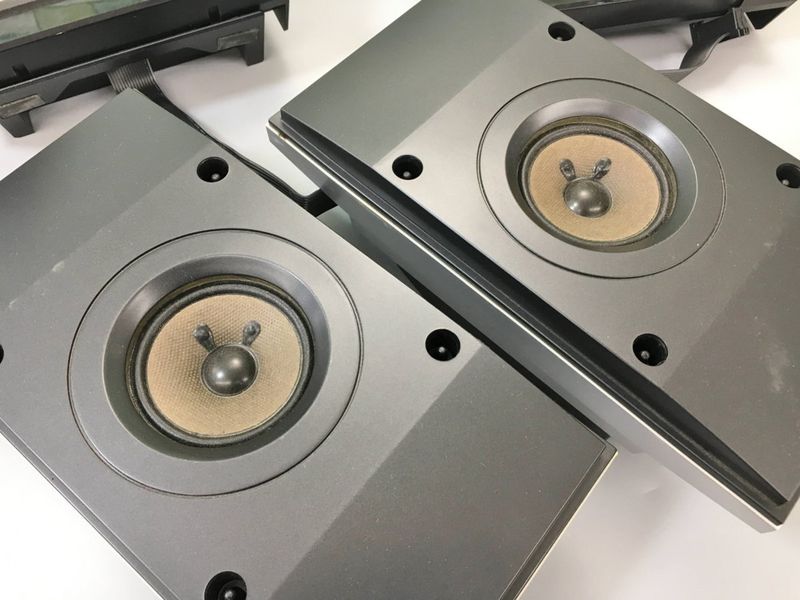

S-NS1-LR - Satellite speaker

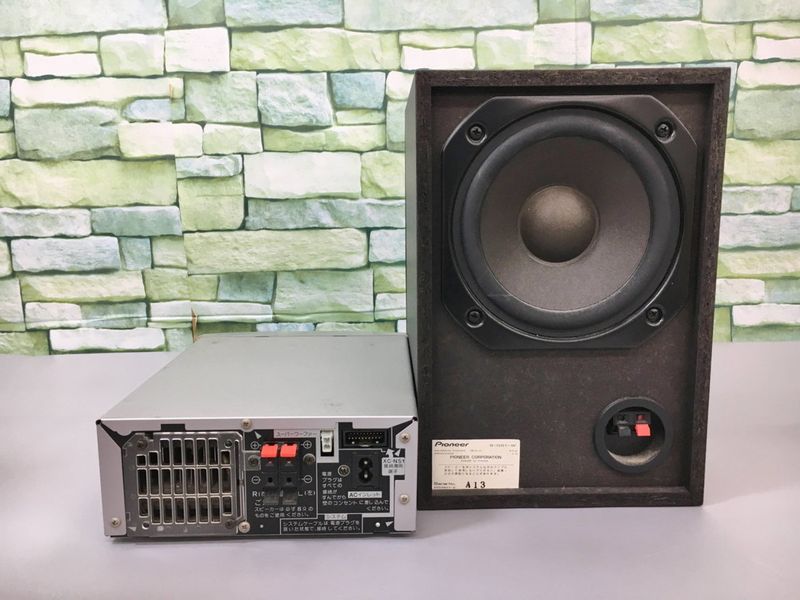

S-NS1-W - Subwoofer

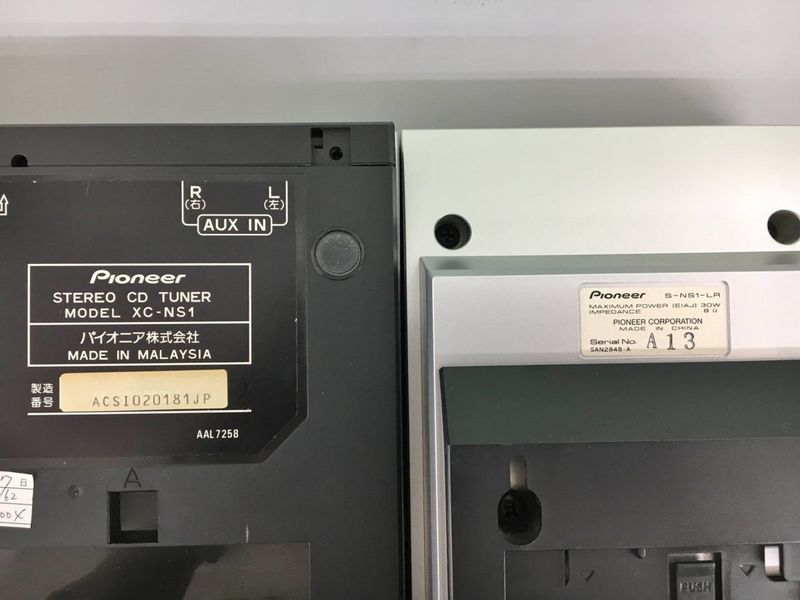

Stereo CD tuner: XC-NS1

• Number of compact disc channels 2-channel (stereo)
• frequency characteristics - 4Hz-20kHz
• SN ratio - 110dB (EIAJ)
• External dimensions (with the stand removed and the CD door window closed) - 170 (width) x 268 (height) x 66 (depth) mm
• Mass - 1.5kg
• FM tuner section reception frequency - 76.0 ~ 108MHz
• antenna - 75Ω unbalanced type
• AM tuner reception frequency - 522kHz ~ 1,629kHz (9kHz step)
• 530kHz ~ 1,700kHz (10kHz step) antenna Loop antenna (included)

Stereo cassette deck: CT-NS1

• Track method - 4-track 2-channel stereo
• frequency characteristics
  1. TYPE I (normal) tape - * 20Hz ~ 16,000Hz ± 6dB (-20dB recording)
  2. TAPE II (HIGH / Chrome) Tape - * 20Hz ~ 16,000 Hz ± 6dB (-20dB recording)
• SN ratio - * 56dB (EIAJ / peak recording level, audibility correction)
• DOLBY B type NR ON - 10dB improvement at 5kHz
• Wow flutter - 0.07% WRMS (JIS)
• outer shape Dimensions (with stand removed) - 170 (width) x 268 (height) x 66 (depth) ) Mm
• mass - 1.5kg

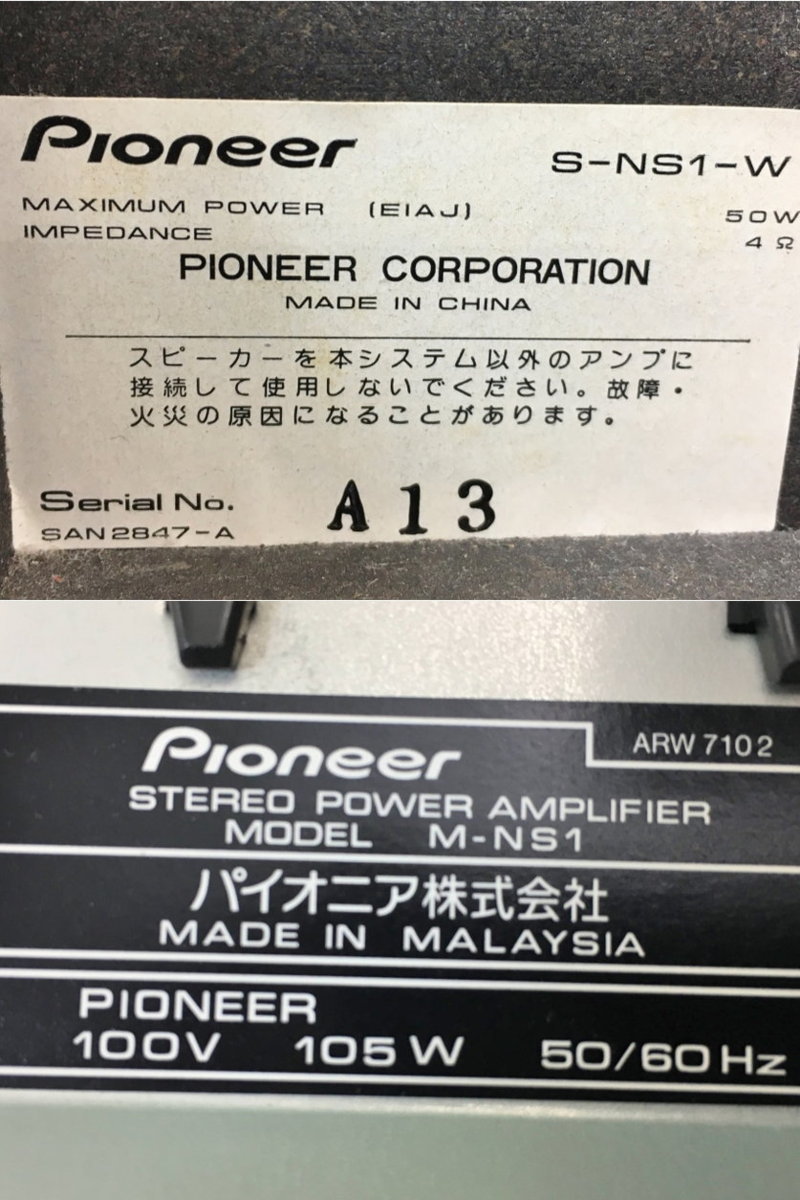

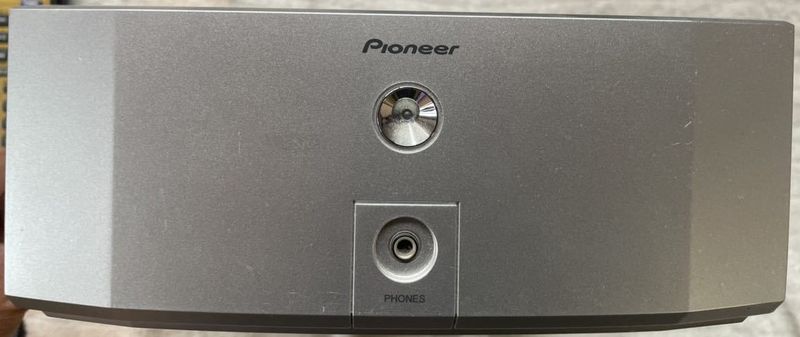

M-NS1 - Stereo power amplifier:

• Practical maximum output (EIAJ) Satellite ….. 30W + 30W (3kHz, 10%, 8Ω)
• Subwoofer 50W (70Hz, 10%) , 4Ω)
• Power supply voltage AC100V, 50 / 60Hz
• Power consumption (Electrical Equipment Control Law) 105W
• Standby power consumption 0.9W
• external dimensions 190 (width) x 80 (height) x 267 (depth) mm
• Mass 4.0kg
