Pioneer MEH-P919
| Name | MEH-P919 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2002/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 1-DIN 178 x 50 x 162 |
| Weight | 1700 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥84 000 | |
| - | |
| Inputs | |

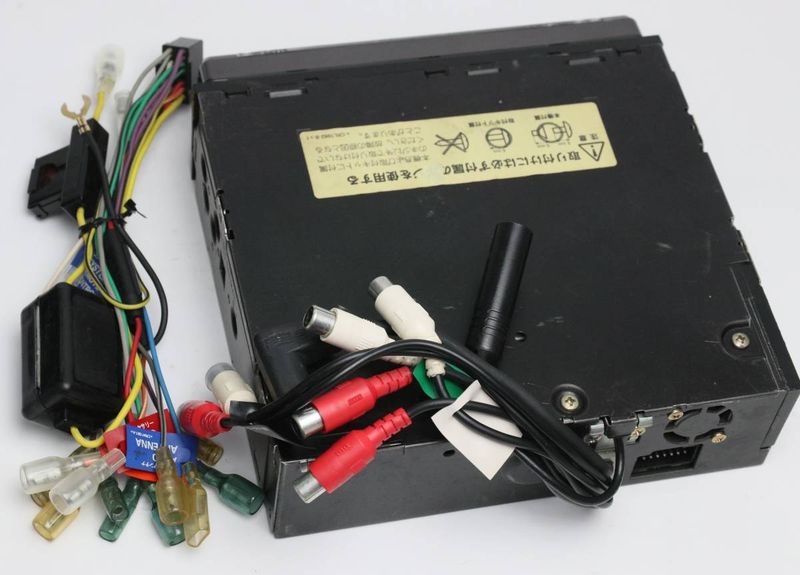

| Outputs | RCA out, Speaker amplifier |
| Control |
- Auto-EQ sets equalization by measuring cabin acoustics with test signal and built-in microphone.
- “ASL” (auto-sound-levelizer) detects and compensates for changes in external noise levels, adjusting volume and tone controls in response to the nature of the external noise (tunnel, rain, road surface changes).
- “MD-auto gain control” adjusts track volumes so that large differences do not occur between tracks.
- “Time-alignment” feature uses digital delay line to compensate for driver position, ensuring that wave fronts from each speaker reach driver in synchrony.
- 9-band graphic equalizer (50, 100, 200, 400, 800, 1.7k, 3.15k, 6.3k, 12.5kHz) adjustable from -12dB to +12dB.
- Can be configured to output high/mid/low frequency ranges for external tri-amplified system. High and low settings for the band-pass filters can be set separately for each band (high/mid/low). Low-Mid: 31.5, 40, 50, 63, 80, 100, 125, 160, 200Hz (-6, -12, -18dB/oct). Mid-High: 1.6k, 2k, 2.5k, 3.1k, 4k, 5k, 6.3k, 8k, 10k, 12.5k, 16k (-6, -12dB/oct).

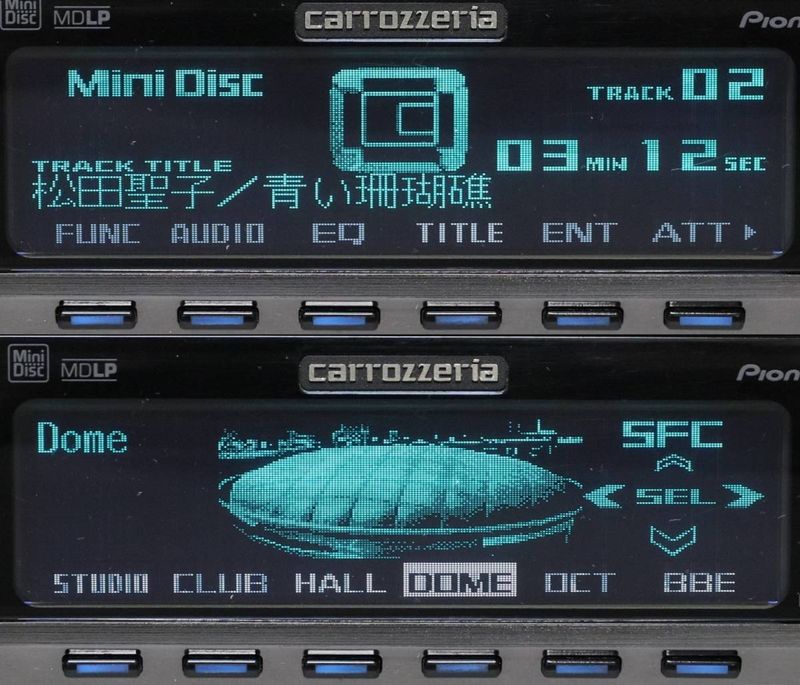

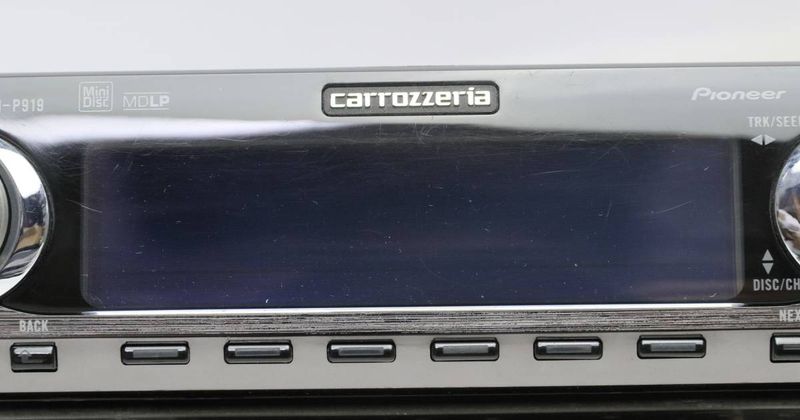

- Graphic display front panel can display one of 4 repeating “adventure” video clips of 5 seconds duration (certain to entertain all who have spent less than 5 minutes in your vehicle).
- Separately available Display customizing PC-Link kit (CD-PC1 - ¥15,000) allows user to download videos into unit's flash memory.
- Amp: 50W x4
Content adapted from: Minidisc.org page [*] Pioneer Press Release [*]
