Pioneer MEH-P717
| Name | MEH-P717 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2002/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 1-DIN |
| Weight | 1.5kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥63 000 | |
| - | |
| Inputs | N/A |

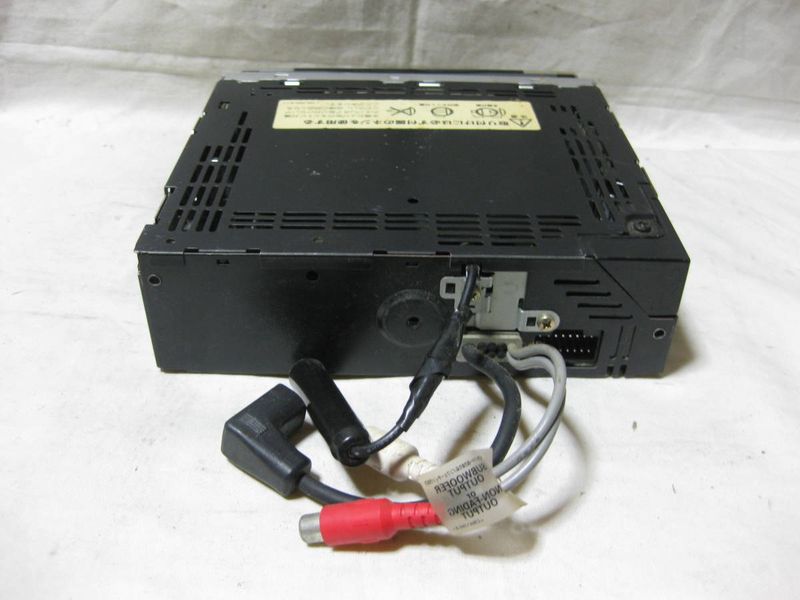

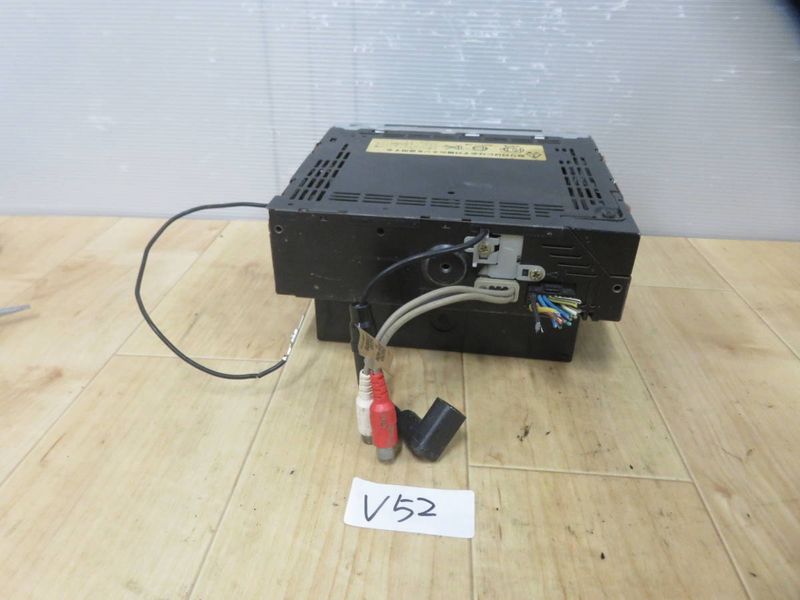

| Outputs | RCA out, Speaker amplifier |
| Control |
- Auto-EQ sets equalization by measuring cabin acoustics with test signal and built-in microphone.
- “MD-auto gain control” adjusts track volumes so that large differences do not occur between tracks.
- “ASL” (auto-sound-levelizer) detects and compensates for changes in external noise levels, adjusting volume and tone controls in response to the nature of the external noise (tunnel, rain, road surface changes).
- “Time-alignment” feature uses digital delay line to compensate for driver position, ensuring that wave fronts from each speaker reach driver in synchrony.
- 3-band parametric equalizer adjustable from -12dB to +12dB.
- Selectable subwoofer cutoff frequencies (50, 80, 125Hz), slope fixed at -18dB/octave.

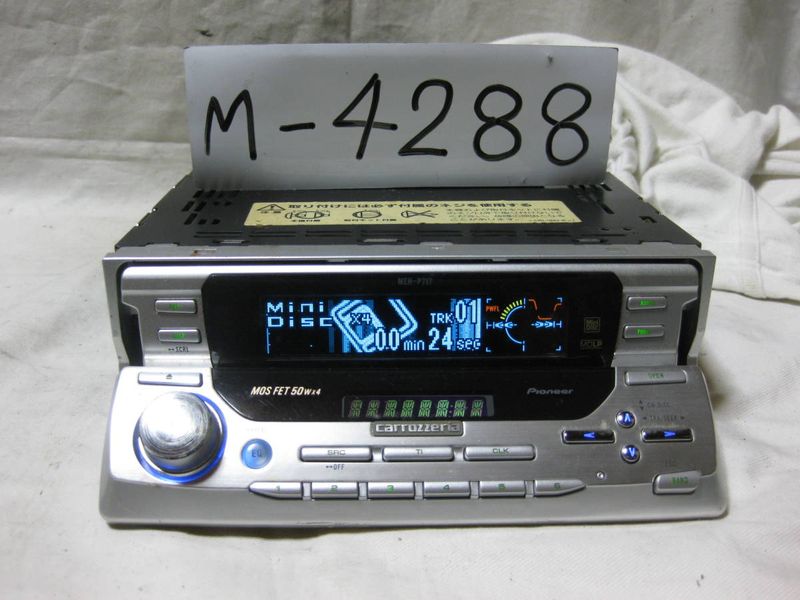

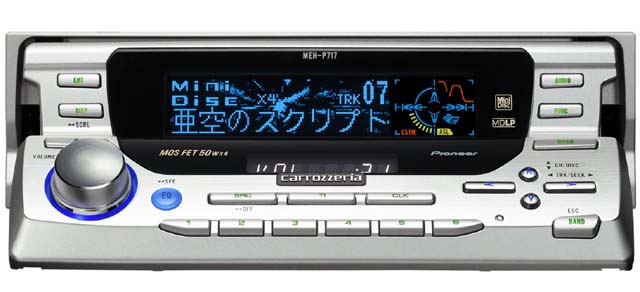

- Graphic display front panel can display one of 2 repeating “adventure” video clips of 5 seconds duration.
- Amp: 50Wx4, 70Wx1 (for subwoofer). SNR > 90dB, Dyn. Range > 90dB, FM: 76.1-89.9MHz
Content adapted from: Minidisc.org page [*] Pioneer Press Release [*] av.watch [*]
Manuals
Pioneer MEH-P717 User Manual JP
Repair

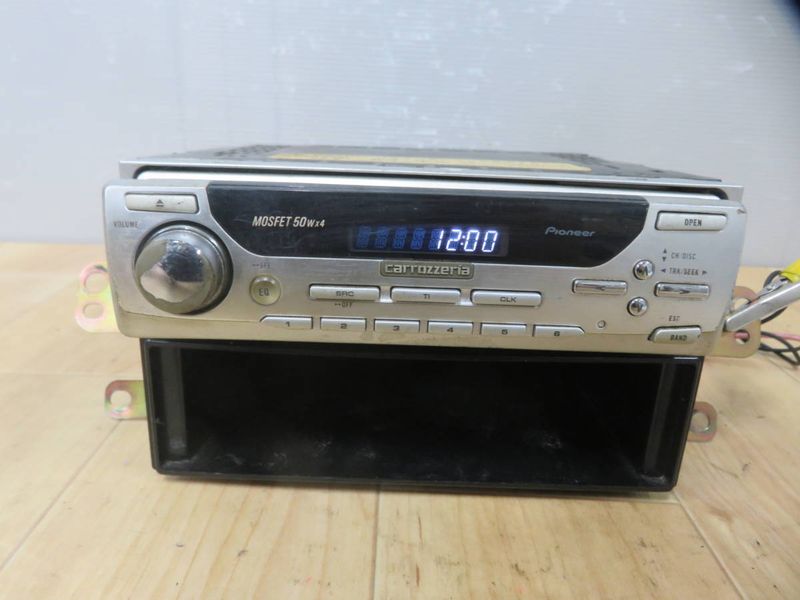

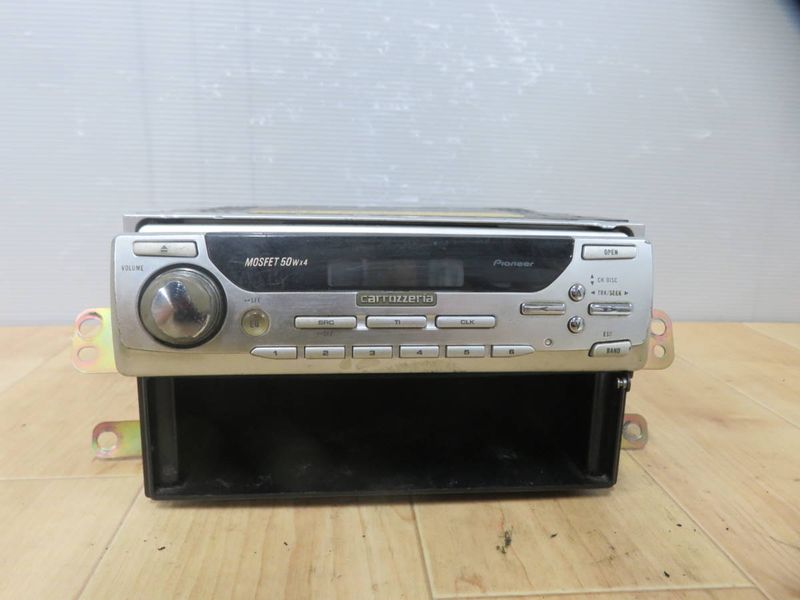

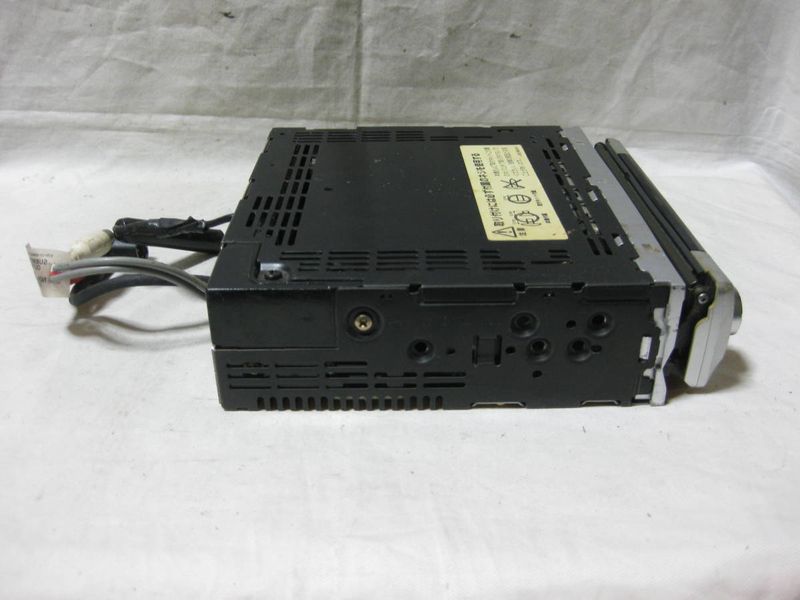

Photos
