Pioneer MEH-P520
| Name | MEH-P520 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2007/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | W 178 mm × H 50 mm × D 162mm |
| Weight | 1100 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥29 400 | |
| - | |
| Inputs | |
| Outputs | |
| Control |
Pioneer MEH-P520
A model that integrates an MD deck / tuner / amplifier. Supports connection of each adapter for iPod / USB / Bluetooth. It also has a rotary volume.
Equipped with “SFE (Sound Focus Enhancer)” that creates clear forward localization and the expansion of the sound field before and after, and “Harmonic Spice” that enhances the contrast of the sound. The output of the amplifier section is 50W x 4ch.
MD player
- frequency characteristics: 20 Hz to 20 000 Hz (± 1 dB)
- SN ratio: 94 dB (1 kHz ) ) (IHF-A network)
- Dynamic range: 92 dB (1 kHz)
Amplifier section
- maximum output: 50 W x 4 ■ Audio section
- Pre-out maximum output level: 2.2 V / 1 kΩ
Content adapted from: Pioneer Press Release MEH-P520 [*] Press Release 2 [*] Press Release 2 (MiniDisc Wiki mirror) [*] av.watch [*]
Manuals
Pioneer MEH-P520 User Manual JP
Repair

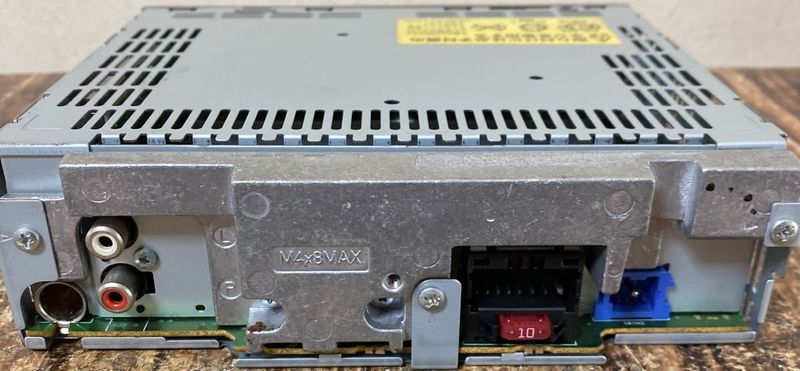

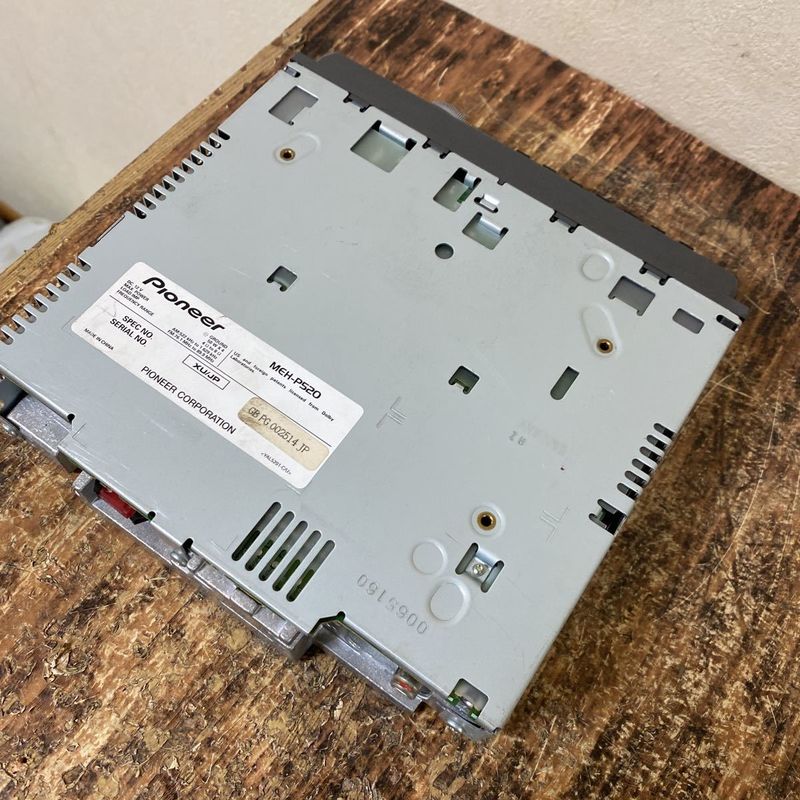

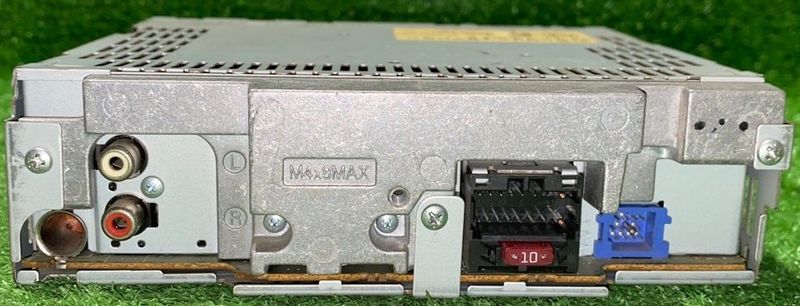

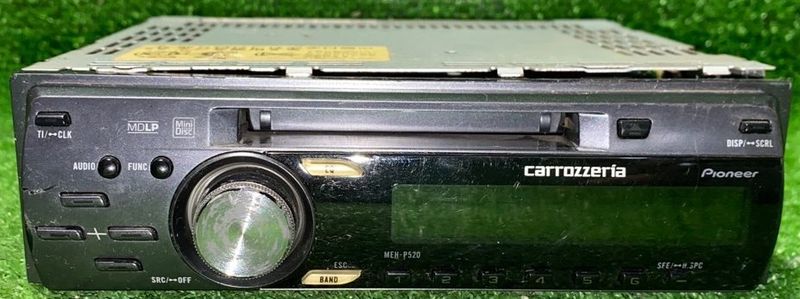

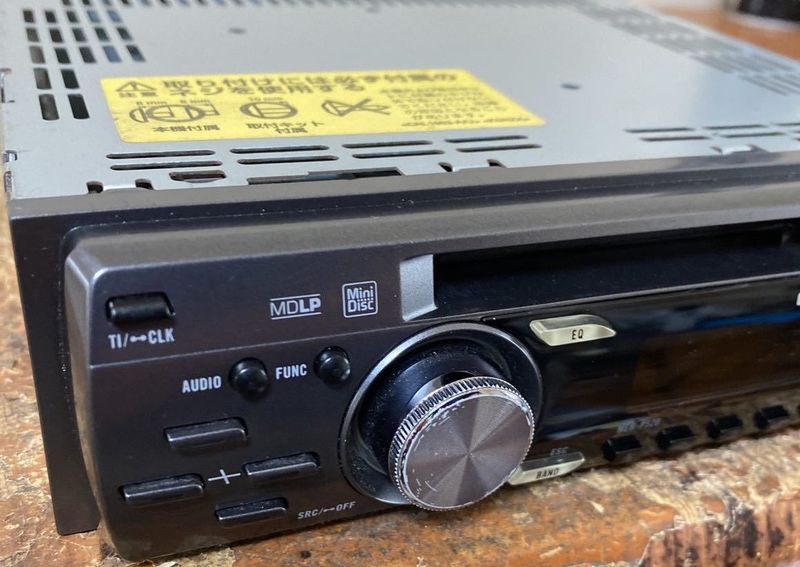

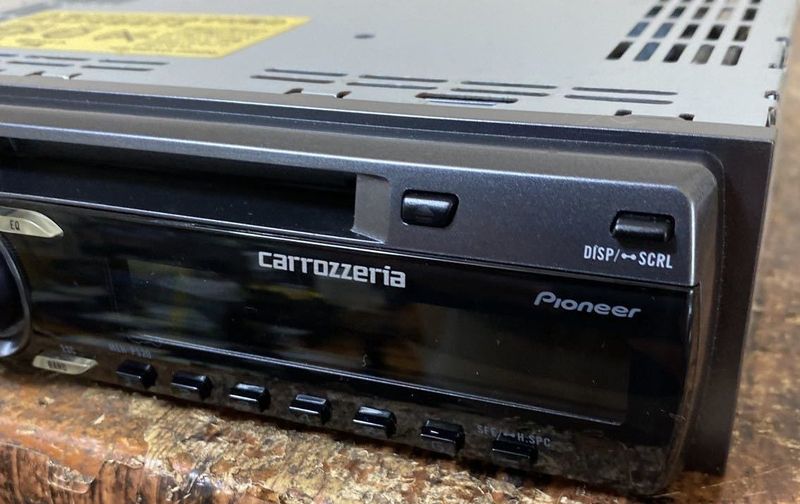

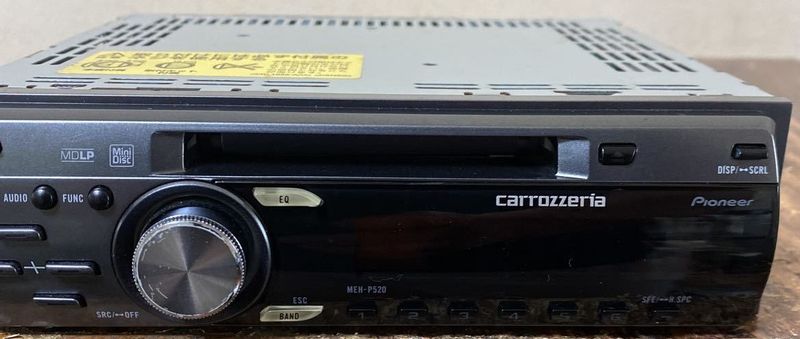

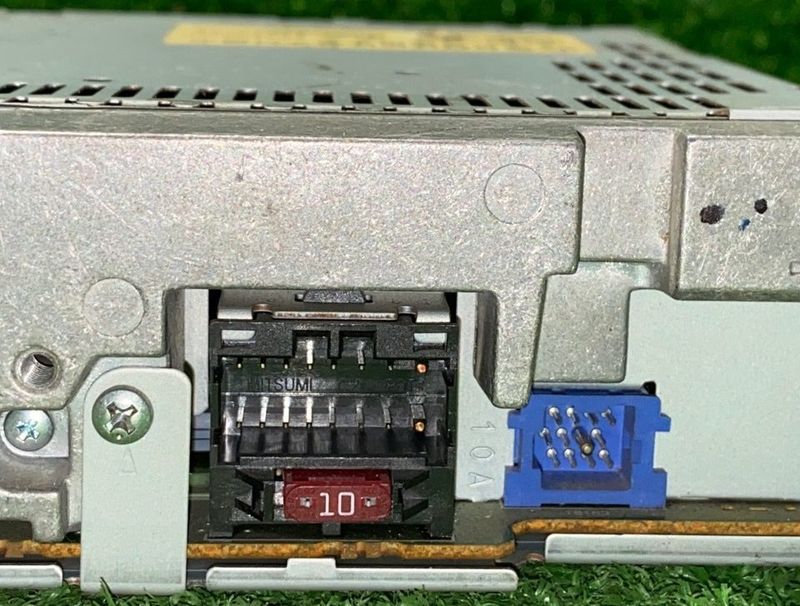

Photos
