Pioneer FH-P9900MD
| Name | FH-P9900MD |
|---|---|
| Manufacturer | Pioneer |
| Released | 1999/10 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 160 (D) mm |
| Weight | 3000 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥105 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |

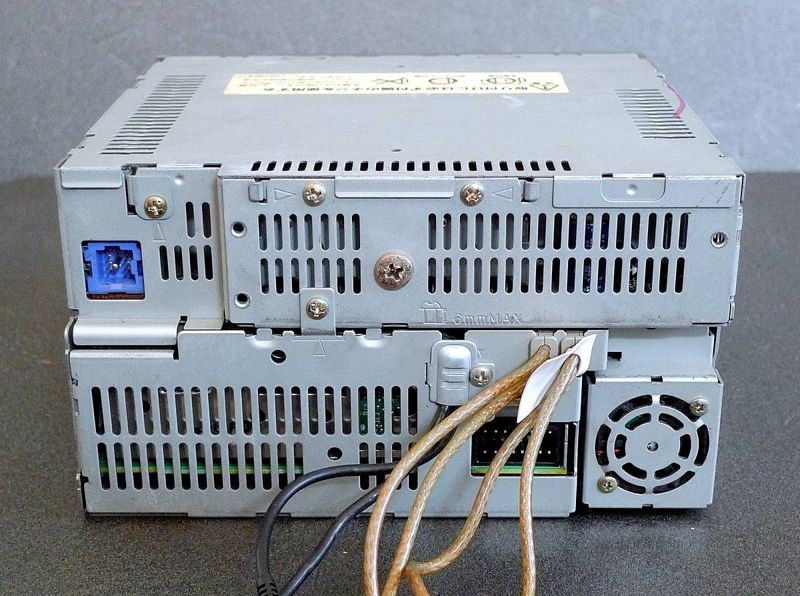

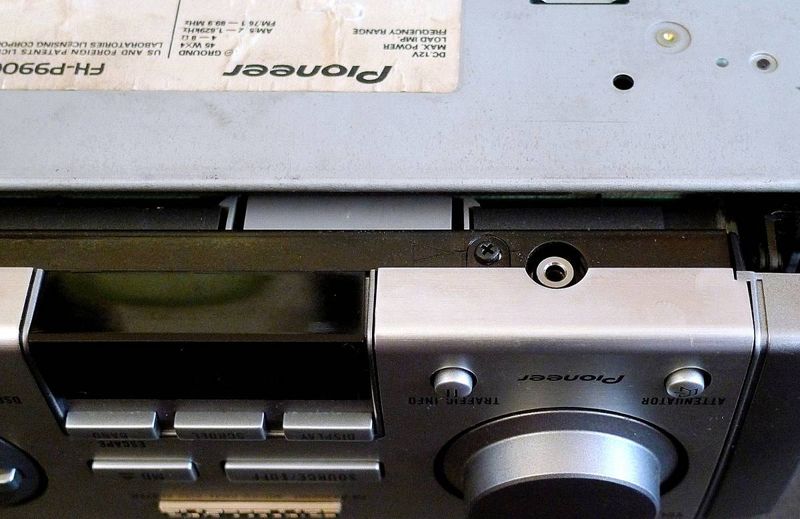

Aux in can be accomplished with a sold separately adapter such as the CD-RB20 or CD-RB10. The 3.5mm jack on the bottom of the faceplate (see picture #19 below is for the auto-eq microphone.
CD player section
- Frequency characteristics 5Hz-20kHz
- S / N 92dB (IHF-A / 1kHz)
- Dynamic range 91dB (1kHz)
MD player section
- Frequency characteristics 20Hz-20kHz
- S / N 92dB (IHF-A / 1kHz)
- Dynamic range 90dB (1kHz)
Equalizer part 13 band equalizer frequency
- 50,80,125,200,315,500,800Hz,
- 1.25k, 2k, 3.15k, 5k, 8k, 12.5kHz
- Adjustment width ± 12dB
Subwoofer
- Crossover frequency 50Hz, 80Hz, 125Hz
- Crossover slope -18dB / oct.
- Adjustment width ± 12dB
Content adapted from: Pioneer Press Release [*]
Manuals
Pioneer FH-P9900MD User Manual JP
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
