Pioneer FH-P66MD
| Name | FH-P66MD |
|---|---|
| Manufacturer | Pioneer |
| Released | 2000/05 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 160 (D) mm |
| Weight | 3000 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥84 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |

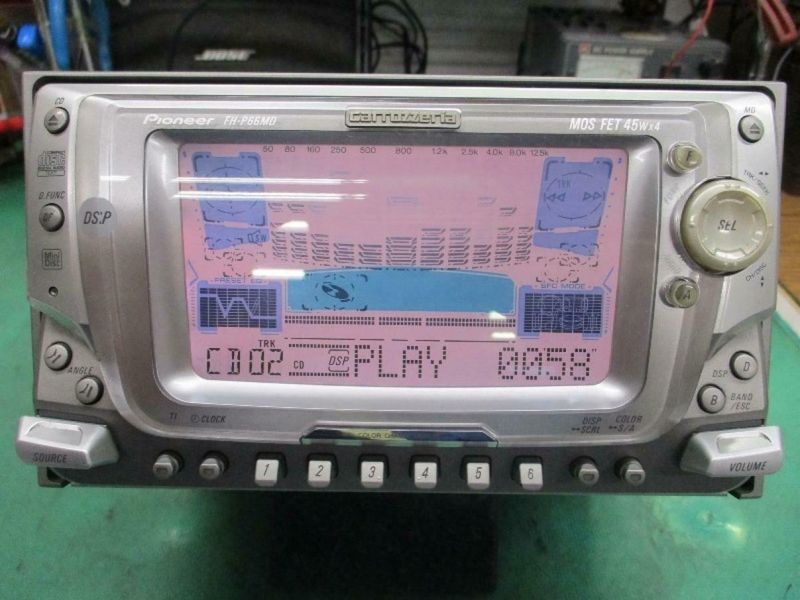

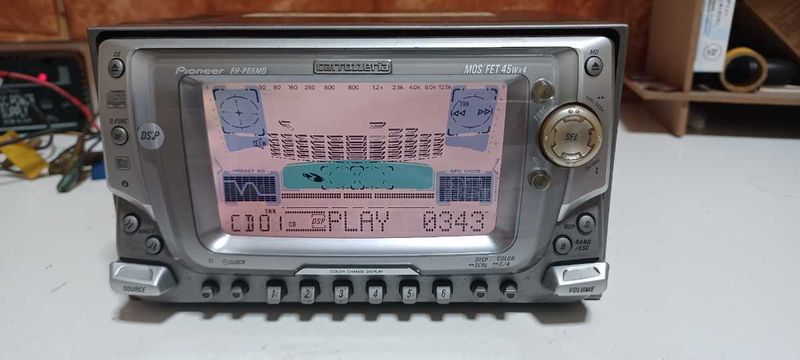

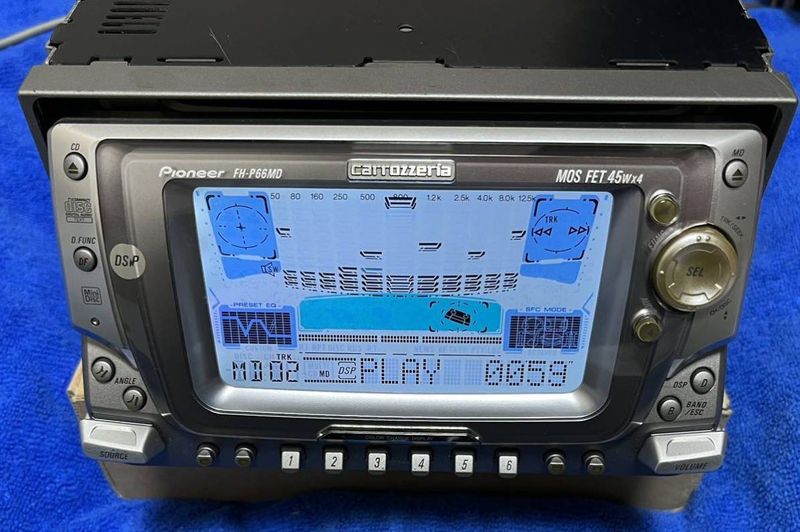

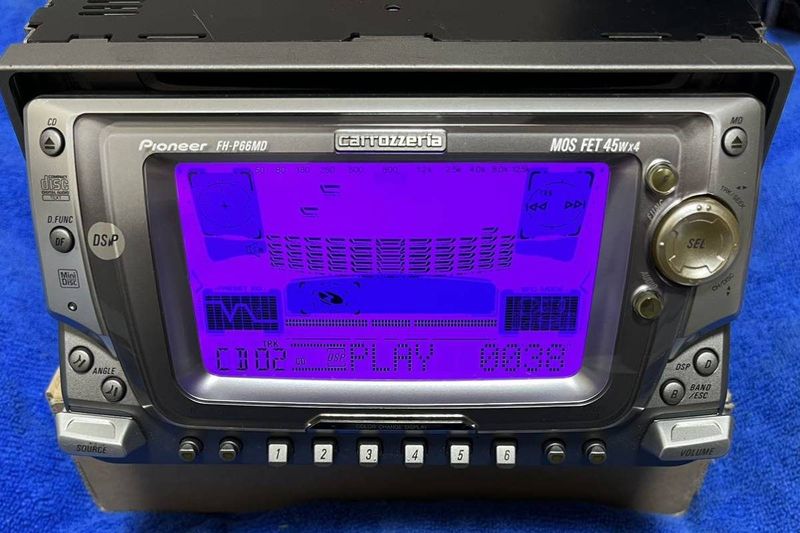

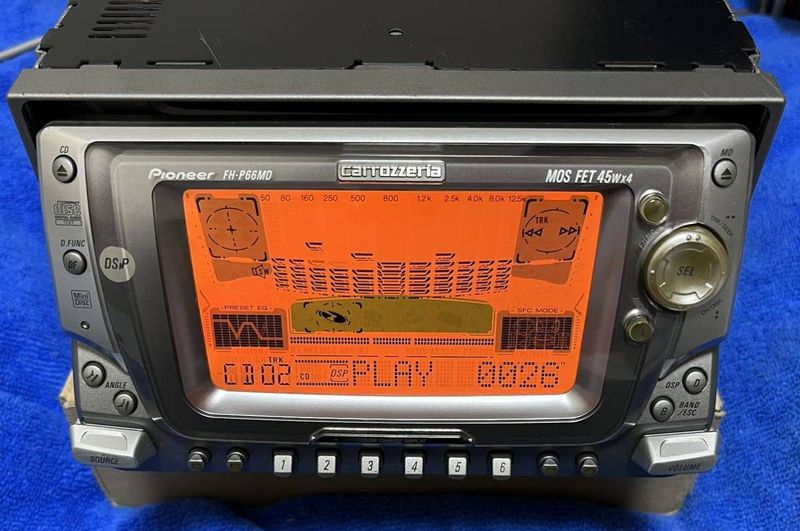

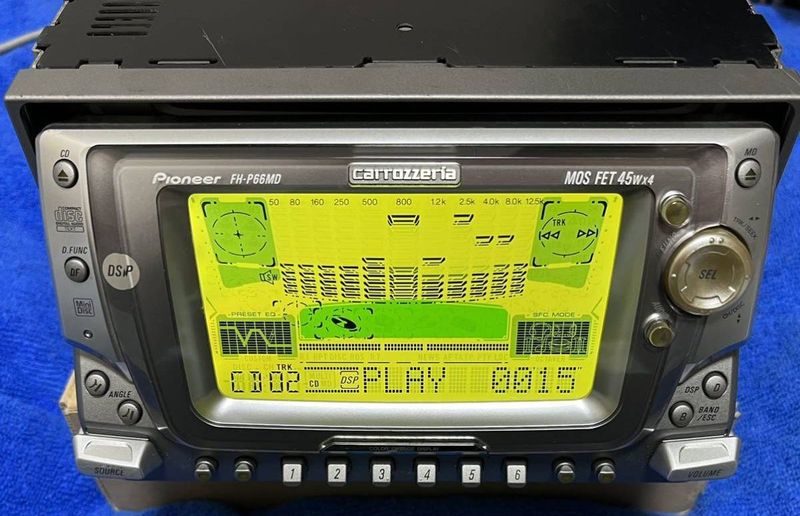

Equipped with the industry's first color change function that changes the color of the display to 10 colors using the RGB LED backlight. You can select the color you like and the color that matches the interior of the car.

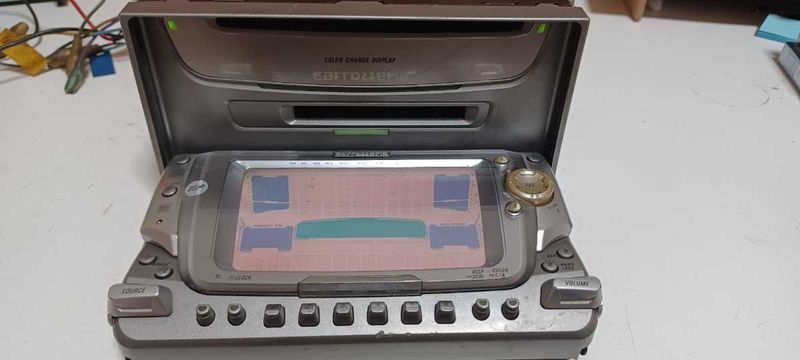

Electric slide down flap mechanism that can adjust the angle in 12 steps Built-in DSP with octaver function to create bass in a source lacking bass Digital high-bit tune technology that reproduces high-quality sound with digital direct
CD player section
- Frequency characteristics 5 to 20,000Hz (± 1dB)
- S/N 94dB (1kHz) (IHF-A network
- dynamic range 92dB (1kHz))
MD player part
- Frequency characteristics 20-20,000Hz (± 1dB)
- S/N 90dB (1kHz) (IHF-A network)
- Dynamic range 90dB (1kHz)
Equalizer part 13 band equalizer frequency
- 50,80,160,250,500,800Hz,
- 1.2k, 2.5k, 4k, 8k, 12.5kHz
- Adjustment width ± 12dB
High pass filter
- Crossover frequency 50,80,125Hz
- Crossover slope -12dB / oct.
Subwoofer
- Crossover frequency 50,80,125Hz
- Crossover slope -18dB / oct.
- Adjustment range ± 6dB
Content adapted from: Pioneer Press Release [*]
Manuals
Pioneer FH-P66MD User Manual JP
Repair

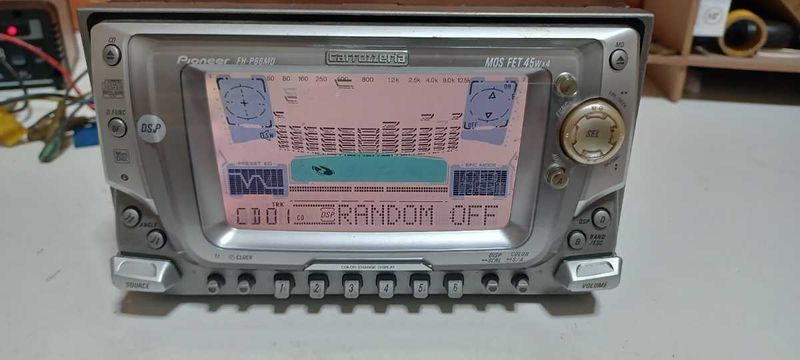

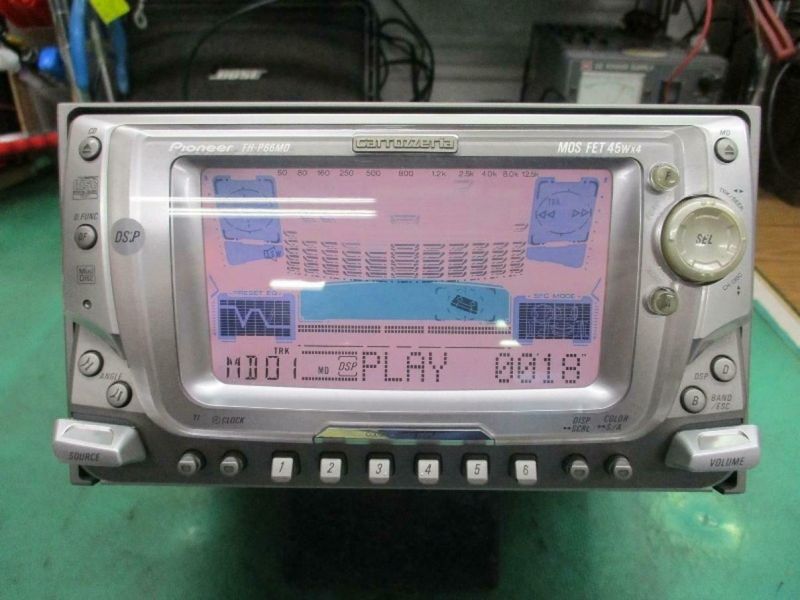

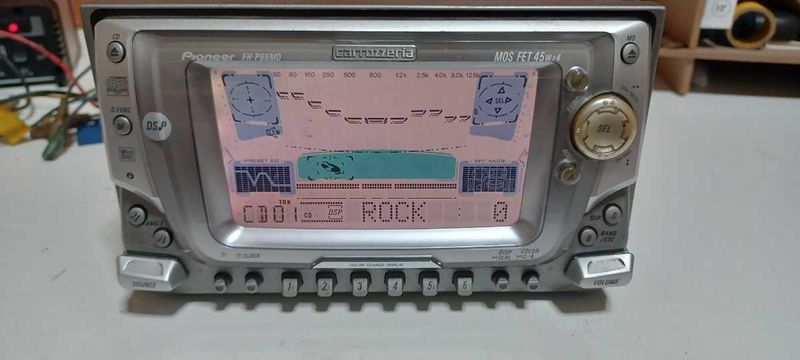

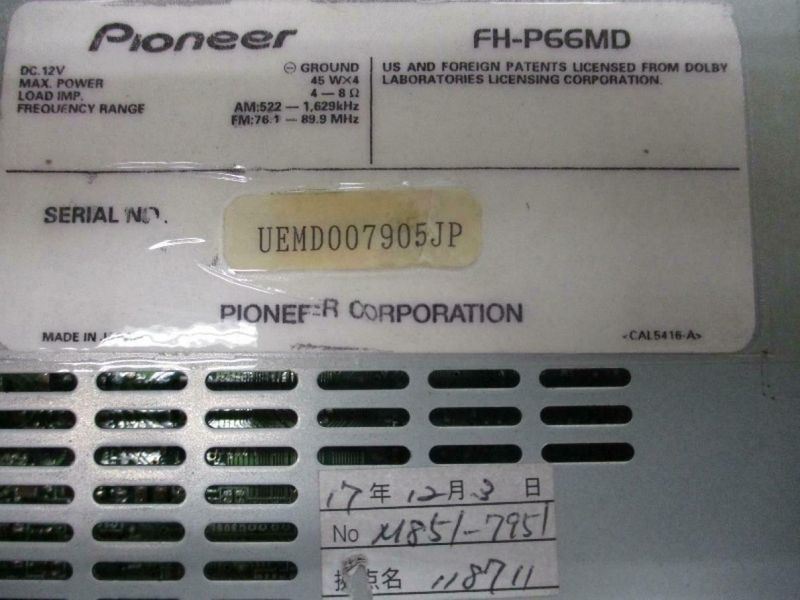

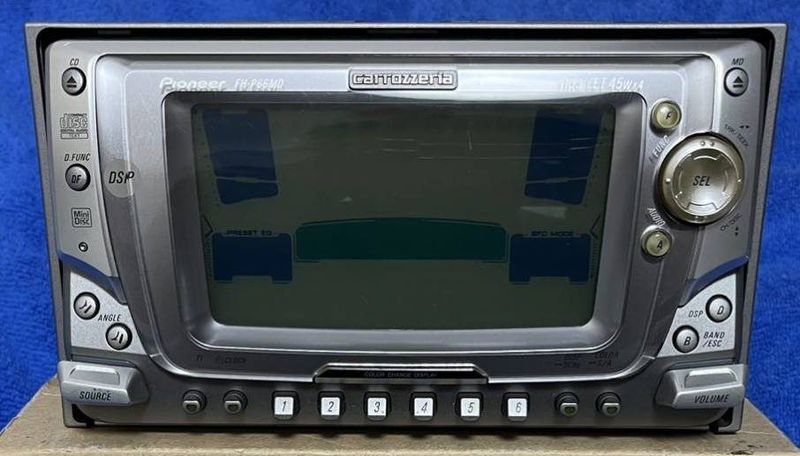

Photos
