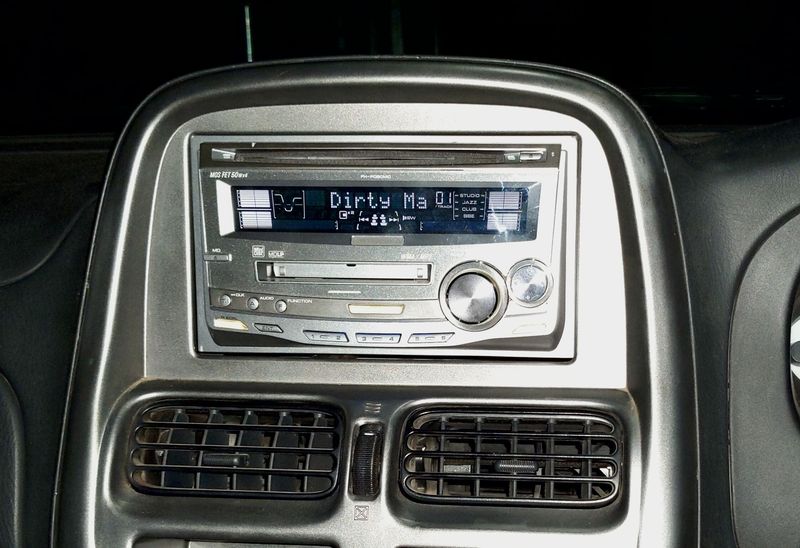

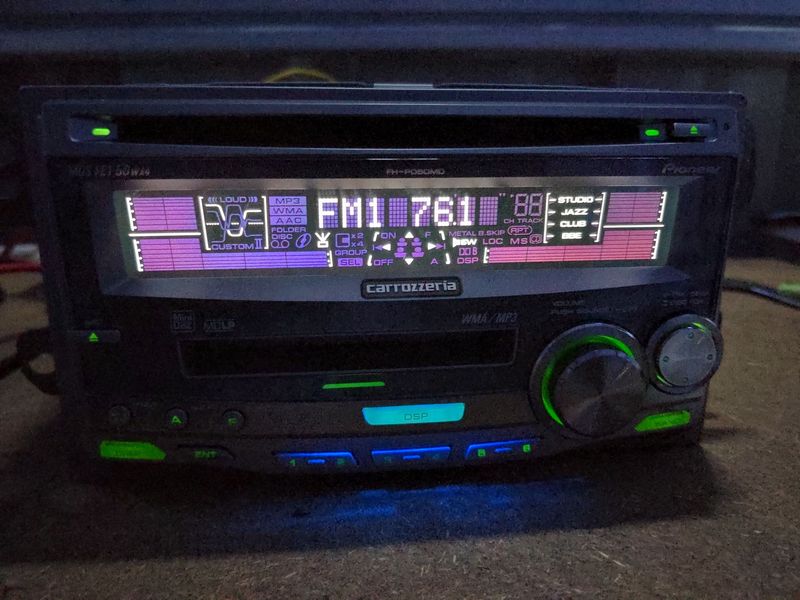

Pioneer FH-P050MD

The Pioneer Carrozzeria FH-P050MD is a double DIN sized MD/CD player that was released for the Japanese domestic market. The MD function supports MDLP while with the CD function supports normal audio CD's, CD-R and CD-RW including .WAV, .MP3 and .WMA media files. The unit also has an IP Bus input on the rear.

[Amplifier]

• Maximum output: 50W x 4

[Audio]

• Subwoofer output: <Cutoff Frequency> 50/63/80/100 / 125Hz <Cutoff slope> -18dB, -12dB / oct. <Adjustment width> + 6 to -24dB <Phase> NOR / REV
• High pass filter (F / R independent): <Cut Off frequency>
• 50/63/80/100 / 125Hz <Cutoff slope> -12dB, -6dB / oct.
• 9-band graphic equalizer: <Frequency> 50/100/200/400/800 / 1.6k / 3.15k / 6.3k / 12.5kHz <Adjustment range> ± 12dB
• Loudness (volume: -30dB): 10dB (100Hz), 7dB (10kHz)
• Pre-out maximum output level: 1.8V / 1kΩ

[CD player section]

• Frequency characteristics: 5 ~ 20,000Hz (± 1dB)
• SN ratio: 94dB (1kHz) (IHF-A network)
• Dynamic range: 92dB
• MP3 decoding format: MPEG-1 & 2 AUDIO LAYER-3 (Does not support m3u playlists)
• WMA decoding format: Ver.7, 7.1, 8 & 9
• WAV signal format: Linear-PCM, MS ADPCM

[MD player section]

• Frequency characteristics: 20 to 20,000Hz (± 1dB)
• SN ratio: 90dB (1kHz) (IHF-A network)
• Dynamic range: 90dB

[Tuner section]

• FM / AM (Japanese band range)
• Practical sensitivity: FM / 8dBf (0.7μV / 75Ω, mono, SN ratio: 30dB) ・ AM / 18μV (SN ratio: 20dB)
• Maximum current consumption: 10.0A
• Mounting dimensions: 178 (W) x 100 (H) x 161 (D) mm
• Weight: 1.8Kg

[Optional Remote]

• CD-R660
