Pioneer AVIC-V07MD
| Name | AVIC-V07MD |
|---|---|
| Manufacturer | Pioneer |
| Released | 2001/06 |
| Device type | auto |
| Recorder | |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 50 (H) x 167 (D) mm |
| Weight | 2900 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥165 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only) |
| Outputs | |
| Control |
Amplifier / audio section
- Maximum output : 50W x 4
- Rated output : 22W x 4
- Load impedance : 4Ω (4-8Ω can be used)
MD part
- Sampling frequency : 44.1kHz
- Frequency characteristic : 20-20kHz (± 2dB)
- S / N : 88dB or more (1kHz IHF-A network speaker OUT)
- Dynamic range : 80dB or more (1kHz IHF-A network speaker OUT)
TV monitor section
- Screen size : 7 inch wide (effective display area: 87.1 x 154.1 mm)
- Number of pixels : 336,960 pixels (234 x 1,440)
- method : TFT active matrix method, transparent type
Content adapted from: Pioneer Press Release [*] av.watch [*] Pioneer Press Release 2 [*] Pioneer Press Release 2 (MiniDisc Wiki mirror) [*]
Manuals
AVIC-V07MD Manual
Repair

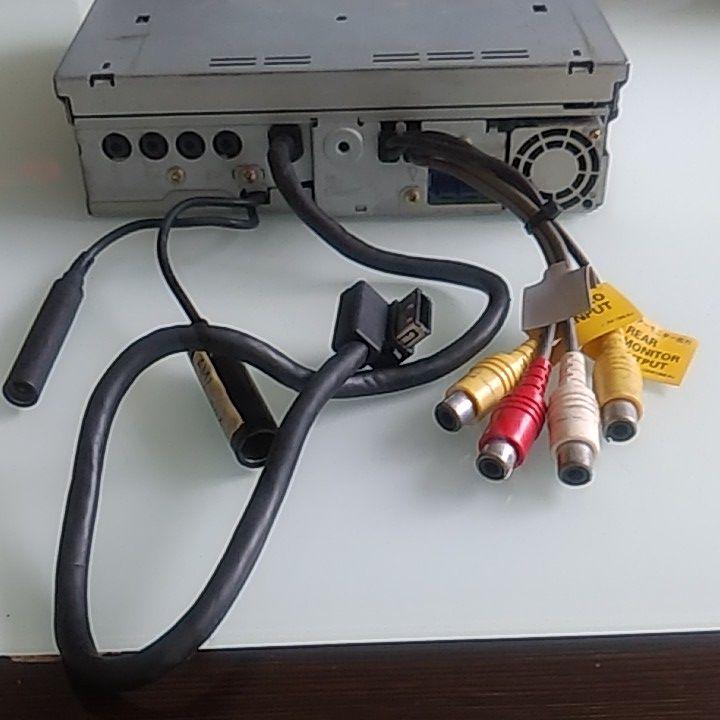

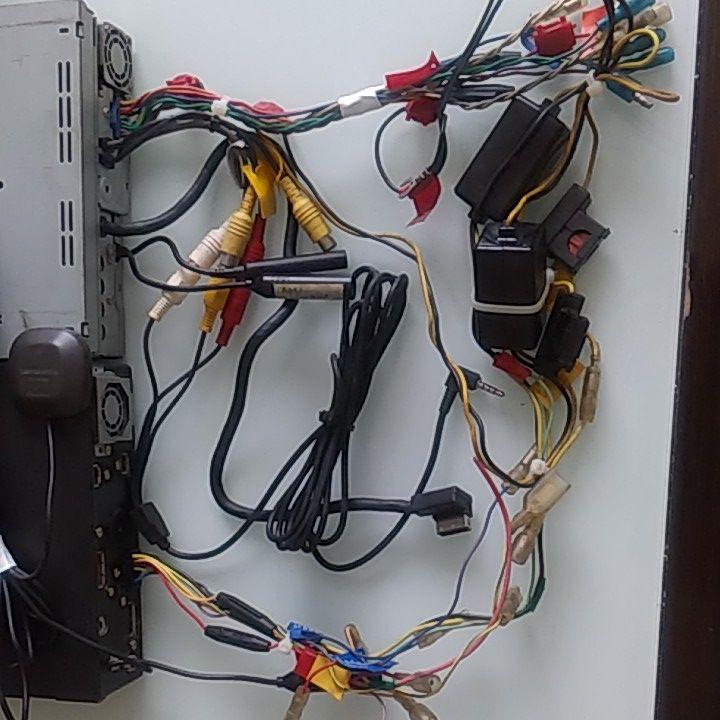

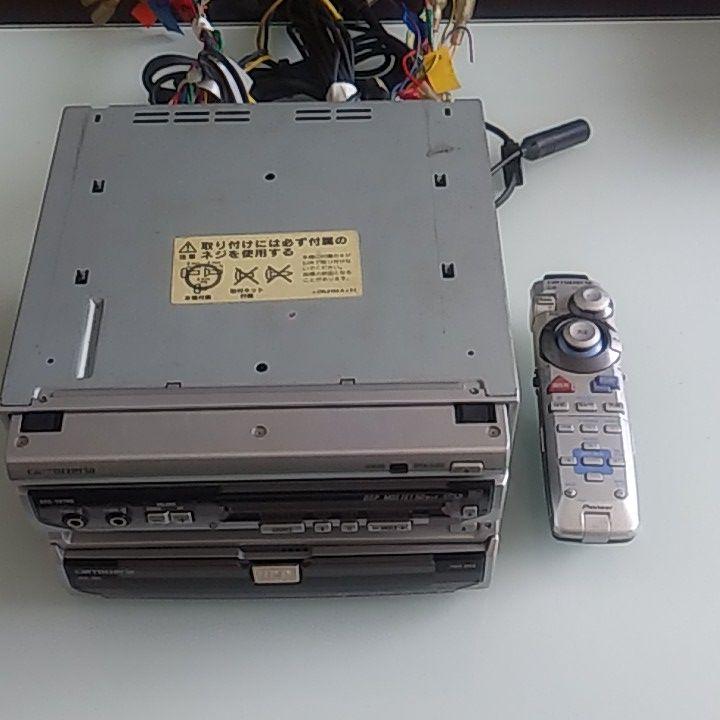

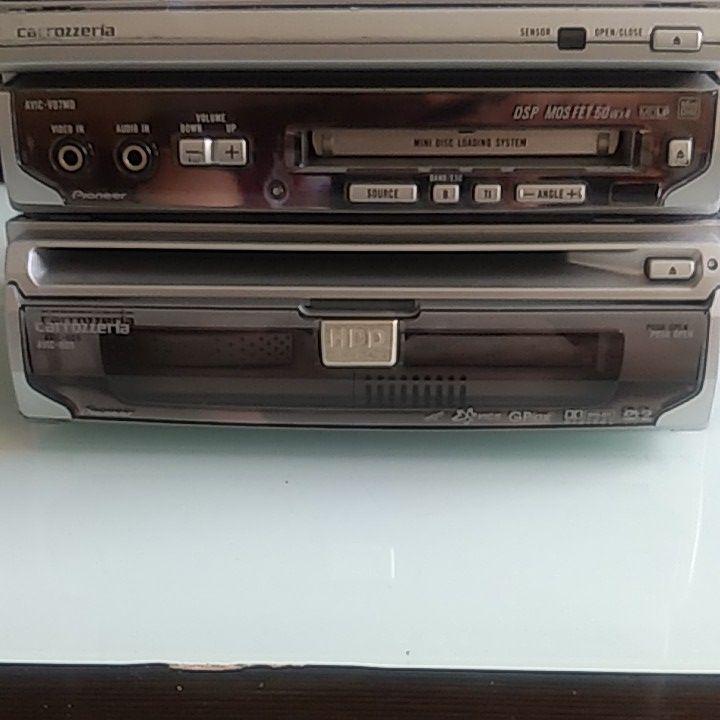

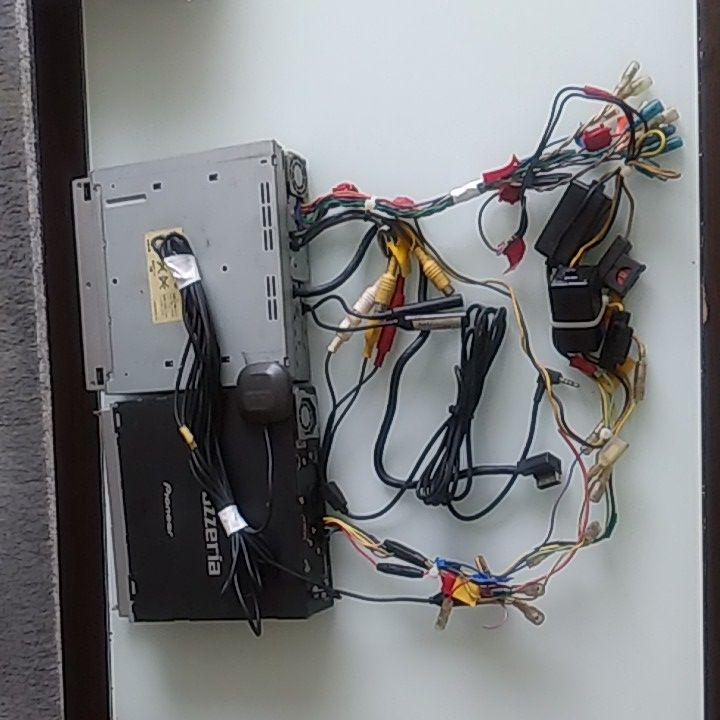

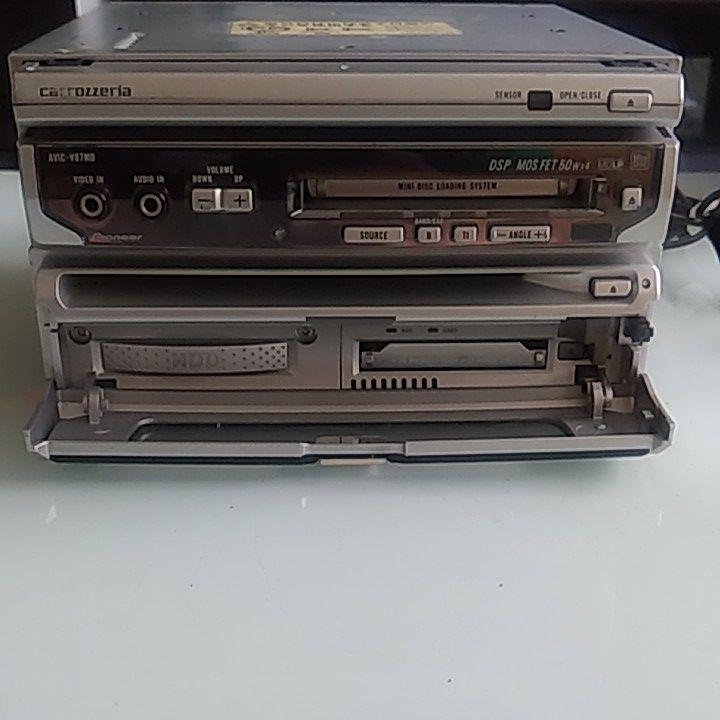

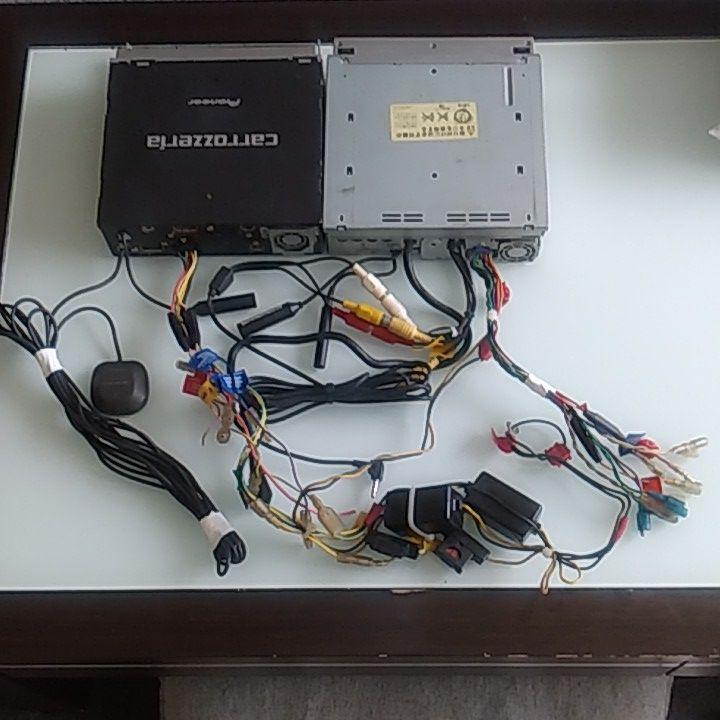

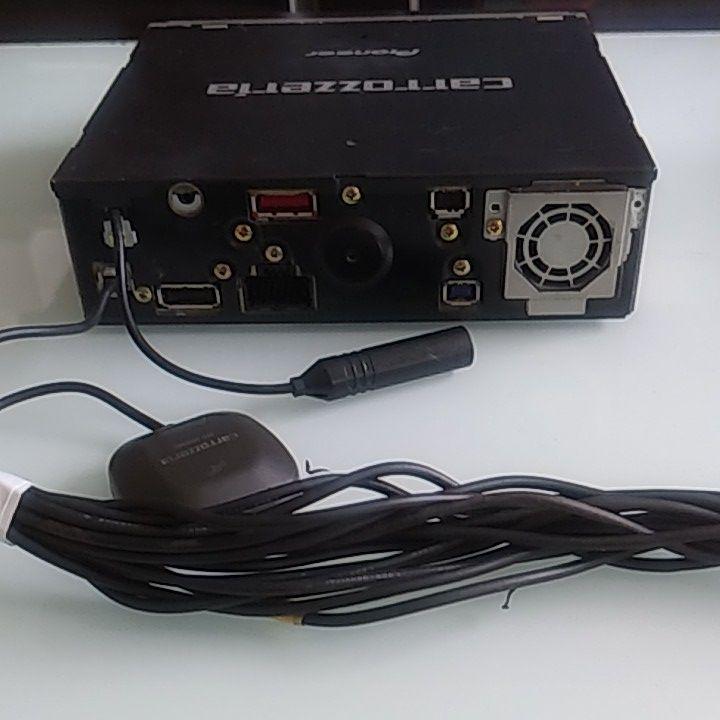

Photos
