Panasonic SJ-MR270

Name	SJ-MR270
Manufacturer	Panasonic
Released	2004/02
Device type	portable
Recorder	Recorder
MDLP	Yes
NetMD	Yes
Hi-MD	No
Radio	No
Dimensions	77.8 x 74.8 x 13.9mm
Weight	86g (113g w/batt)
ATRAC ver	Panasonic H.D.E.S

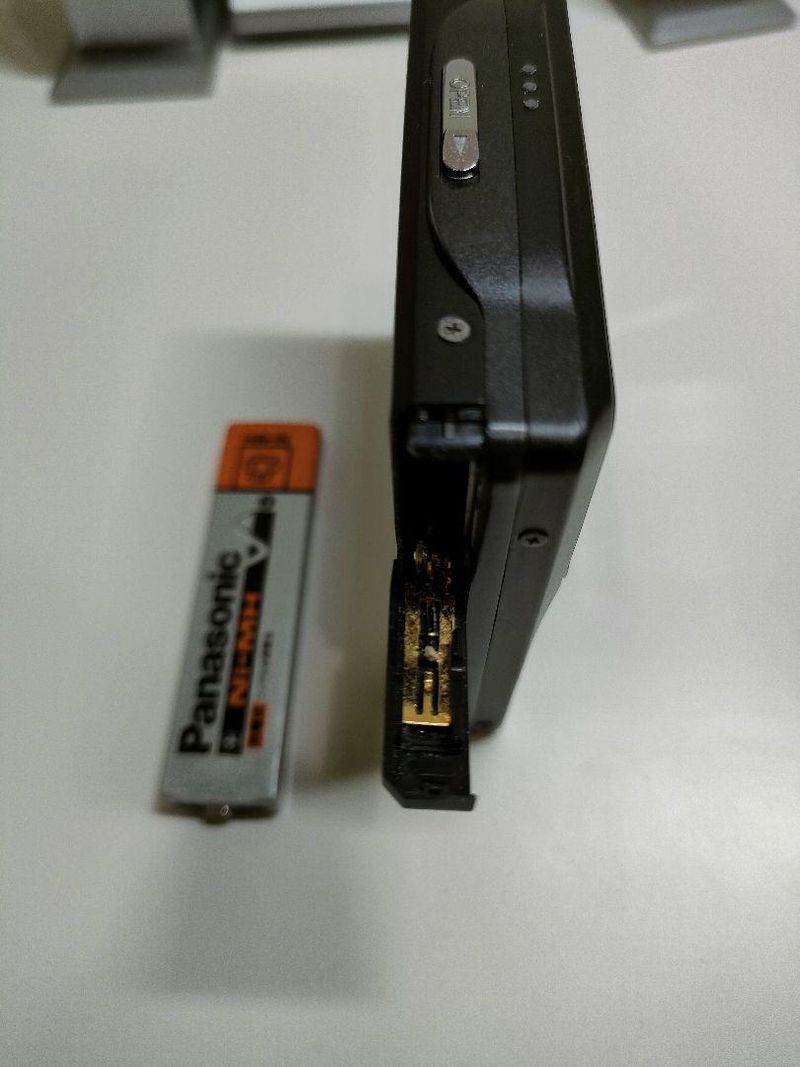

Battery	"Gumstick"
Battery notes
Sidecar (depr)
Voltage	1.2, 1.5, 5
Power cable
Price (launch)
Price (launch)	¥40 000
-

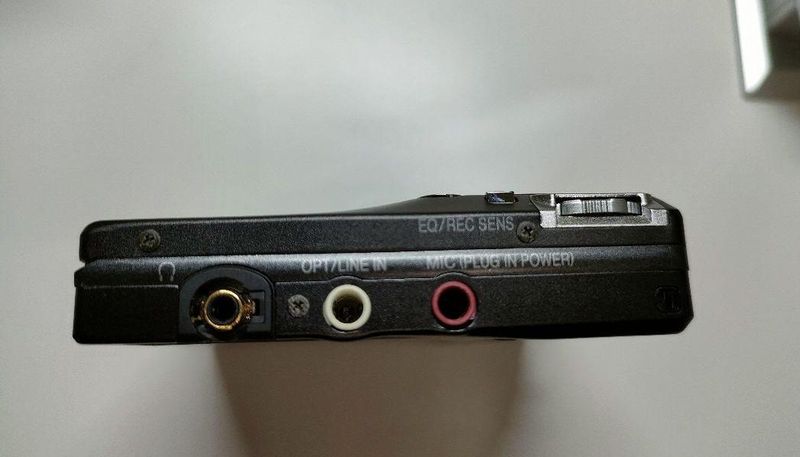

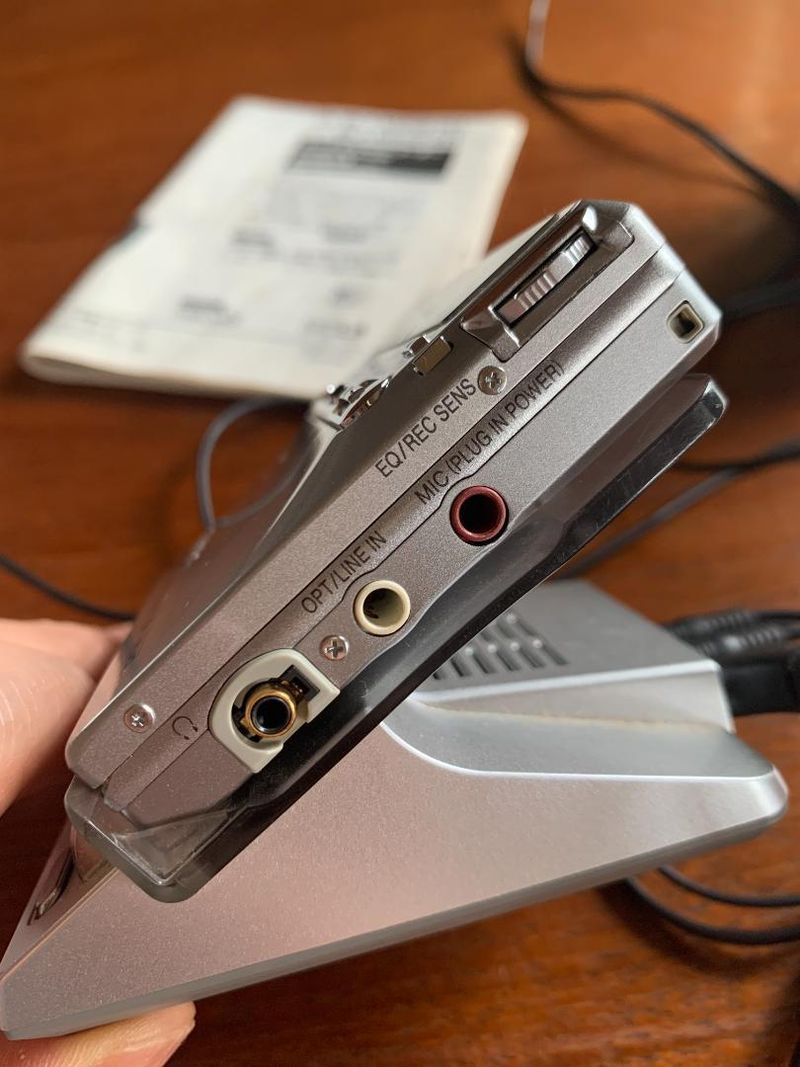

Inputs	3.5mm line in (optical multi), 3.5mm microphone
Outputs	3.5mm headphone
Control	Remote (Panasonic)

Offered in SJ-MR270-S (Silver) and SJ-MR270-K (Black). Open price but rough selling price of 40,000 yen.

Features:

NetMD downloading with Beat Jam software.
World record breaking 130 hour battery life (as of 1/14/2004).

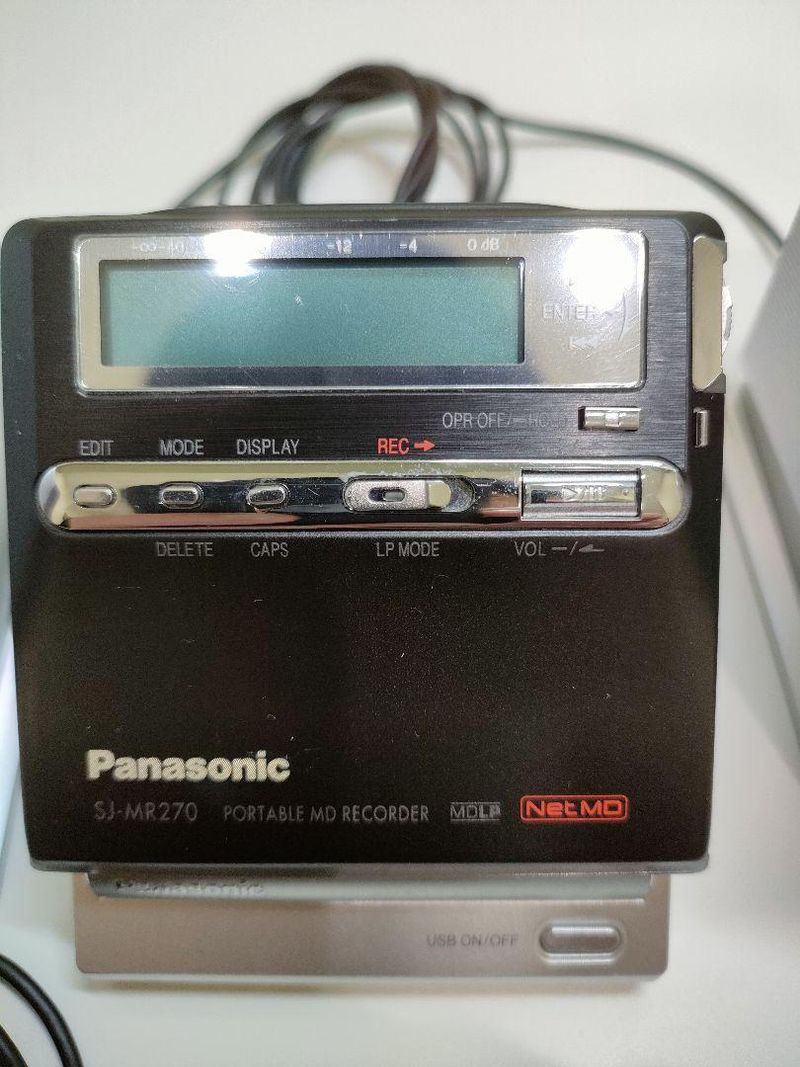

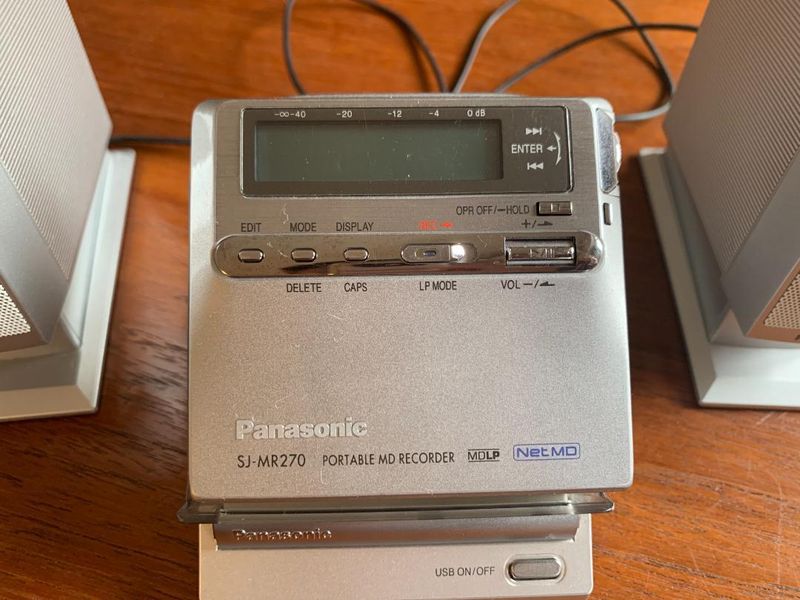

Large style 3-Line LCD on main body displays 2 lines of Kanji/Hiragana.

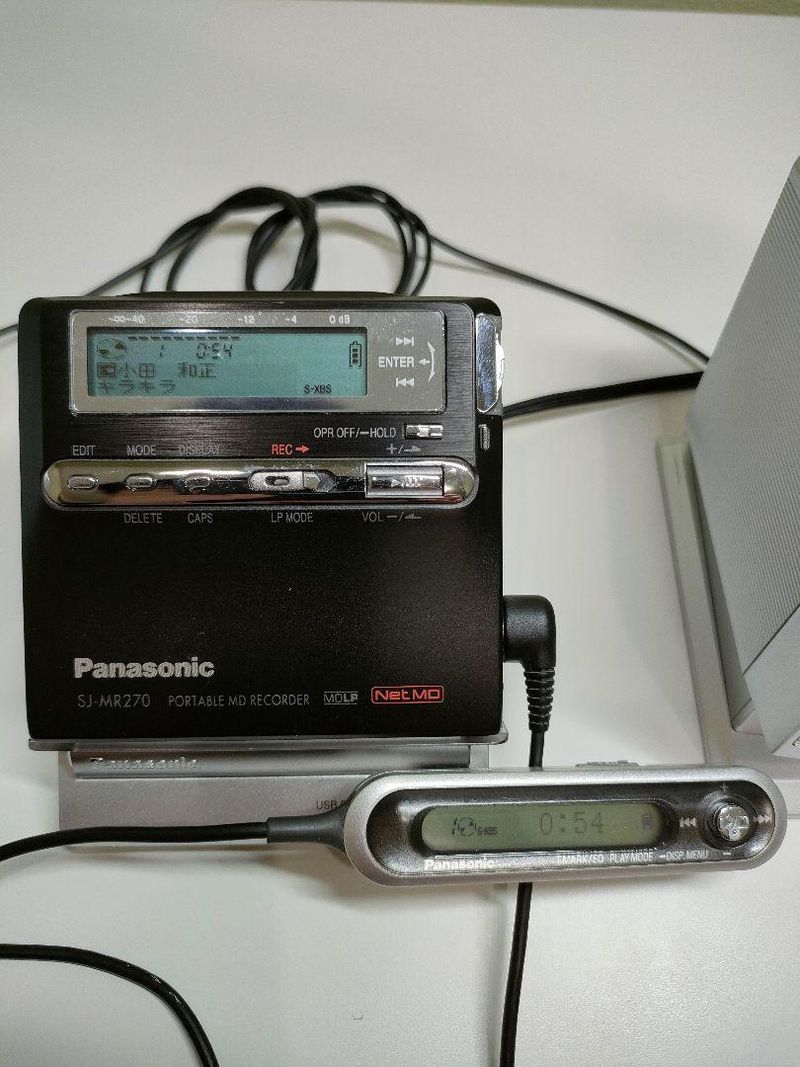

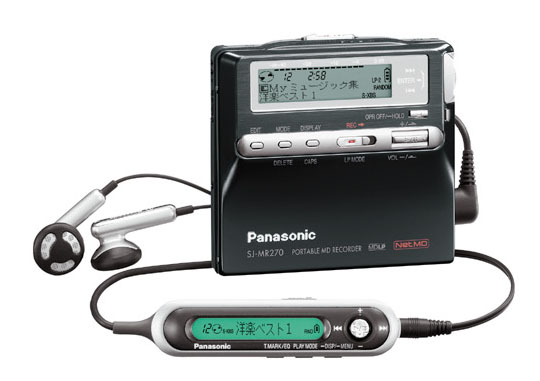

Kanji displaying LCD remote with ability to control recording.
H.D.E.S. (Panasonic's “special” SP-mode ATRAC tweak)
Has a CD 1-track recording mode, enters pause mode after recording one track.
Jog dial.
X-Bass.

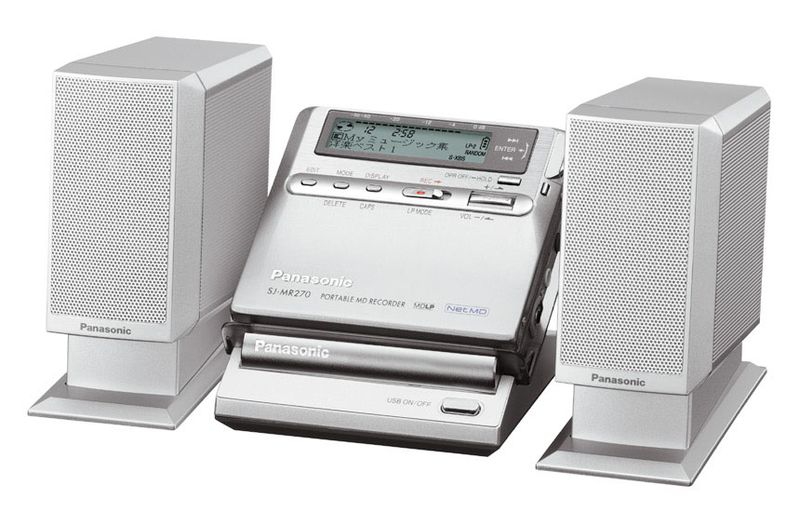

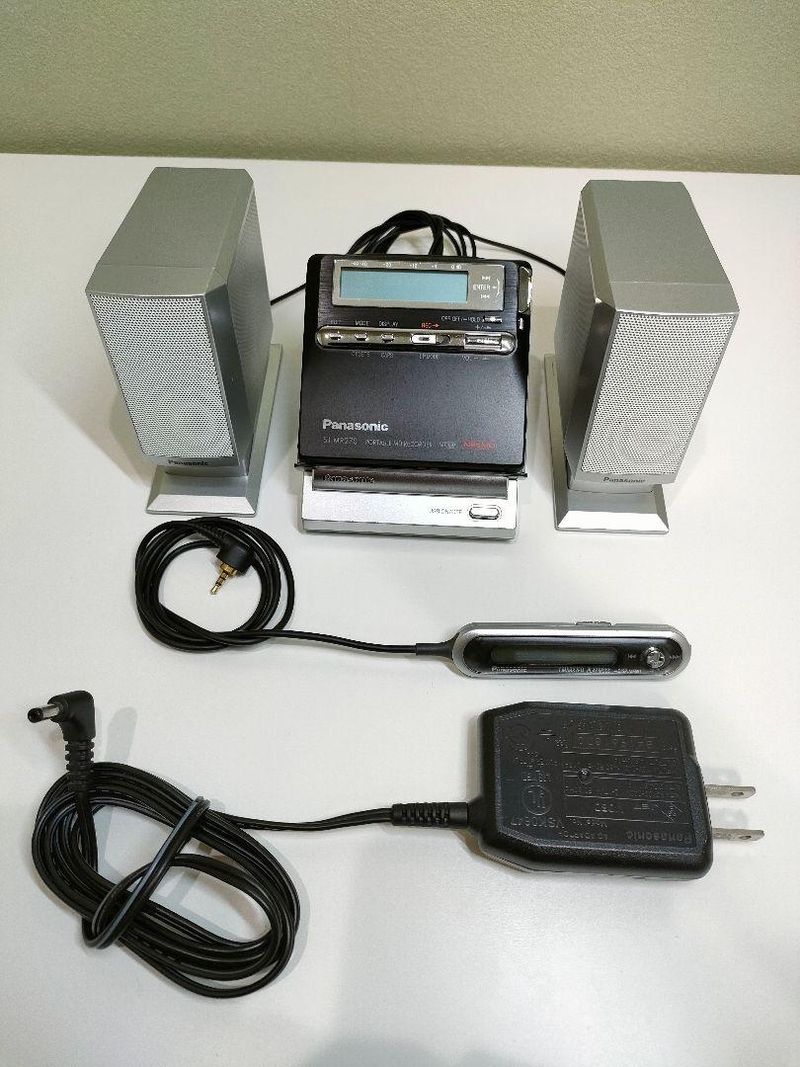

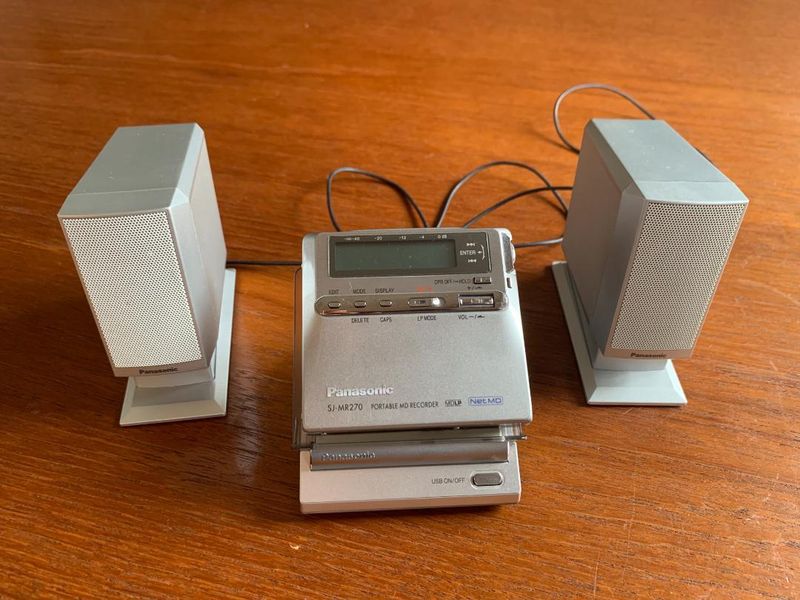

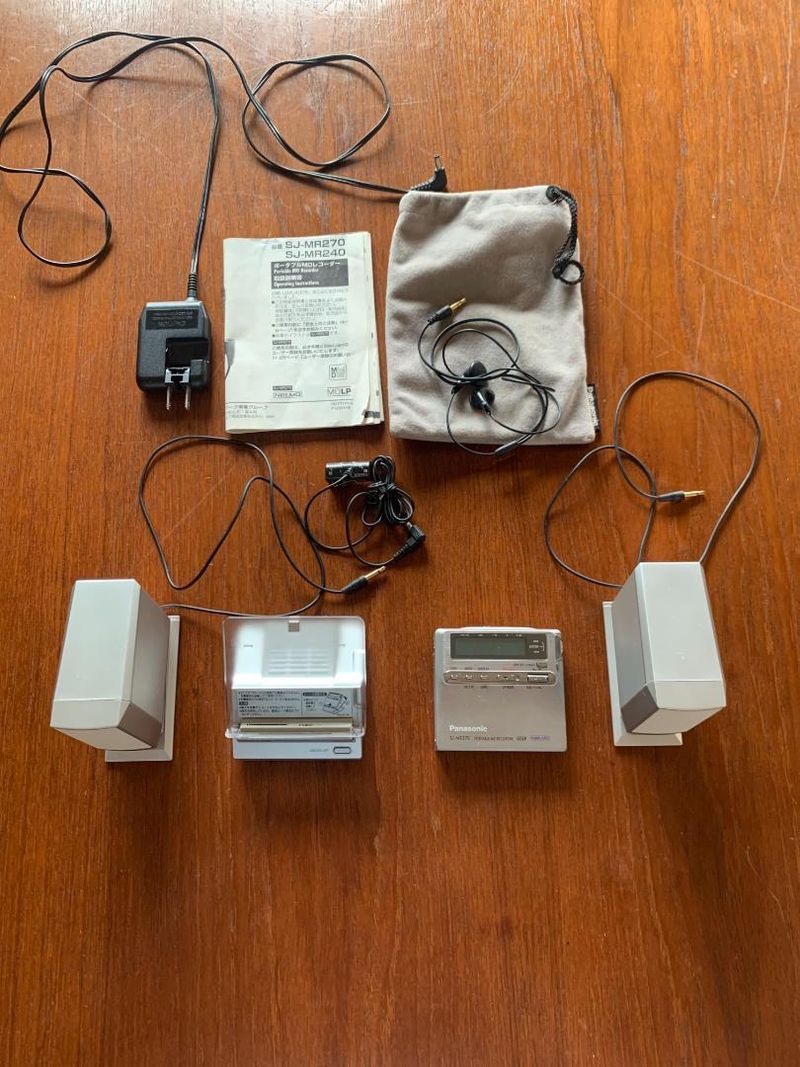

Docking cradle with separate speakers.

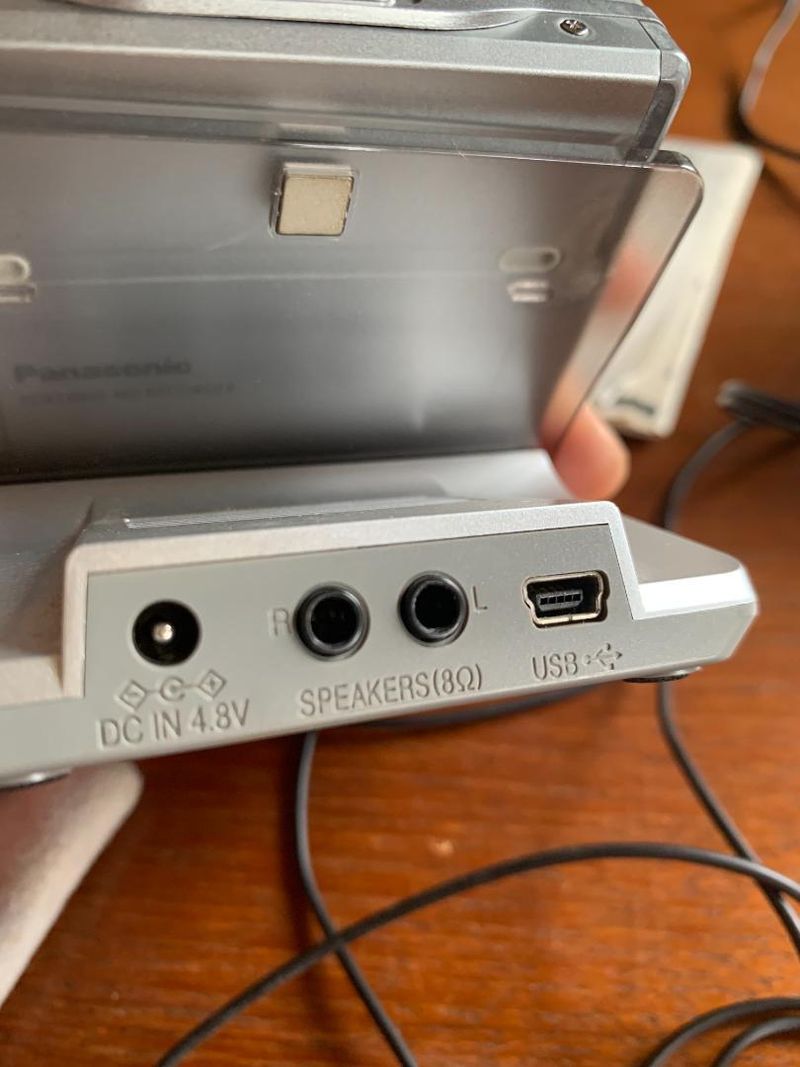

USB Mini-B port is provided via dock.

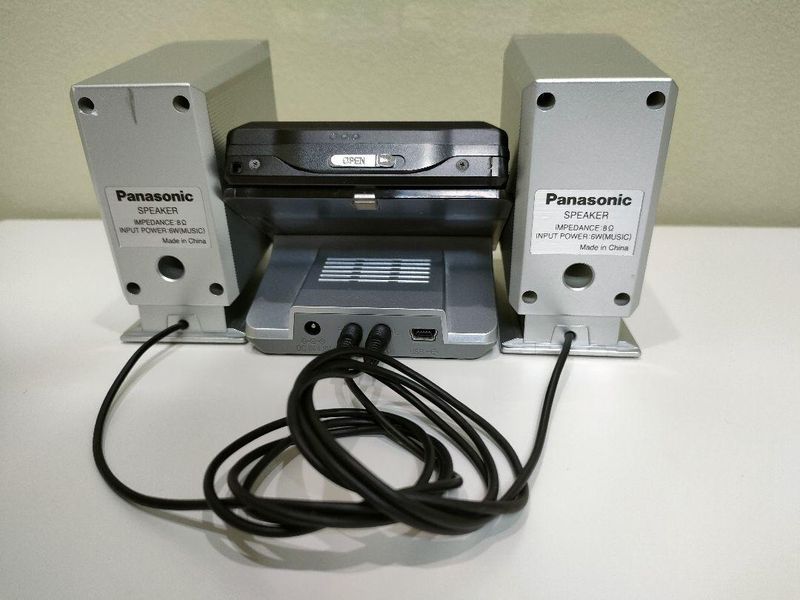

The Multi Cradle comes with a small active stereo speaker. The MR270 also supports USB audio, and the speaker can also be used as a PC speaker. The unit is made of titanium cone, and neodymium magnet is used for the driver. The output of the amplifier is 0.9W x 2ch.

Hiragana/Kanji input is not possible with this machine.

Specs: Headphone amp: 2.8mW+2.8mW, Speaker amp: 900mW+900mW, JEITA, 20-20kHz +0/-6dB. Line in: 33Kohm, Mic in: 600 ohm, Headphone out: 50 ohm

Content adapted from: Panasonic Press Release [*] Panasonic Press Release (MiniDisc Wiki mirror) [*] Panasonic Product Page [*] Panasonic Product Page (MiniDisc Wiki mirror) [*] Minidisc.org page [*] av.watch [*] phileweb.com [*] - Was still for sale in 2007 [*]
