Panasonic SJ-MR240
| Name | SJ-MR240 |
|---|---|
| Manufacturer | Panasonic |
| Released | 2004/02 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 77.8x71.9x13.9mm |
| Weight | 85g (112g w/batt) |
| ATRAC ver | |

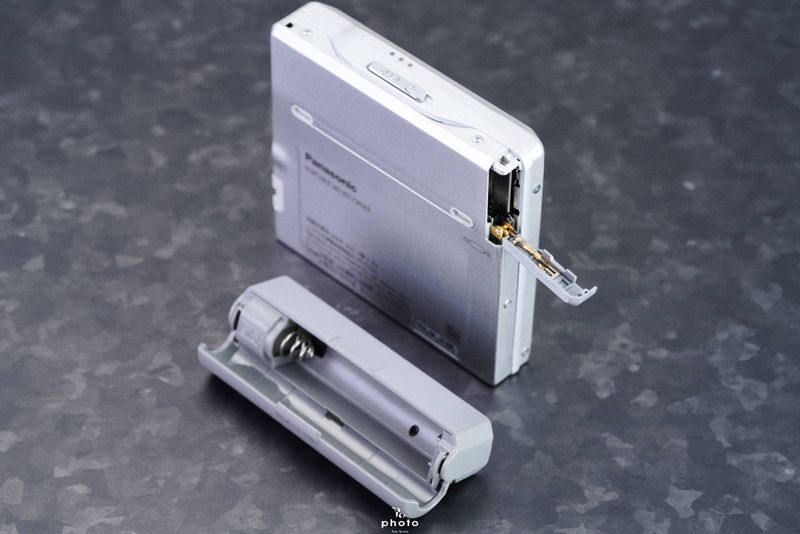

| Battery | "Gumstick" |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 1.2, 1.5, 5 |
| Power cable | |
| Price (launch) | |
| ¥34 000 | |
| - | |

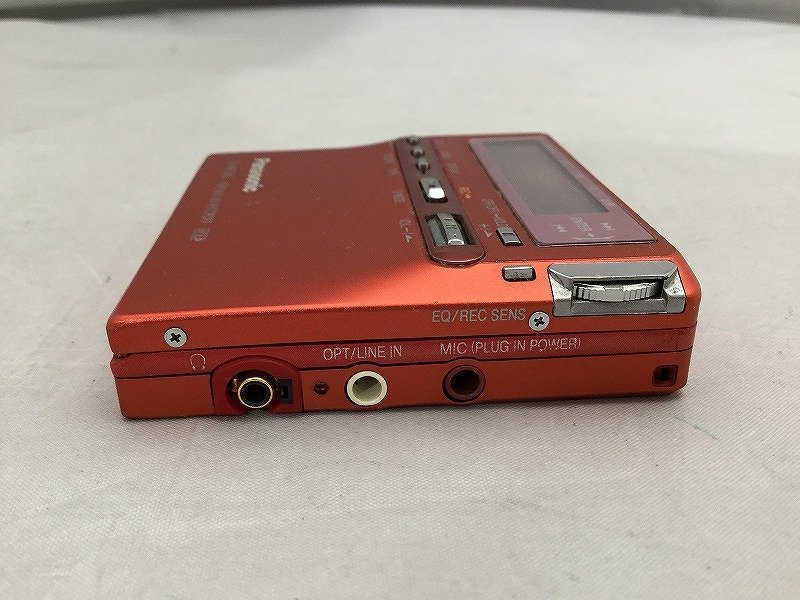

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control |

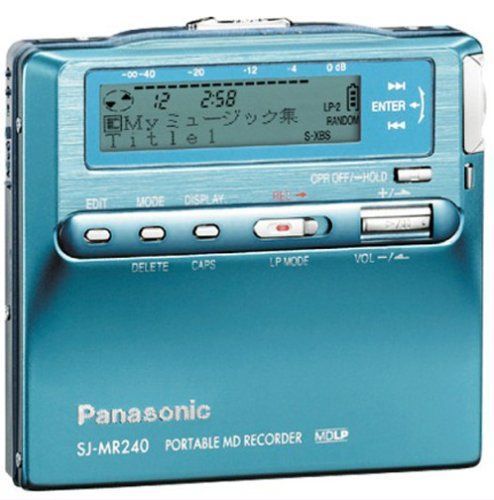

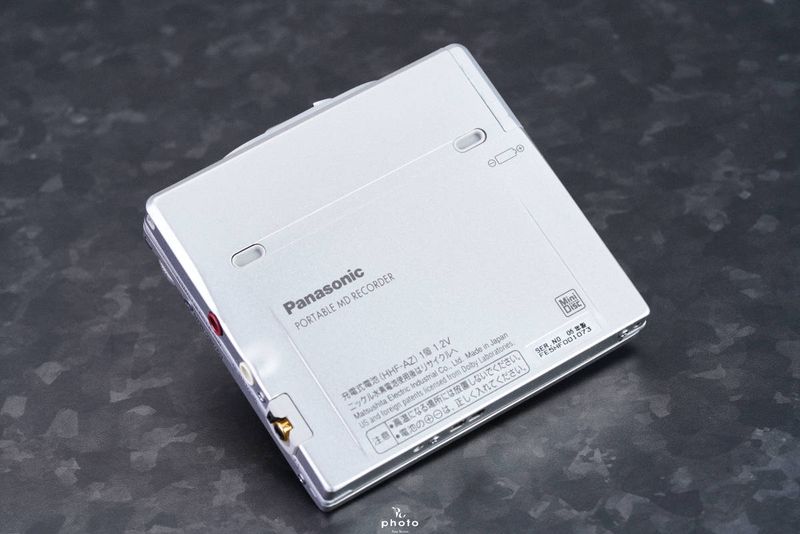

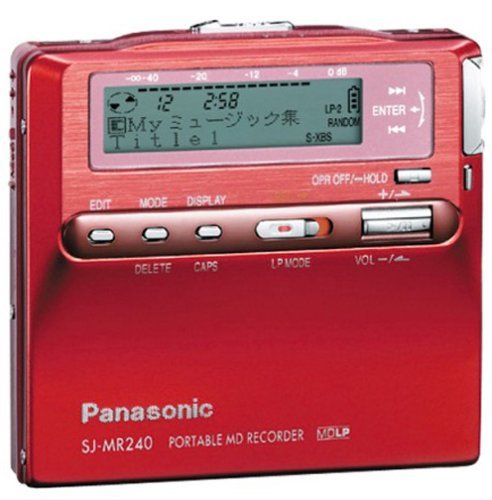

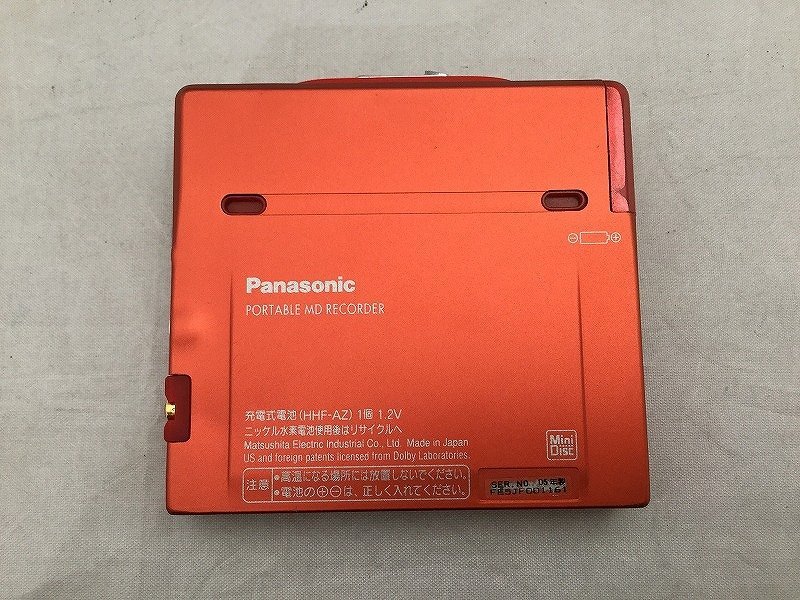

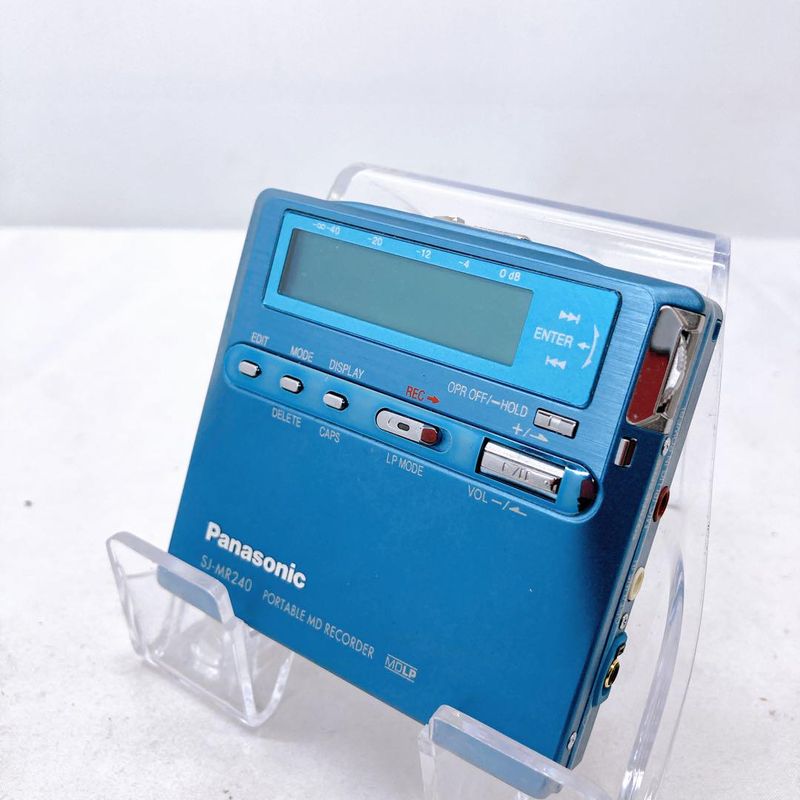

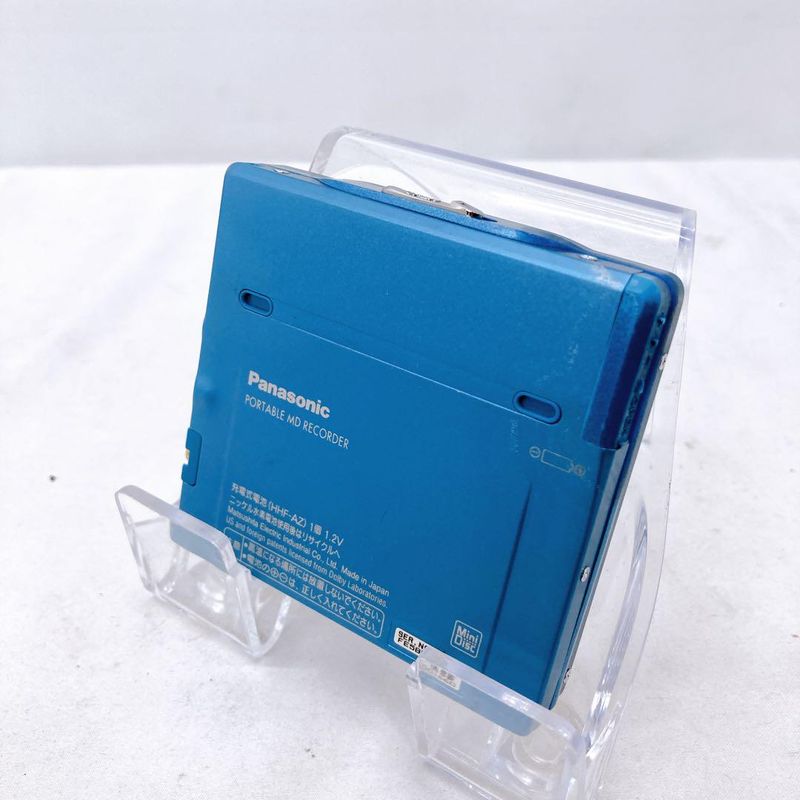

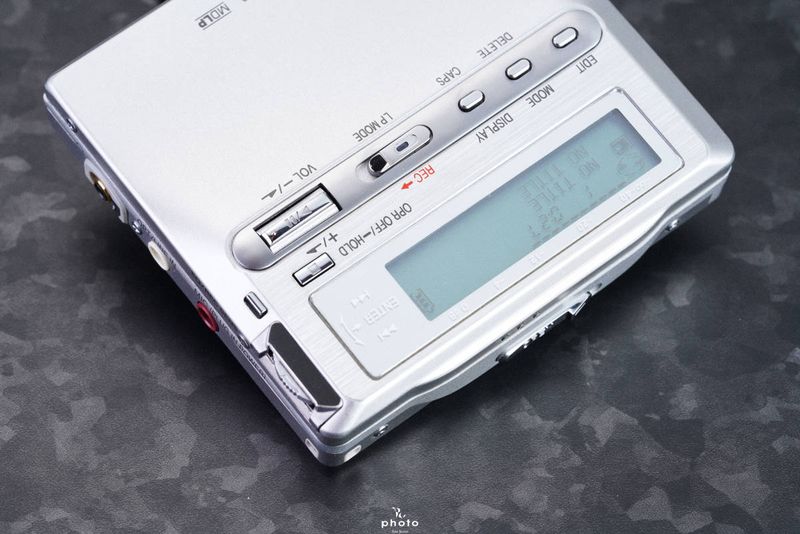

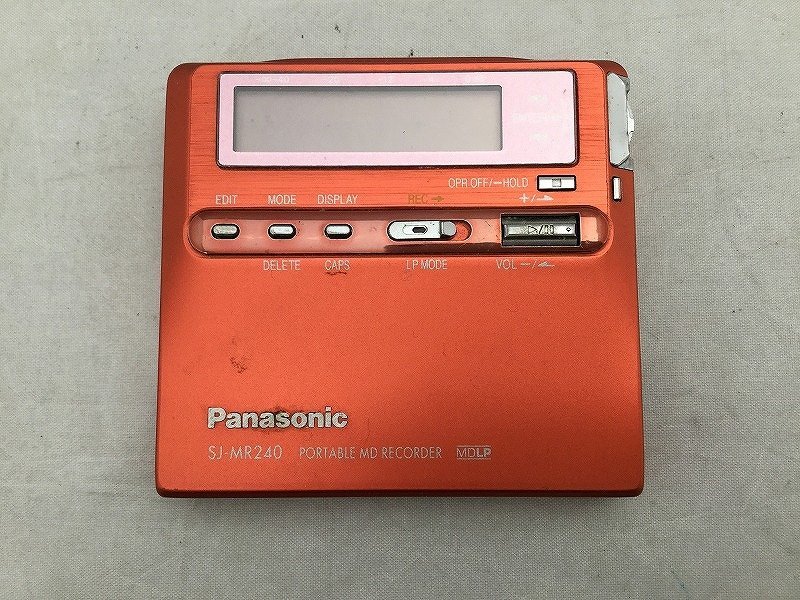

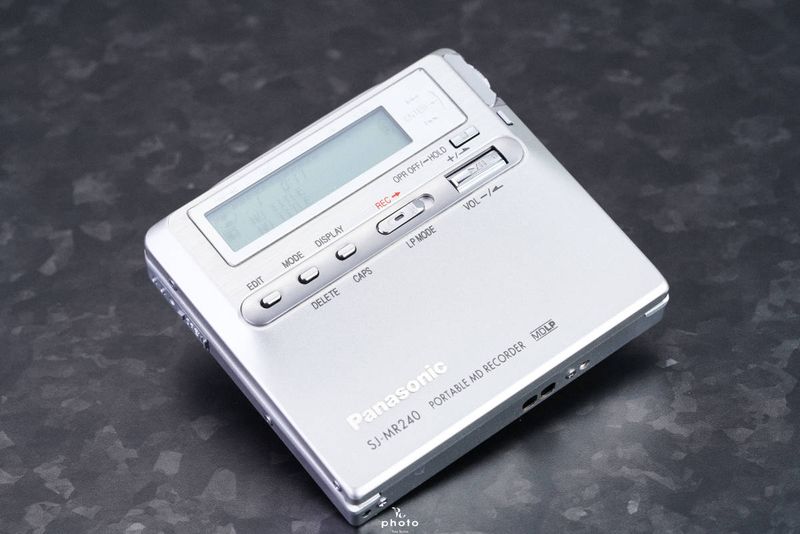

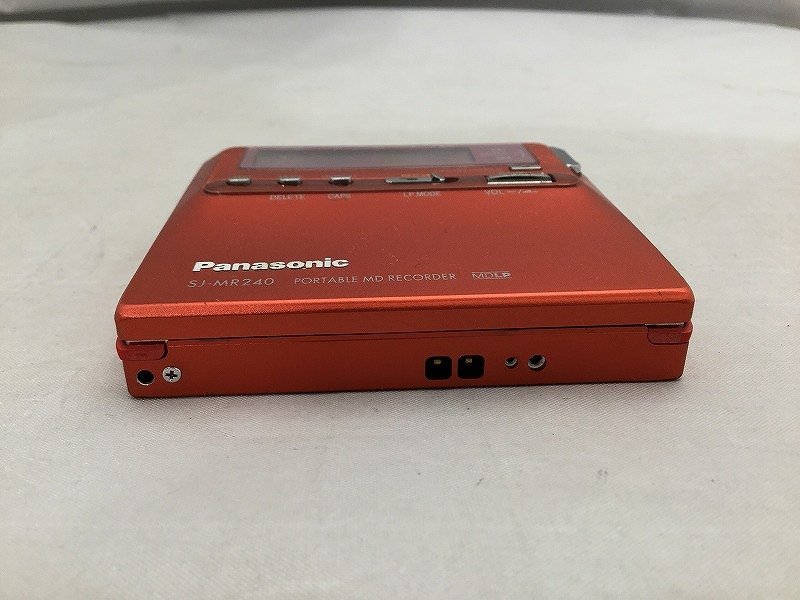

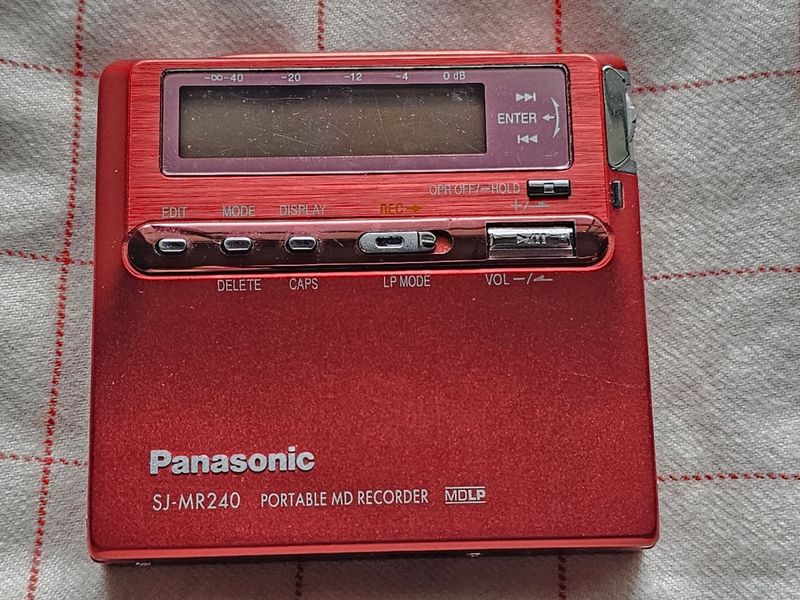

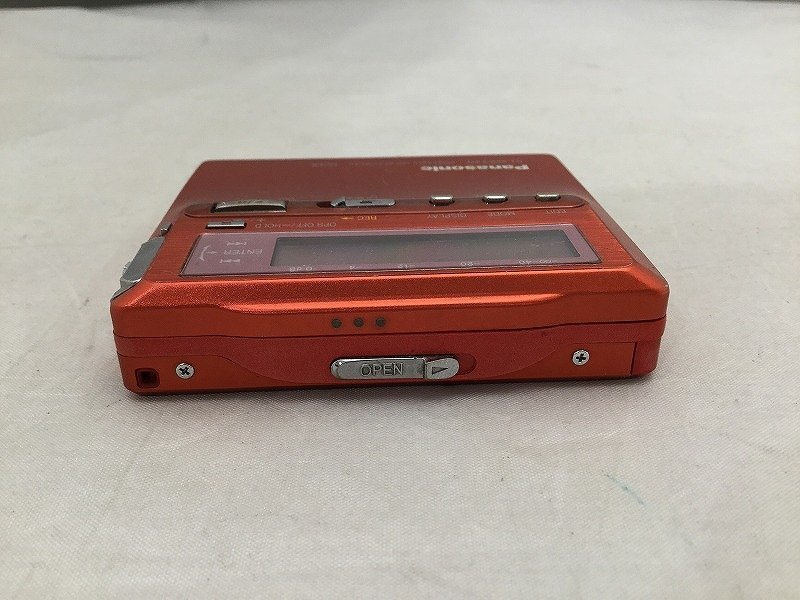

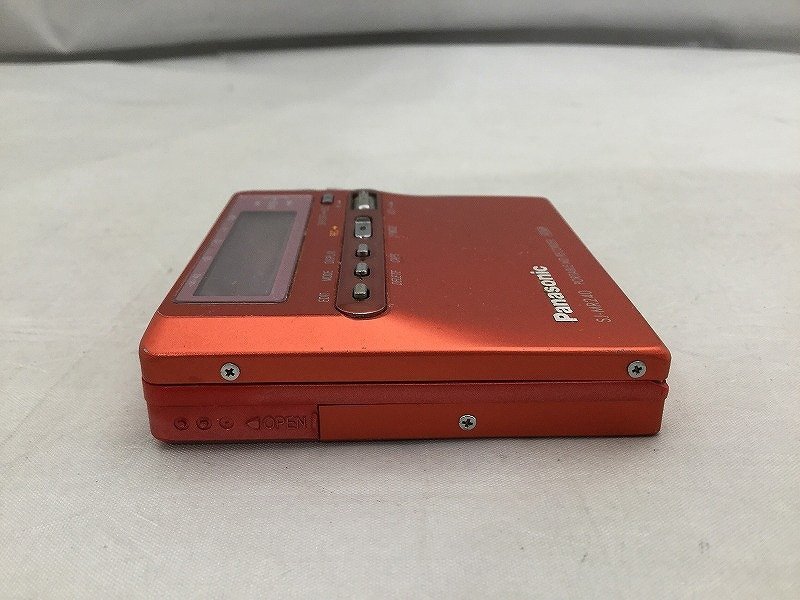

The MR240 was initially released in three colors, silver (SJ-MR240-S), blue (SJ-MR240-A), and red (SJ-MR240-R). Then and Later Orange. A SJ-MR240DX variant [*] existed. The pricing was “open” but with an expected street price of 34,000 yen.
Features:
- 130 hour battery life
- Large style 3-Line LCD on main body displays 2 lines of Kanji/Hiragana.
- Kanji displaying LCD remote with ability to control recording.
- Jog dial.

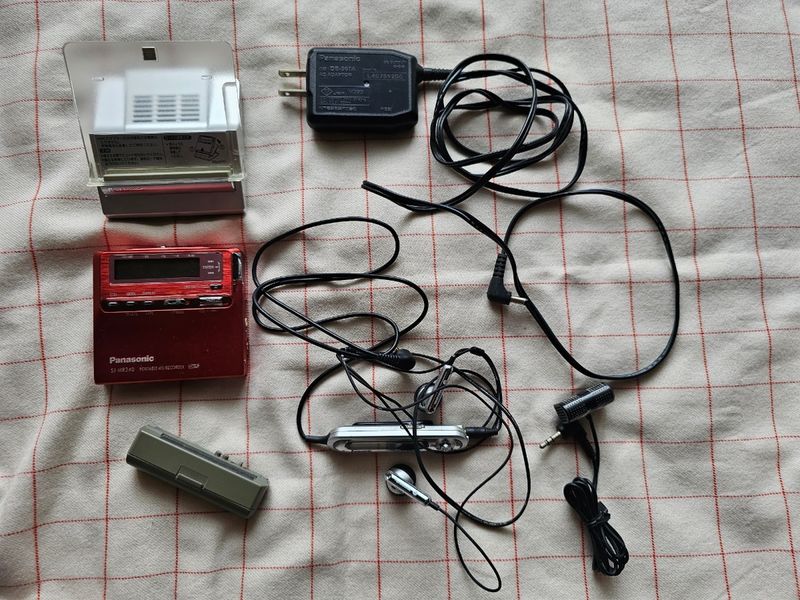

- Stereo mic included.
- X-Bass.

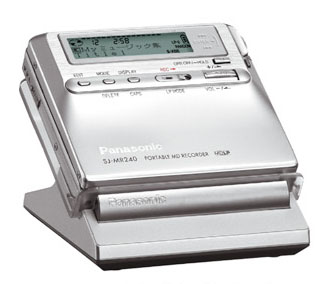

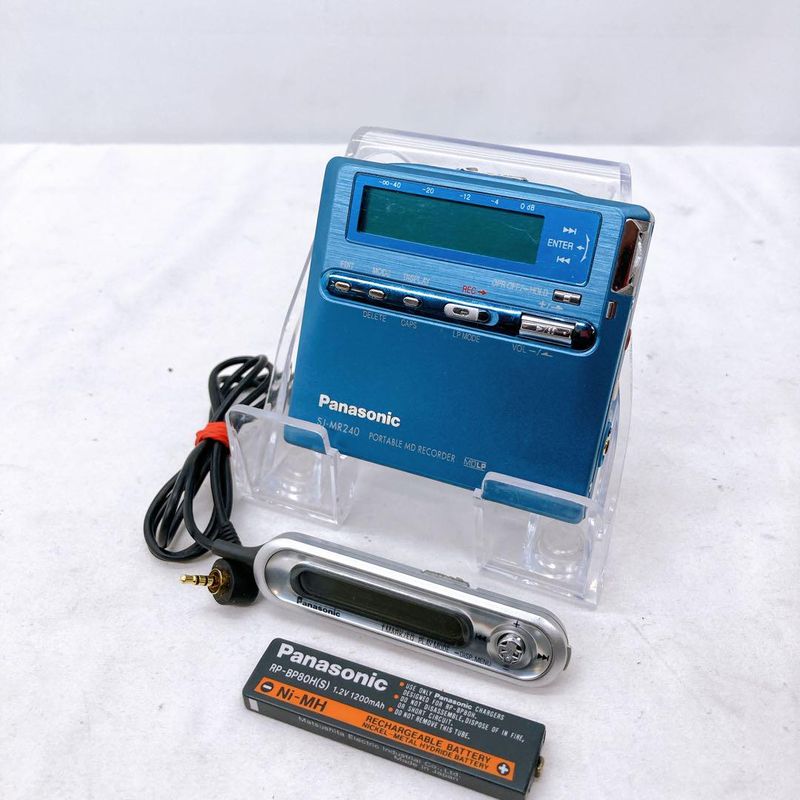

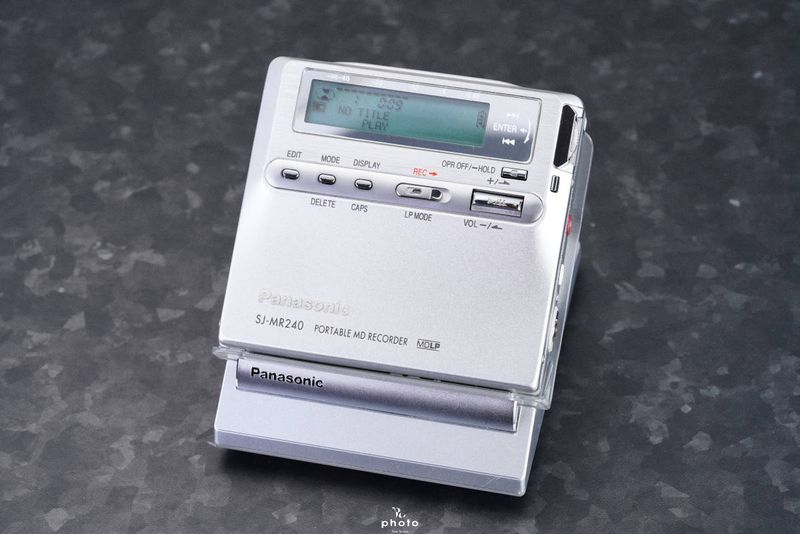

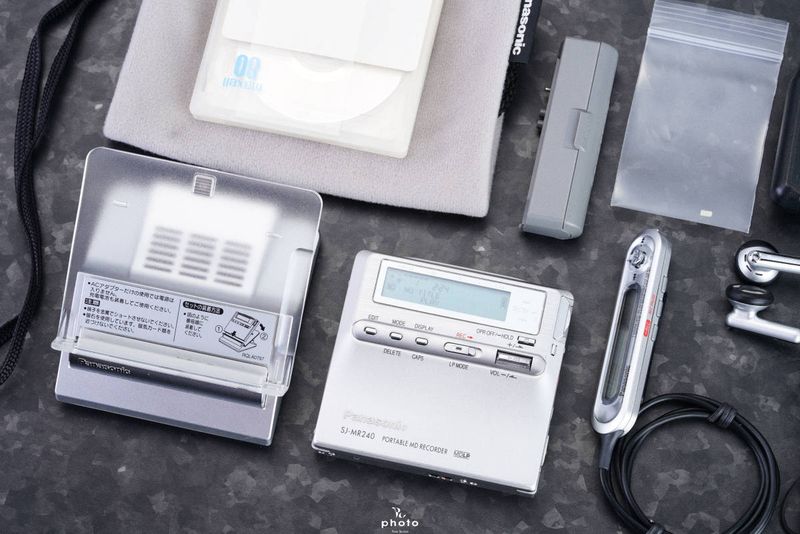

- Docking cradle.
- Differences from SJ-MR270:
- Non-NetMD
- No H.D.E.S
- No one-track recording
Specs: Headphone amp: 2.8mW+2.8mW, JEITA, 20-20kHz +0/-6dB. Line in: 33Kohm, Mic in: 600 ohm, Headphone out: 50 ohm

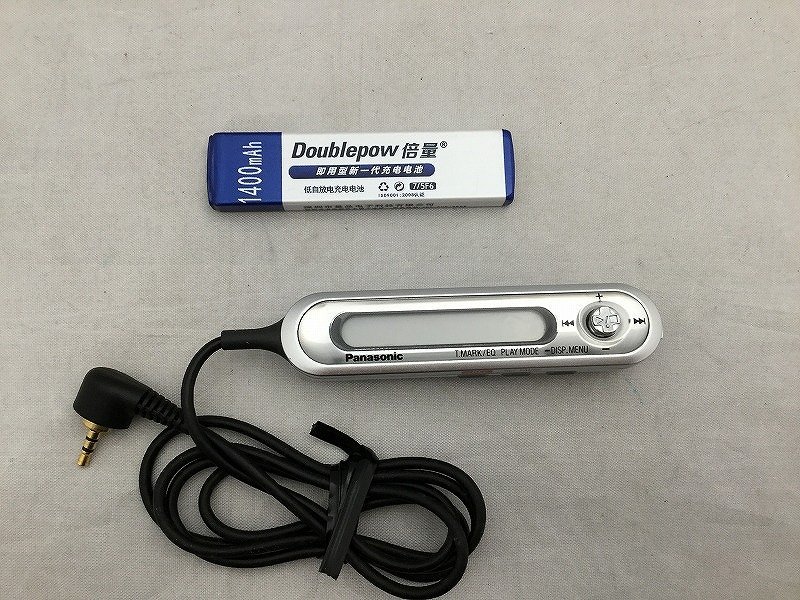

Note that the 3.5mm headphone jack is on the remote. The remote port on the unit itself is not 3.5mm so the remote or a converter is necessary to use 3.5mm headphones.
Content adapted from: Minidisc.org page [*] av.watch [*] Panasonic Product Page [*] Panasonic Product Page (MiniDisc Wiki mirror) [*]
