Panasonic SC-NS77MD

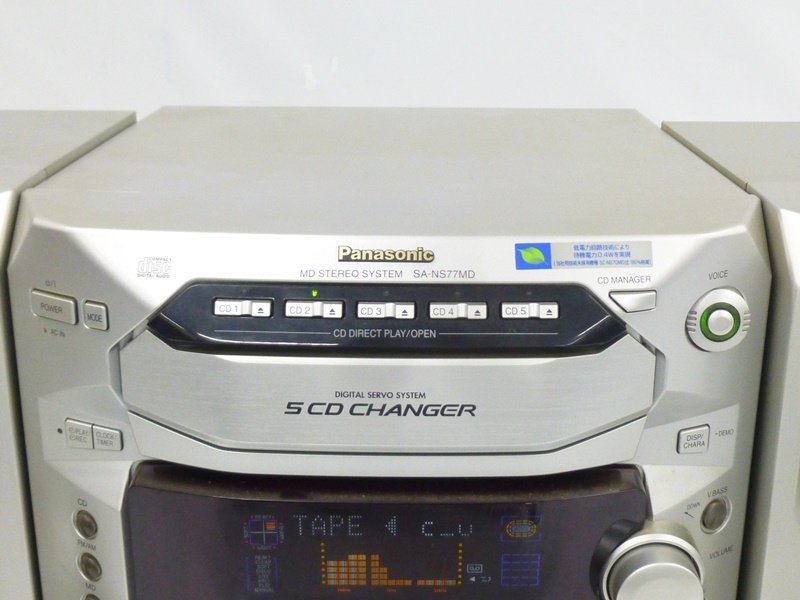

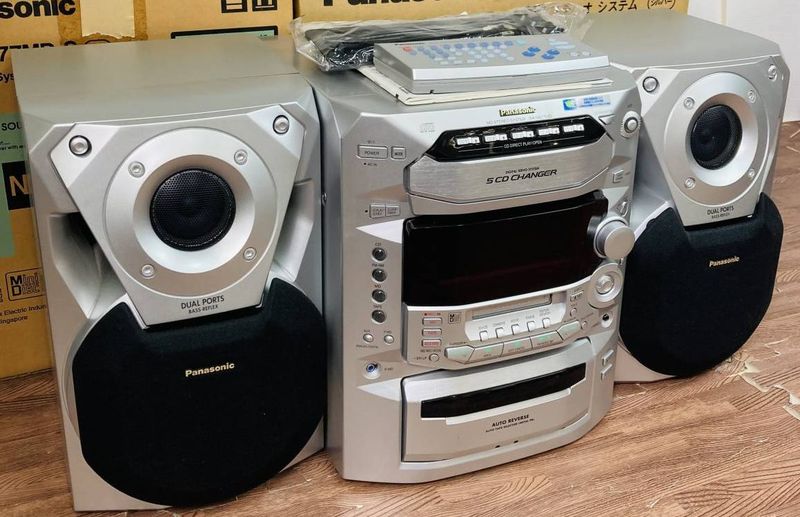

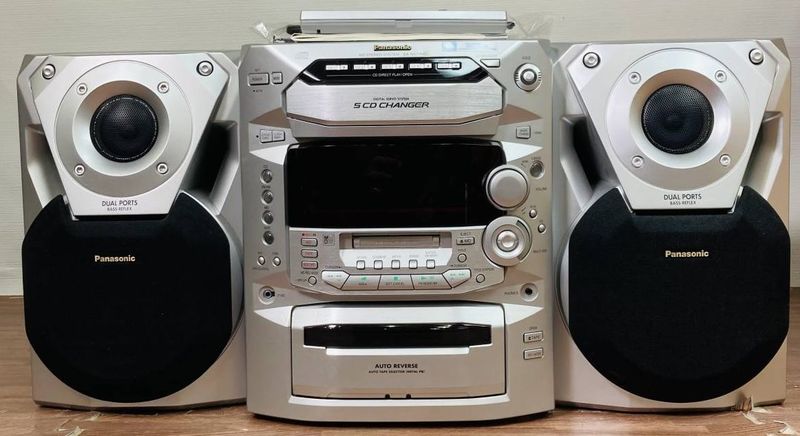

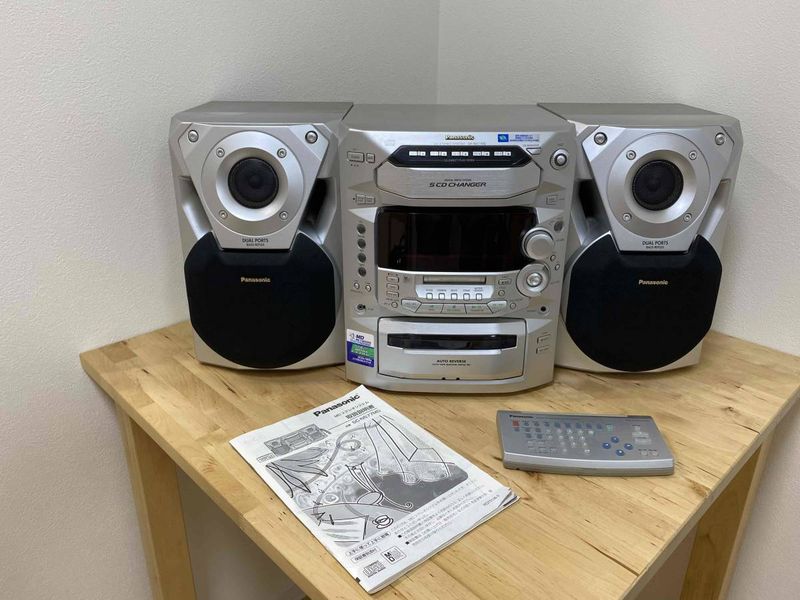

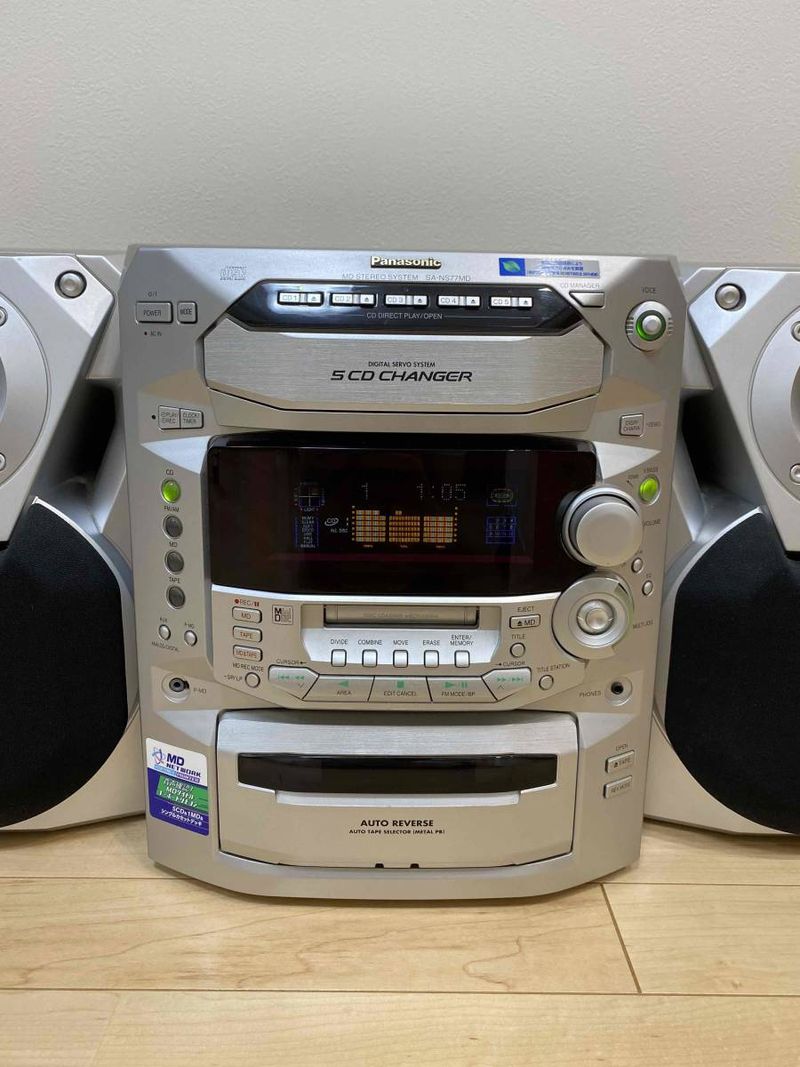

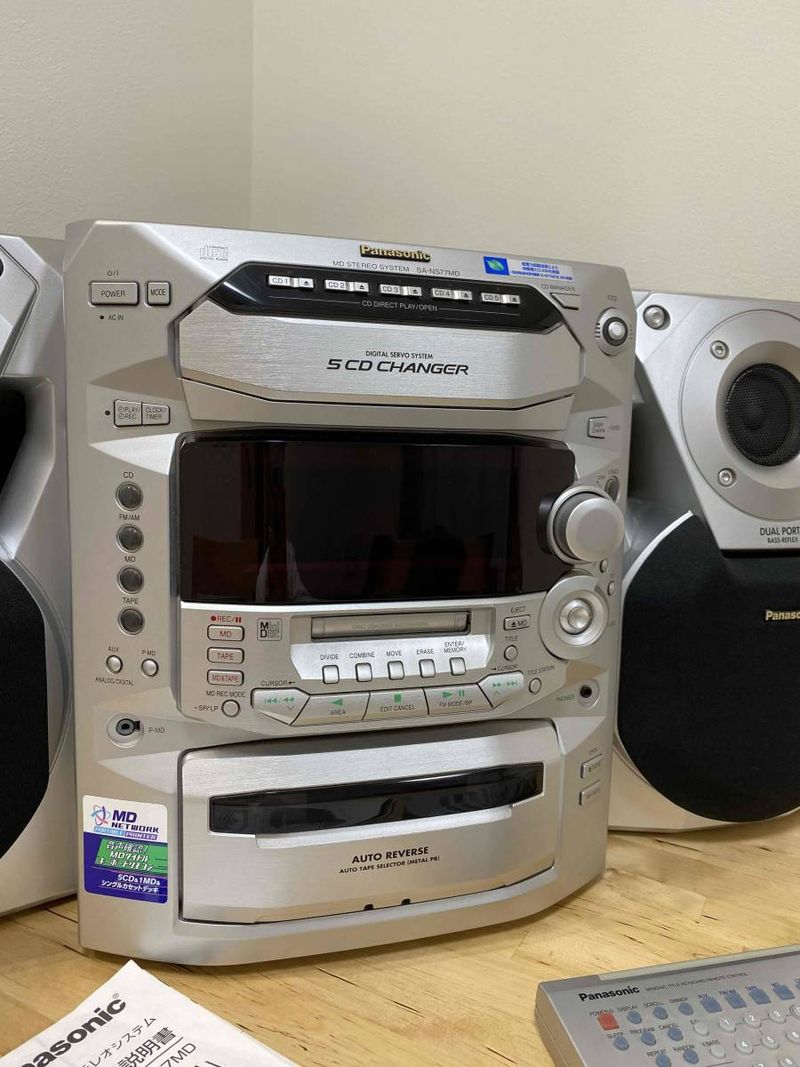

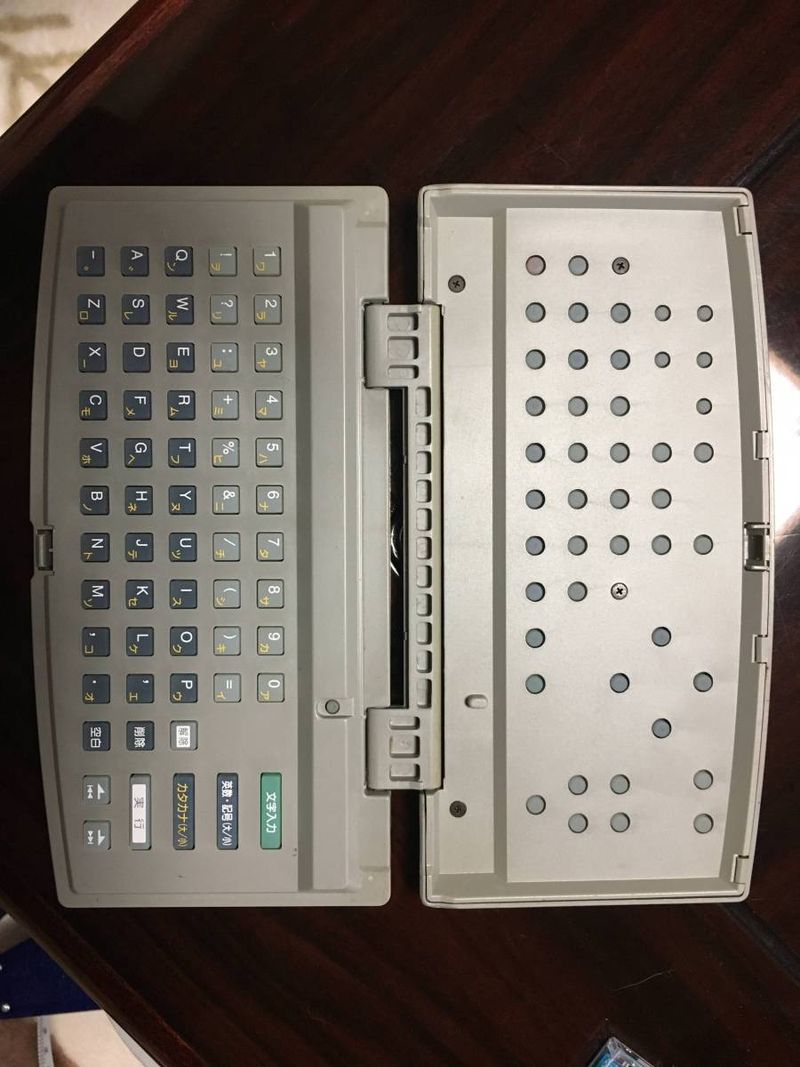

The SC-NS77MD is a MD, 5CD changer, and cassette bookshelf unit. It comes with a full QUERTY JIS keyboard to edit track titles. It also states that it's “MD network” compatible, however this does not appear to be NetMD. Rather, it is able to connect to a portable MD, however it is unclear how that functionality works.

• Equipped with 3D acoustic image equalizer
• “24bit calculation ATRAC DSP” that calculates digital data with high precision of 24bit and faithfully reproduces even the details of sound.
• Equipped with high-quality audio compression technology “H.D.E.S (High Density Encoding System)”
• Our original audio compression technology that conforms to ATRAC achieves rich sound field reproduction by reproducing fine nuances.
• Energy- saving design that reduces standby power by 96% (10.5 → 0.4 W)　　Compared to SC-NS70MD, our undeveloped model with the same technology
• Maximum output 30W+30W
• Equipped with a sampling rate converter that can record digital media such as CS and BS to MD as digital signals

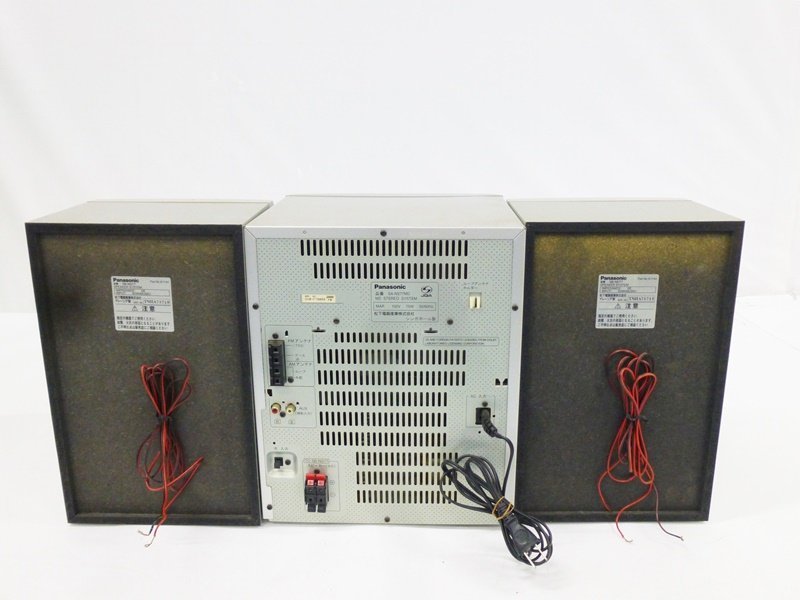

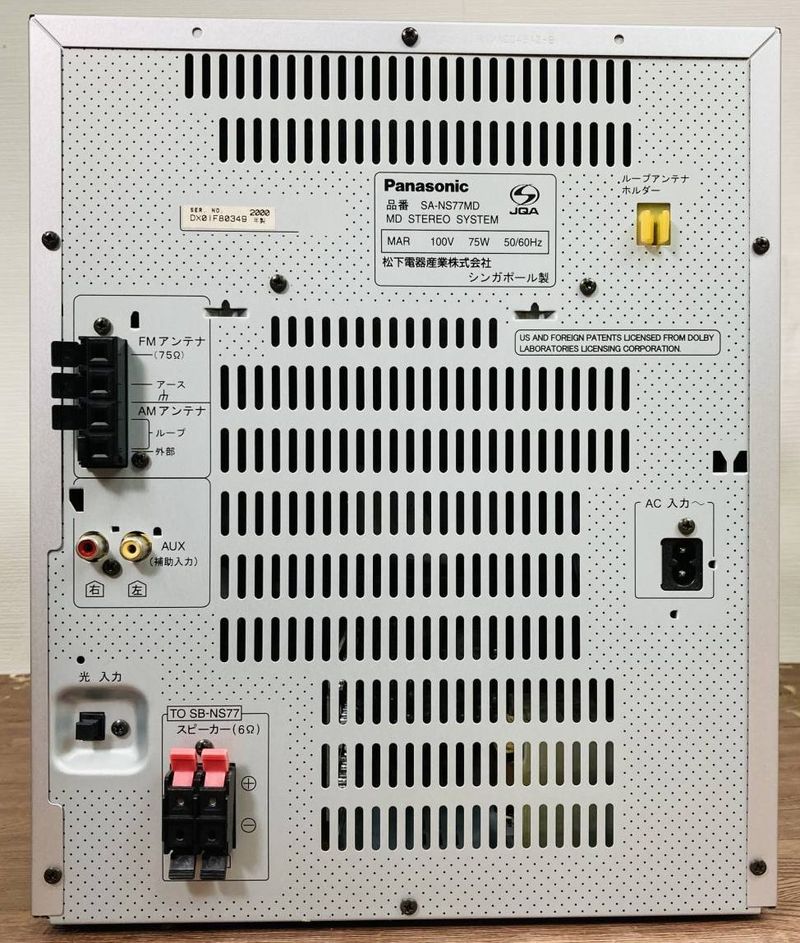

• Equipped with optical input terminal x 1, analog input terminal x 2 (pin plug x 1, P-MD terminal x 1), headphone terminal (3.5 φ) x 1
• MD long time monaural recording mode
• FM (TV 1-3ch audio)/AM tuner installed
• Uses an area bank function that stores radio stations in 41 regions nationwide.

Content adapted from: Panasonic News Release [*] Panasonic News Release (MiniDisc Wiki mirror) [*] Page 2 [*] Page 2 (MiniDisc Wiki mirror) [*] Details Page [*] Details Page (MiniDisc Wiki mirror) [*]

SC-NS77MD User Manual JP

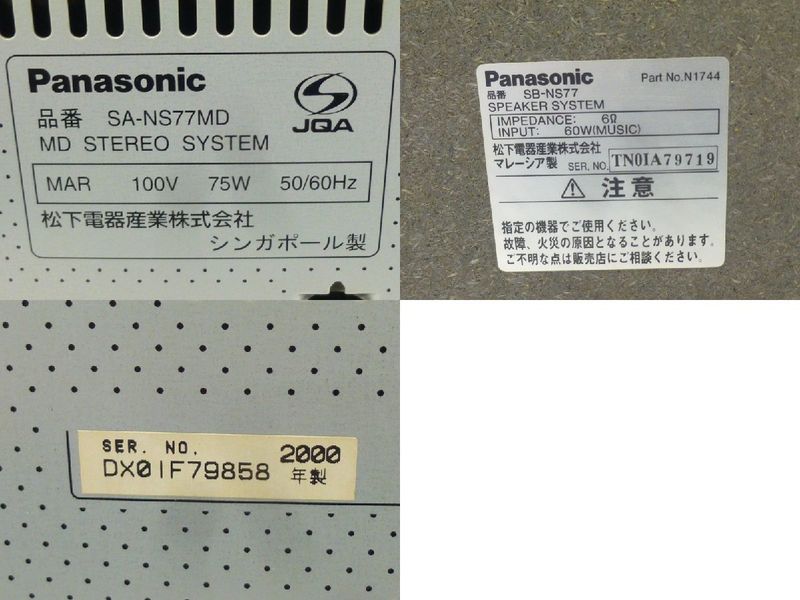

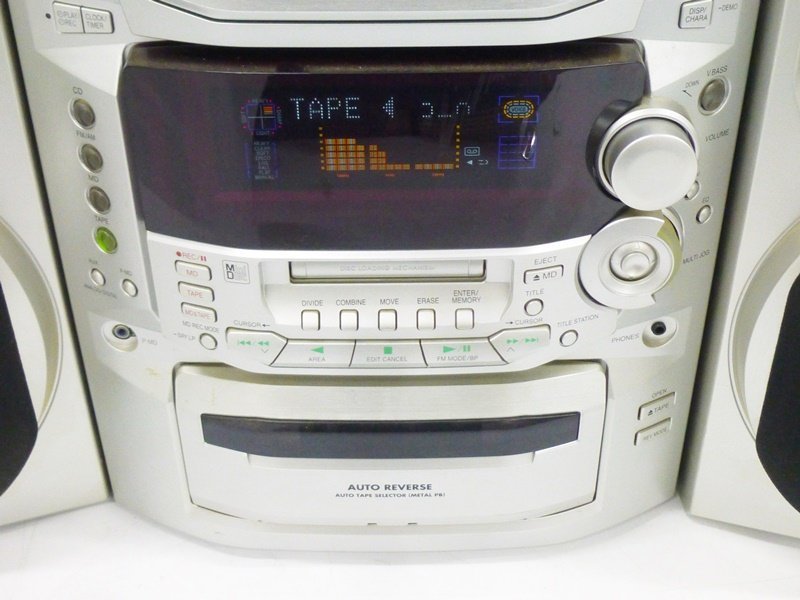

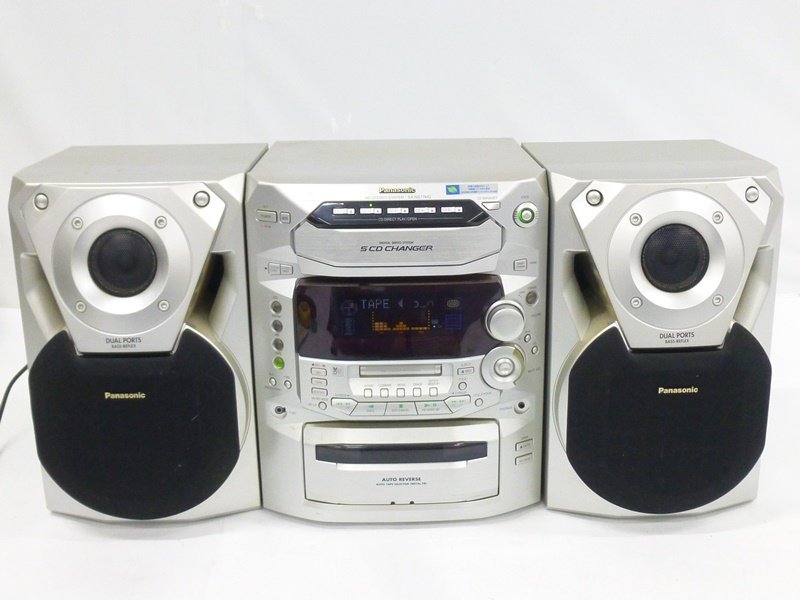

SA-NS77MD:
