Panasonic CQ-AV7000LTD
| Name | CQ-AV7000LTD |
|---|---|
| Manufacturer | Panasonic |
| Released | 2002/07 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 2-Din 178 x 100 x 160 mm |
| Weight | 3000 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥188 000 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control |
The CQ-AV7000LTD is a 2DIN head unit that integrates a CD, MD, AM/FM tuner, transmissive wide 7V TFT LCD TV, and amplifier. The 7V LCD TV is the largest size for 2DIN. The resolution is 480 x 234 dots.
The amplifier is a MOS-FET amplifier with a maximum output of 45W x 4ch. The MD section supports MDLP. ATRAC is processed with 24bit decoding. The external dimensions are 178 x 100 x 160 mm, and the antenna part is 30 x 28 x 190mm
Content adapted from: Matsushita Press Release [*] Matsushita Press Release (MiniDisc Wiki mirror) [*] AV.Watch [*]
Manuals
Repair

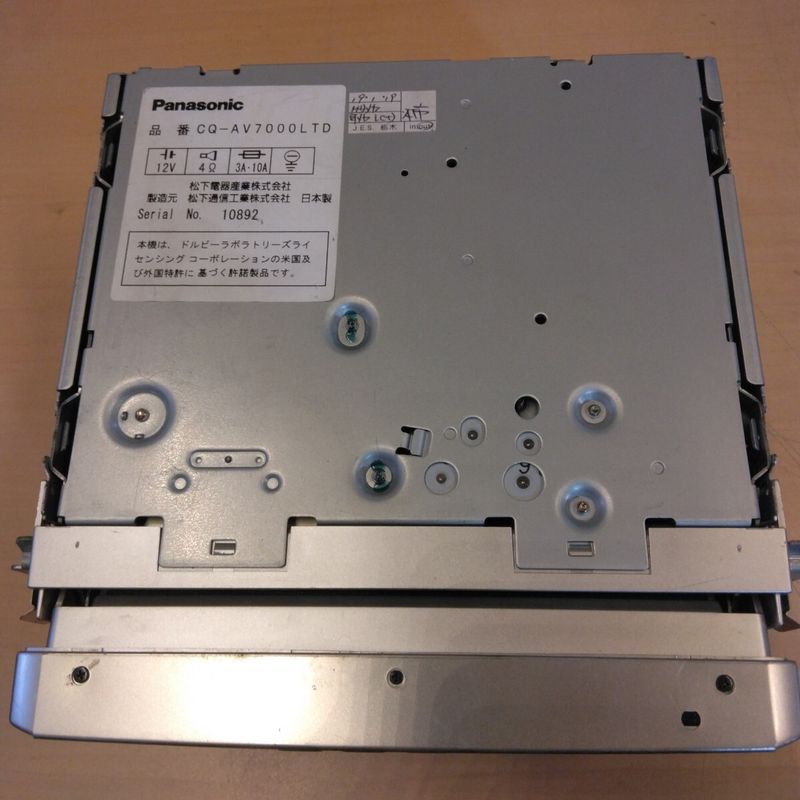

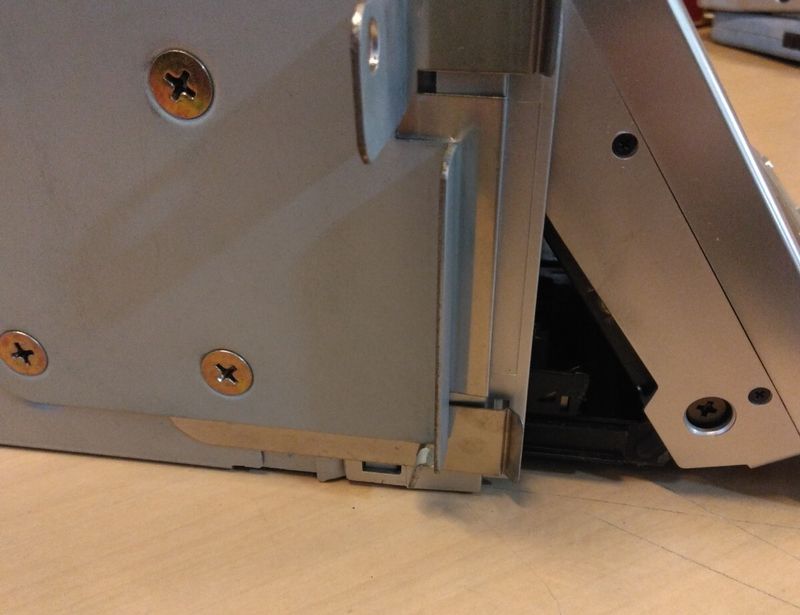

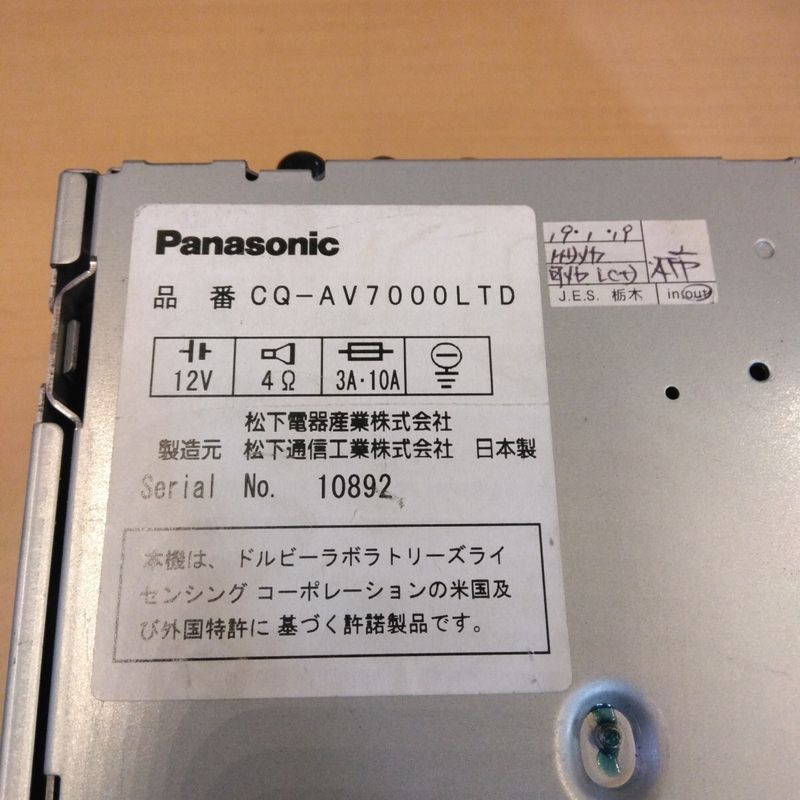

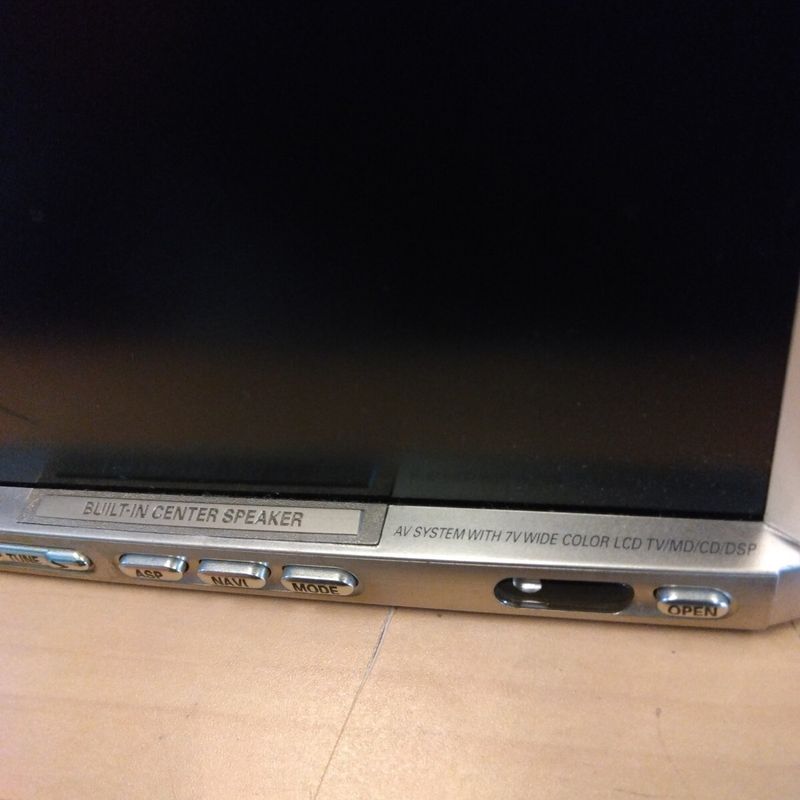

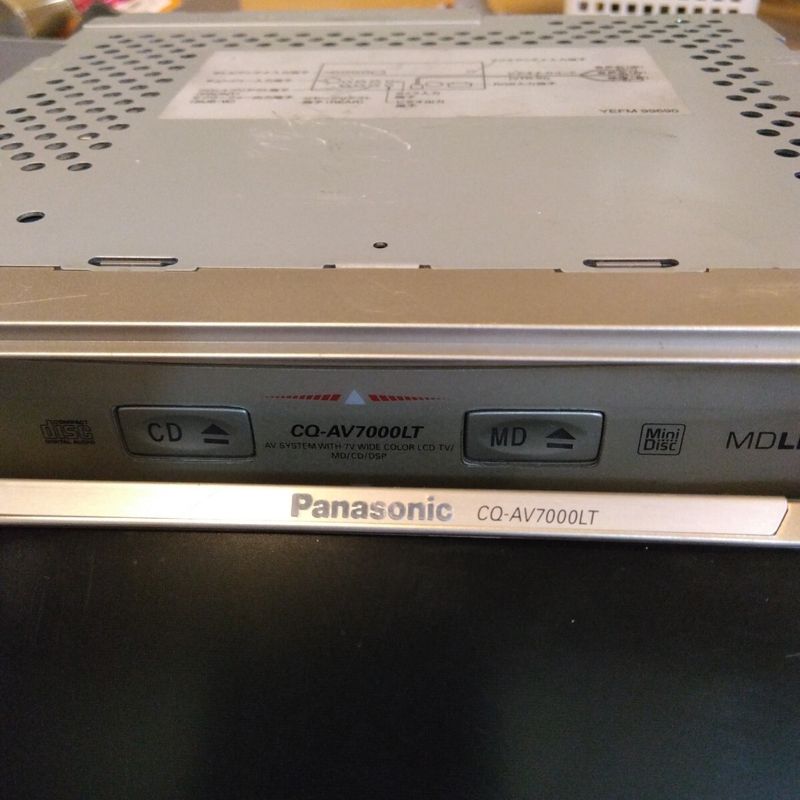

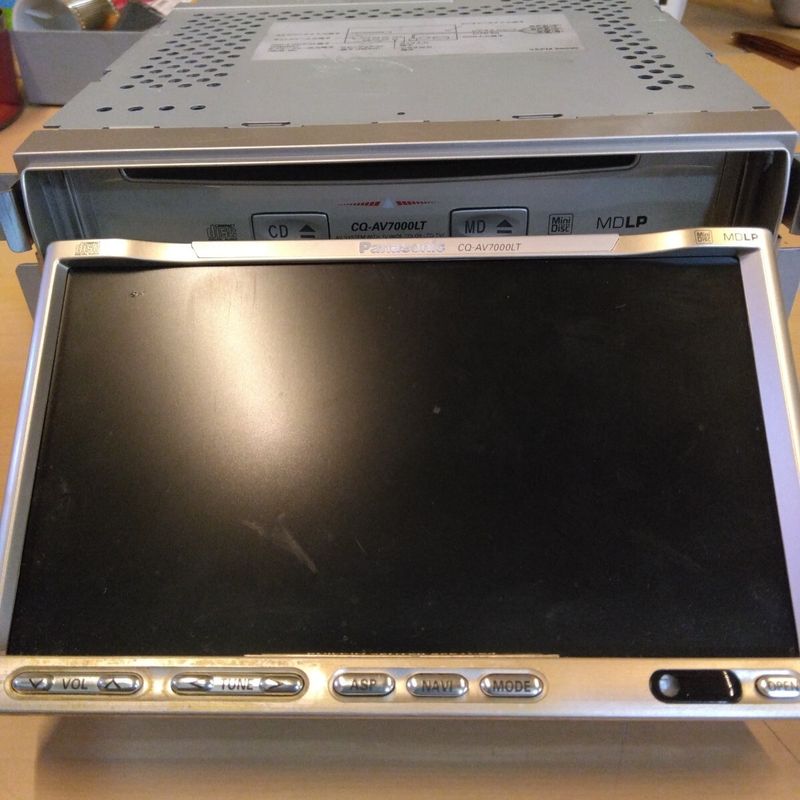

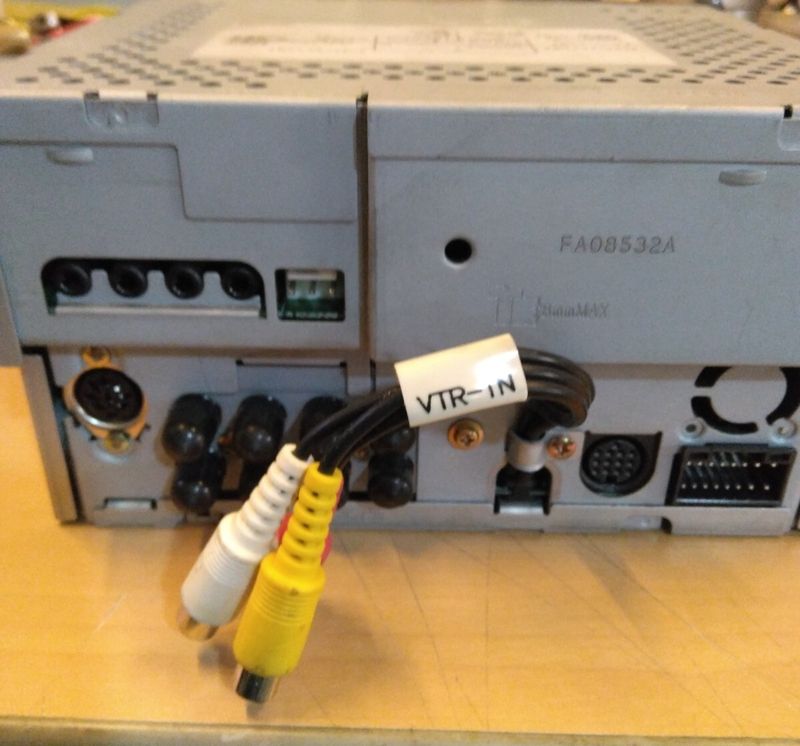

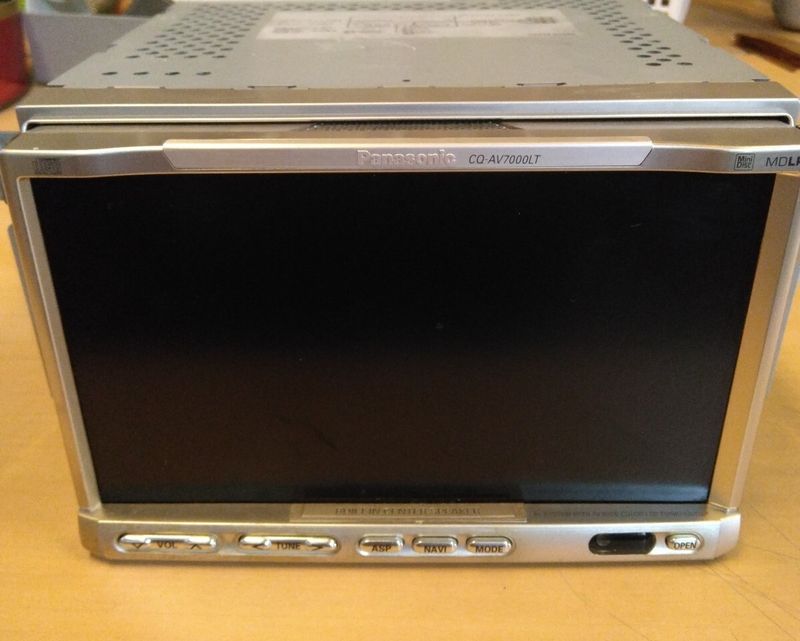

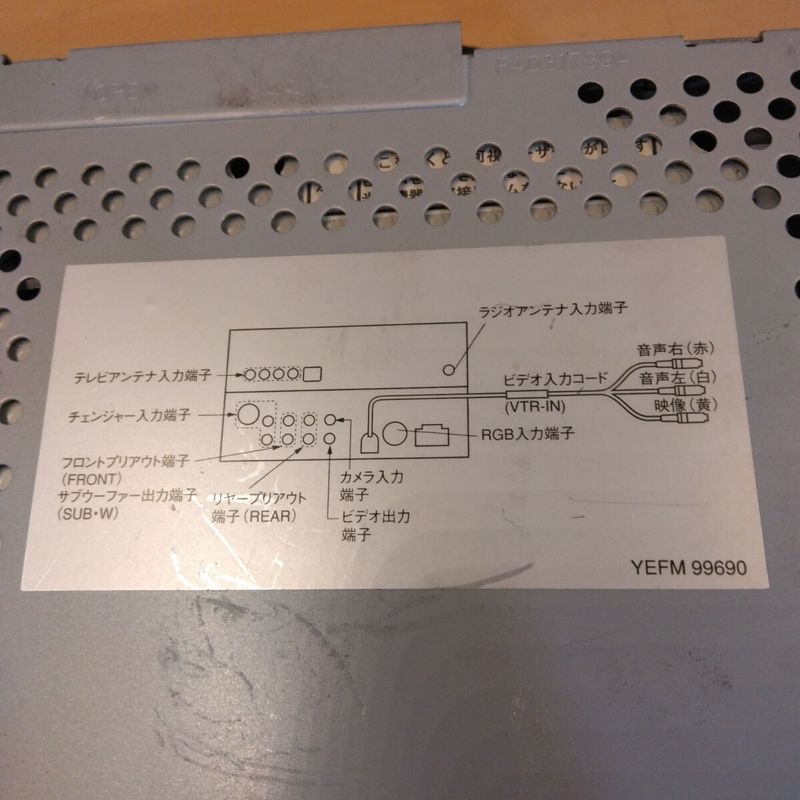

Photos
