Onkyo MD-P30
| Name | MD-P30 |
|---|---|
| Manufacturer | Onkyo |
| Released | 1999/10 |
| Device type | portable |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | Width 79.5 x H 14.2 x D 71.7mm |
| Weight | 115g with batt. |
| ATRAC ver | |
| Battery | BT-T51 |
| Battery notes | |
| Sidecar (depr) | 1xAA |
| Voltage | 3.6, 5 |
| Power cable | |
| Price (launch) | |
| ¥34 000 | |
| - | |
| Inputs | |
| Outputs | 3.5mm headphone |
| Control |

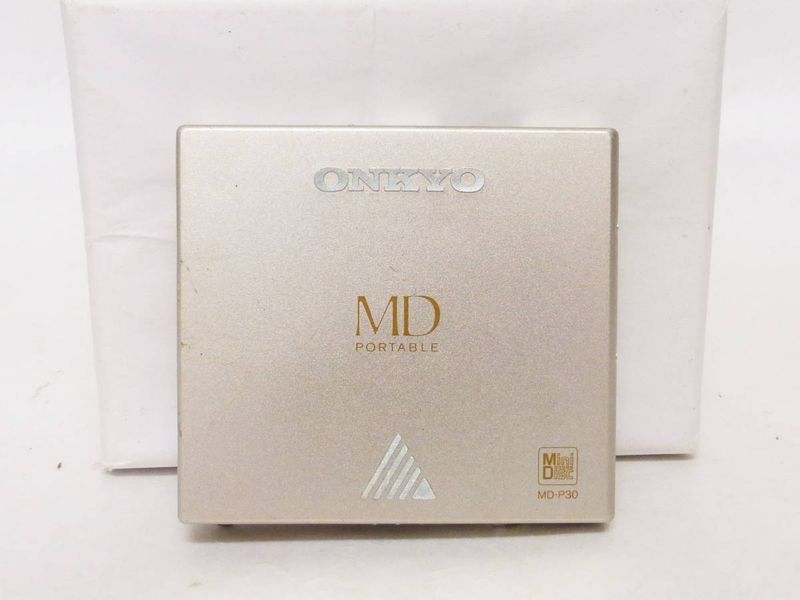

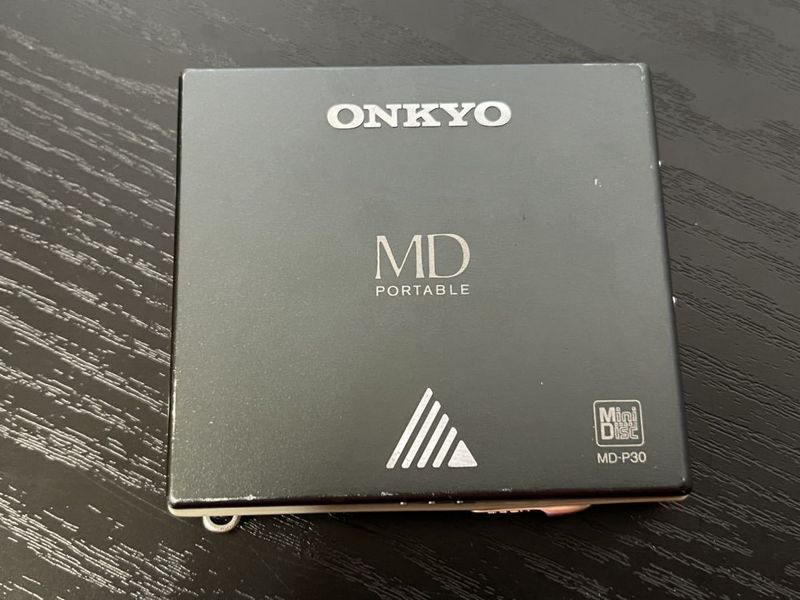

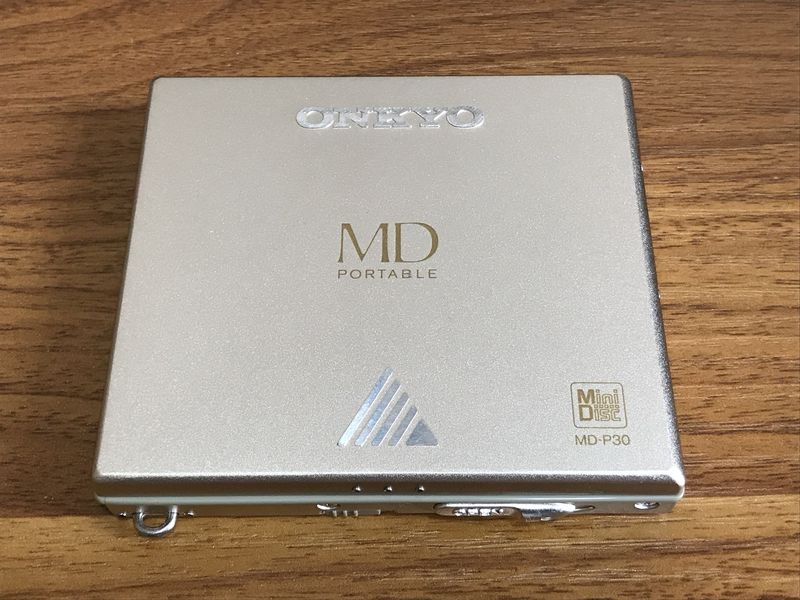

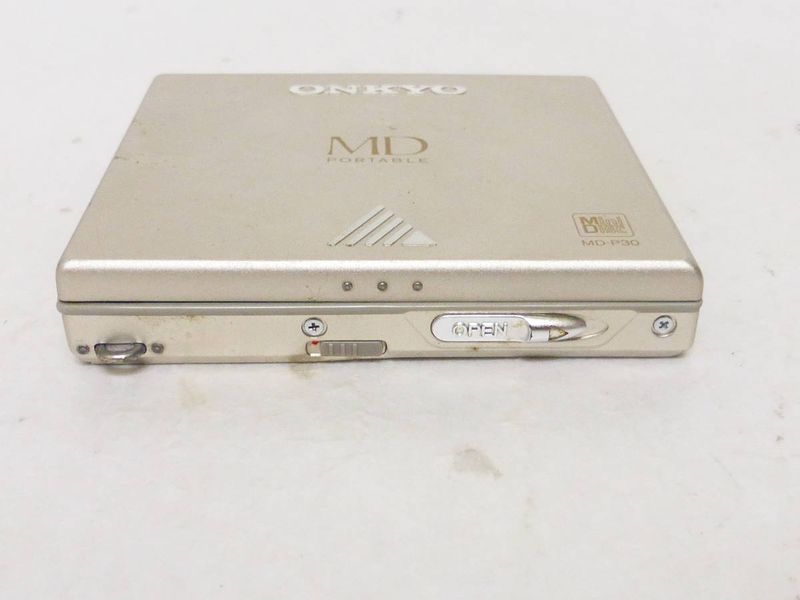

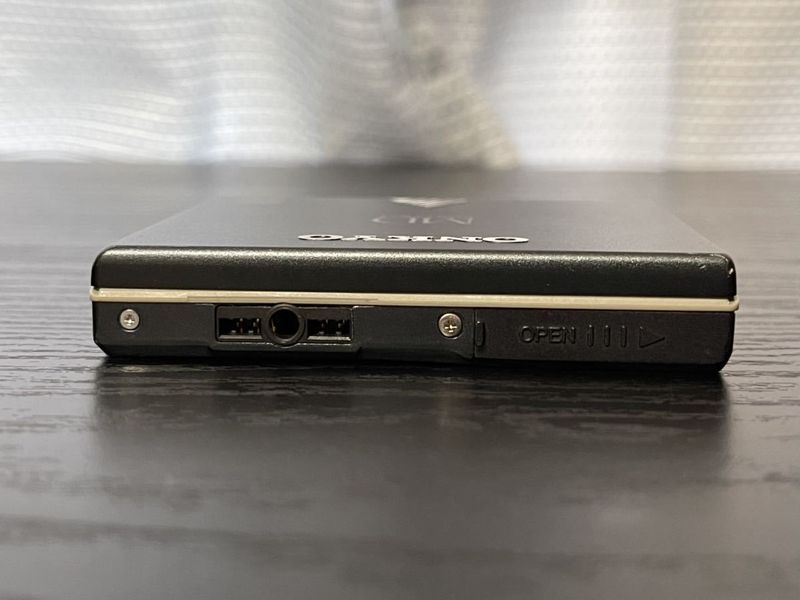

The third and last Onkyo portable MD device. Offered in simple “silver”, vivid “blue”, and chic “black” color variations.
- 40 second anti-skip.
- 3 stage Bass boost.
- Supports mono playback
- Auto play function
- It is equipped with the 6th generation ATRAC 24bit and 1 bit D/A conversion.

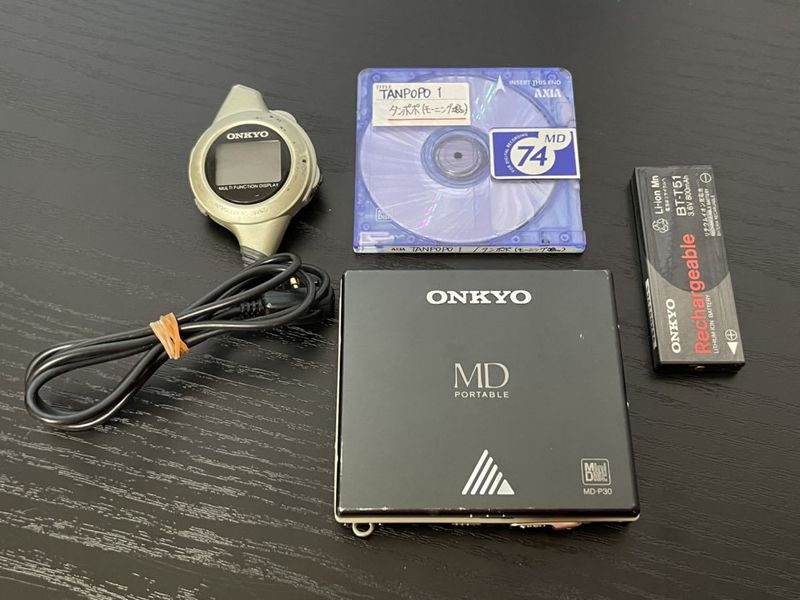

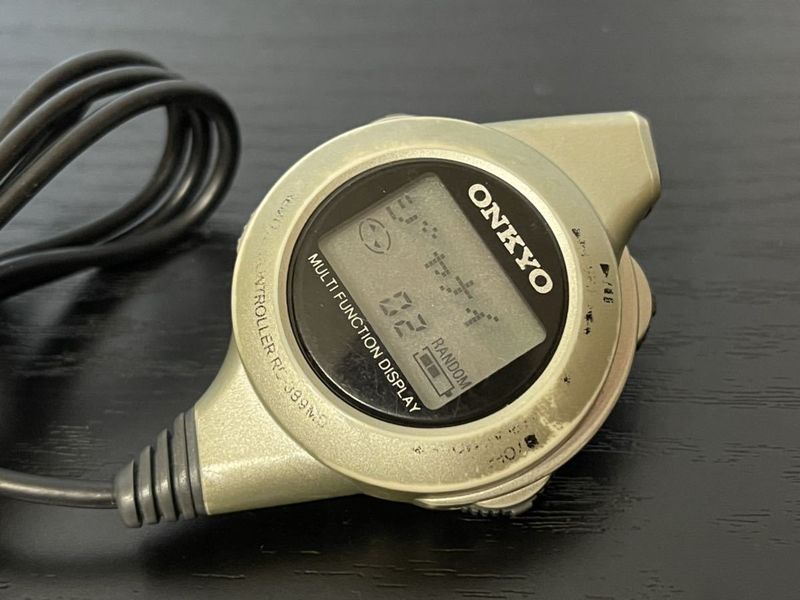

The remote control is the same used in the previous model MD-P20 with a three-way jog dial for volume, control, and sound quality adjustment. Backlit display.

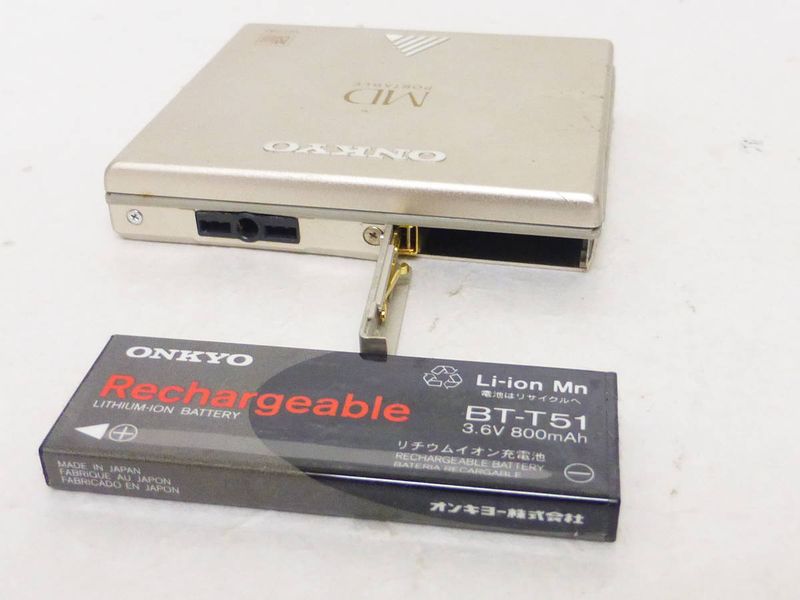

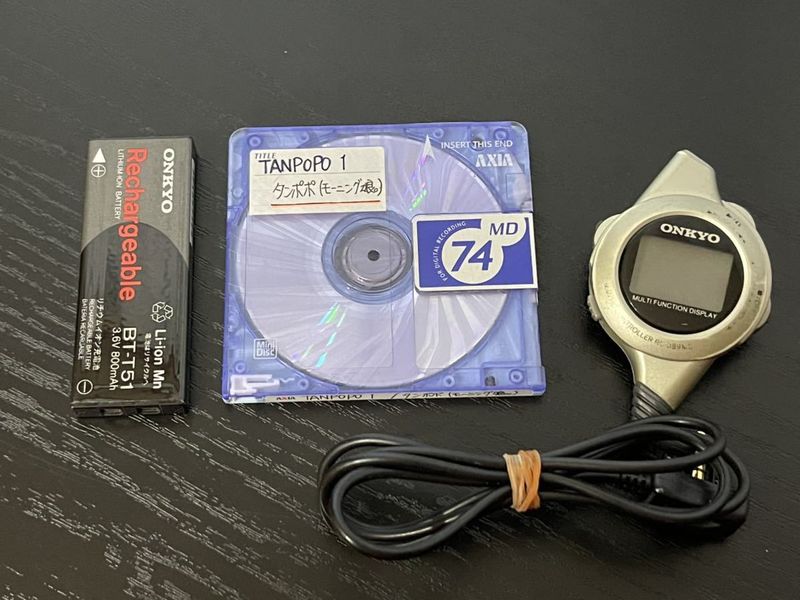

battery: BT-T51 3.6v 800mAh (3h 30min charging time) - claimed 26 hour battery life. 50 Hours when adding the AA dry battery sidecar.
Maximum practical output: 5mW + 5mW (16Ω) Frequency response: 20 to 20,000Hz (±3dB) (±0.001%W.PEAK) or less
Content adapted from: MD543 [*] Onkyo Product Page (under "Others") [*] Onkyo Product Page (under "Others") (MiniDisc Wiki mirror) [*]
