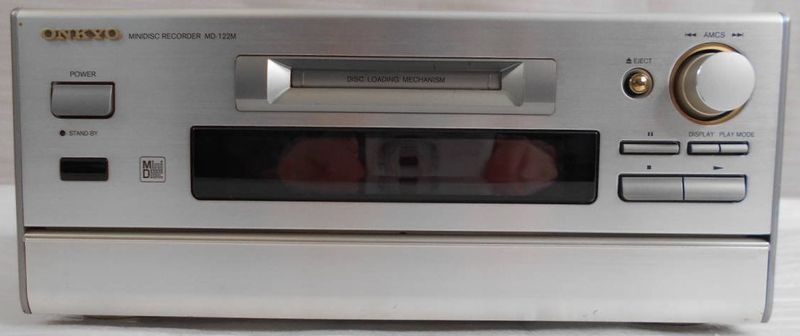

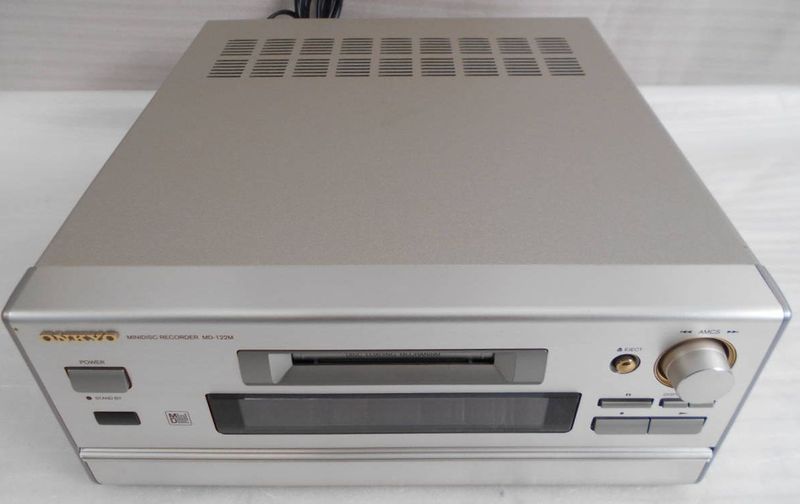

Onkyo MD-122MX

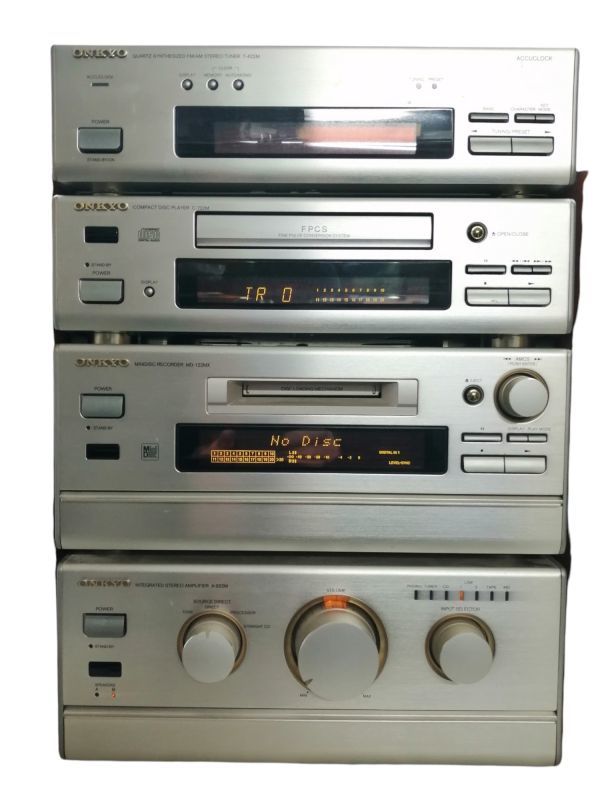

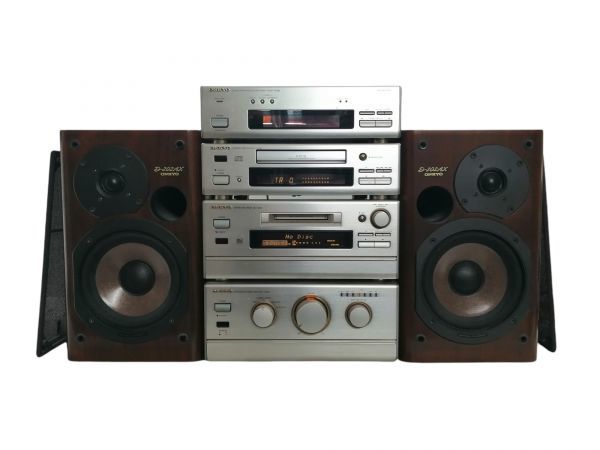

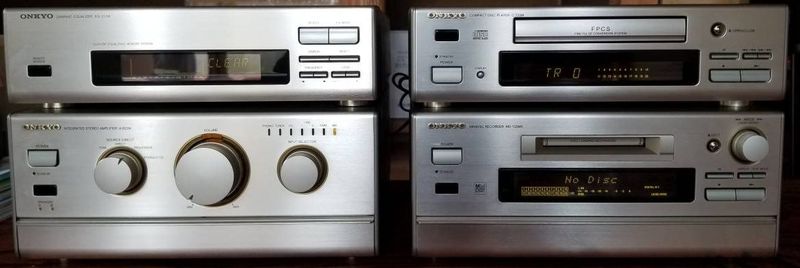

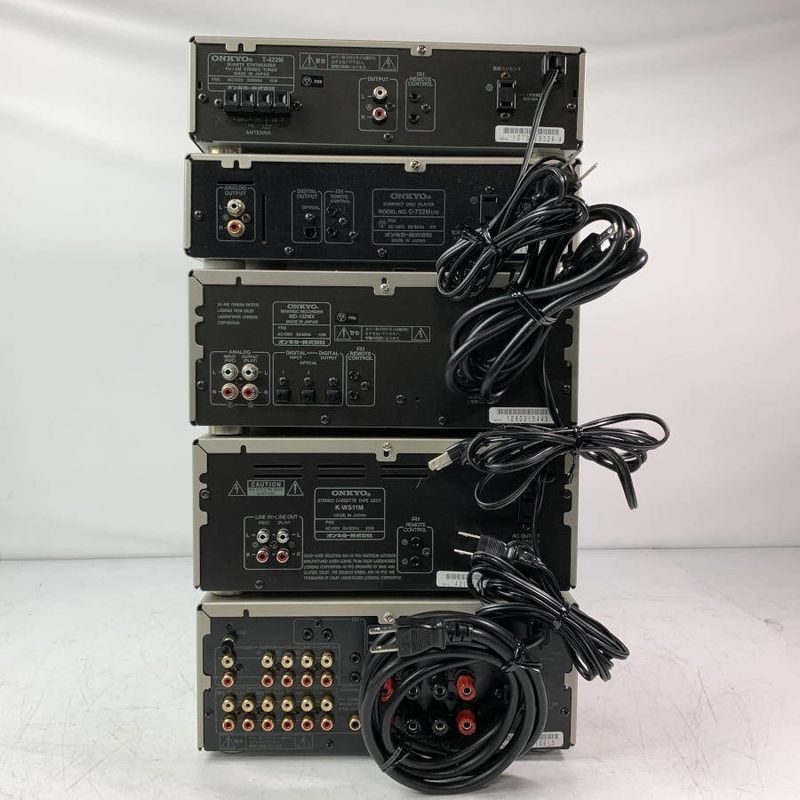

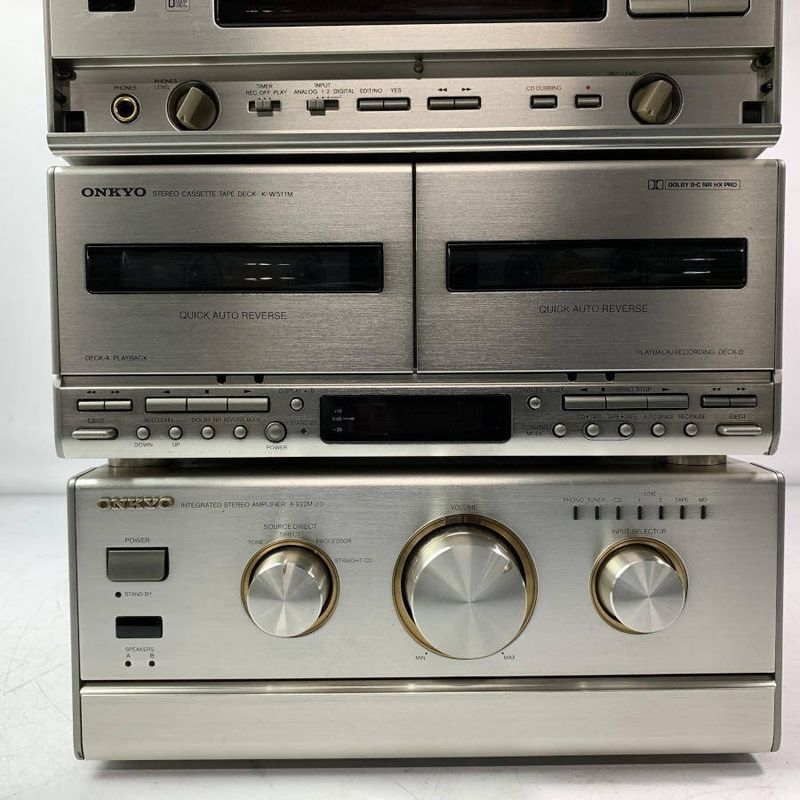

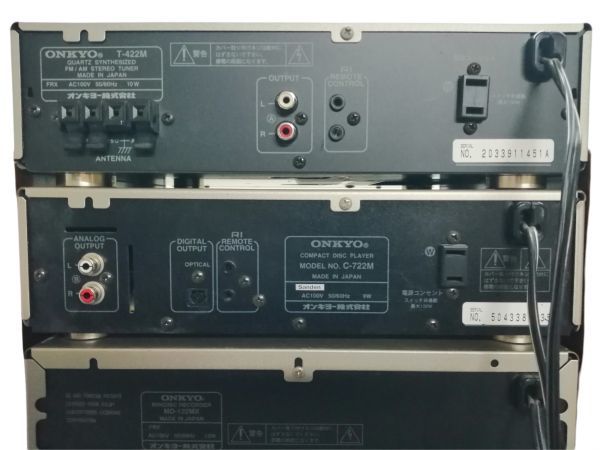

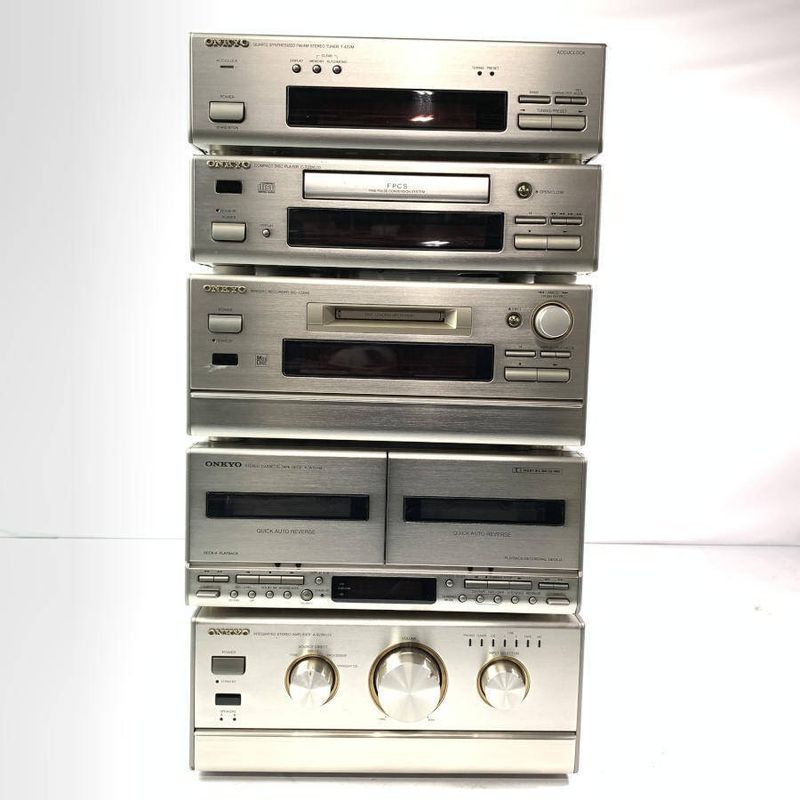

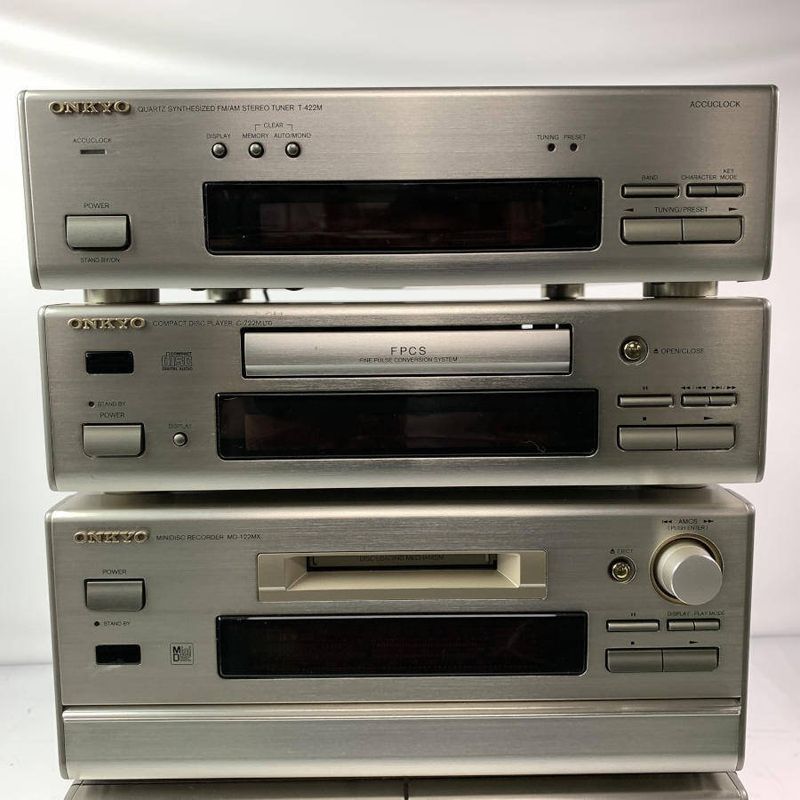

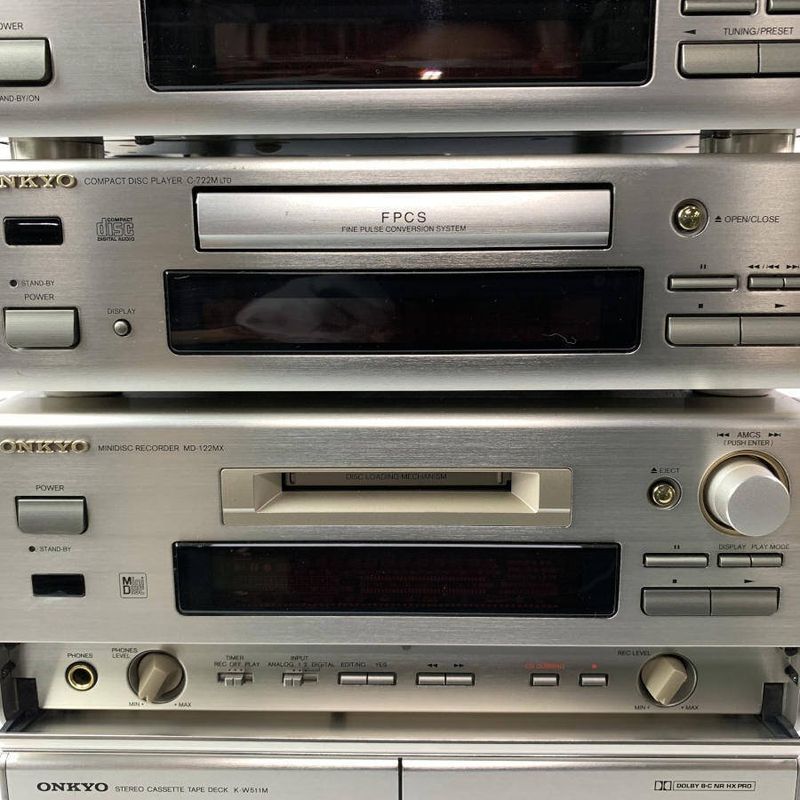

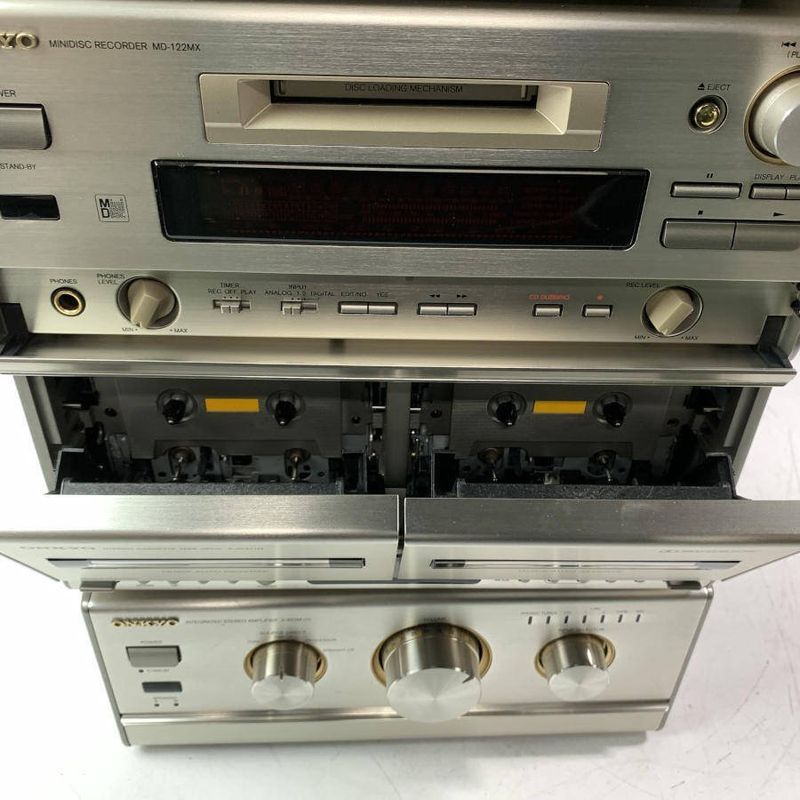

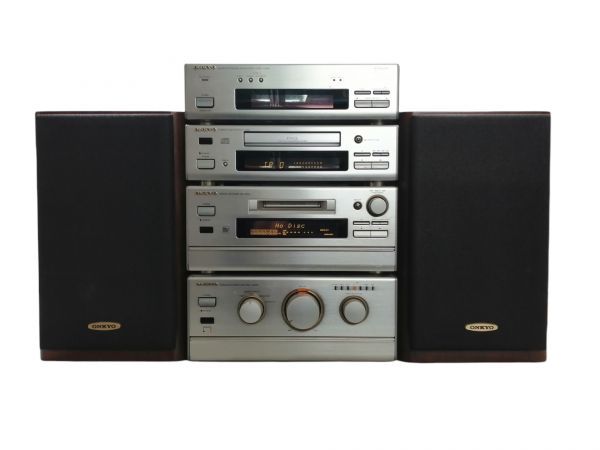

Onkyo MD-122MX - Part of the A-922M LTD set. Also part of the INTEC 275 component series. Used as the MD component of the M9MDX / M7MDX systems.

• Equipped with “20-bit processing” that realizes high-quality recording / playback ● Equipped with a “sampling rate converter” that automatically converts the sampling frequency of 48kHz / 32kHz to 44.1kHz. Digital direct recording from CS-PCM or BS is possible.

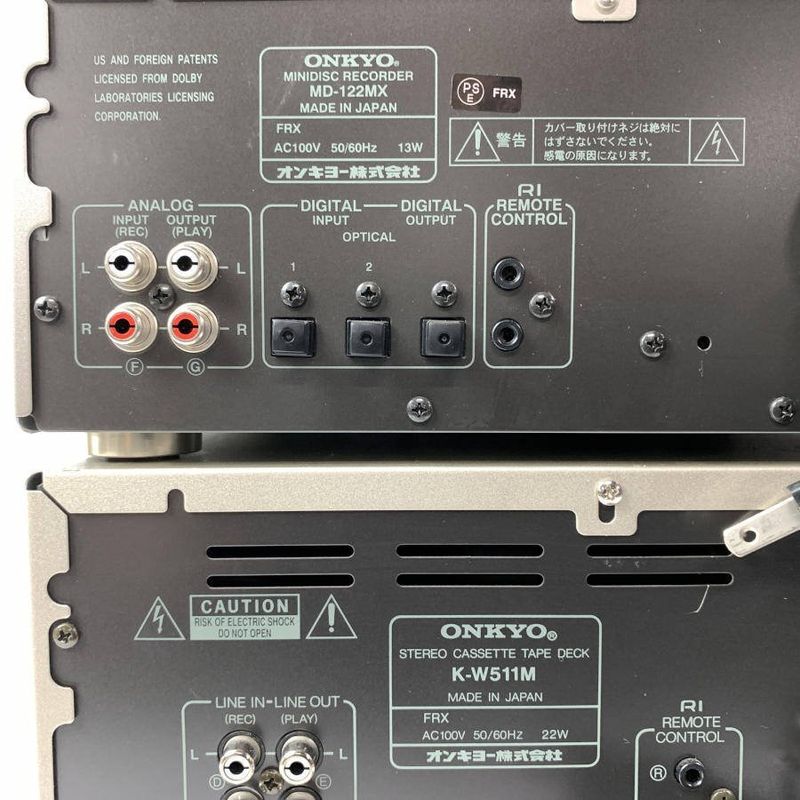

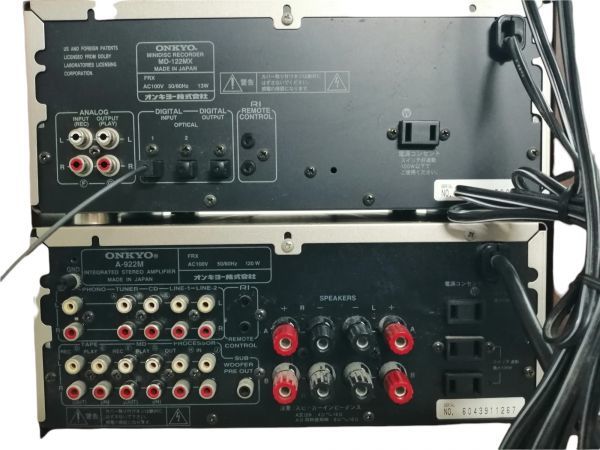

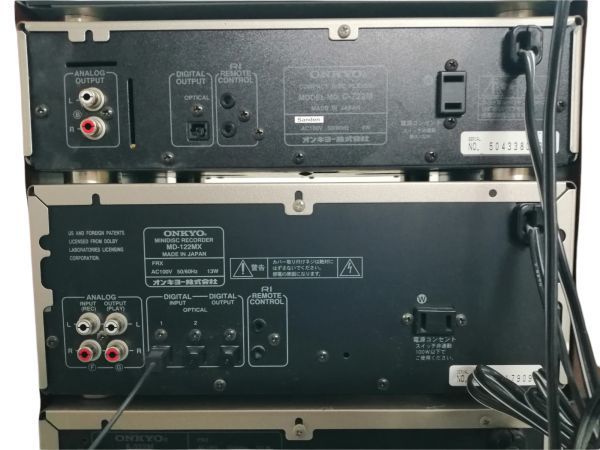

• 2 digital inputs (3 digital inputs, Digital-1, Digital-2, Analog)
• Optical digital output / analog output
• “Title input function” that supports katakana input in addition to alphabets
• Edit function (Divide / Move) / Combine / Erase)
• Direct song selection / program play / music scan / random play / repeat
• CD → MD dubbing command function (only when combined with C-722M)
• Detects and records signals from devices other than the INTEC 275 series “Signal sync recording” that allows you to start / stop
• AMCS dial that allows you to easily use multiple functions
• Level meter　

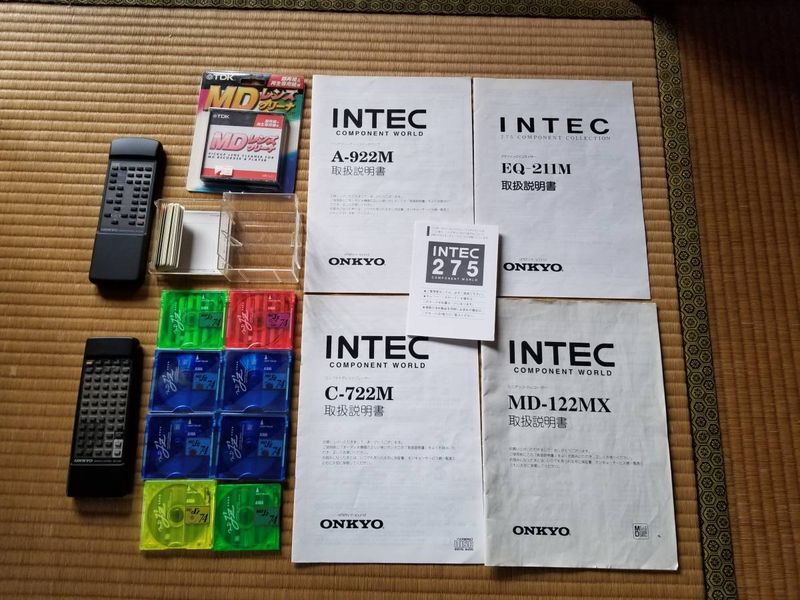

• Single remote control sold separately (RC-339MD)

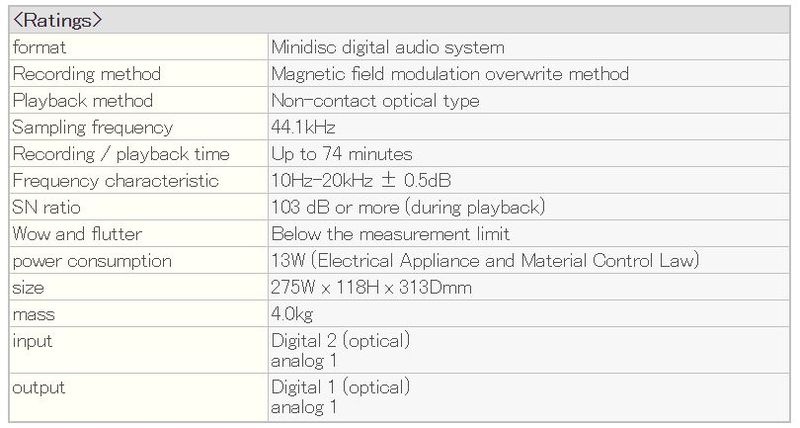

• SN ratio: 103dB or more (at the time of playback)
• Frequency response: 10Hz to 20,000Hz ±0.5dB

Content adapted from: Onkyo Product Page [*] Onkyo Product Page (MiniDisc Wiki mirror) [*] sakura.ne.jp [*] INTEC M9MDX Announcement (uses the MD-122MX) [*] INTEC M9MDX Announcement (uses the MD-122MX) (MiniDisc Wiki mirror) [*] M7MDX (use the dropdown from Intec 275) released 1998-04-30 [*] M7MDX (use the dropdown from Intec 275) released 1998-04-30 (MiniDisc Wiki mirror) [*]
