Onkyo MD-110M
| Name | MD-110M |
|---|---|
| Manufacturer | Onkyo |
| Released | 1995/05 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 275Wx79Hx311Dmm |
| Weight | 3.3Kg |
| ATRAC ver | 3.5 |
| Power cable | AC |
| Price (launch) | |
| ¥76 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | 3.5mm control |
Features: Synchro recording.
- 48kHz/32kHz sampling rates are automatically converted to 44.1kHz with on-board sampling rate converter. Direct digital recording from CS-PCM or BS (Broadcast Satellite) is possible.
- Optical Digital/Analog output.
- Optical Digital (2) / Analog input.
- Alphabet as well as Katakana input using “Dial Input Function”.
- Edit Functions (Divide/Move/Combine/Erase).
- Direct track select / program play / music scan / random play / repeat.
- Many functions are easily usable with AMCS dial.
- Level meter.
- Easy to use remote.
- R-810M Remote / Program Timer connection.
- Series CD player / CD Changer synchro recording possible (Digital/Analog).
Infrared remote included: Onkyo RC-301MD
The deck can also be controlled through the RI jack, allowing integration with other Onkyo stereo components.
Specifications
- Frequency Response: 15-20,000Hz +/- 0.5dB
- SN ratio: over 98dB (playback)
- Wow and flutter: unmeasureable
- Power consumption:19W
- Dimensions 275Wx79Hx311Dmm
- Weight 3.3kg
Content adapted from: Minidisc.org Page [*]
Manuals
None found
Repair
(repair links go here)

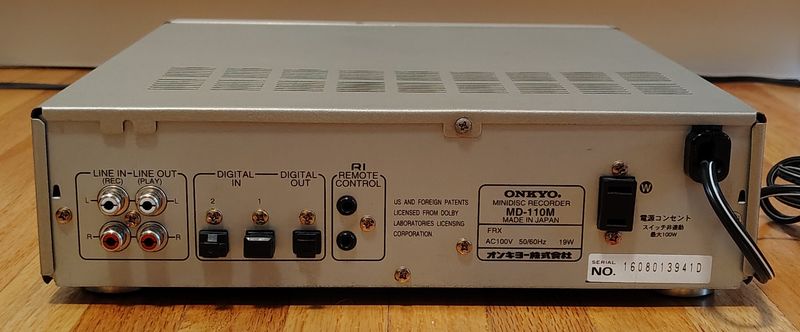

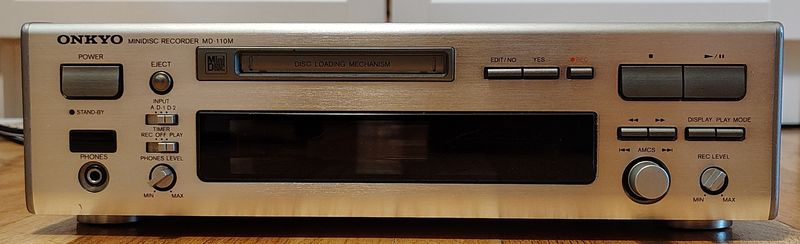

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
